Audio Digital Signal Processing Module Connector

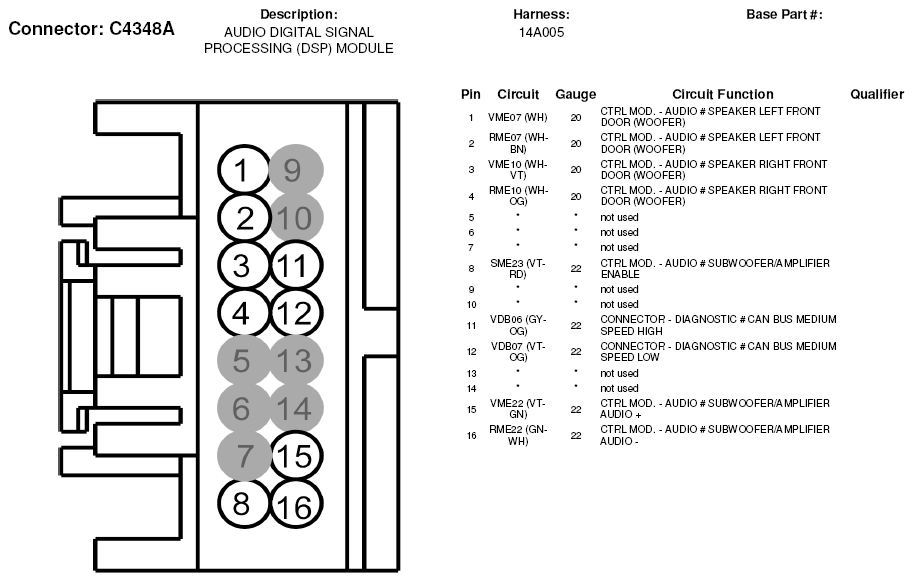

Fig 1: Audio Digital Signal Processing Module Connector End View (C4348A)

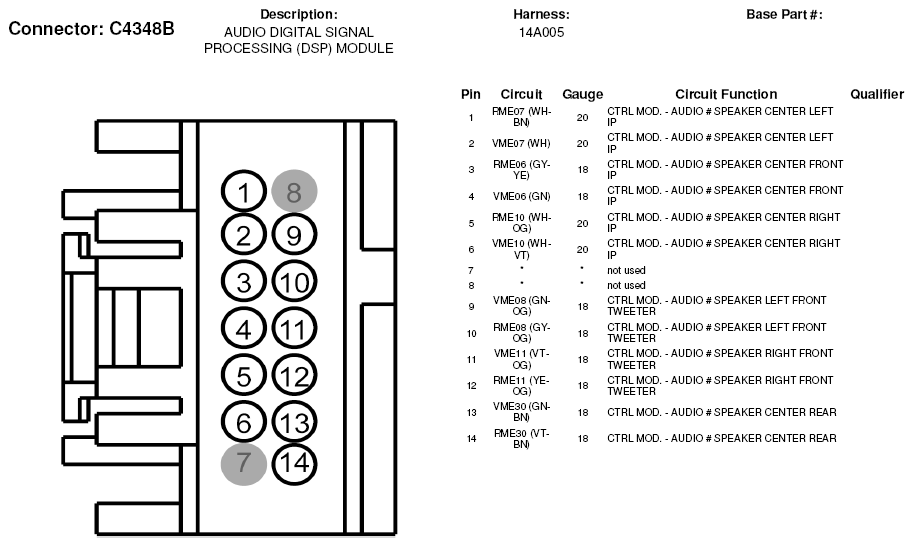

Fig 2: Audio Digital Signal Processing Module Connector End View (C4348B)

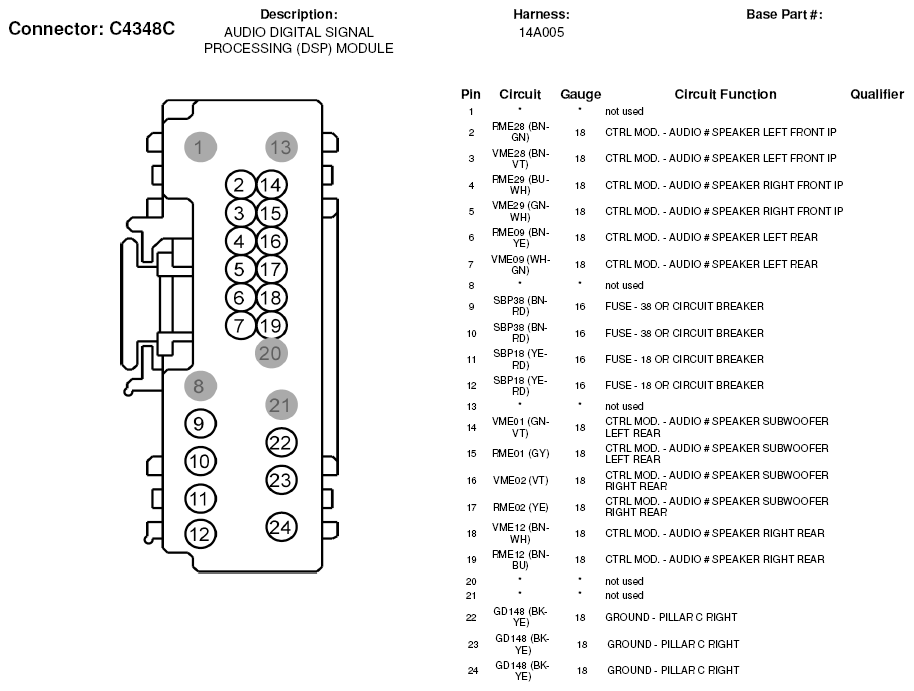

Fig 3: Audio Digital Signal Processing Module Connector End View (C4348C)
