Lower Intake Manifold: Notes

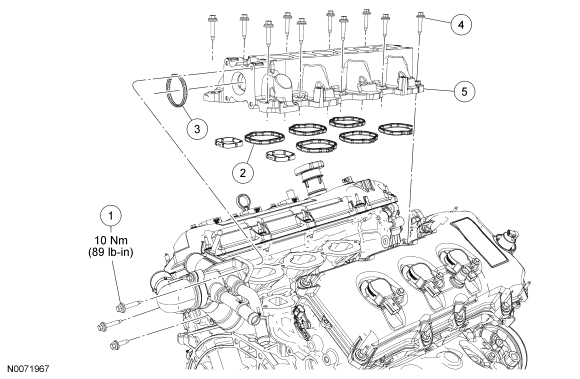

Fig 1: Lower Intake Manifold With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503279	Thermostat housing-to-lower intake manifold bolt (3 required)
2	9439	Lower intake manifold gasket (8 required)
3	8A571	Thermostat housing gasket
4	W503279	Lower intake manifold bolt (10 required)
5	9K461	Lower intake manifold
