Upper Intake Manifold: Installation

  1. Using new gaskets, install the upper intake manifold and the 6 bolts.
    • Tighten in the sequence shown to 10 Nm (89 lb-in).

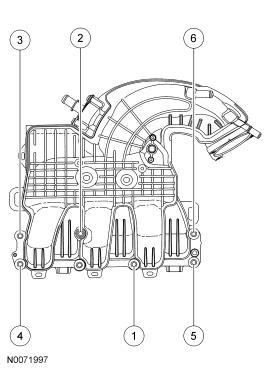

    2. Fig 1: Identifying Bolt Sequence
    GF0043856Courtesy of FORD MOTOR CO.
  2. Install the upper intake manifold support bracket bolt.
    • Tighten to 10 Nm (89 lb-in).
  3. Attach the wiring harness retainers to the upper intake manifold.
  4. Connect the PCV tube to the PCV valve.
  5. Connect the brake booster vacuum hose to the intake manifold.
  6. Connect the EVAP tube to the intake manifold.
  7. Connect the TB electrical connector.
  8. Install the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING article.
