Valve Cover - RH: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Handle | 205-153 (T80T-4000-W) | |
| Installer, Seal | 303-1247/2 | |
| Remover, Seal | 303-1247/1 |
Material
| Item | Specification |
|---|---|
| Motorcraft High Performance Engine RTV Silicone TA-357 |
WSE-M4G323-A6 |
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Silicone Gasket Remover ZC-30 |
- |

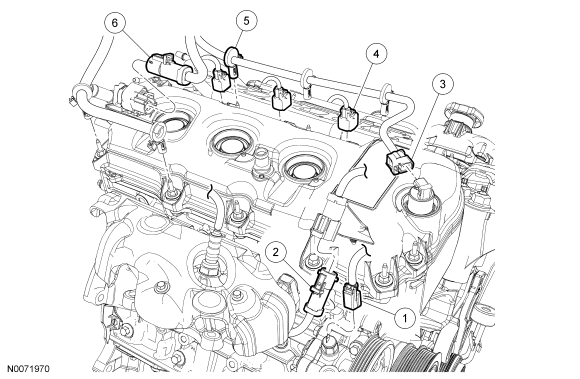

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Power steering pressure (PSP) switch electrical connector (part of 12C508) |
| 2 | 14A464 | RH catalyst monitor sensor electrical connector (part of 12C508) |
| 3 | 14A464 | RH variable camshaft timing (VCT) electrical connector (part of 12C508) |
| 4 | 14A464 | RH fuel injector electrical connector (3 required) (part of 12C508) |
| 5 | W700497 | Engine control wiring harness retainer (part of 12C508) |
| 6 | 14A464 | RH heated oxygen sensor (HO2S) electrical connector (part of 12C508) |

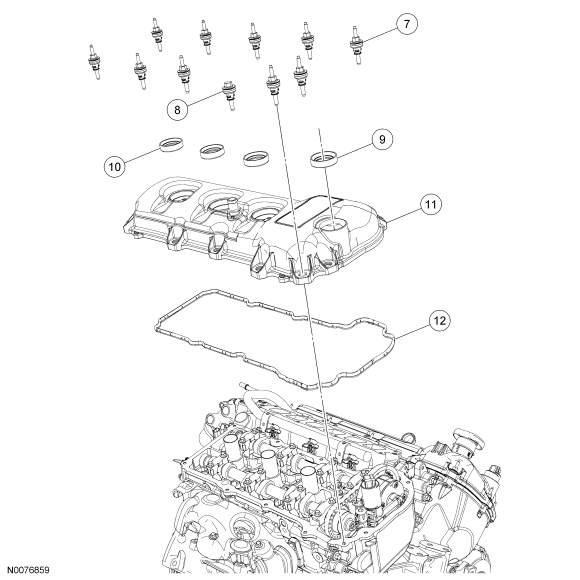

| Item | Part Number | Description |
|---|---|---|
| 7 | 6C519 | Valve cover stud bolt (10 required) |
| 8 | 6C520 | Valve cover bolt |
| 9 | 6C535 | VCT seal |
| 10 | 6C535 | Spark plug tube seal (3 required) |
| 11 | 6582 | RH valve cover |
| 12 | 6584 | RH valve cover gasket |
