Upper Intake Manifold: Notes

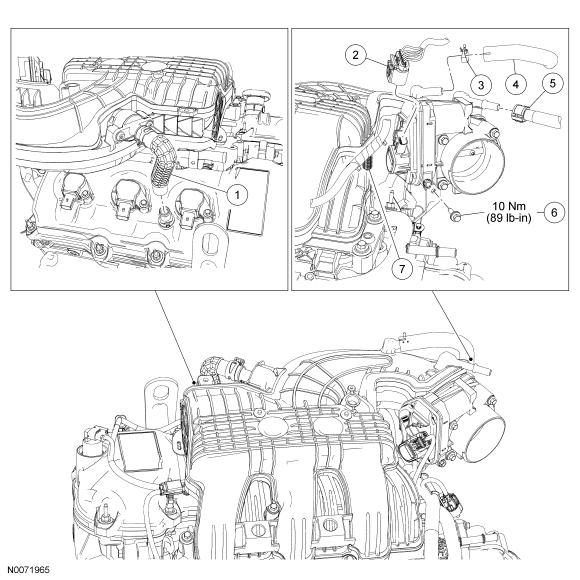

Fig 1: Upper Intake Manifold With Torque Specifications
GF0043854Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6K817 PCV hose
2 14A464 Throttle body (TB) electrical connector (part of 12C508)
3 CS16140 Brake booster-to-intake manifold vacuum hose clamp
4 6K817 Brake booster-to-intake manifold vacuum hose
5 9D661 Evaporative emissions (EVAP)-to-intake manifold tube
6 W503274 Upper intake manifold support bracket bolt
7 - Engine control wiring harness retainer (part of 12C508)

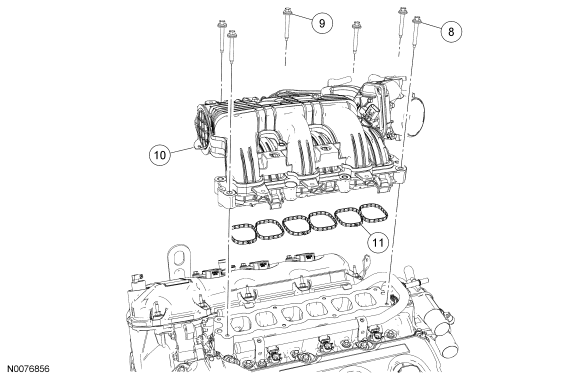

Fig 2: Identifying Upper Intake Manifold
GF0043855Courtesy of FORD MOTOR CO.
Item Part Number Description
8 W503282 Upper intake manifold bolt (5 required)
9 W707083 Upper intake manifold bolt
10 9S455 Upper intake manifold
11 9H486 Upper intake manifold gasket (3 required)
