Speed Control Switch

SPEED CONTROL SWITCH

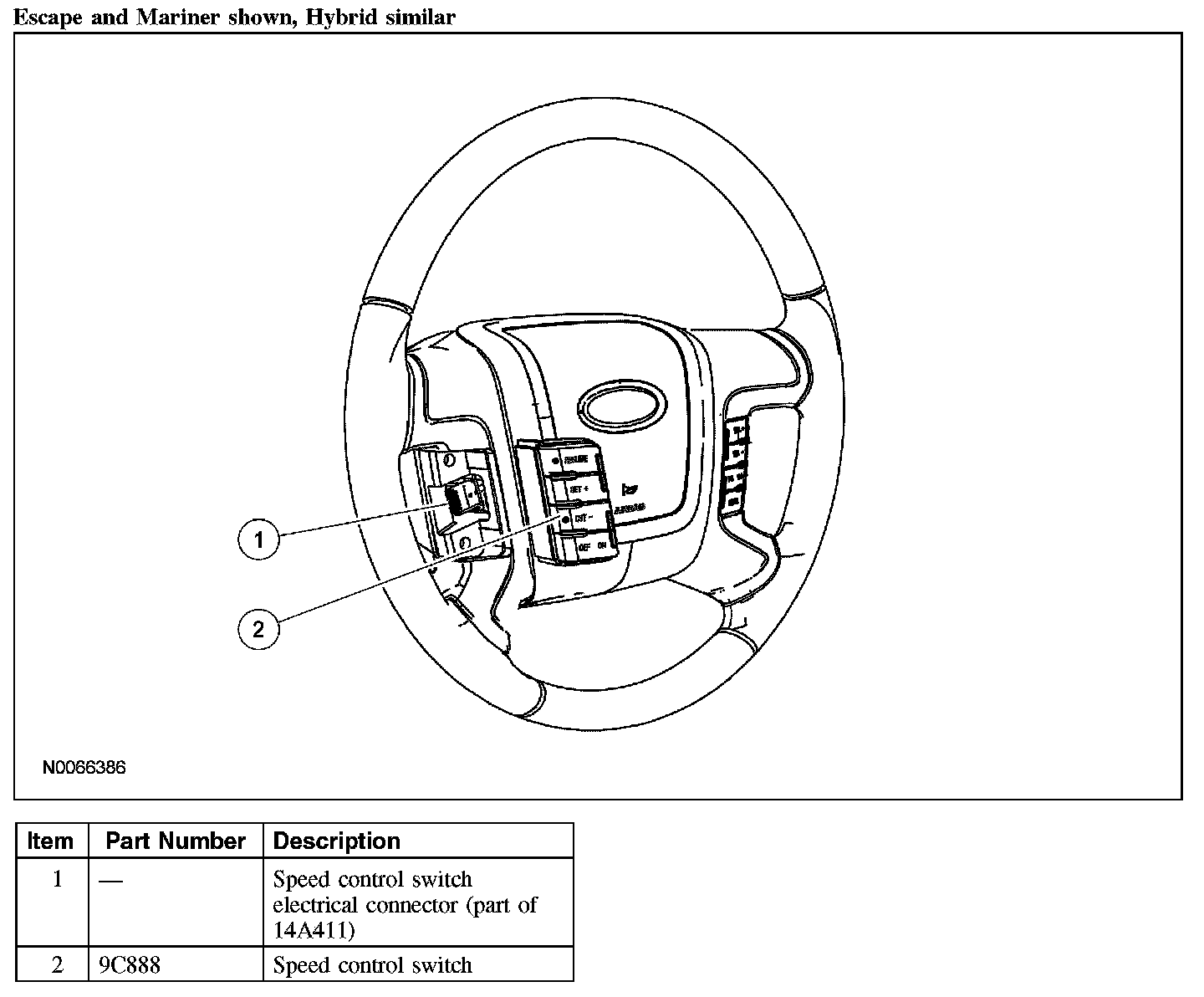

Escape and Mariner Shown, Hybrid Similar:






Removal and Installation
1. Remove the speed control switch by pulling the switch toward the rear of the vehicle.
- Disconnect the electrical connector.

2. To install, reverse the removal procedure.
