Oil Pan, Engine

Engine Lubrication Components - Exploded View

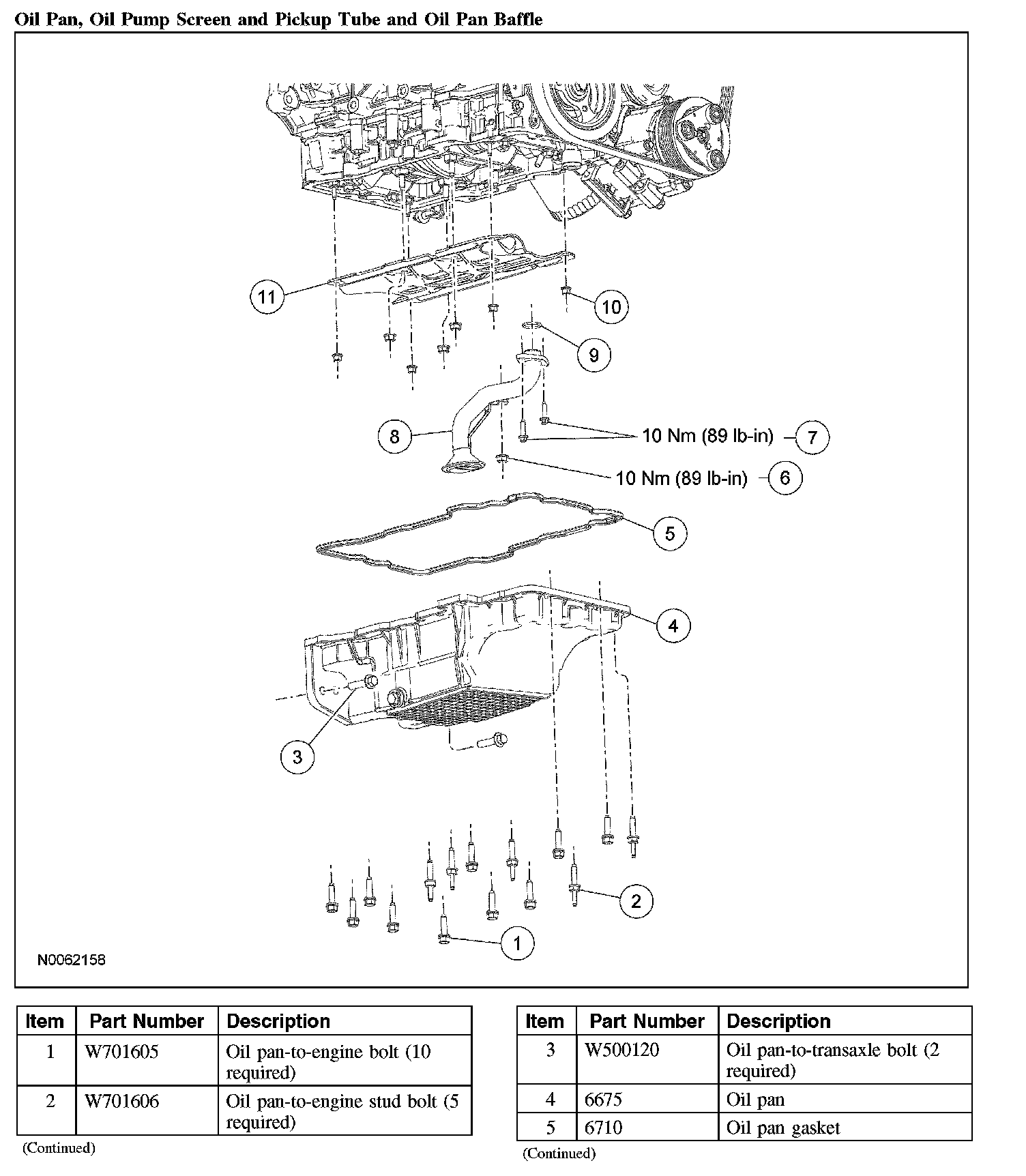

Oil Pan, Oil Pump Screen and Pickup Tube and Oil Pan Baffle (Part 1):

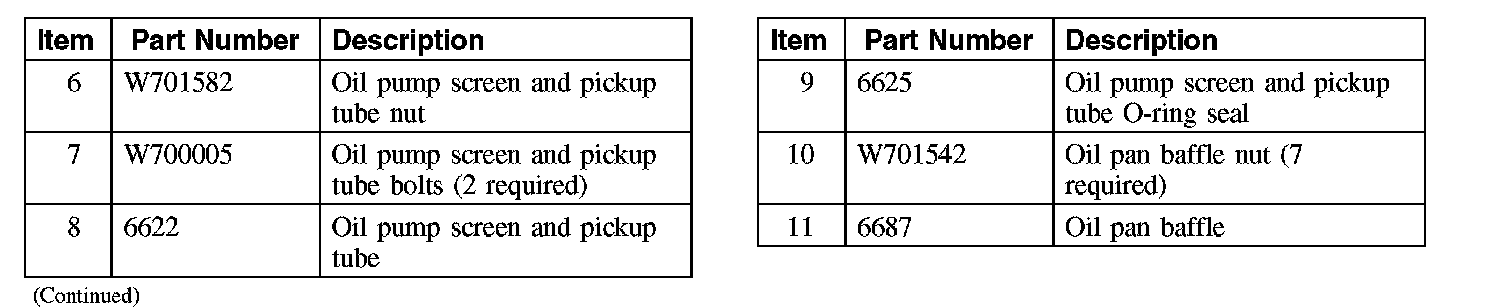

Oil Pan, Oil Pump Screen and Pickup Tube and Oil Pan Baffle (Part 2):
