Connector Locations

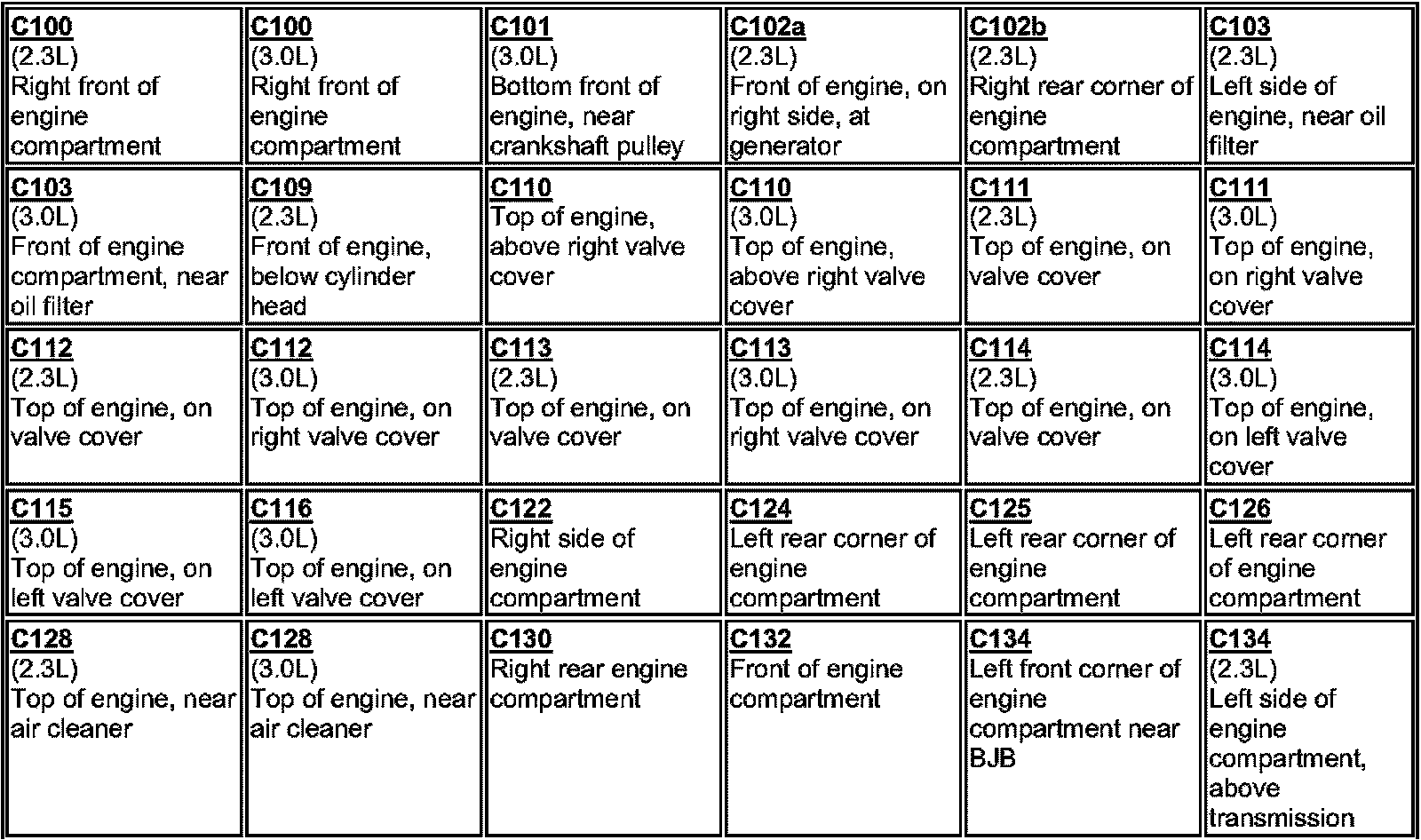

C100-C134:

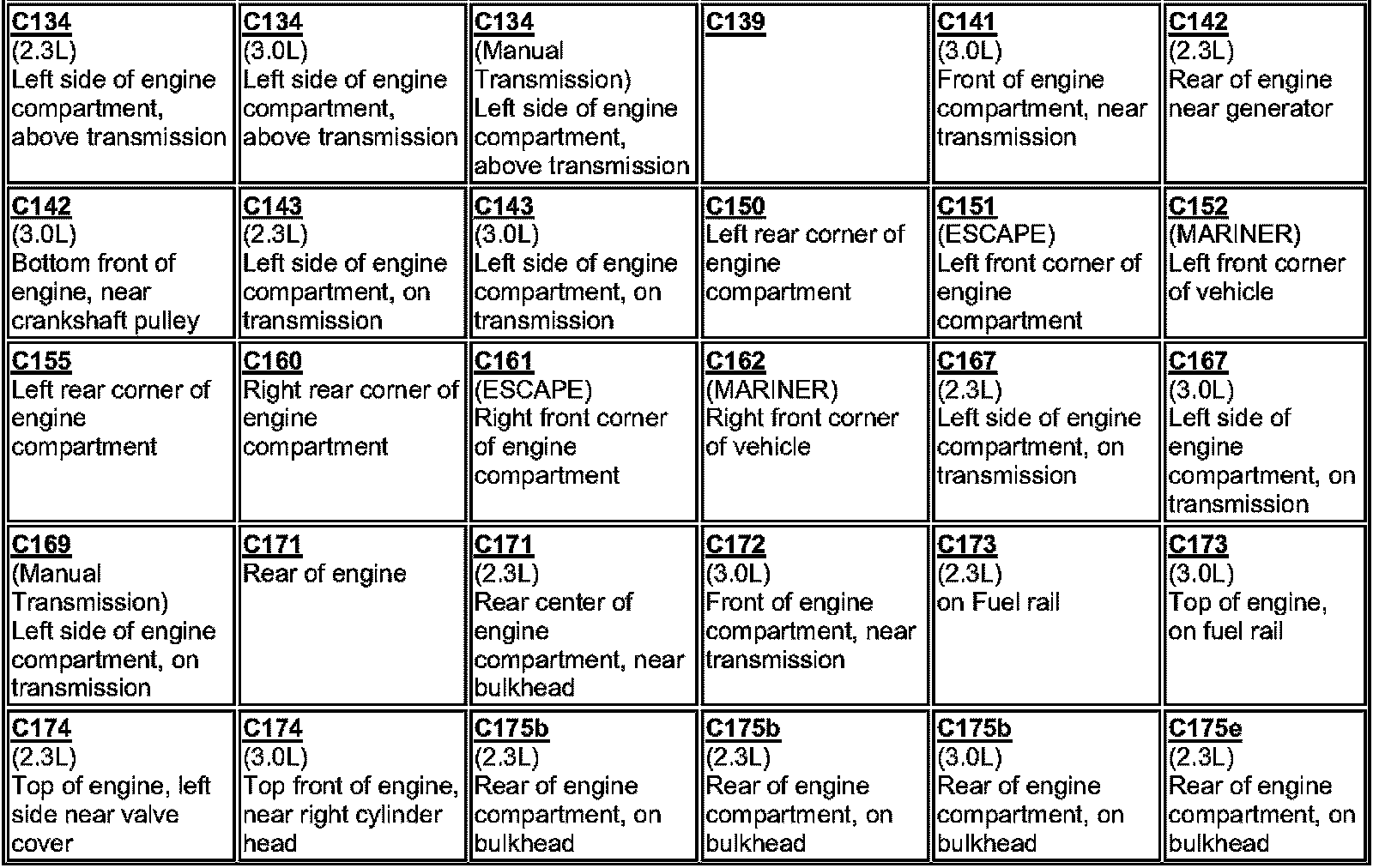

C134-C175e:

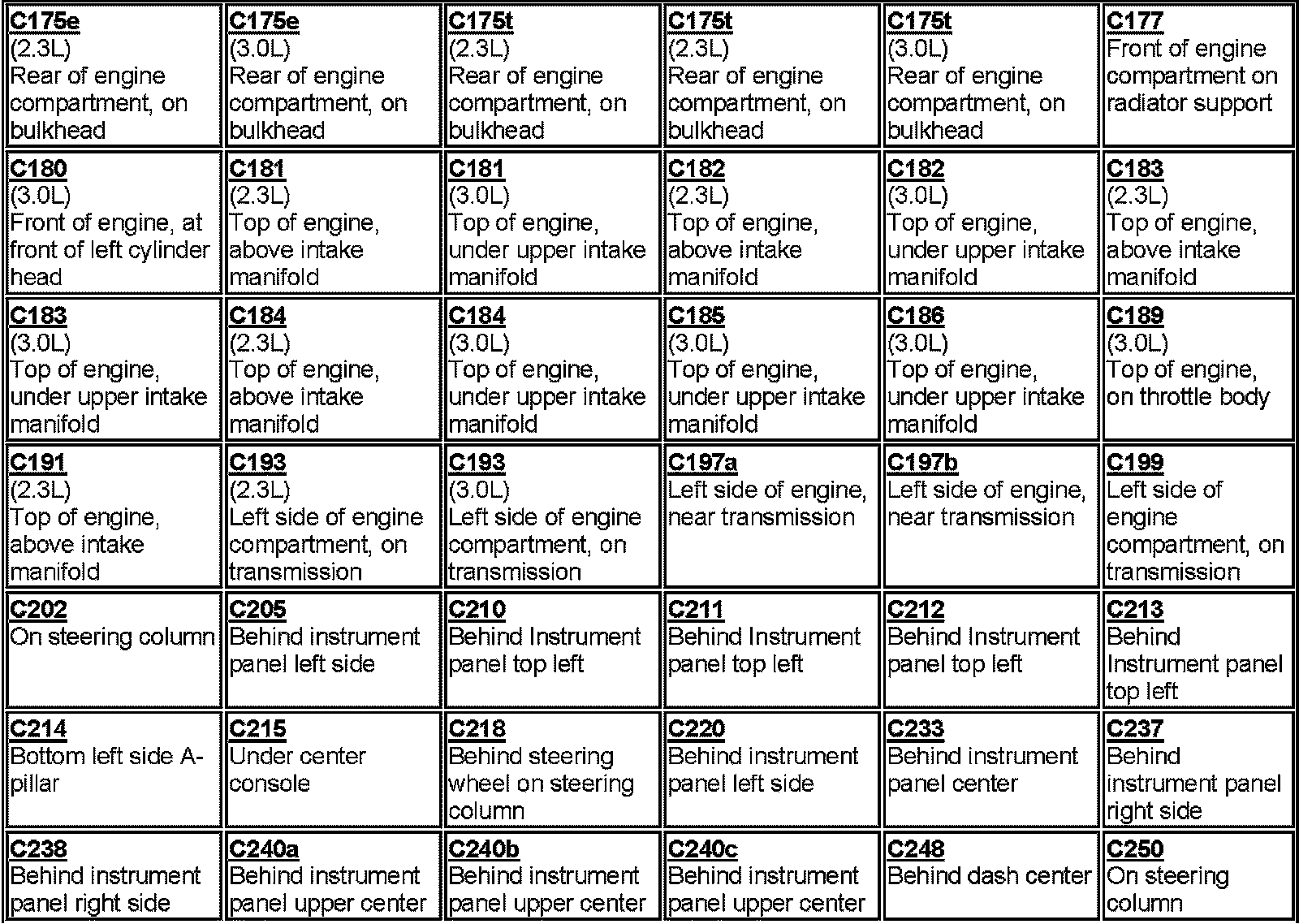

C175e-C250:

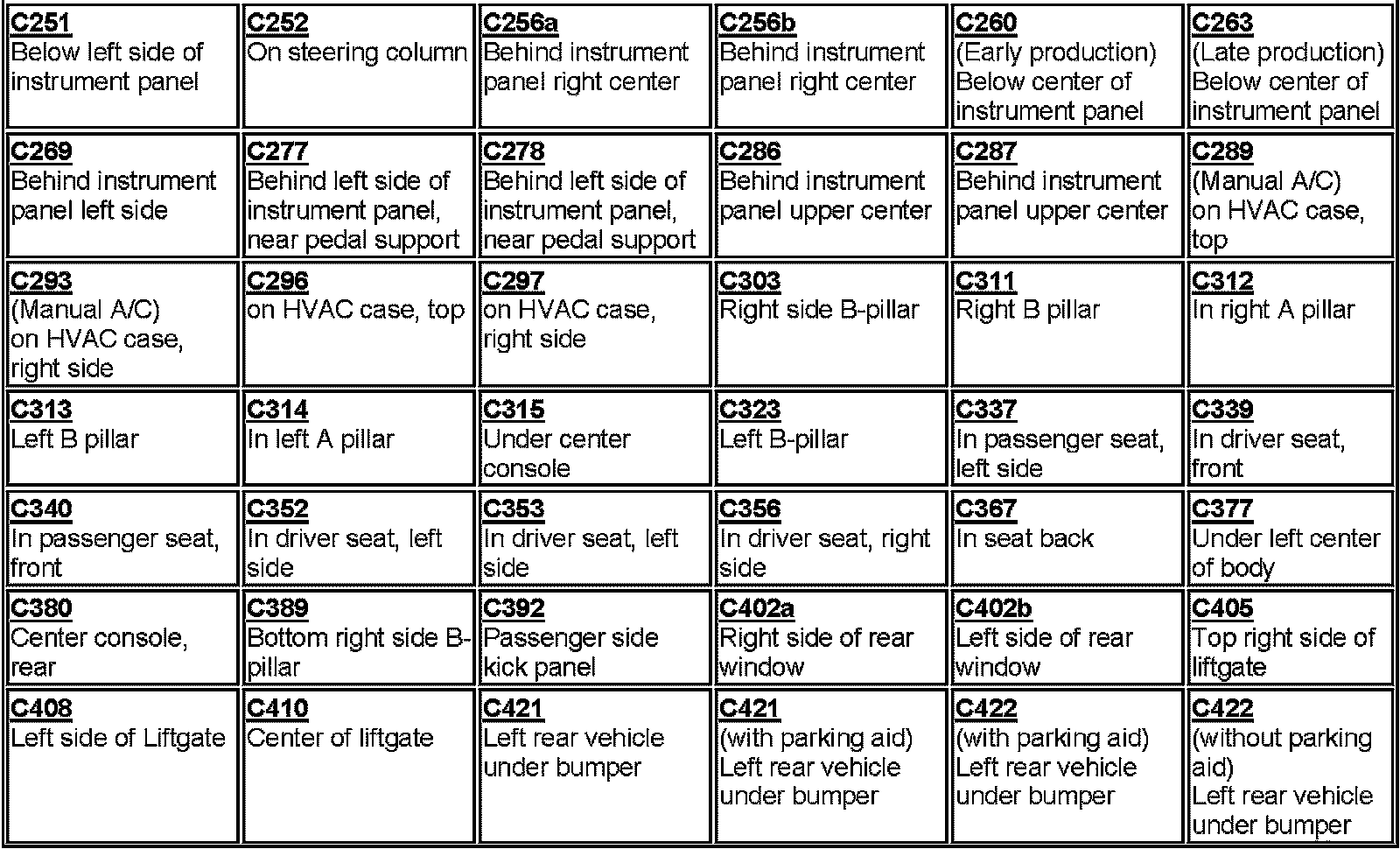

C251-C422:

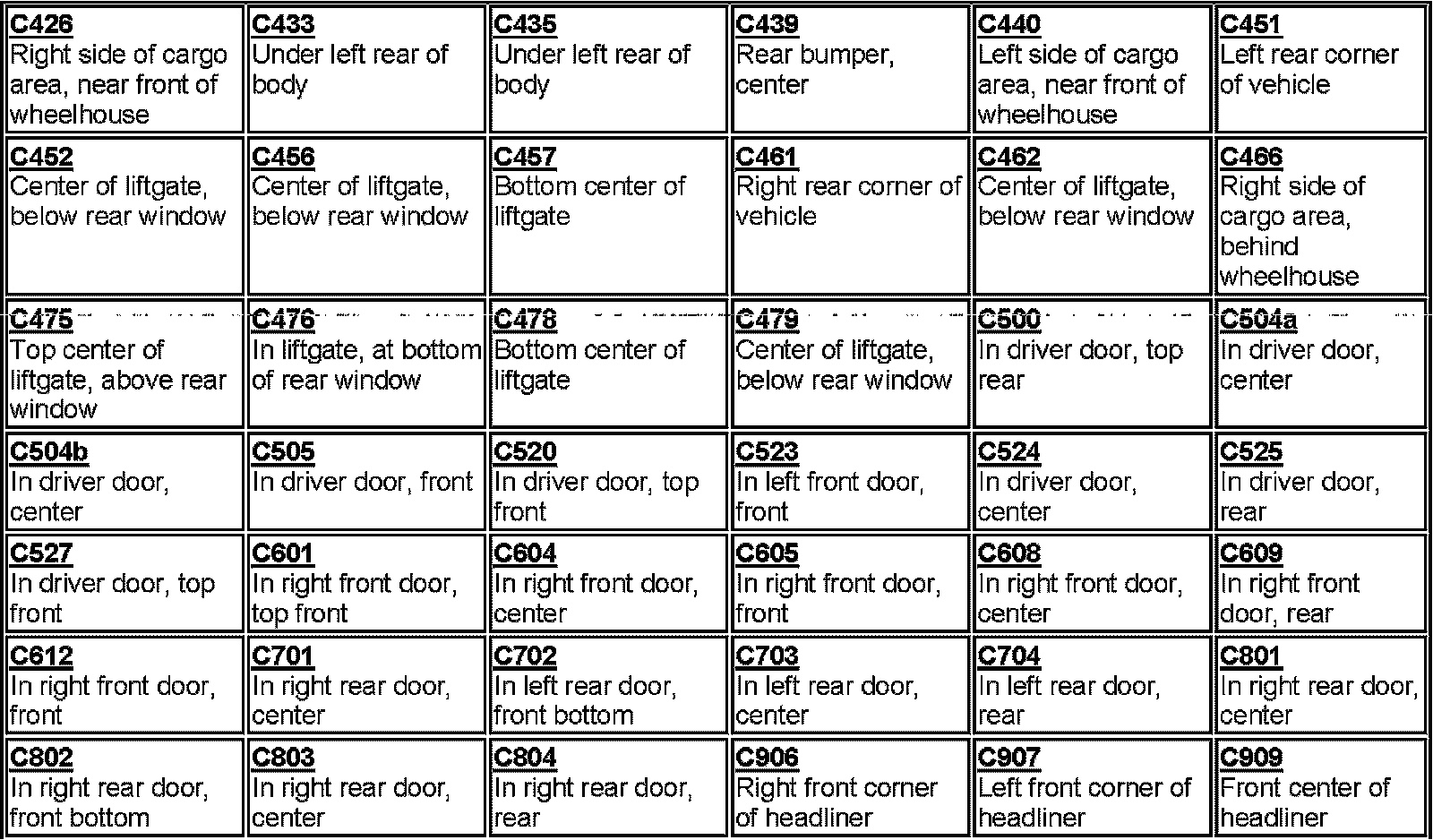

C426-C909:

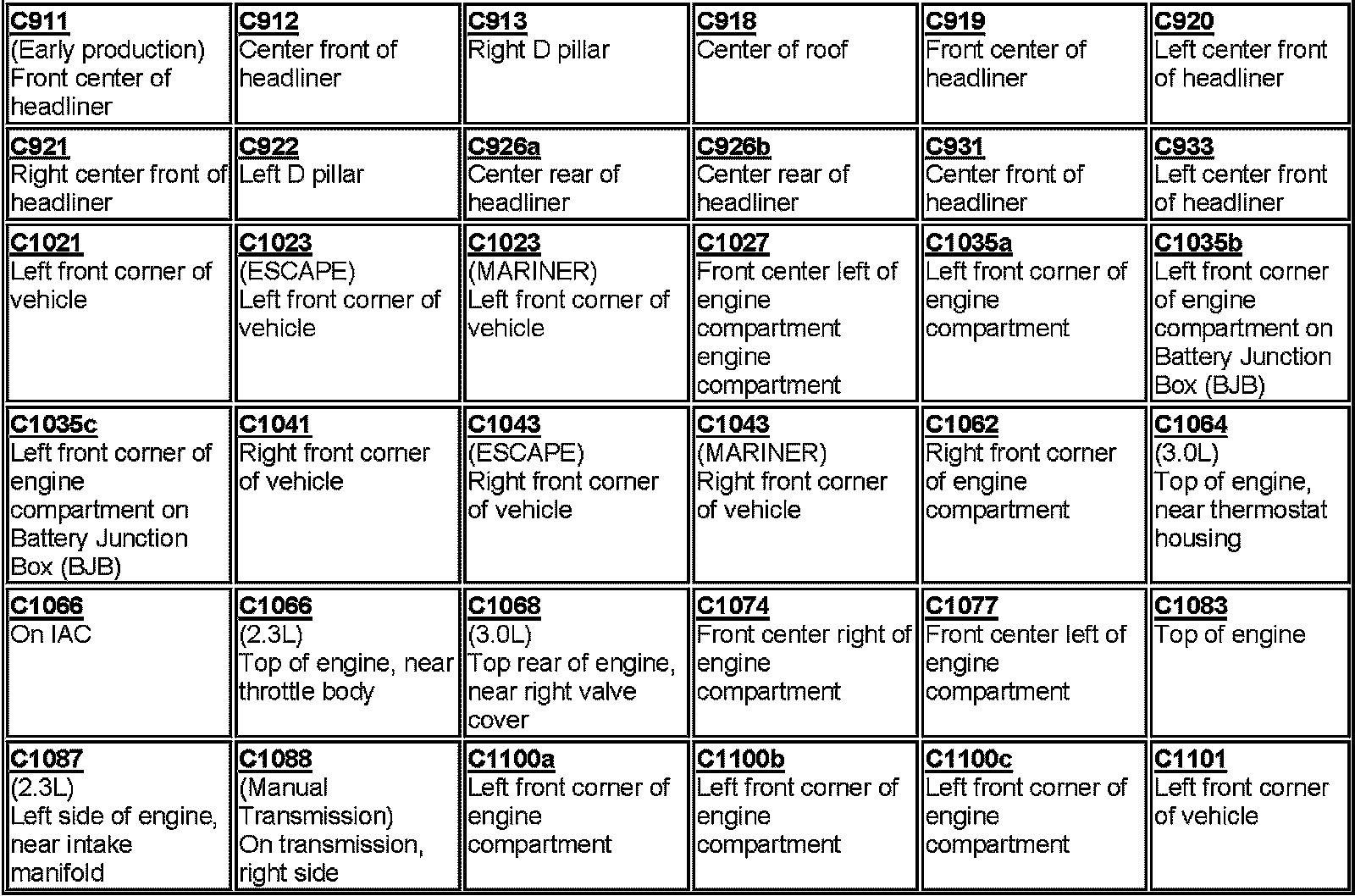

C911-C1101:

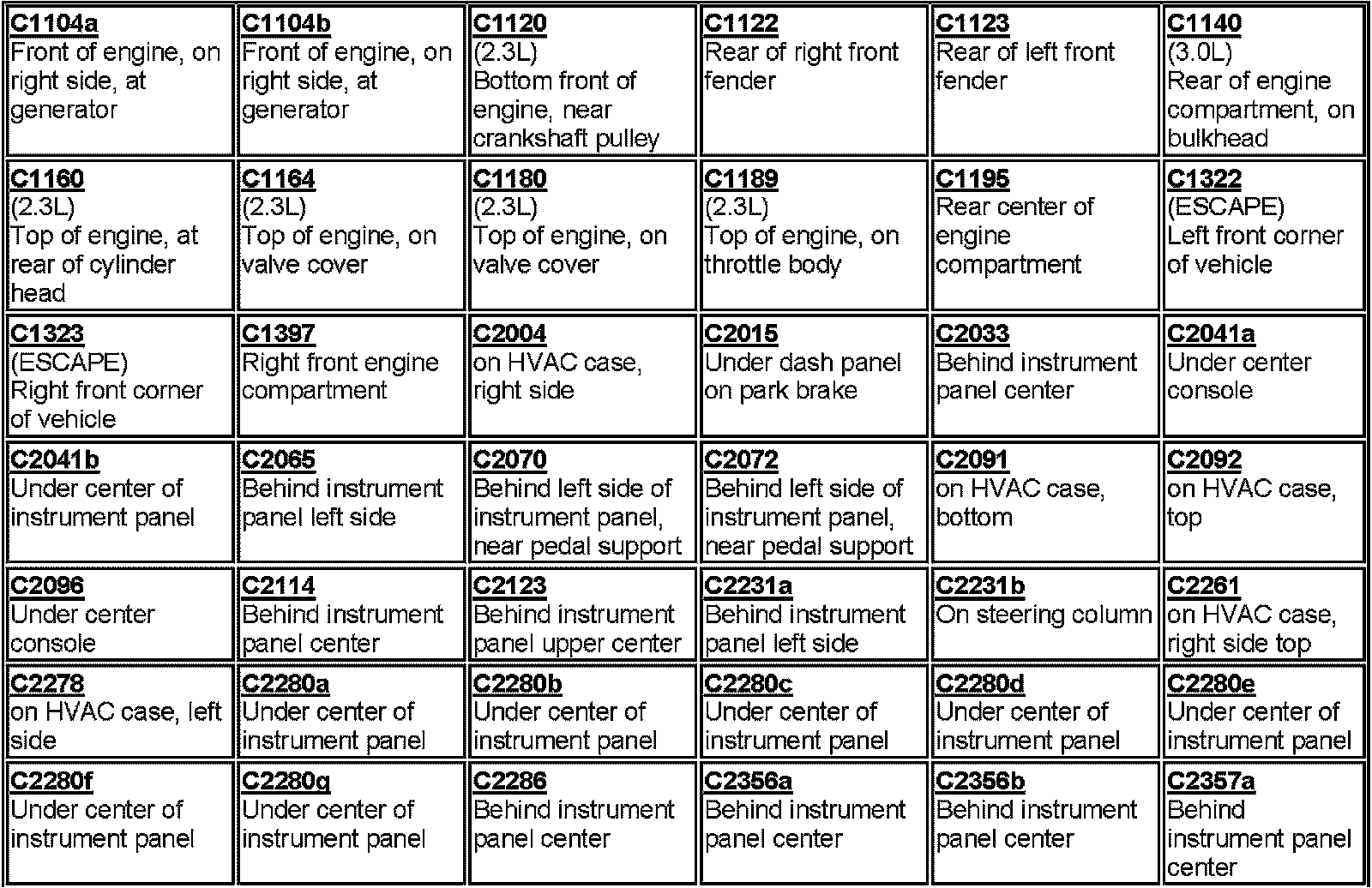

C1104a-C2357a:

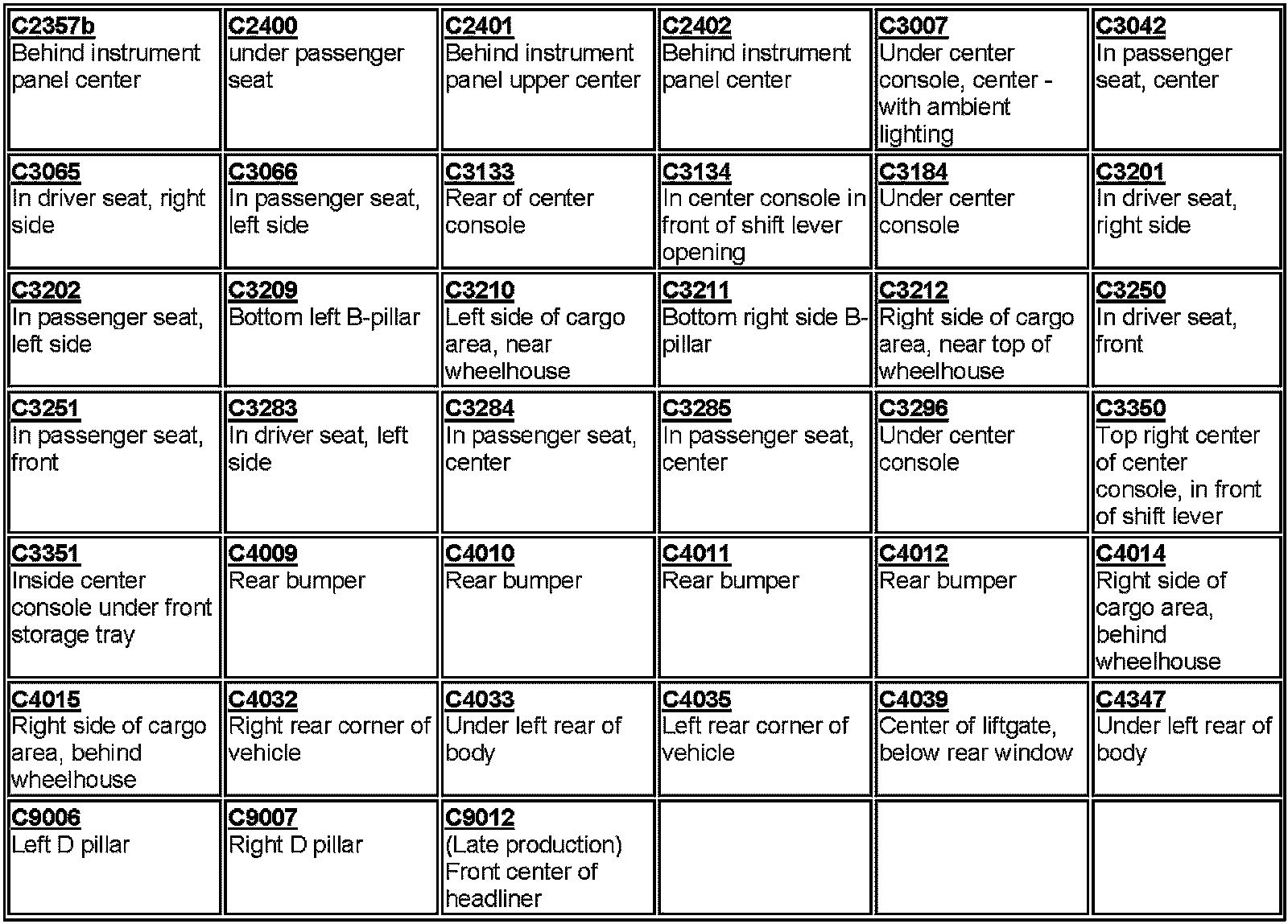

C2357b-C9012:
