Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR







Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

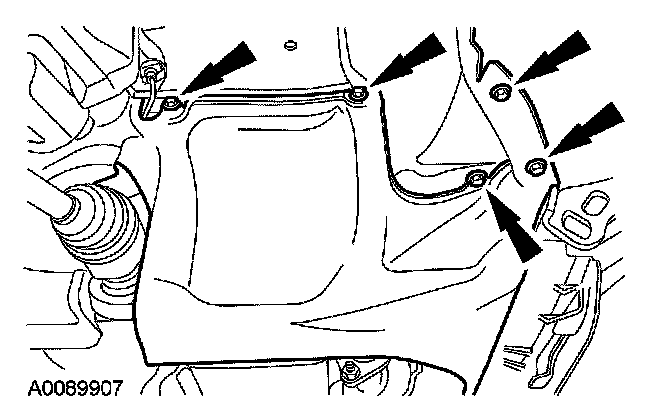

2. Remove the 5 bolts and the RH splash shield.
- To install, tighten to 9 Nm (80 lb-in).

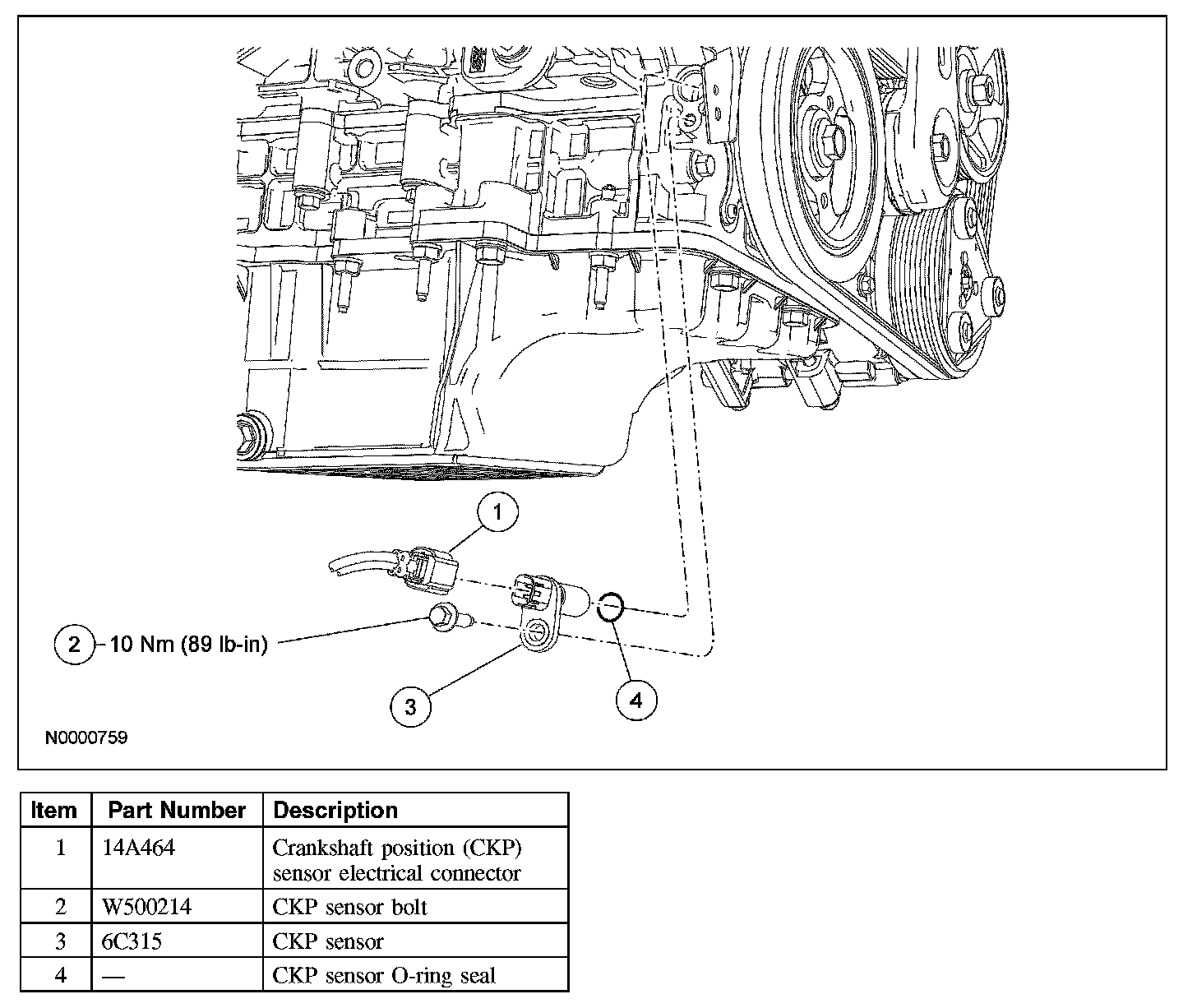

3. Disconnect the crankshaft position (CKP) sensor electrical connector.
4. Remove the bolt and the CKP.
- To install, tighten to 10 Nm (89 lb-in).
- Inspect the O-ring seal and install new as necessary.

5. NOTE: Lubricate the CKP O-ring seal with clean engine oil.

To install, reverse the removal procedure.
