Throttle Position Sensor: Service and Repair

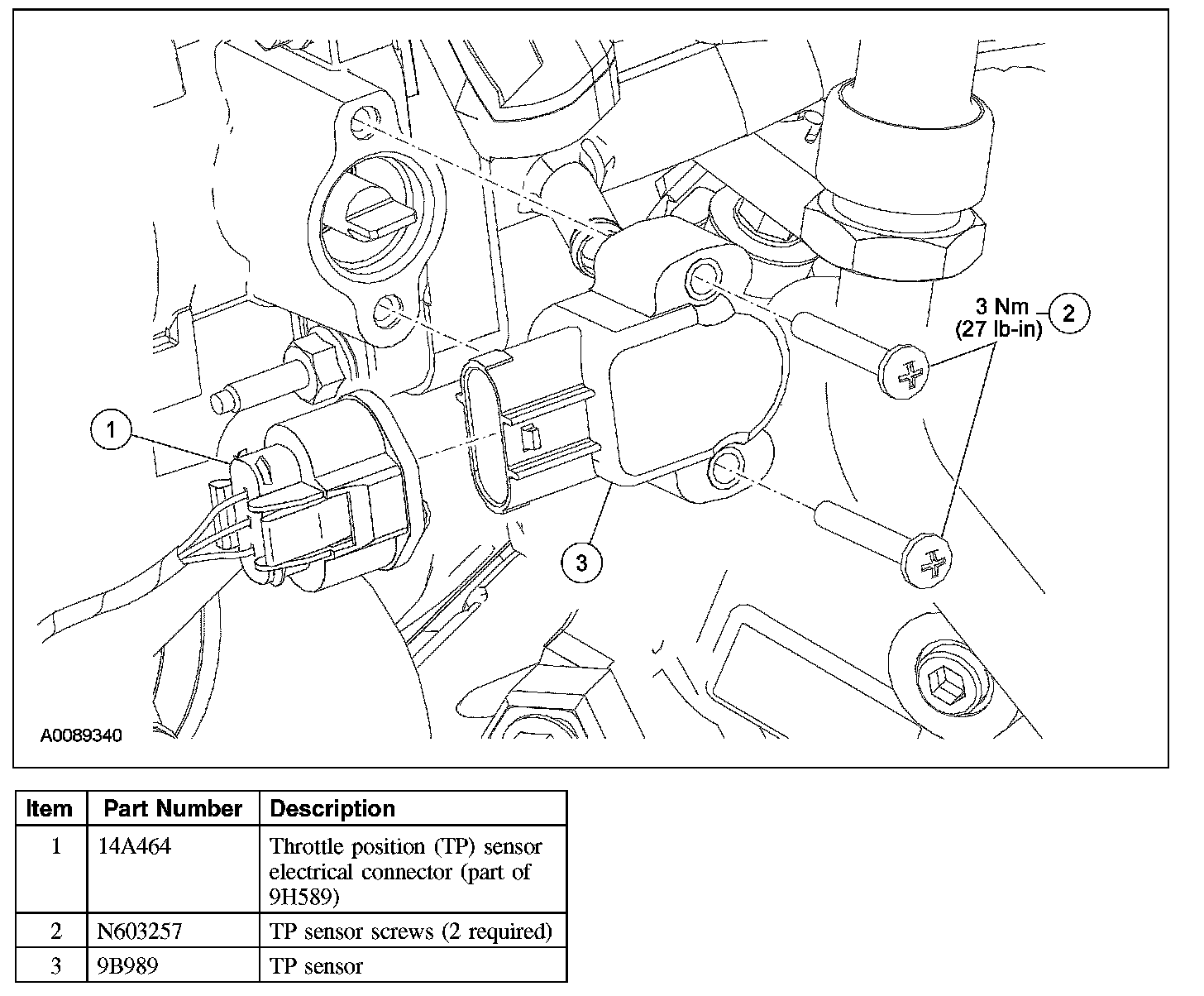

THROTTLE POSITION (TP) SENSOR







Removal and Installation
1. Disconnect the throttle position (TP) sensor electrical connector.
2. Remove the 2 screws and the TP sensor.
- To install, tighten to 3 Nm (27 lb-in).

3. To install, reverse the removal procedure.
