Pinpoint Tests

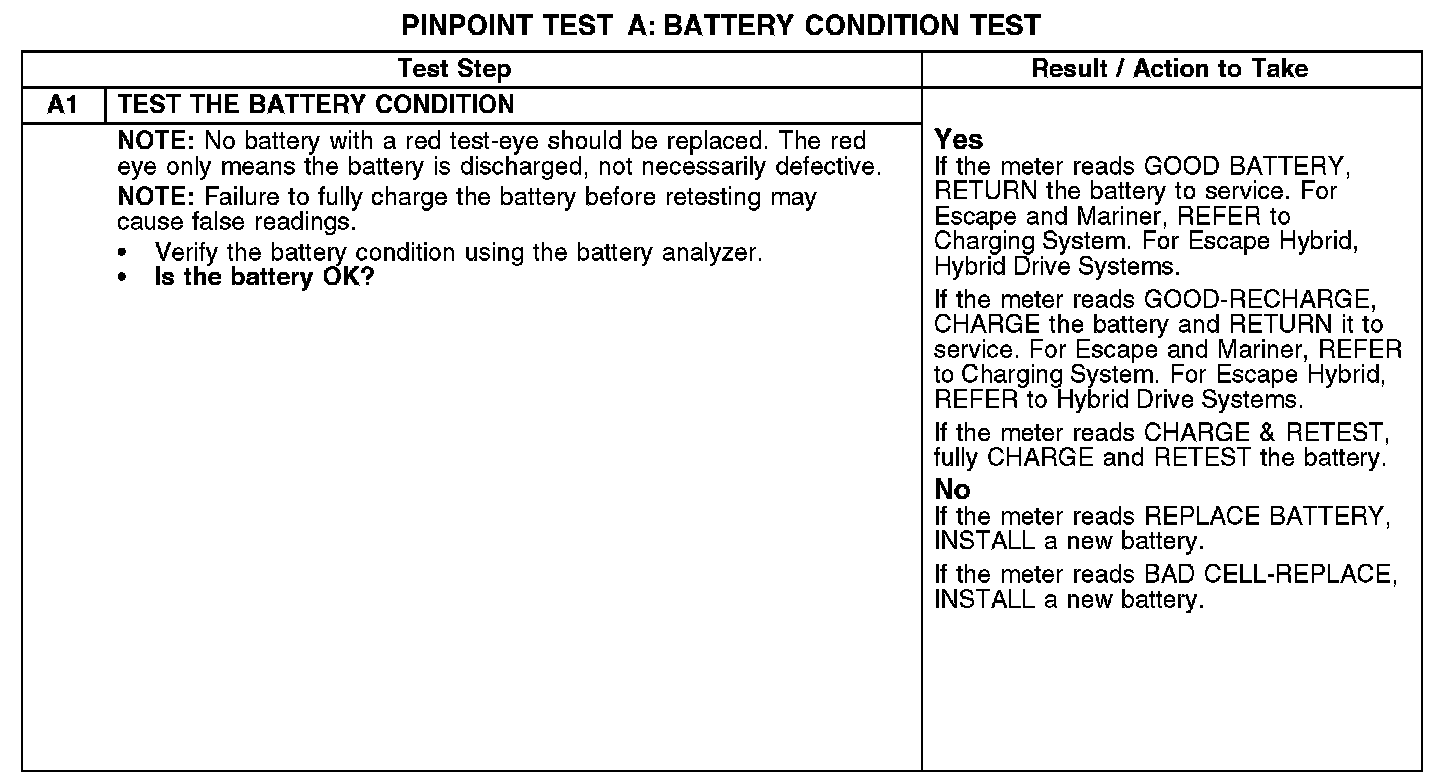

PINPOINT TEST A: BATTERY CONDITION TEST

This pinpoint test is intended to diagnose the following:
Battery
- 12-volt battery (non-Hybrid) vehicles)
- 12-volt battery (Hybrid vehicles)


A1:
