Ignition Switch: Service and Repair

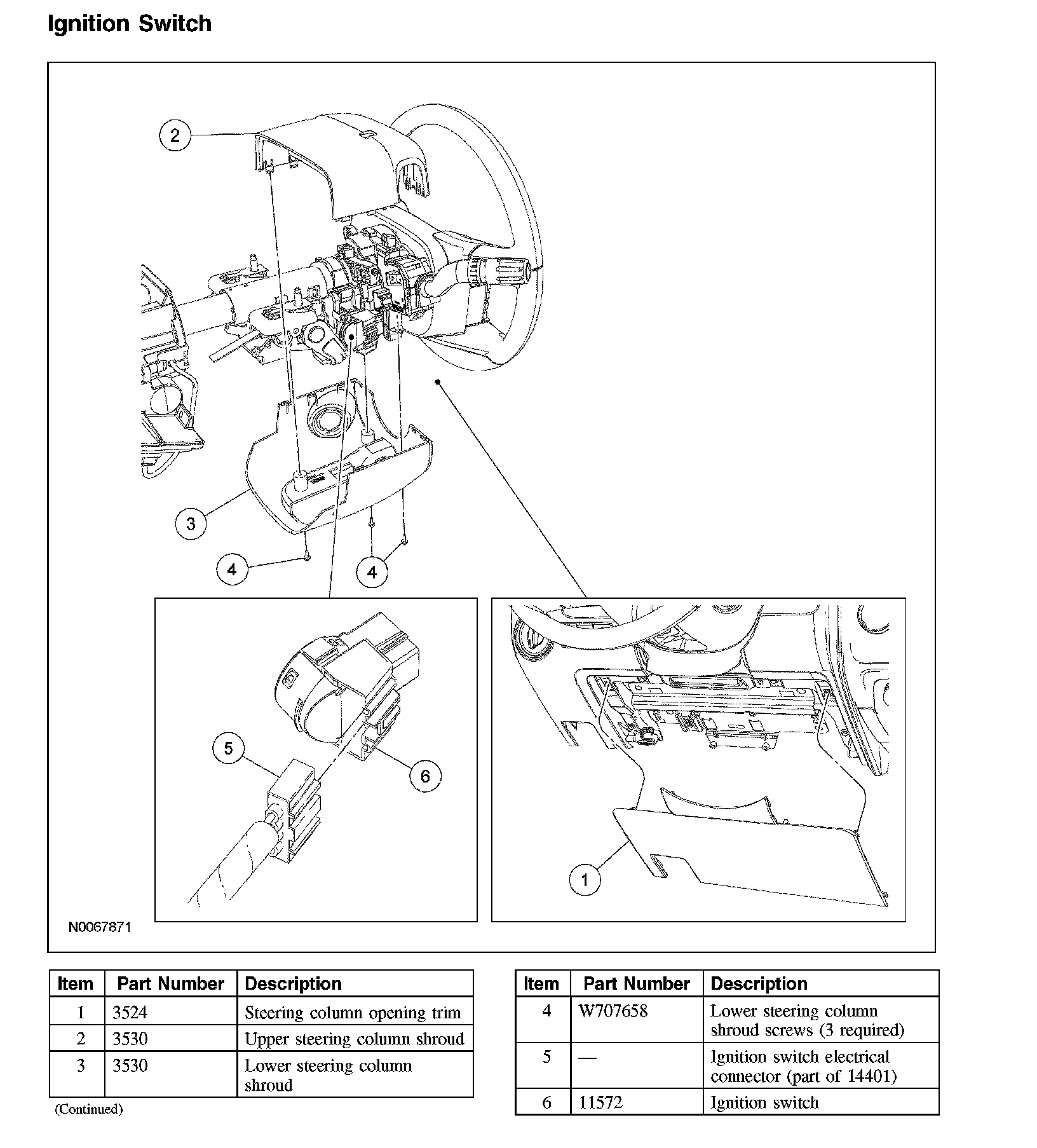

Ignition Switch

Ignition Switch:

Removal and Installation

CAUTION: Do not remove the ignition lock cylinder and the ignition switch at the same time or damage to the column may result.

1. Remove the steering column opening trim.
2. Remove the 3 lower steering column shroud screws.
3. Remove the upper and lower steering column shrouds.
4. Disconnect the ignition switch electrical connector.
5. Remove the ignition switch by pressing the 2 tabs and pulling the ignition switch outward.
6. To install, reverse the removal procedure.
