Control Module: Service and Repair

Four Wheel Drive (4WD) Control Module

Removal and Installation





1. Remove the floor console.

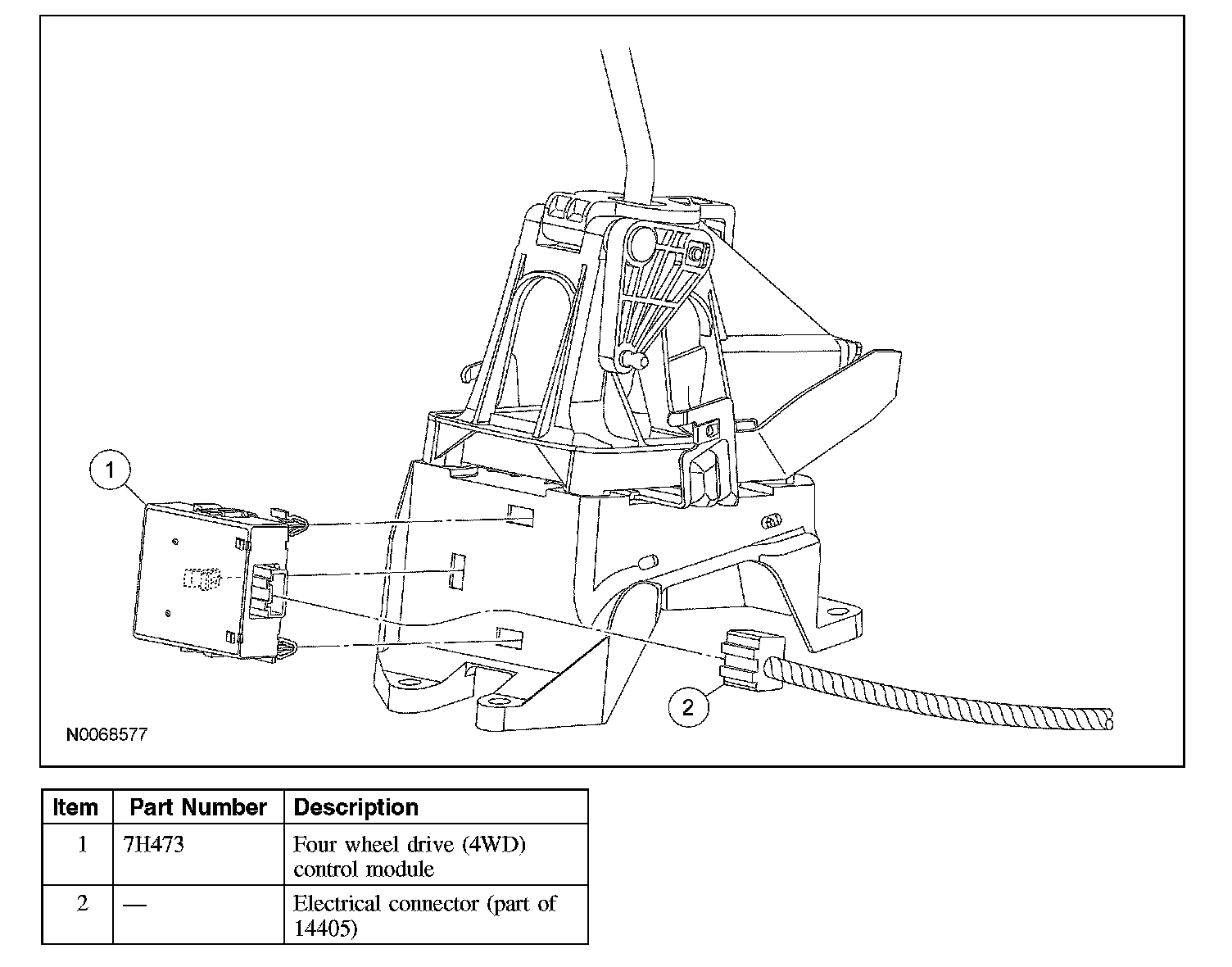

2. Disconnect the electrical connector.
3. Lift upward on the module to release the fasteners from the shifter base. Remove the four wheel drive (4WD) control module.
4. To install, reverse the removal procedure.
