Keyless Entry Transmitter: Service and Repair

LIFTGATE LATCH REMOTE CONTROL

Removal and Installation

NOTE: The liftgate latch remote control is available with power liftgate only.

1. Remove the liftgate trim panel.
2. Position the watershield aside.

3. CAUTION: Be careful not to kink the liftgate latch actuating cable while disconnecting it from the latch.

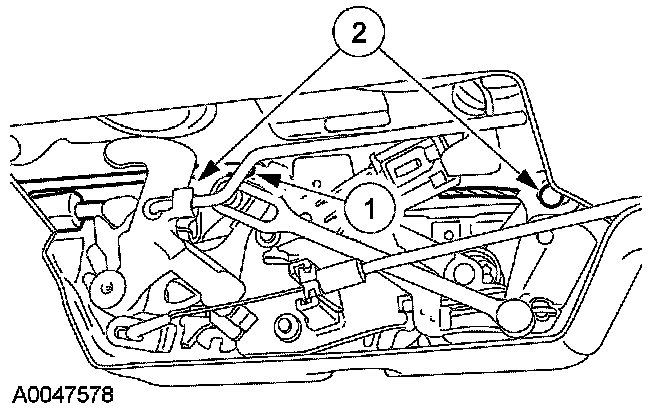

Disconnect the liftgate latch.
1 Release the liftgate latch actuator rod.
2 Disconnect the liftgate latch actuating cable.







4. Remove 3 bolts and position the liftgate latch remote control aside.
- To install, tighten to 11 Nm (8 lb-in).

5. Disconnect the electrical connectors and remove the liftgate latch remote control.
6. To install, reverse the removal procedure.
