Smart Junction Box (SJB)

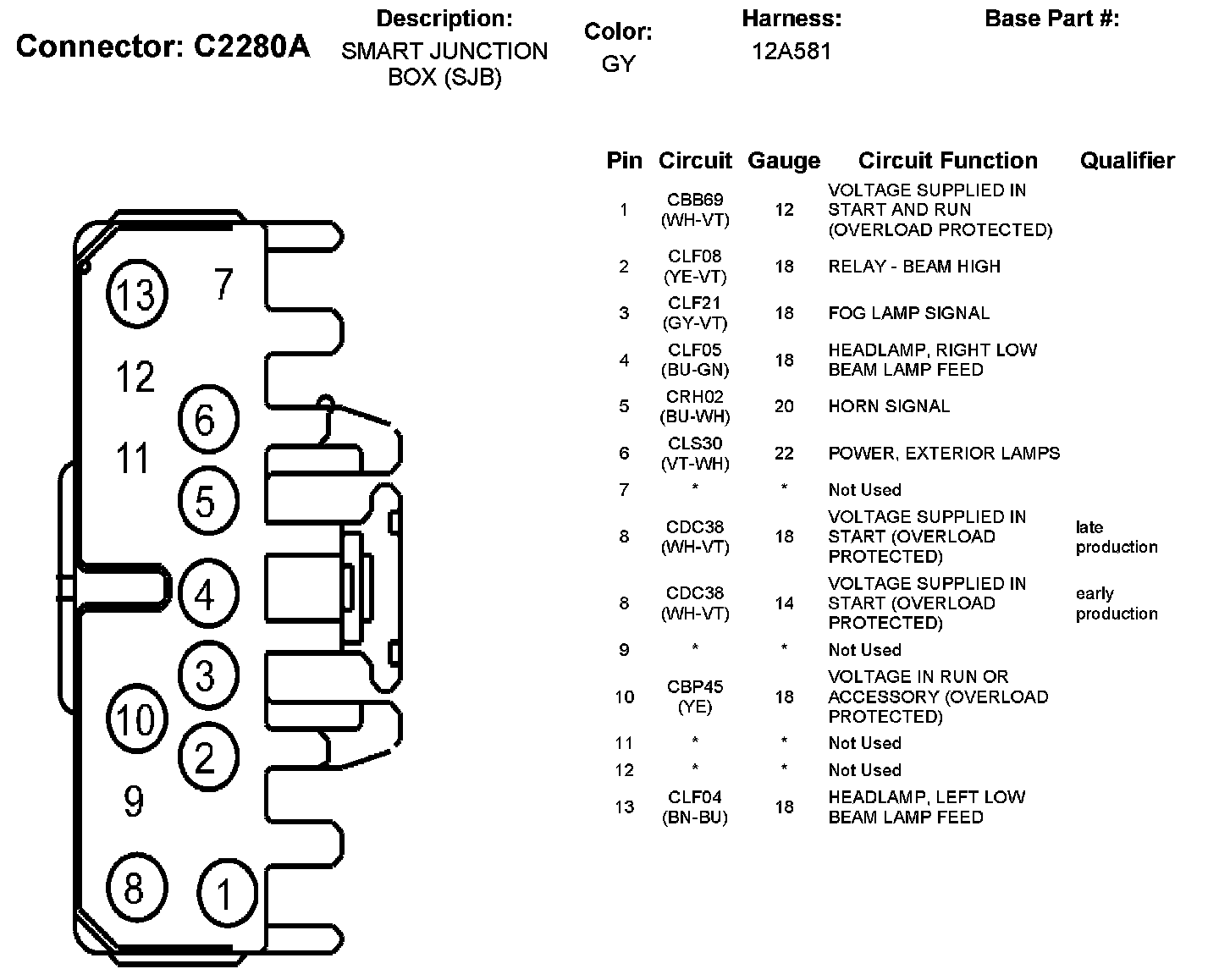

C2280A:

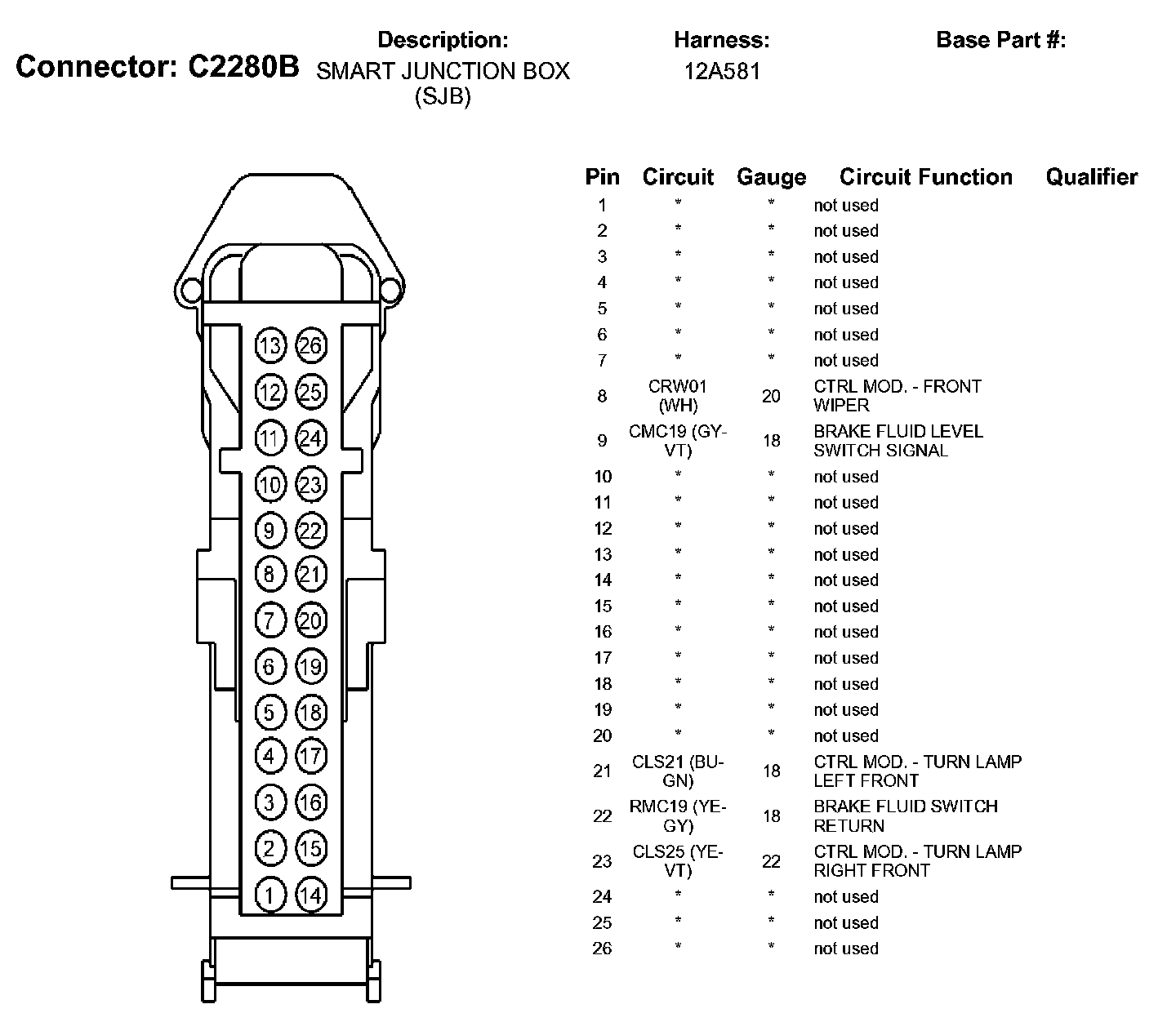

C2280B:
C2280C:

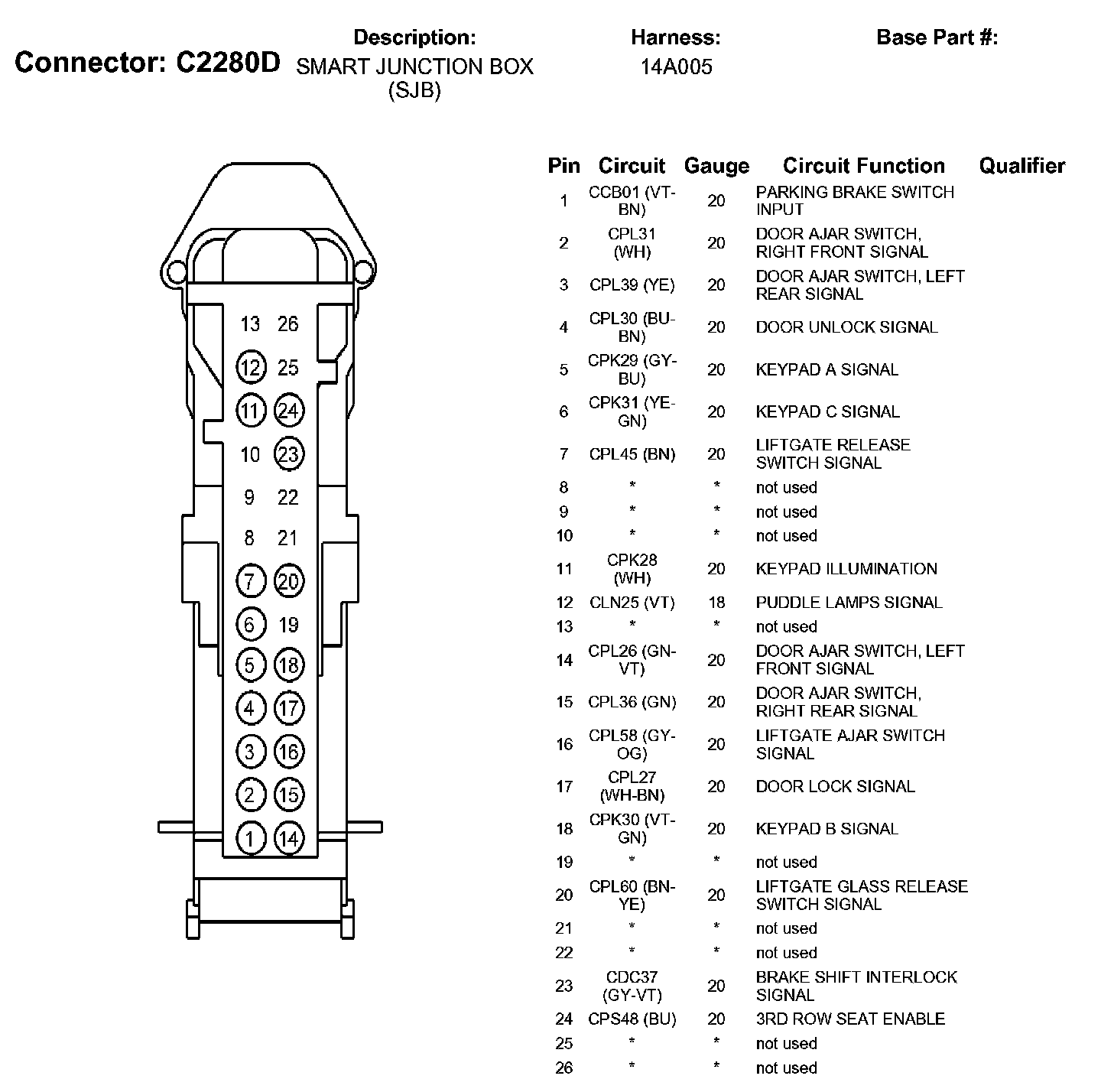

C2280D:

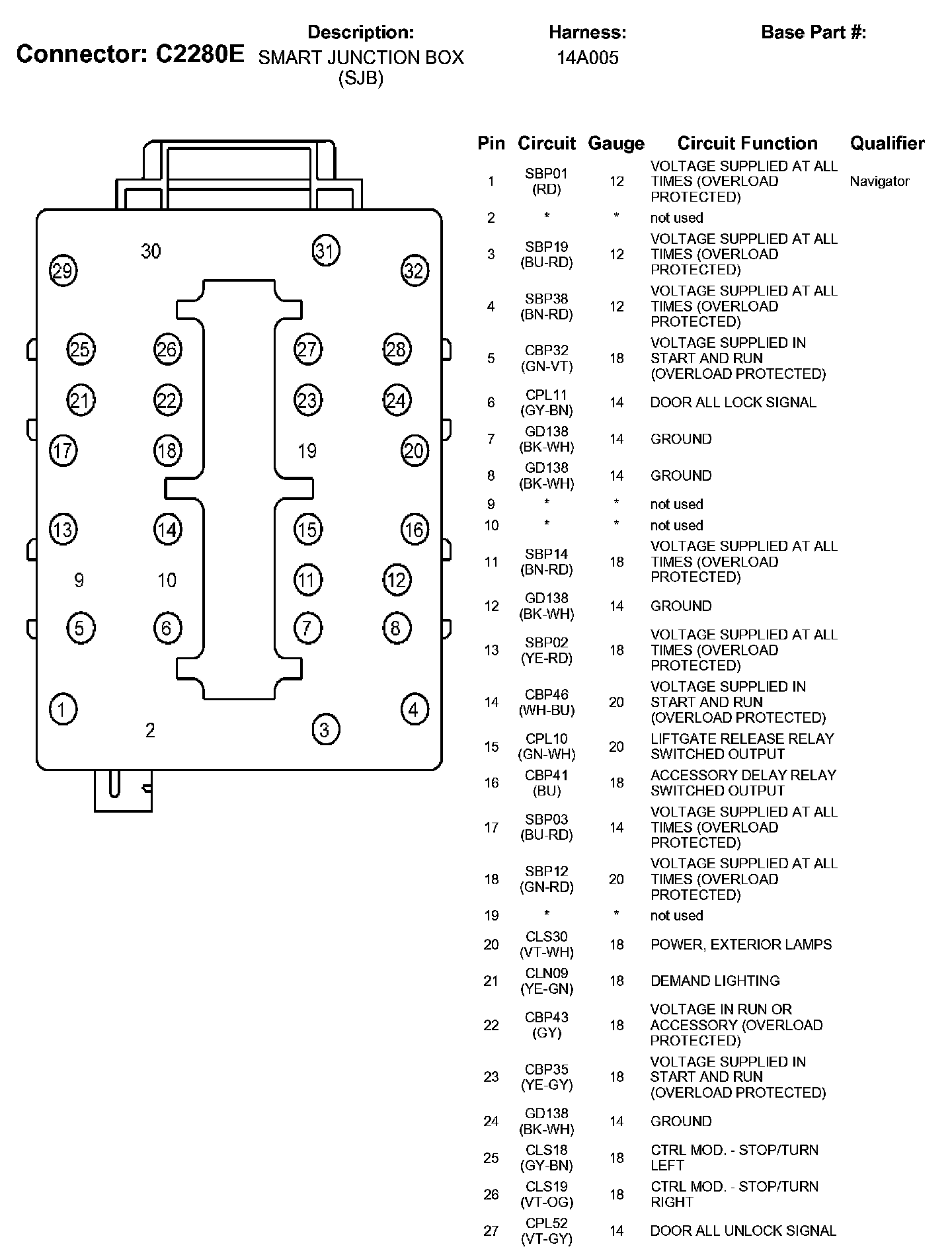

C2280E (Part 1):

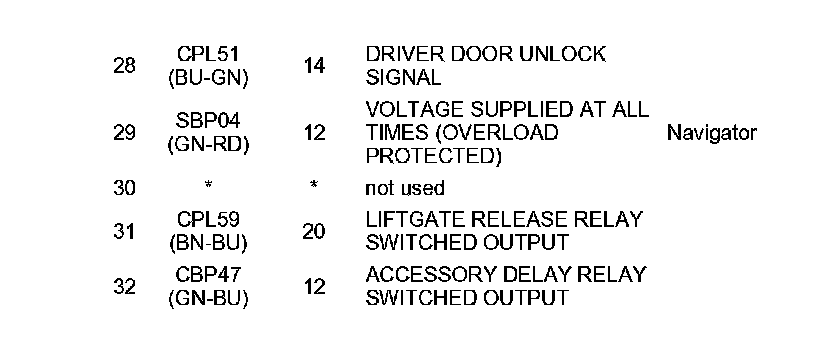

C2280E (Part 2):

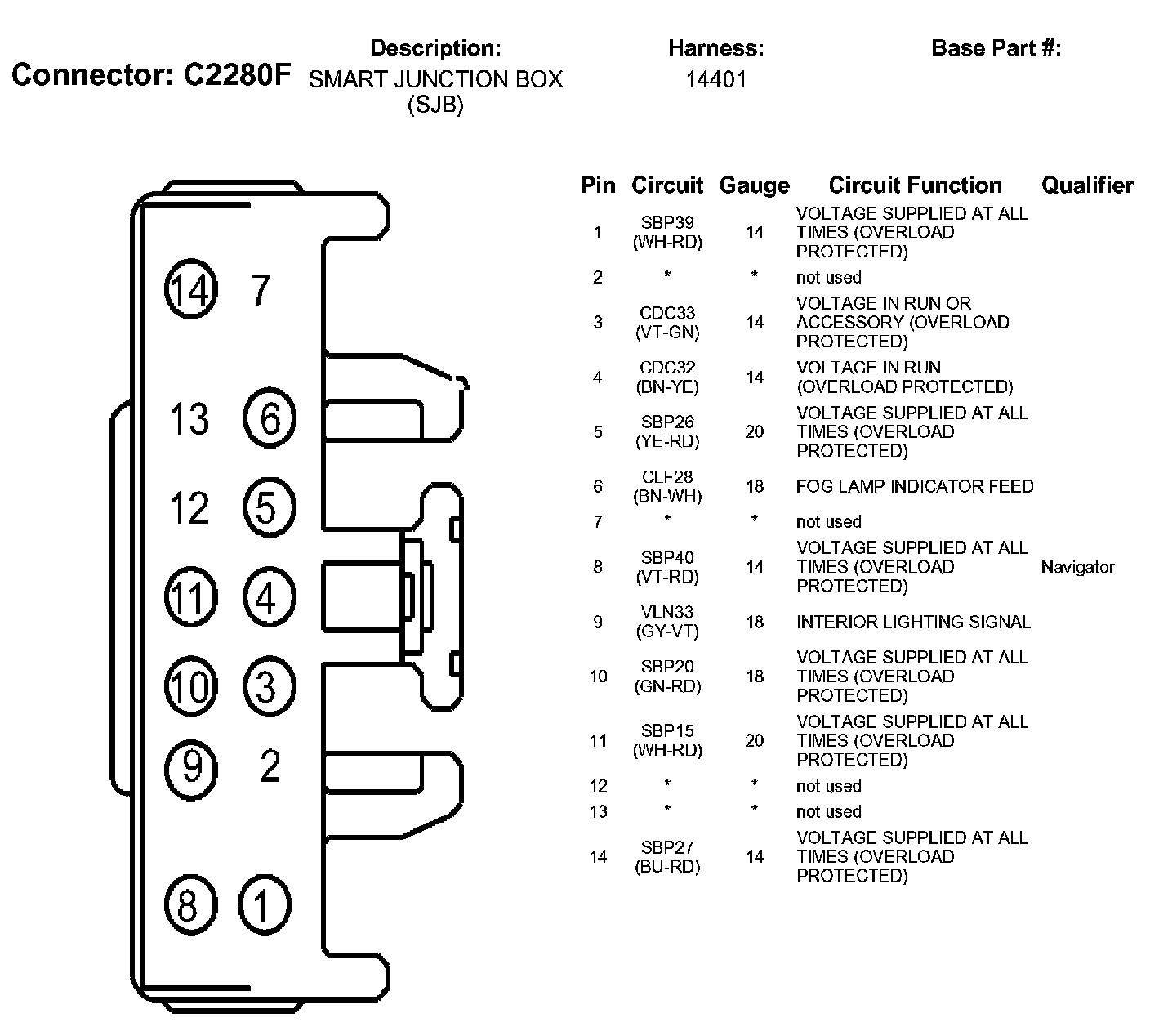

C2280F:

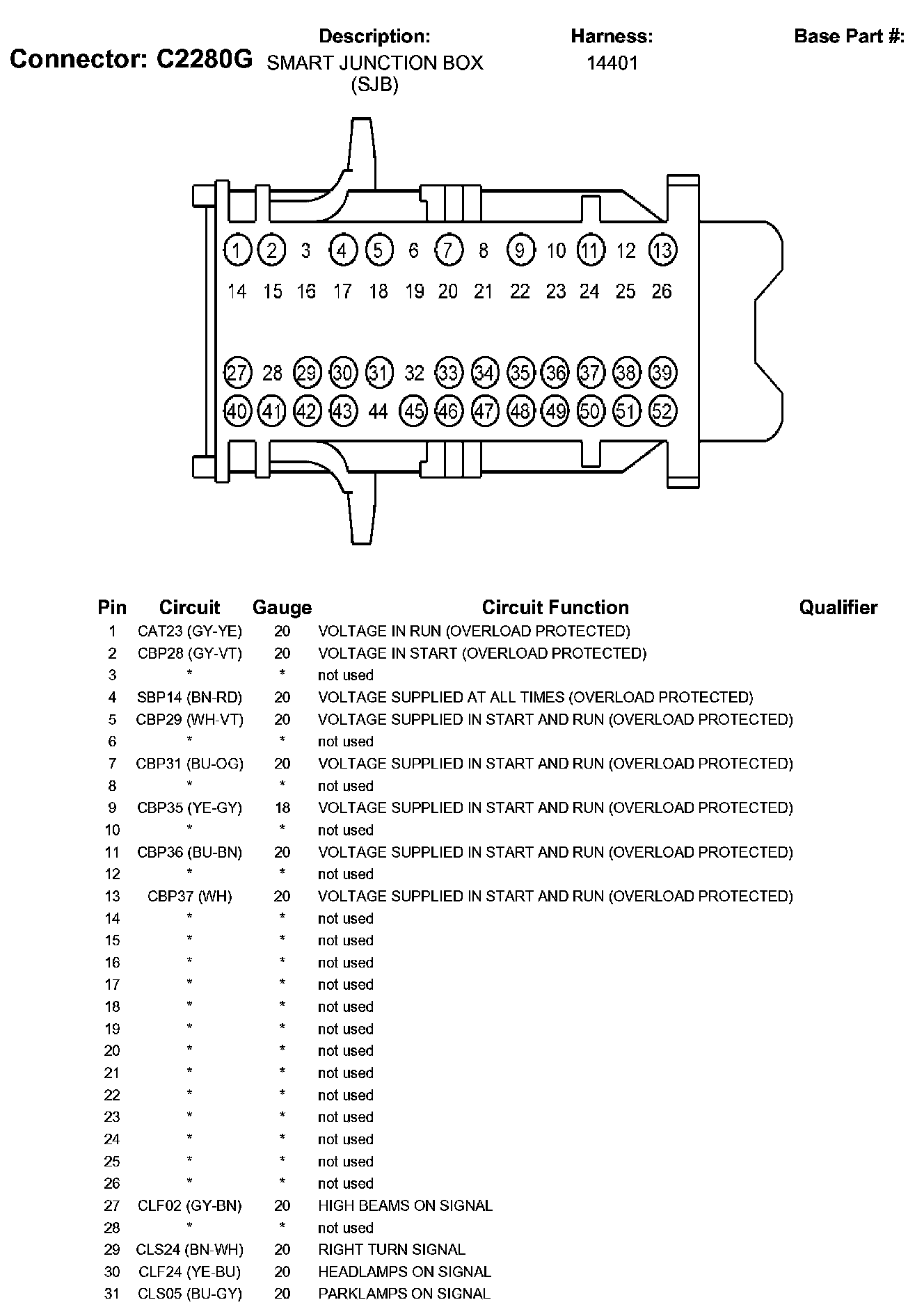

C2280G (Part 1):

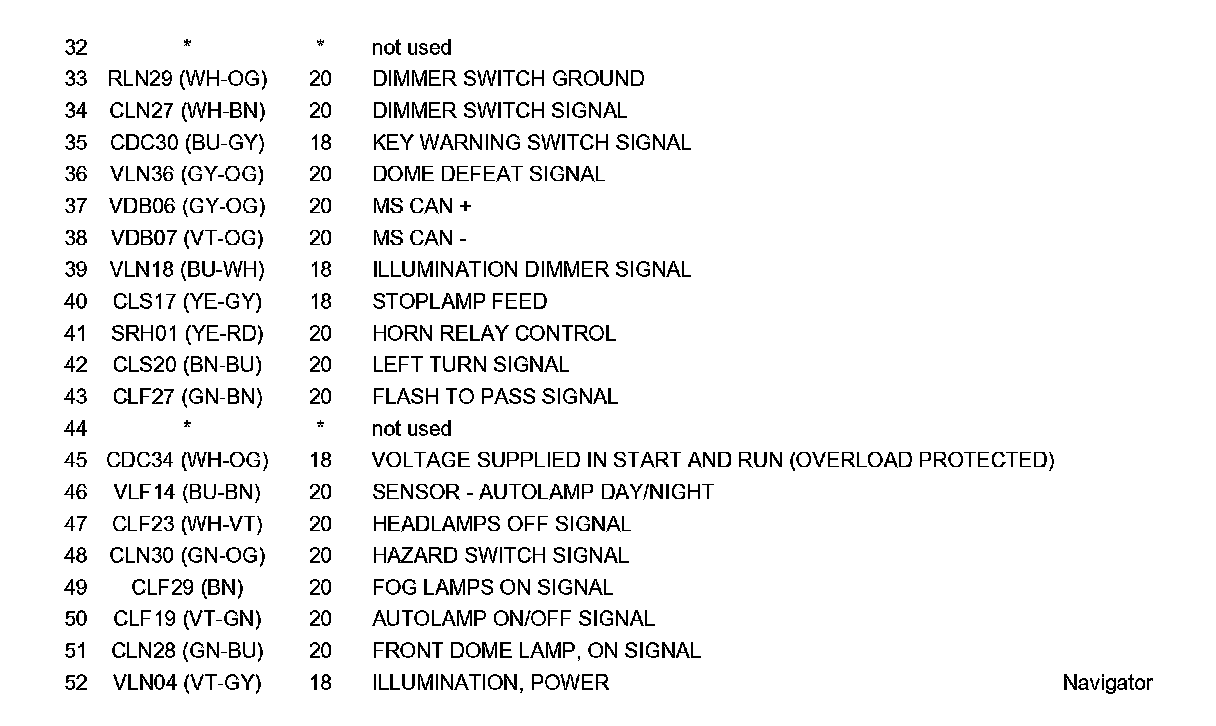

C2280G (Part 2):
