Connector Locations

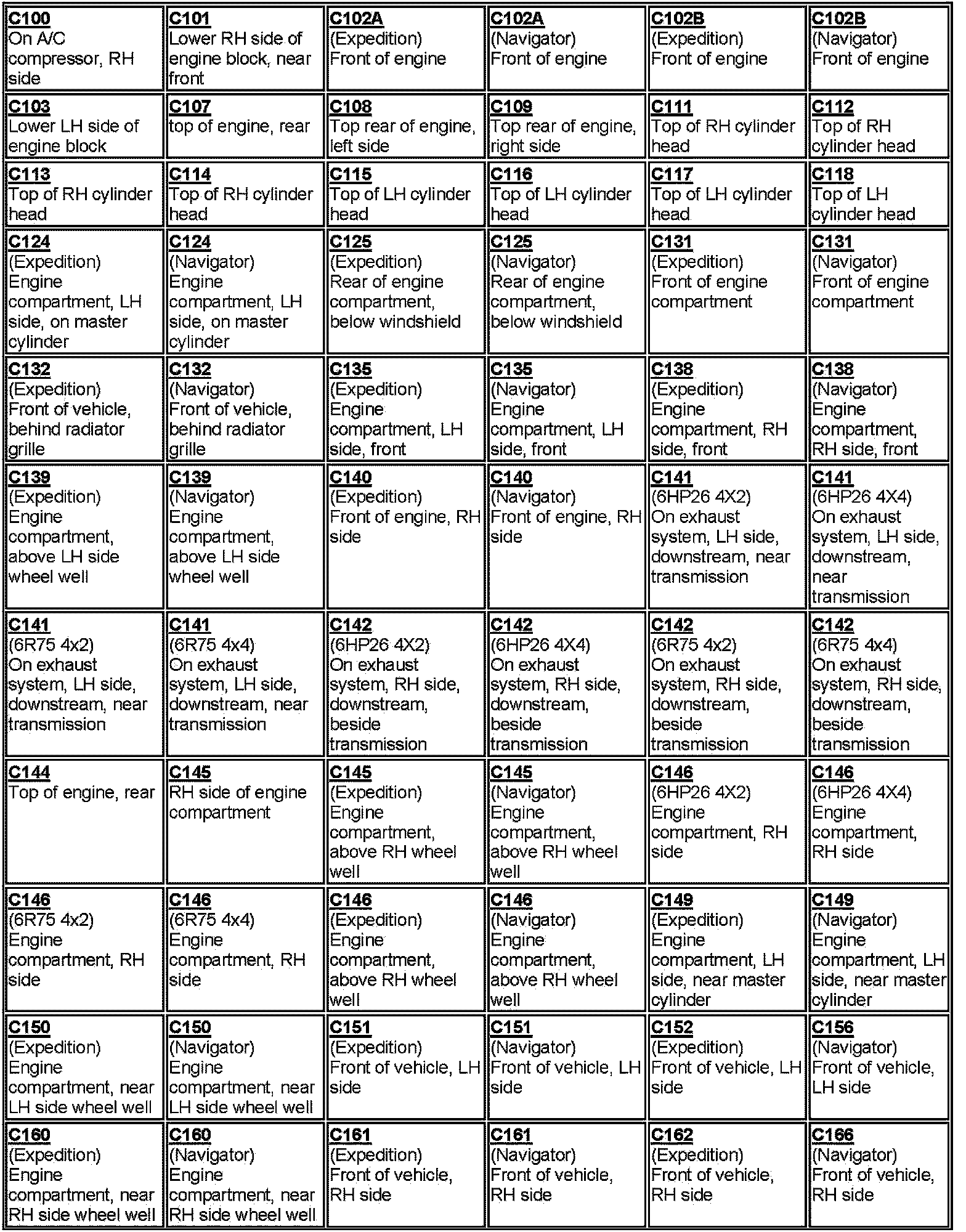

C100-C166:

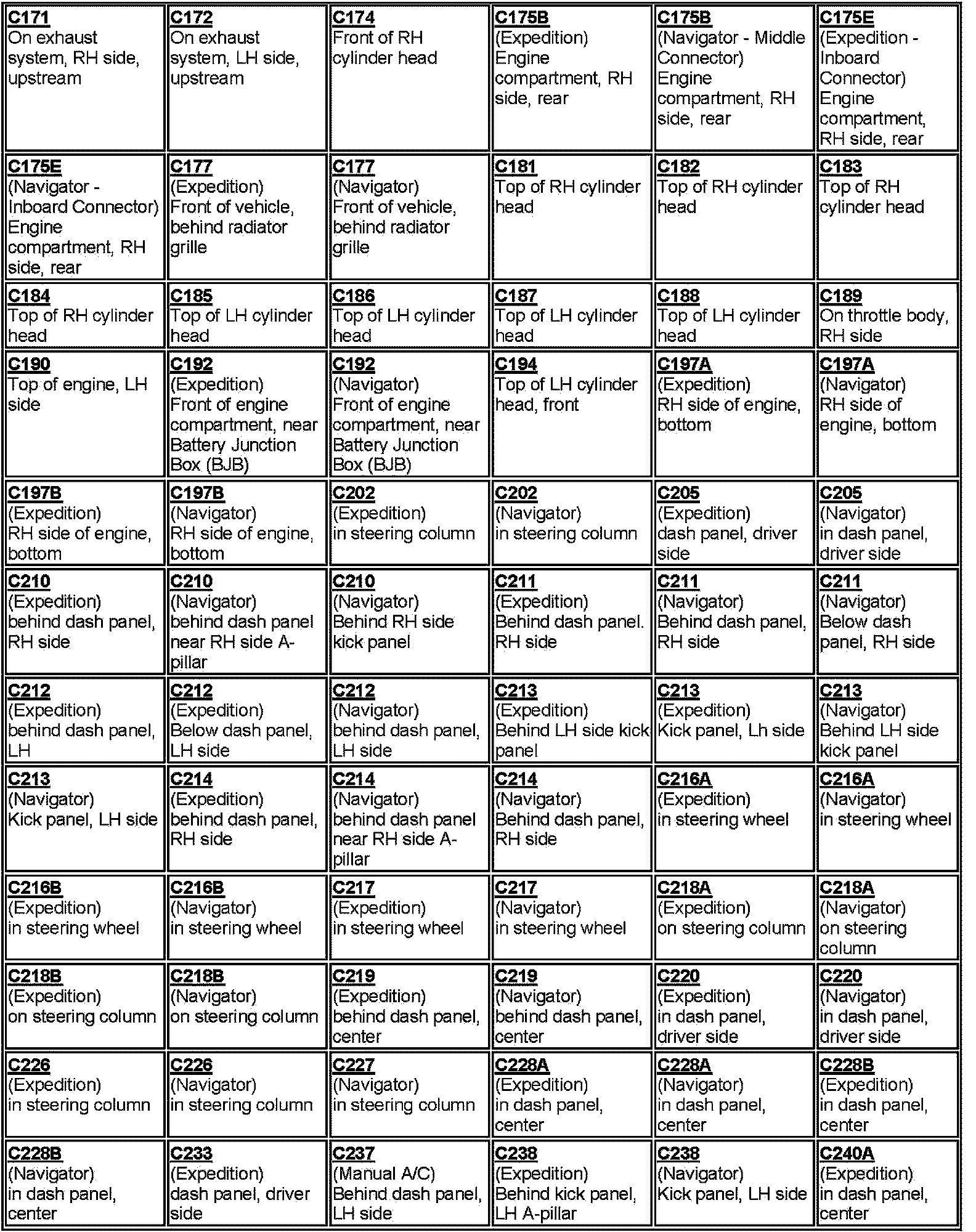

C171-C240A:

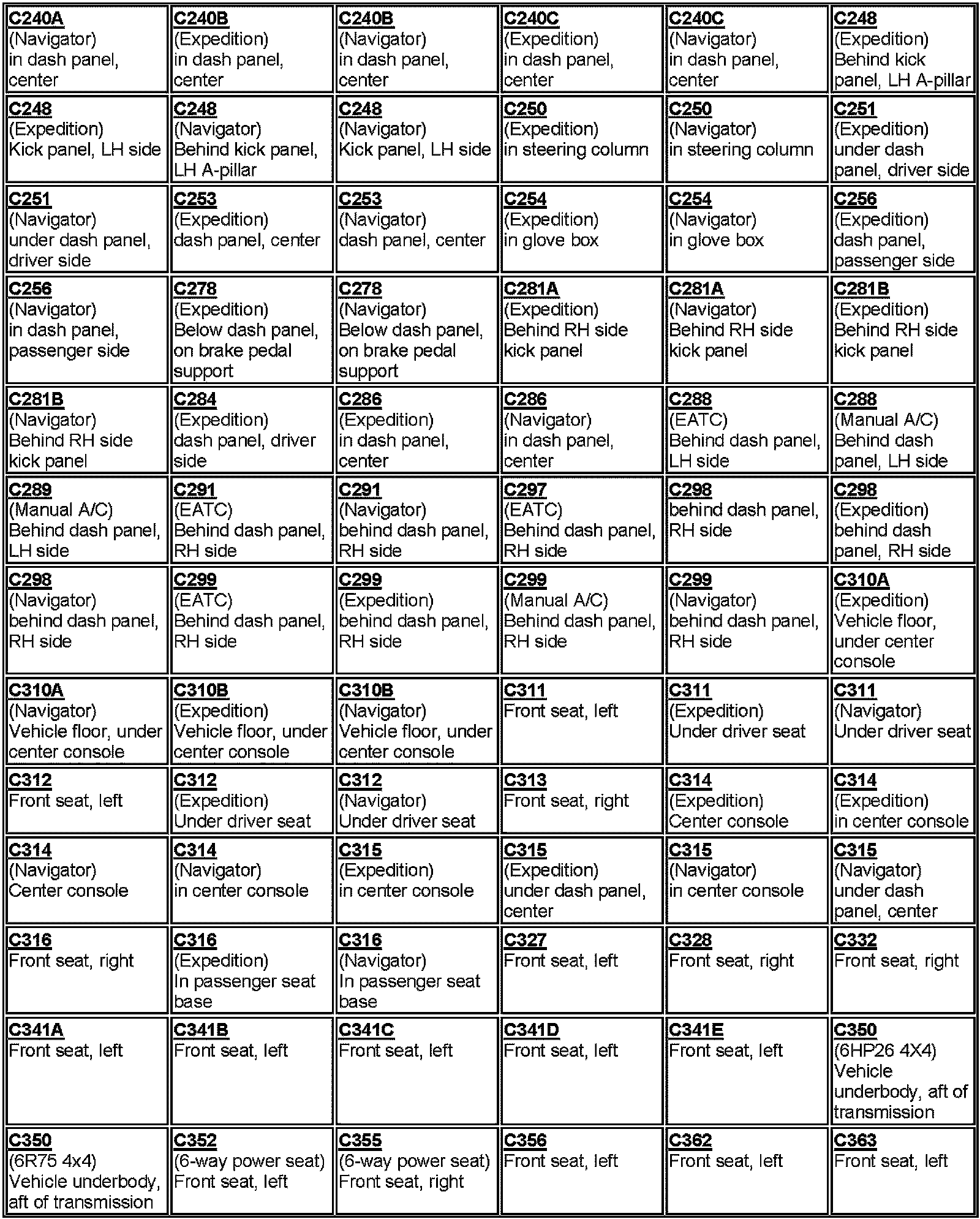

C240a-C363:

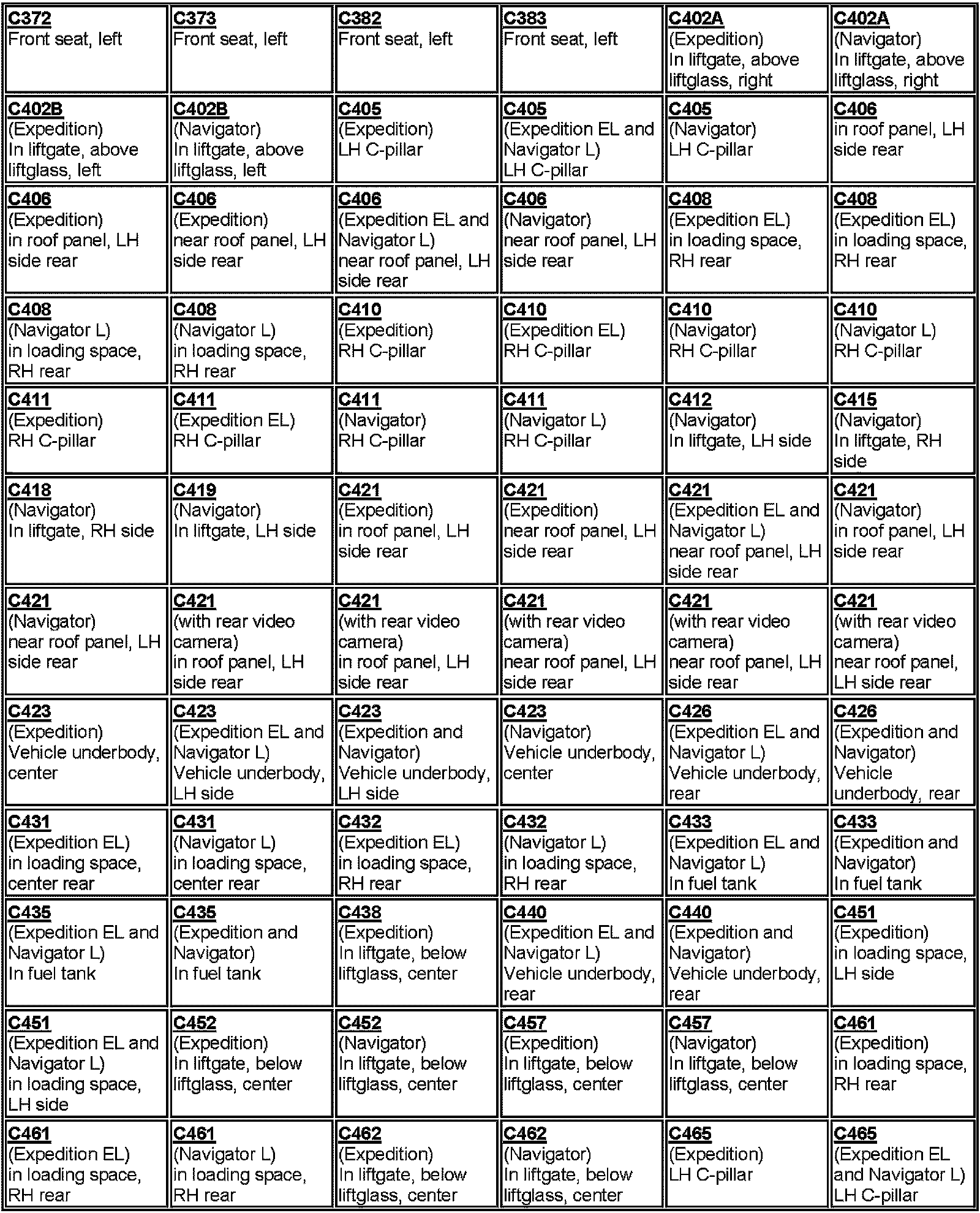

C372-C465:

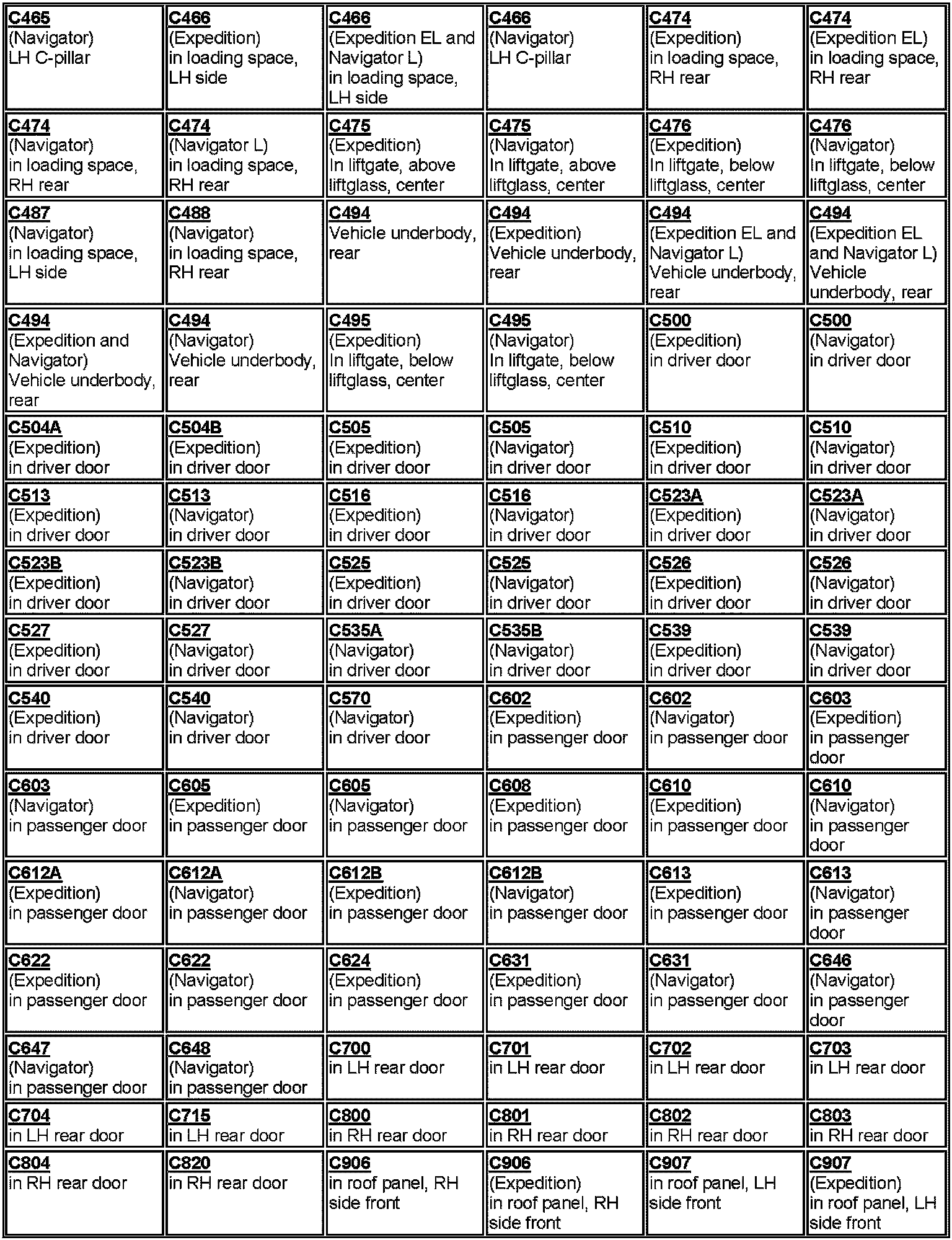

C465-C907:

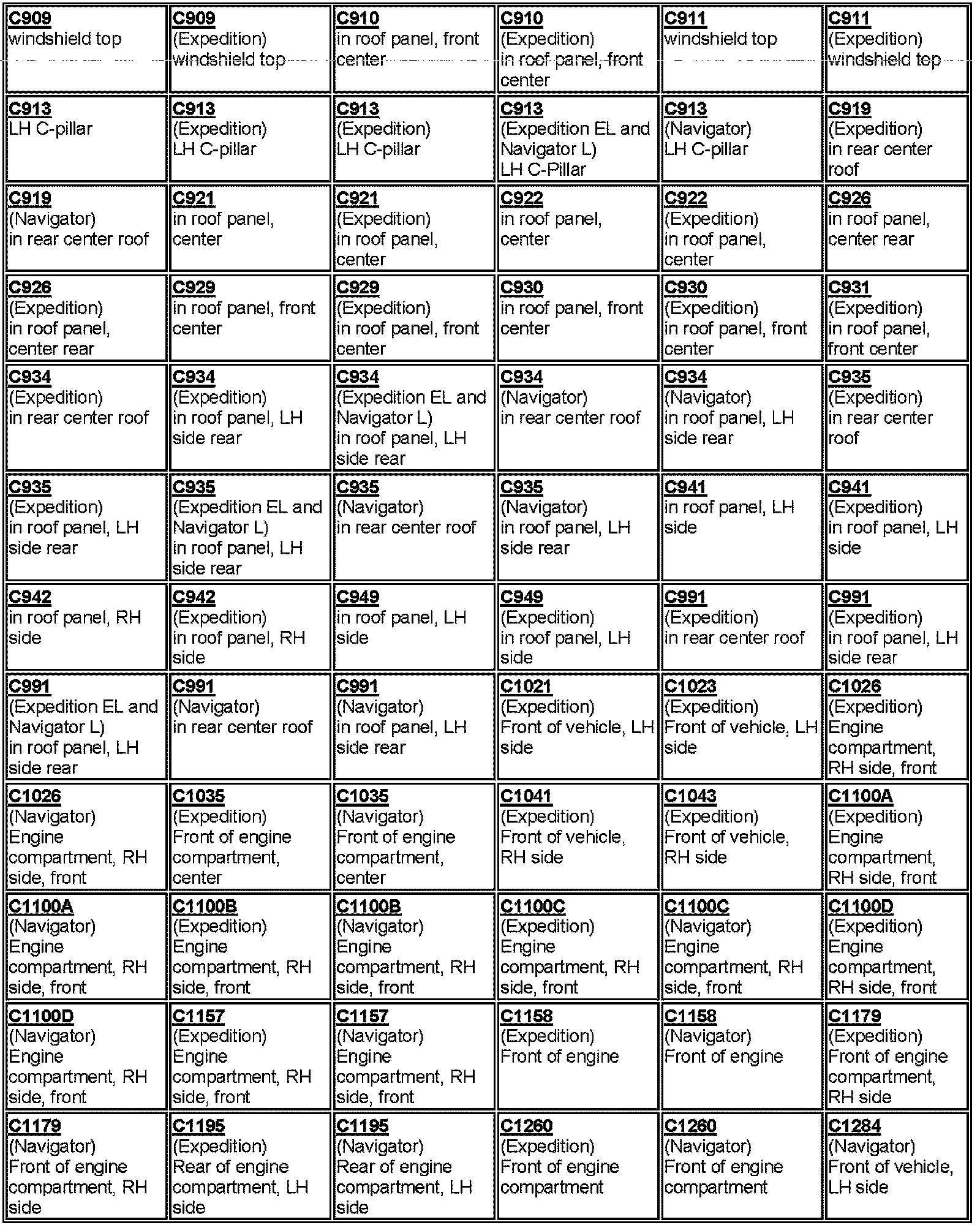

C909-C1284:

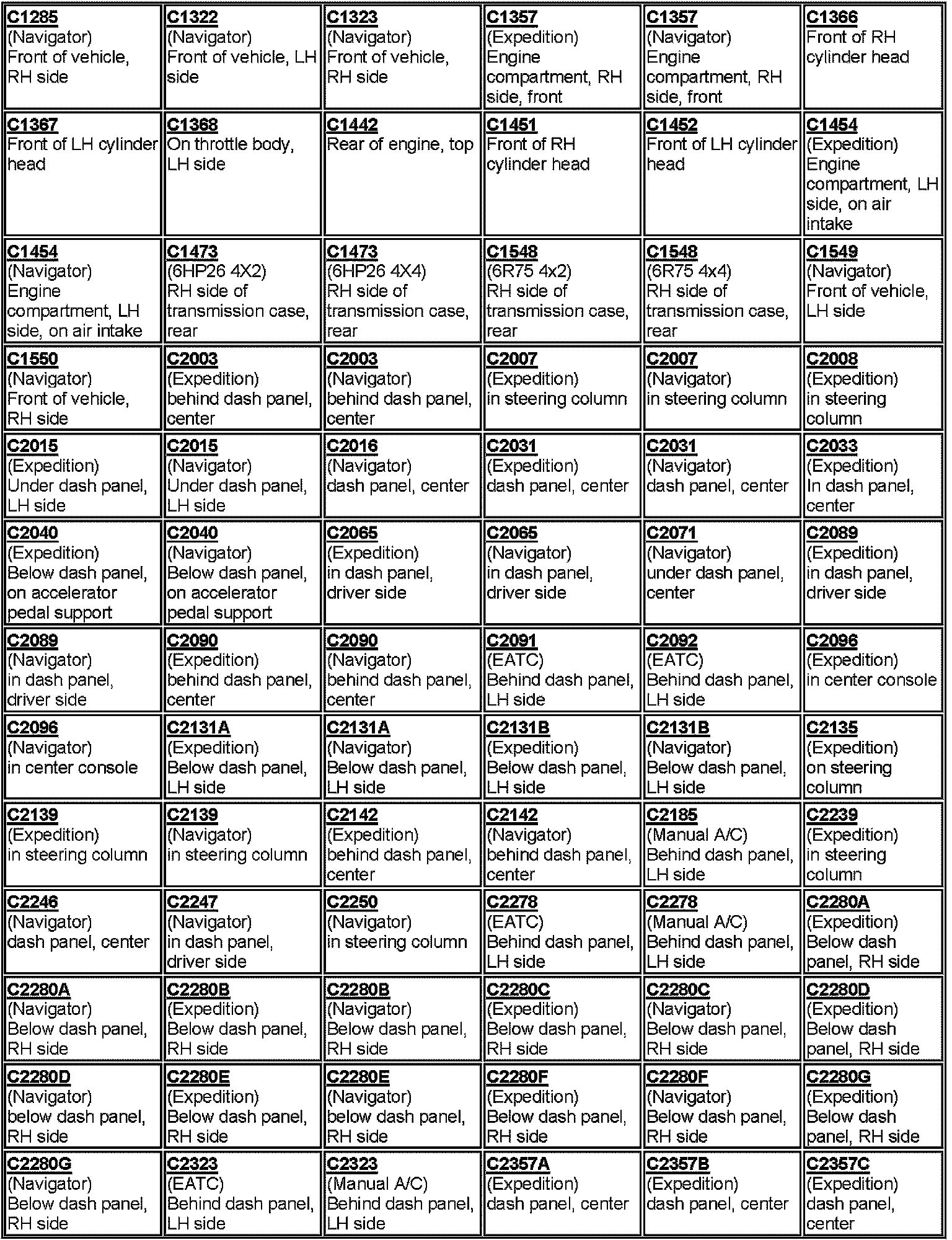

C1285-C2357c:

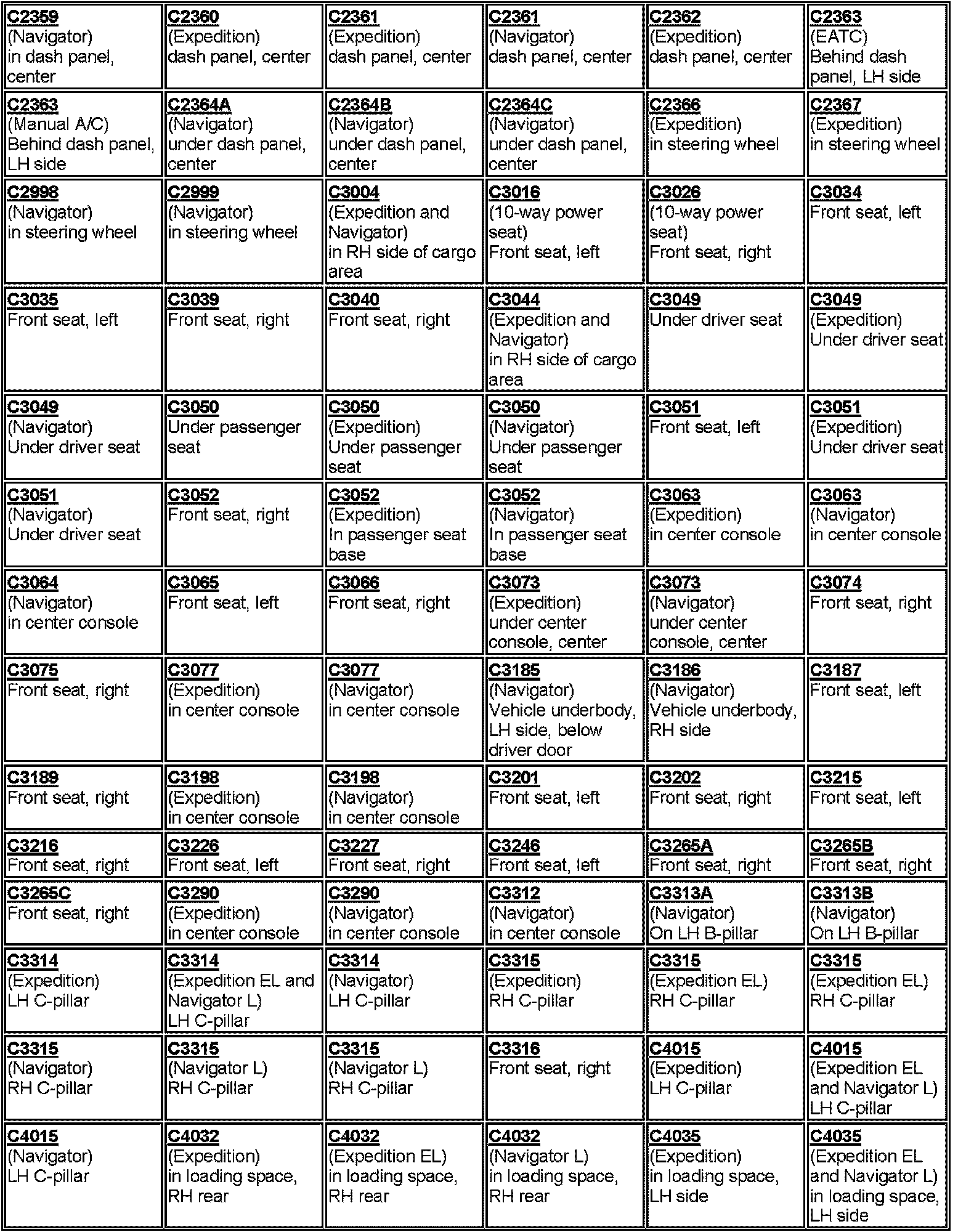

C2359-C4035:

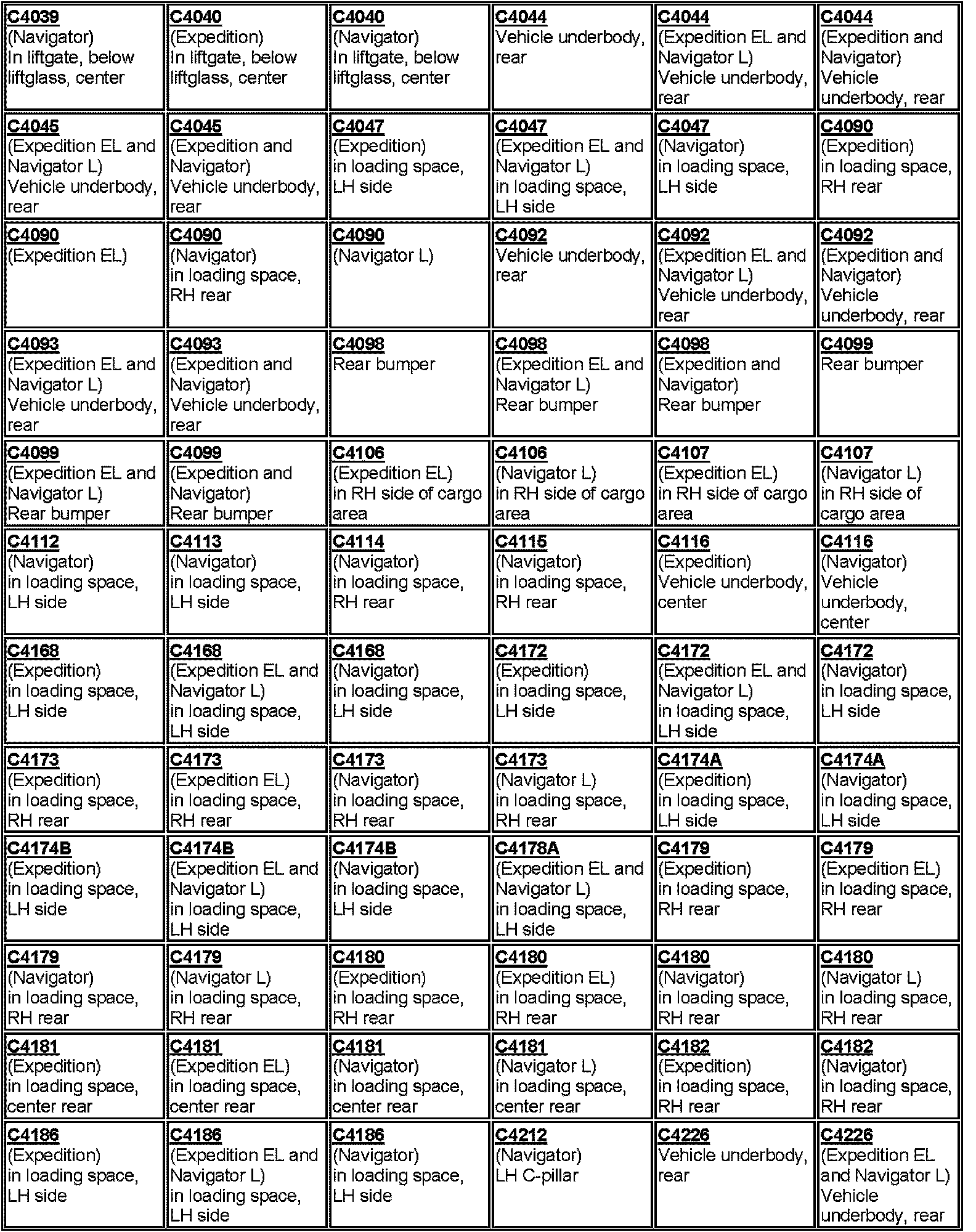

C4039-C4226:

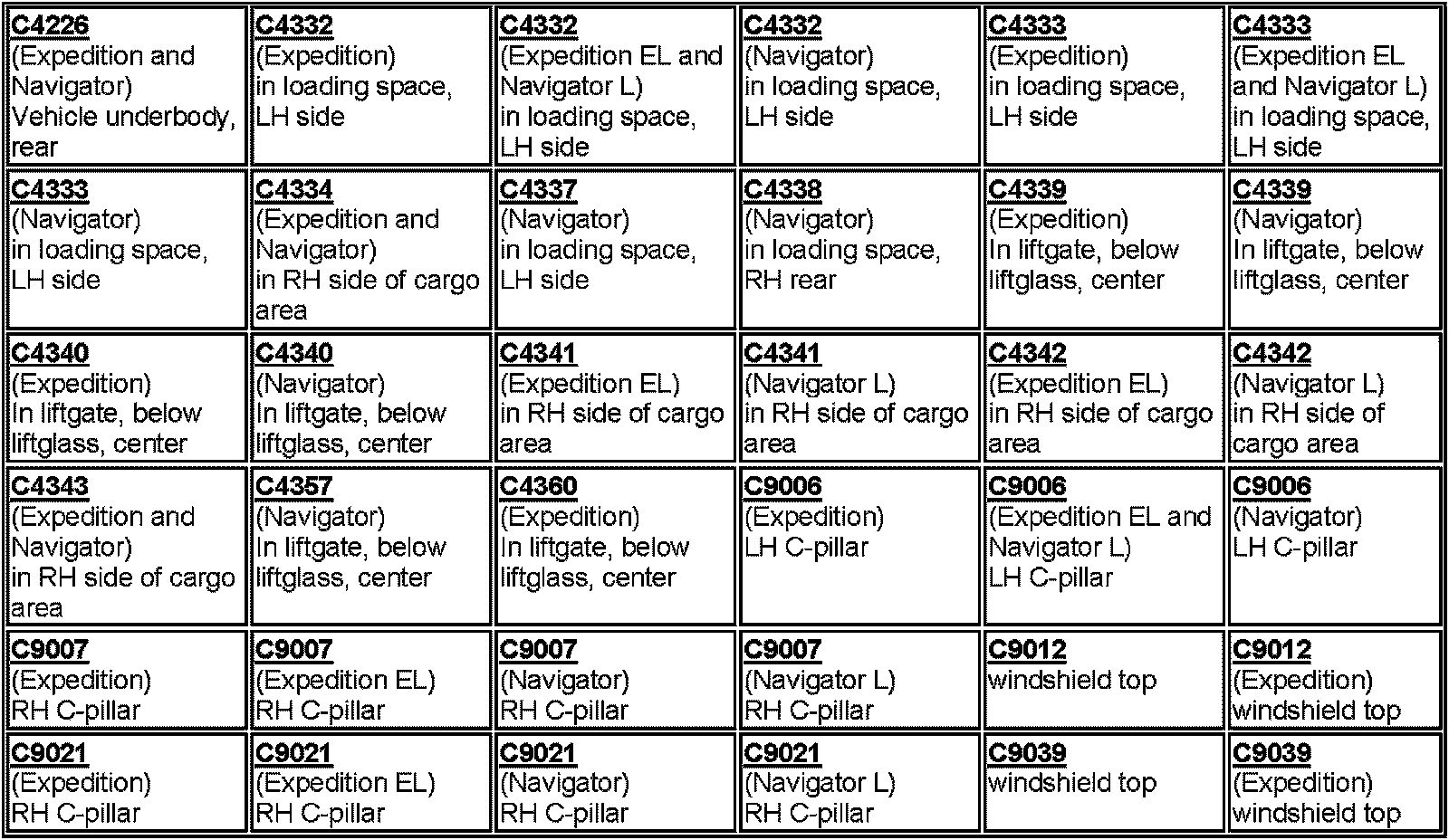

C4226-C9039:
