Power Trunk / Liftgate Control Module: Service and Repair

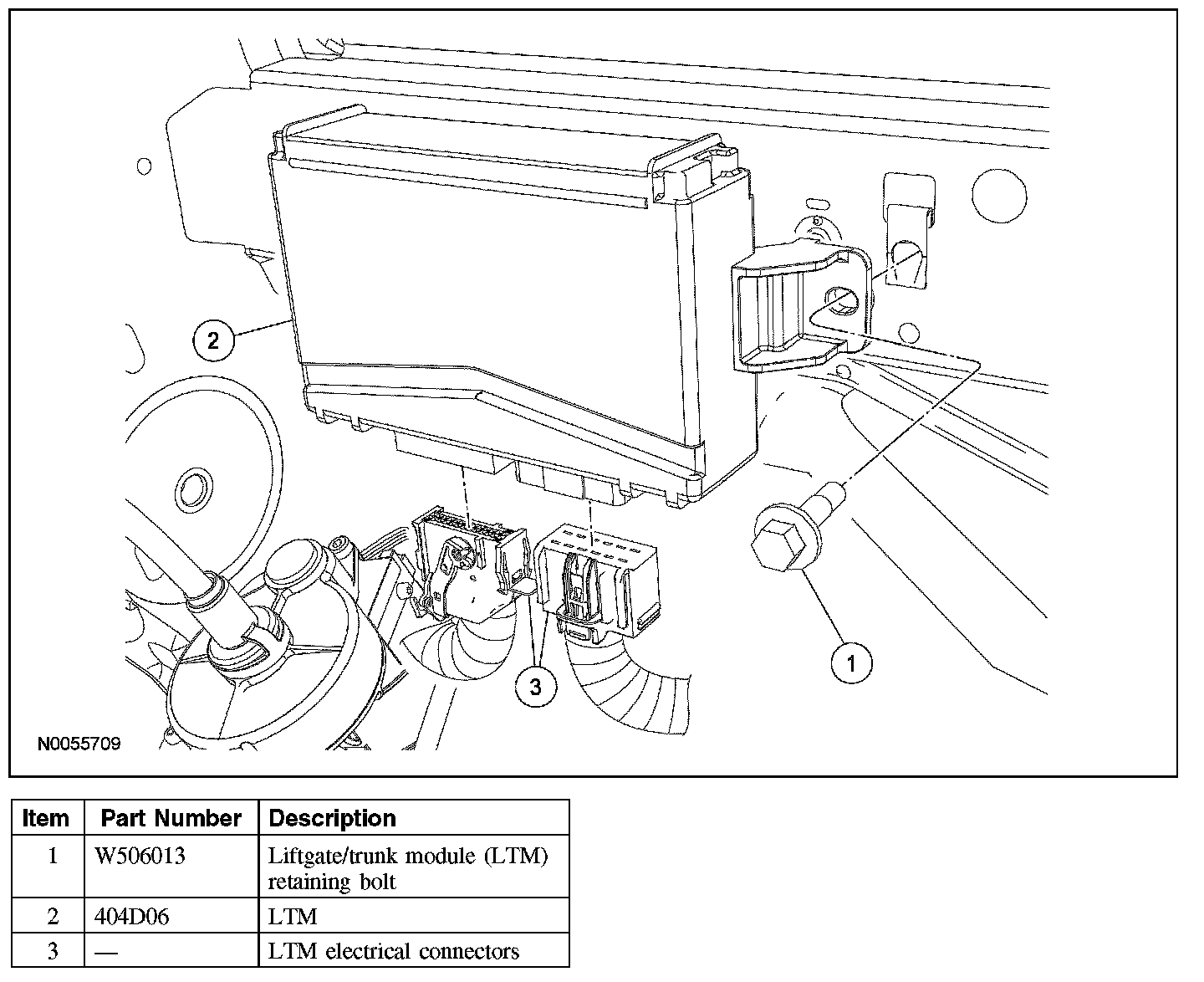

LIFTGATE/TRUNK MODULE (LTM)

Removal and Installation







1. Remove the rear quarter trim panel.

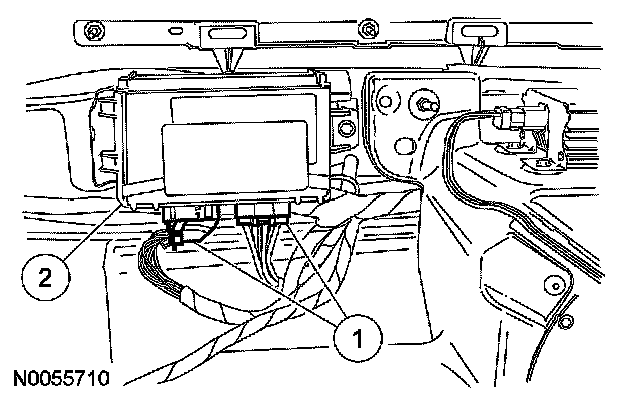

2. Remove the liftgate/trunk module (LTM).
1 Disconnect the electrical connectors.
2 Remove the bolt.
- To install, tighten to 9 Nm (80 lb-in).







3. To install, reverse the removal procedure.
