System Diagram

Mechatronic Assembly

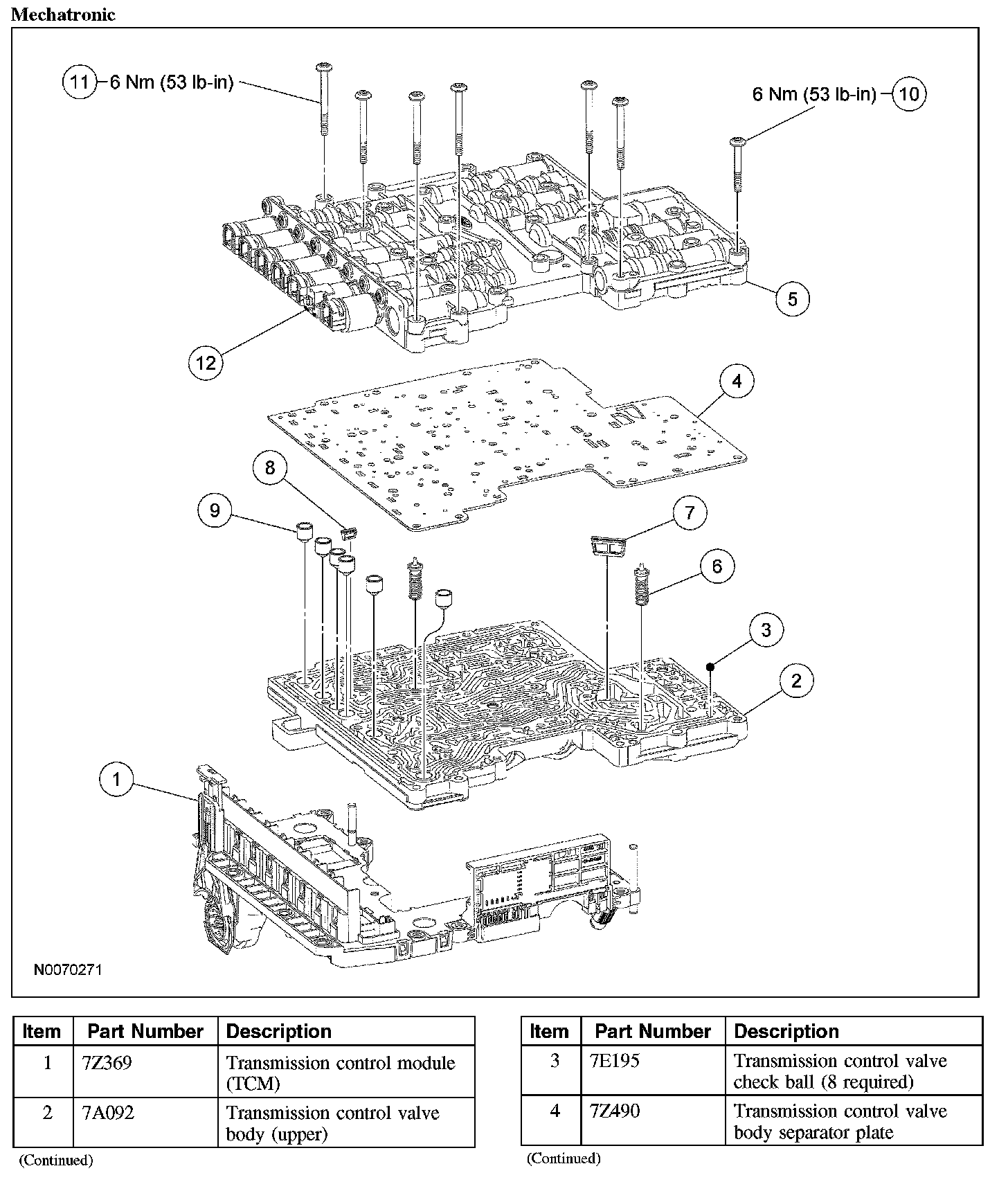

Mechatronic (Part 1):

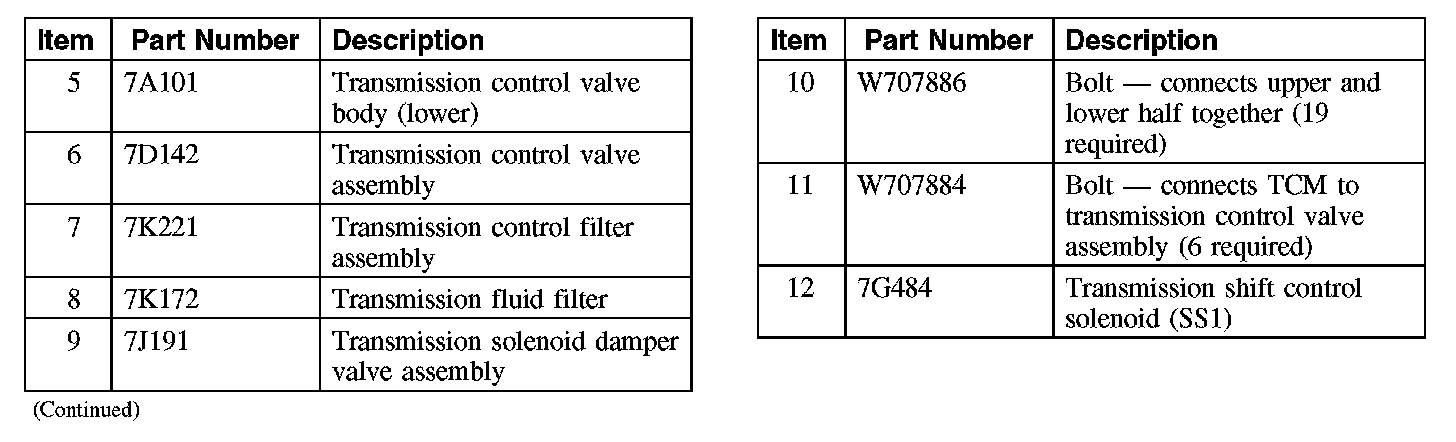

Mechatronic (Part 2):

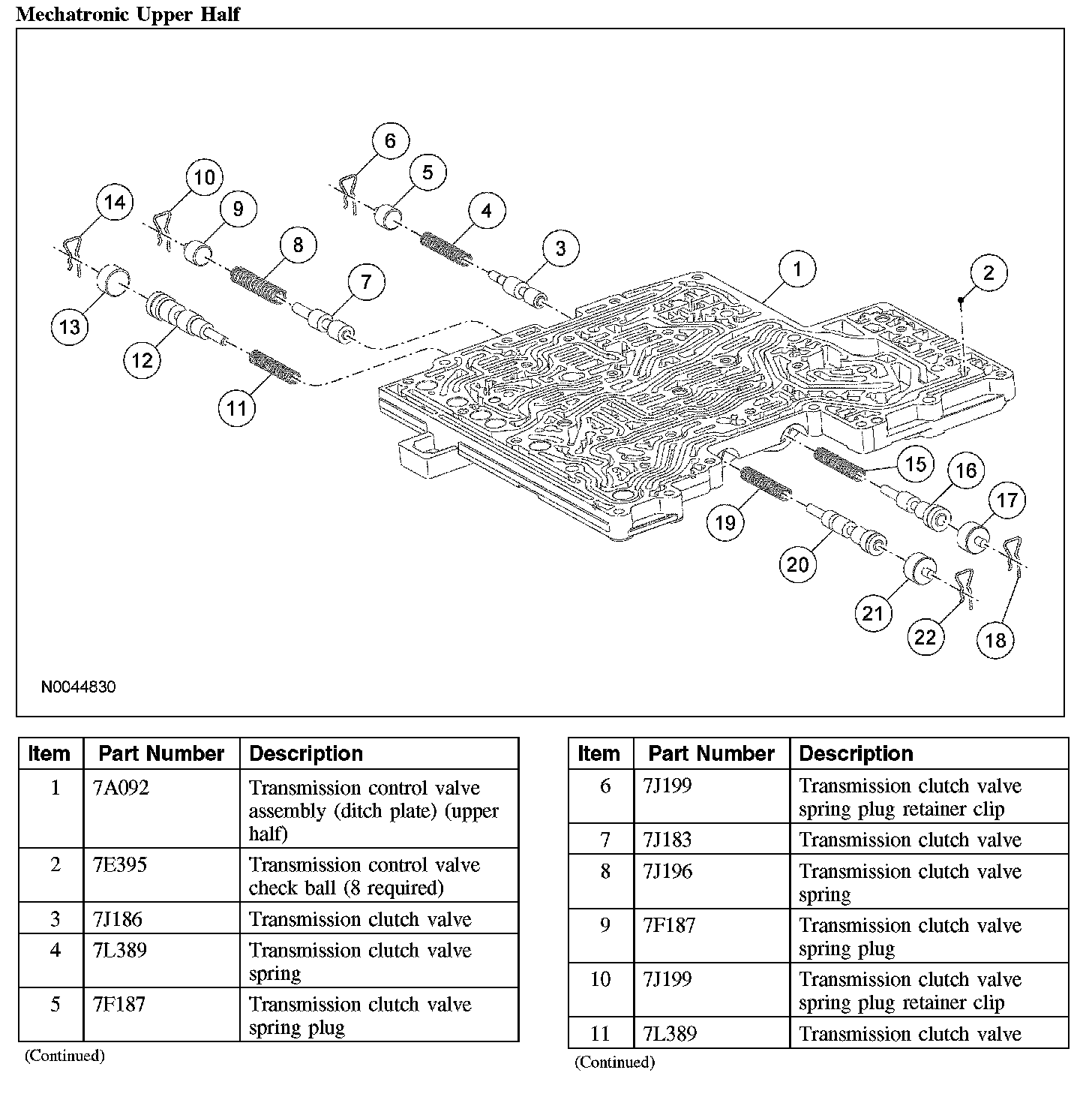

Mechatronic Upper Half (Part 1):

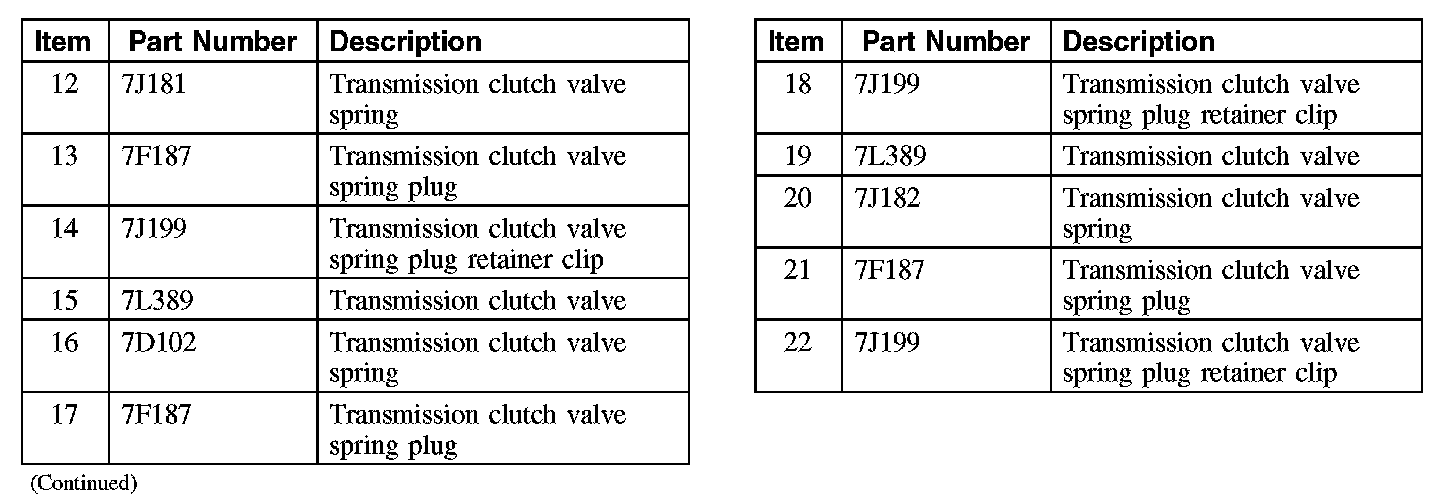

Mechatronic Upper Half (Part 2):

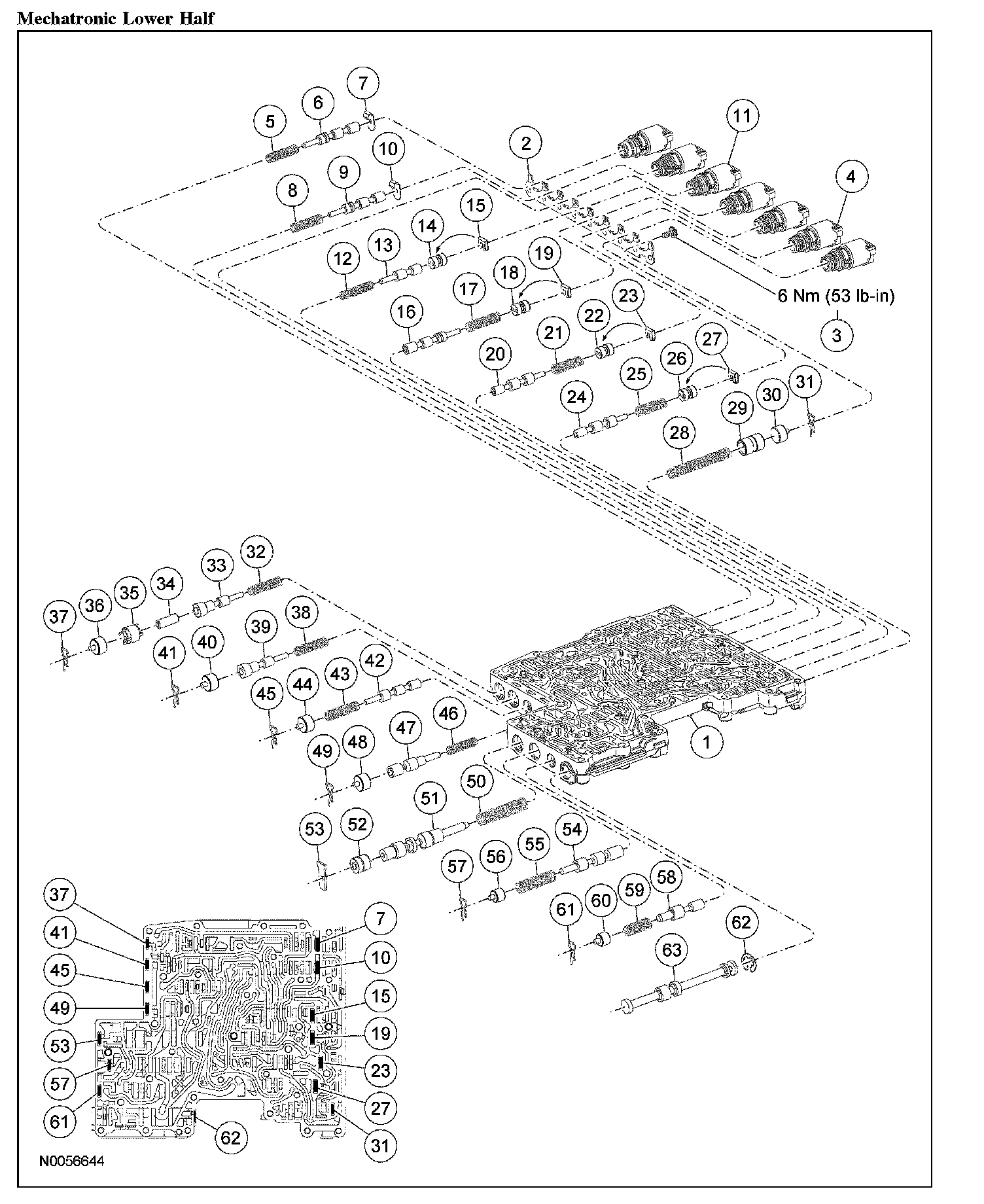

Mechatronic Lower Half (Part 1):

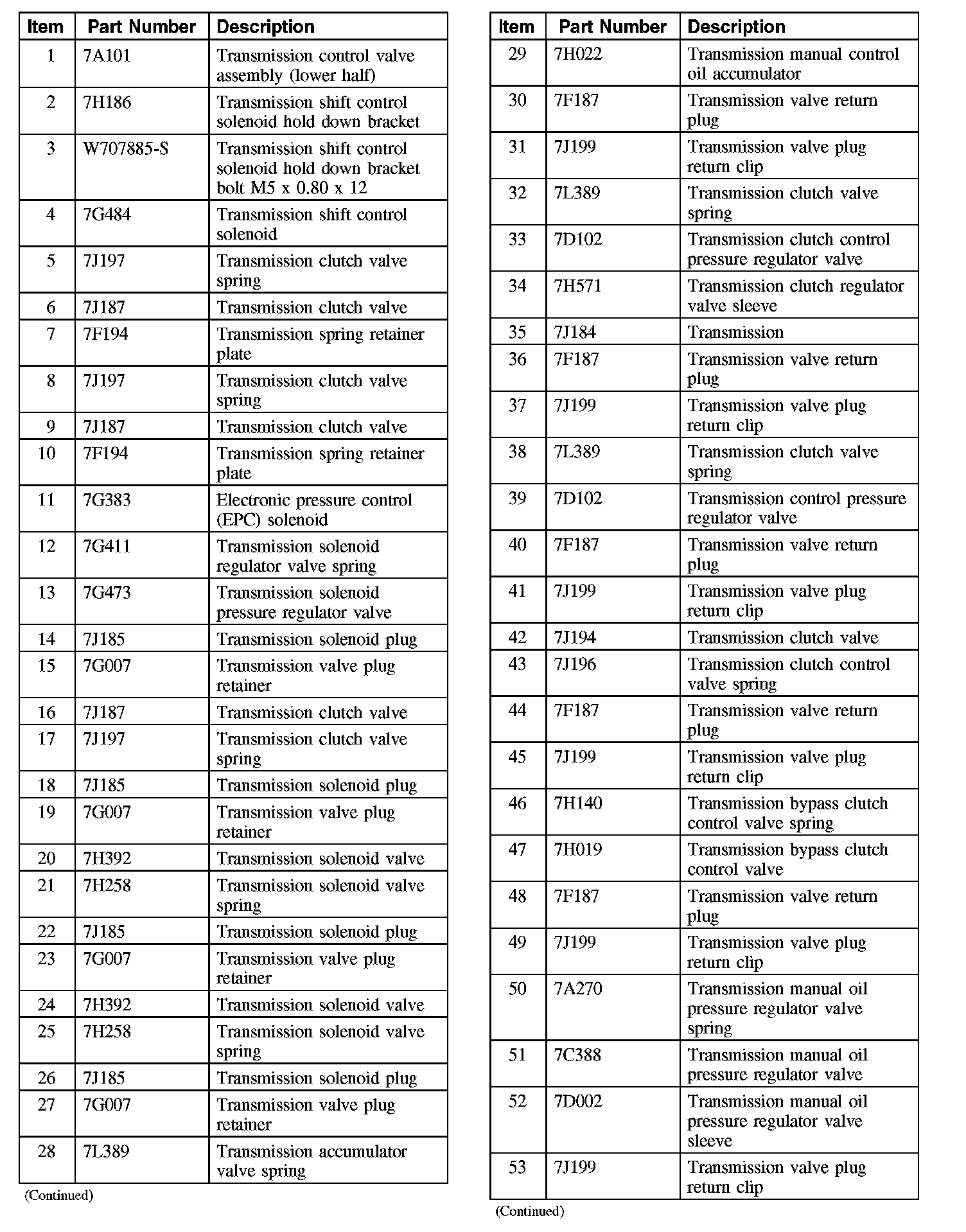

Mechatronic Lower Half (Part 2):

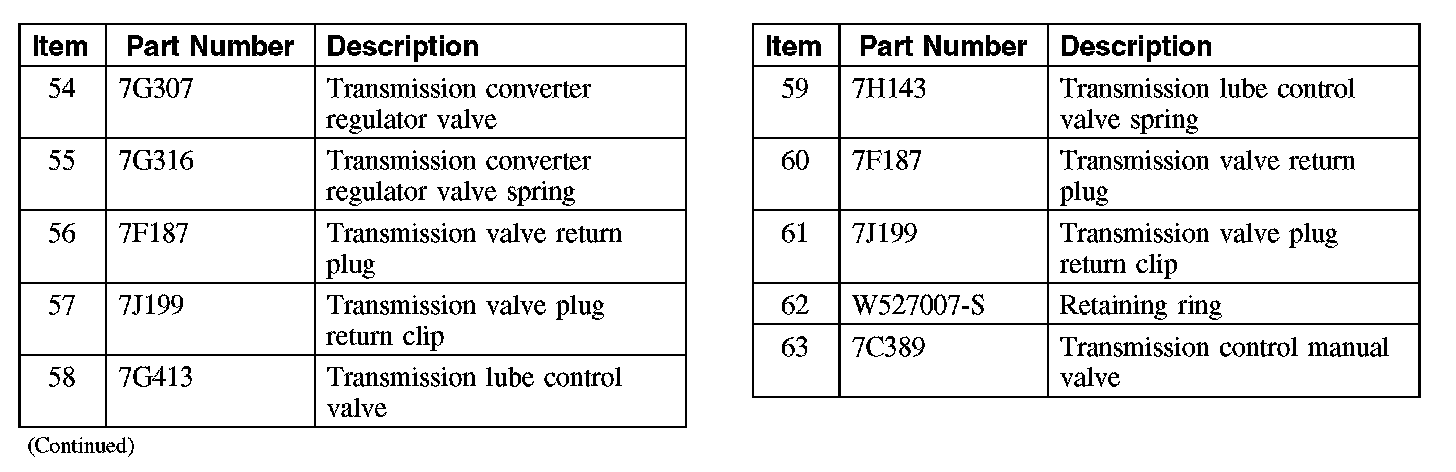

Mechatronic Lower Half (Part 3):
