Axle
Axle

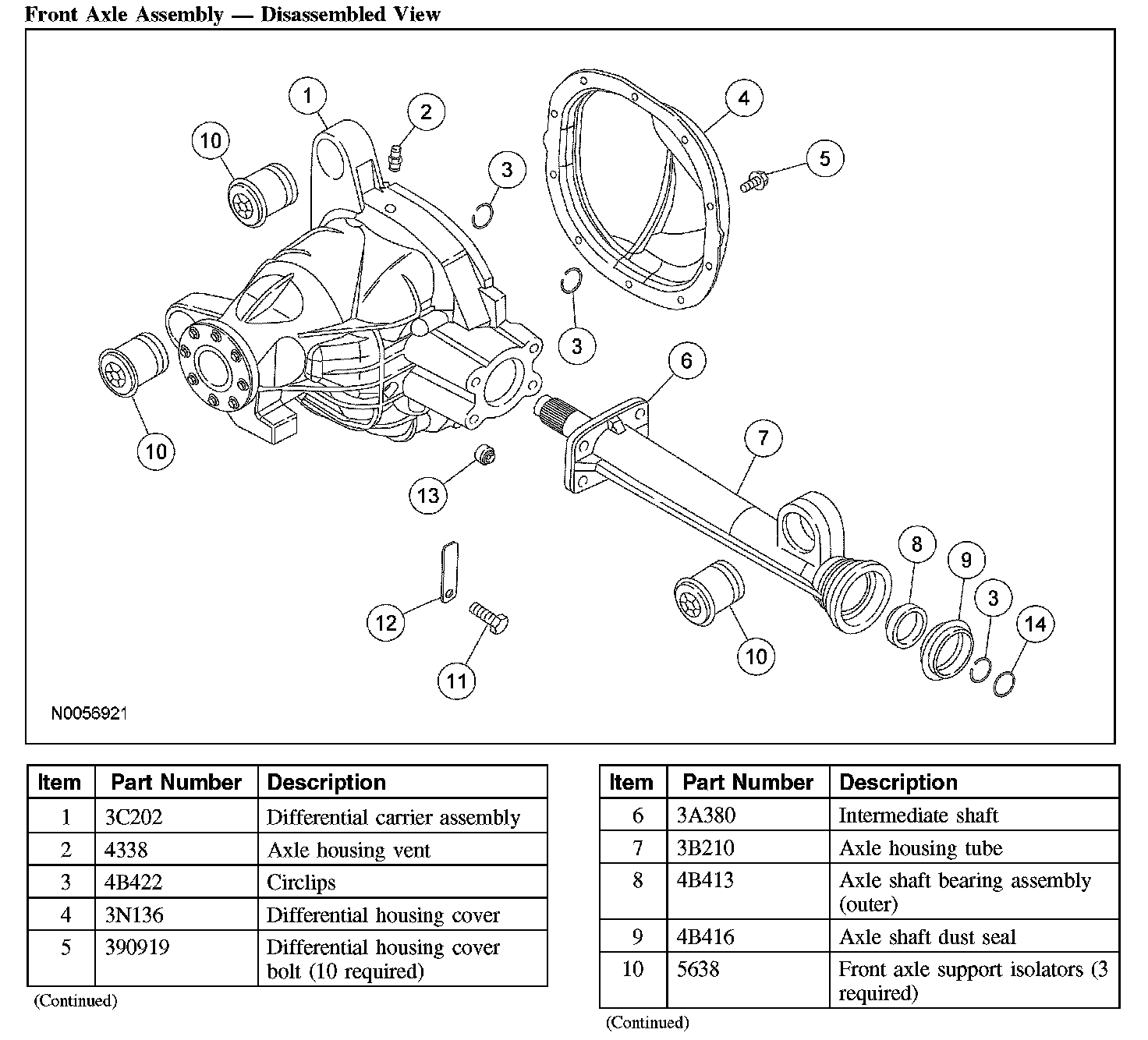

Front Axle Assembly - Disassembled View (Part 1):

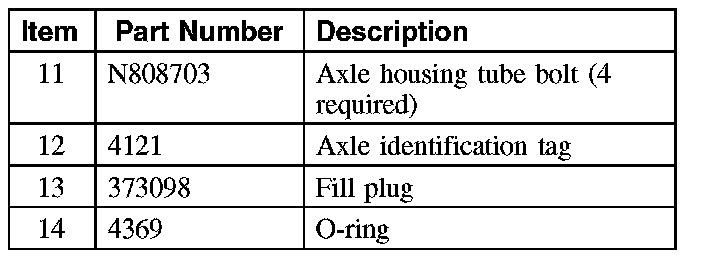

Front Axle Assembly - Disassembled View (Part 2):
