Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Battery Junction Box (BJB)

G00439997

Courtesy of FORD MOTOR CO.

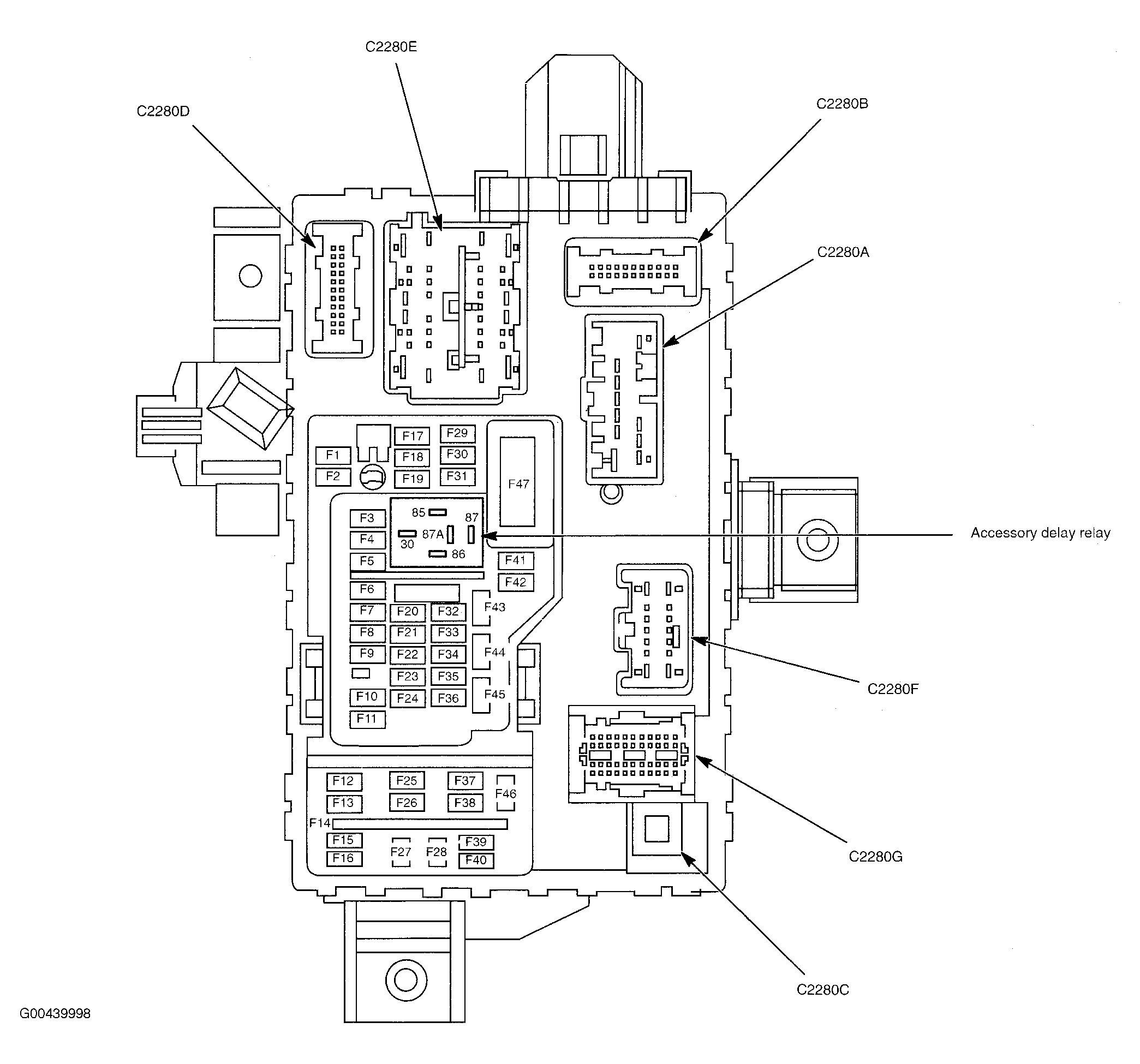

Fig 2: Smart Junction Box (SJB)

G00439998

Courtesy of FORD MOTOR CO.

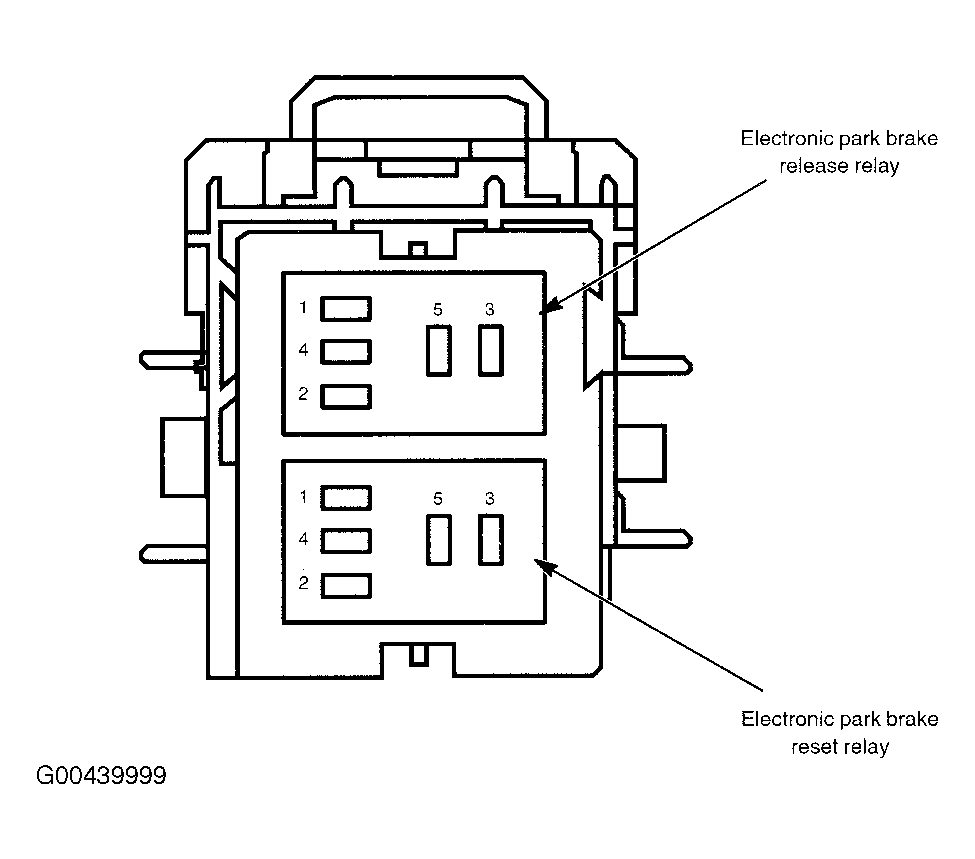

Fig 3: Auxiliary Relay Box 1

G00439999

Courtesy of FORD MOTOR CO.

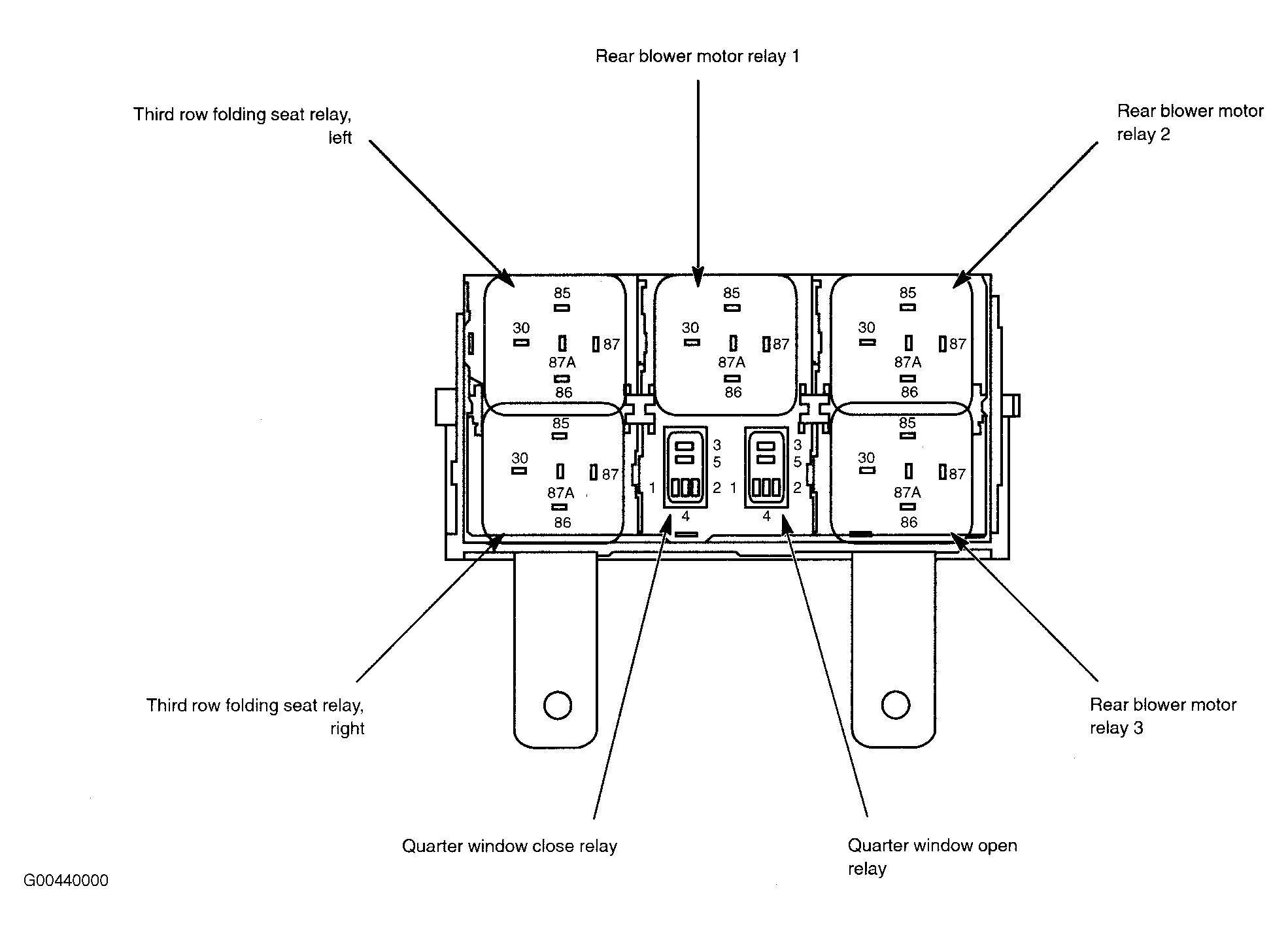

Fig 4: Auxiliary Relay Box 2

G00440000

Courtesy of FORD MOTOR CO.

Fig 5: Front Of Engine

G00440005

Courtesy of FORD MOTOR CO.

Fig 6: Rear Of Engine

G00440166

Courtesy of FORD MOTOR CO.

Fig 7: Automatic Transmission (6R75 2WD)

G00440167

Courtesy of FORD MOTOR CO.

Fig 8: Automatic Transmission (6R75 4WD)

G00440168

Courtesy of FORD MOTOR CO.

Fig 9: Automatic Transmission (6HP26 2WD)

G00440169

Courtesy of FORD MOTOR CO.

Fig 10: Automatic Transmission (6HP26 4WD)

G00440170

Courtesy of FORD MOTOR CO.

Fig 11: Rear Of Dash (Expedition)

G00440171

Courtesy of FORD MOTOR CO.

Fig 12: Front Of Dash (Expedition)

G00458752

Courtesy of FORD MOTOR CO.

Fig 13: Rear Of Dash (Navigator)

G00458753

Courtesy of FORD MOTOR CO.

Fig 14: Front Of Dash (Navigator)

G00458754

Courtesy of FORD MOTOR CO.

Fig 15: Steering Column (Expedition)

G00440175

Courtesy of FORD MOTOR CO.

Fig 16: Steering Column (Navigator)

G00440176

Courtesy of FORD MOTOR CO.

Fig 17: Steering Wheel

G00440177

Courtesy of FORD MOTOR CO.

Fig 18: Center Console (Expedition)

G00440178

Courtesy of FORD MOTOR CO.

Fig 19: Center Console (Navigator)

G00440179

Courtesy of FORD MOTOR CO.

Fig 20: Left Front Of Vehicle Interior (Expedition)

G00440180

Courtesy of FORD MOTOR CO.

Fig 21: Right Front Of Vehicle Interior (Expedition)

G00458755

Courtesy of FORD MOTOR CO.

Fig 22: Left Front Of Vehicle Interior (Navigator)

G00440182

Courtesy of FORD MOTOR CO.

Fig 23: Right Front Of Vehicle Interior (Navigator)

G00458756

Courtesy of FORD MOTOR CO.

Fig 24: Left Rear Of Vehicle Interior (Expedition)

G00458757

Courtesy of FORD MOTOR CO.

Fig 25: Right Rear Of Vehicle Interior (Expedition)

G00440185

Courtesy of FORD MOTOR CO.

Fig 26: Left Rear Of Vehicle Interior (Navigator)

G00458758

Courtesy of FORD MOTOR CO.

Fig 27: Right Rear Of Vehicle Interior (Navigator)

G00440187

Courtesy of FORD MOTOR CO.

Fig 28: Left Rear Of Vehicle Interior (Expedition-EL & Navigator-L)

G00458759

Courtesy of FORD MOTOR CO.

Fig 29: Right Rear Of Vehicle Interior (Expedition-EL & Navigator-L)

G00440189

Courtesy of FORD MOTOR CO.

Fig 30: Rear Of Vehicle (Expedition & Navigator)

G00440190

Courtesy of FORD MOTOR CO.

Fig 31: Rear Of Vehicle (Expedition-EL & Navigator-L)

G00440191

Courtesy of FORD MOTOR CO.

Fig 32: Driver's Seat

G00440192

Courtesy of FORD MOTOR CO.

Fig 33: Front Passenger's Seat

G00458760

Courtesy of FORD MOTOR CO.

Fig 34: Driver's Door (Expedition)

G00440194

Courtesy of FORD MOTOR CO.

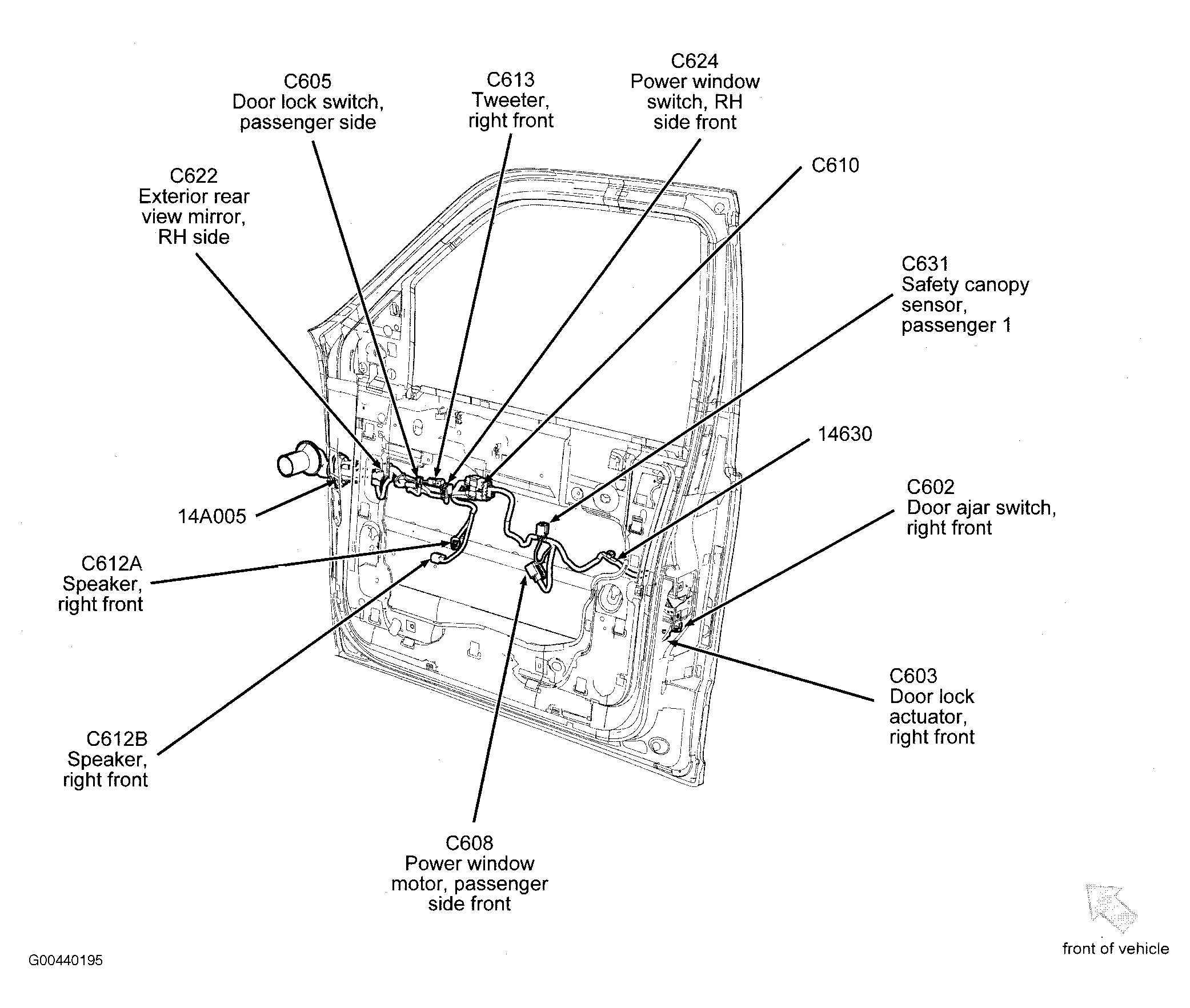

Fig 35: Front Passenger's Door (Expedition)

G00440195

Courtesy of FORD MOTOR CO.

Fig 36: Driver's Door (Navigator)

G00440196

Courtesy of FORD MOTOR CO.

Fig 37: Front Passenger's Door (Navigator)

G00440197

Courtesy of FORD MOTOR CO.

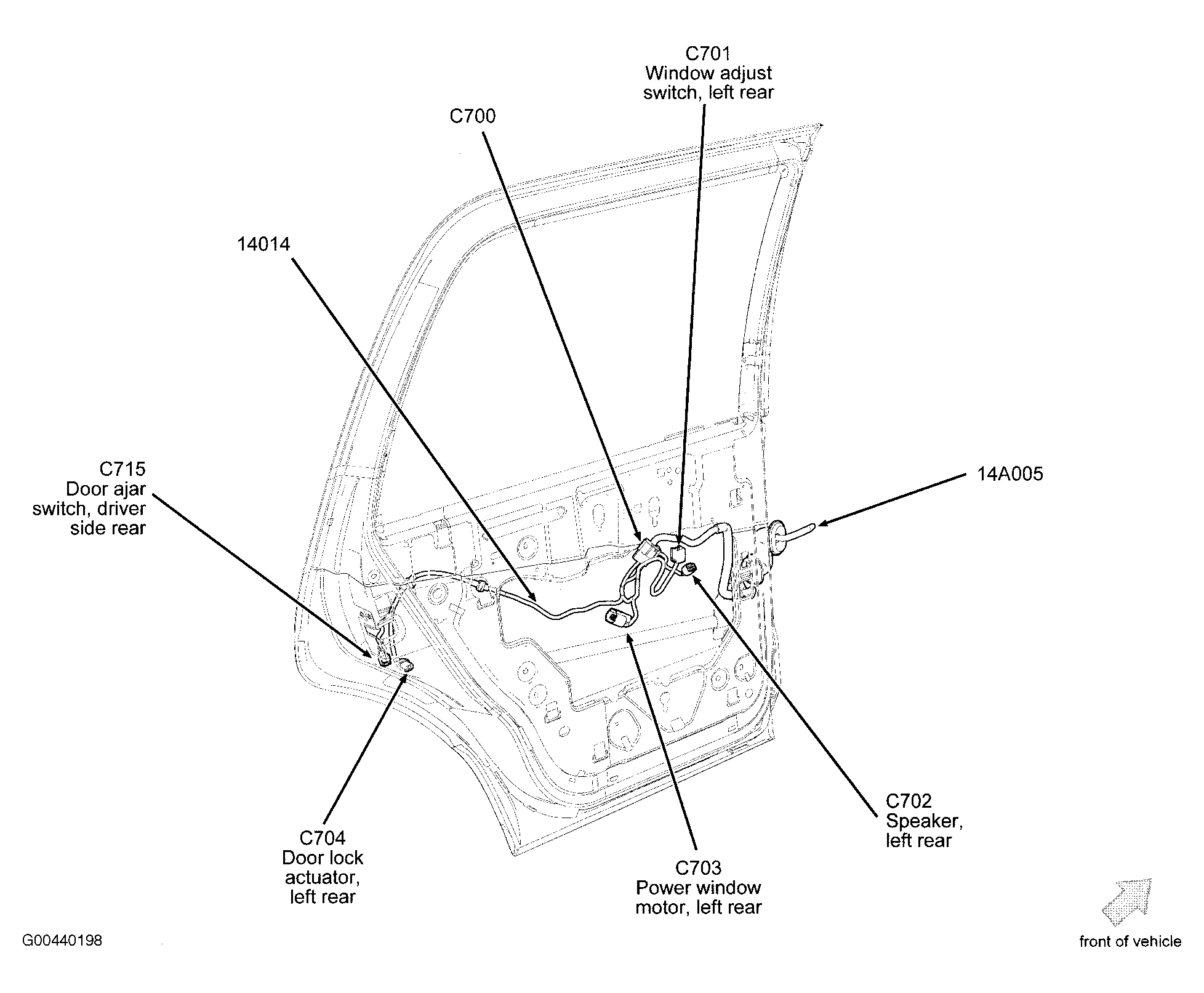

Fig 38: Left Rear Door

G00440198

Courtesy of FORD MOTOR CO.

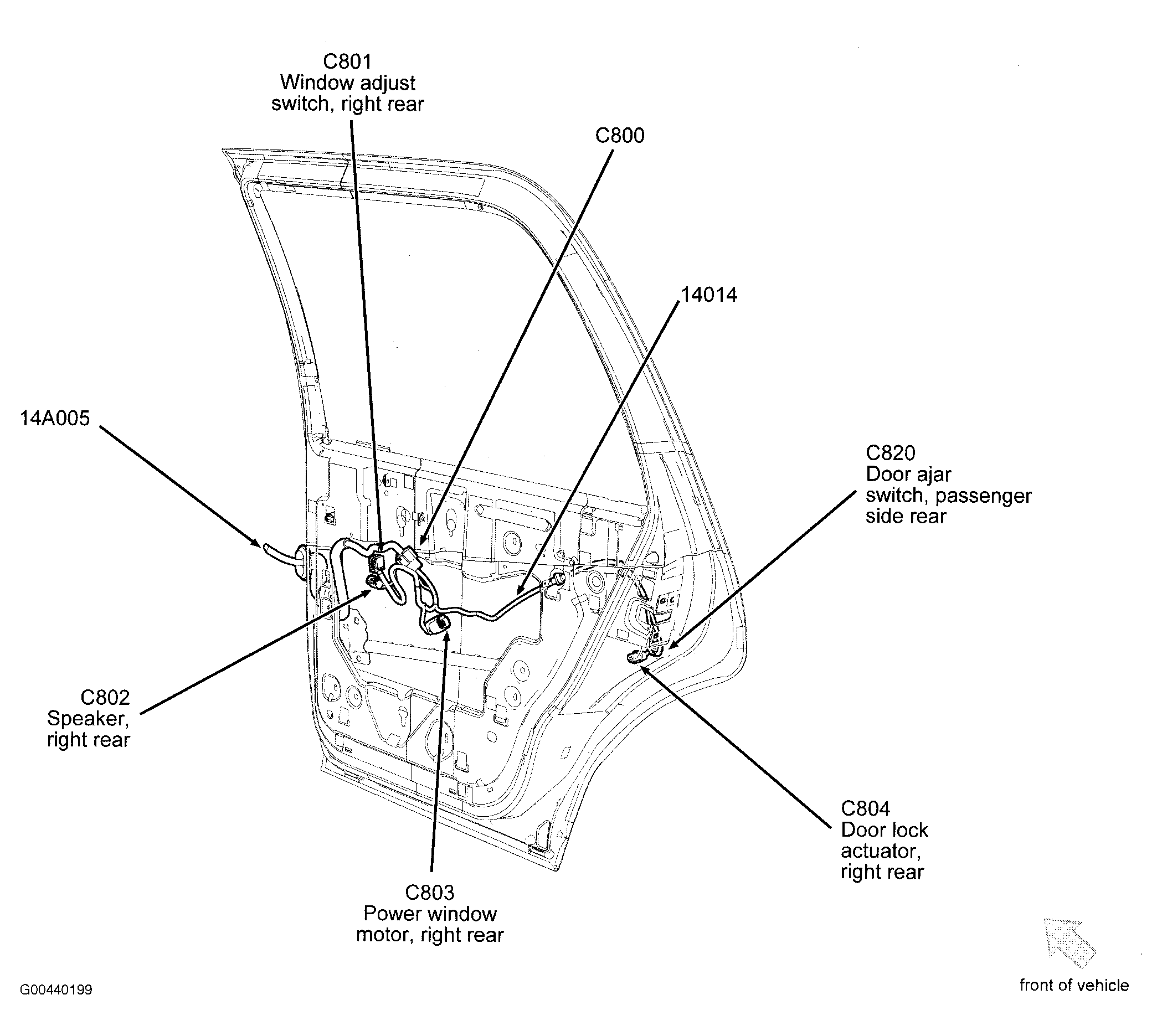

Fig 39: Right Rear Door

G00440199

Courtesy of FORD MOTOR CO.

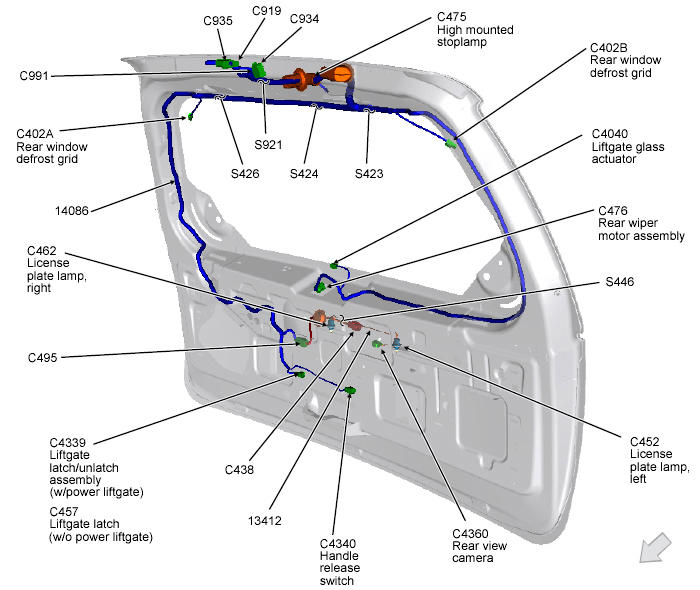

Fig 40: Liftgate (Expedition)

G00458761

Courtesy of FORD MOTOR CO.

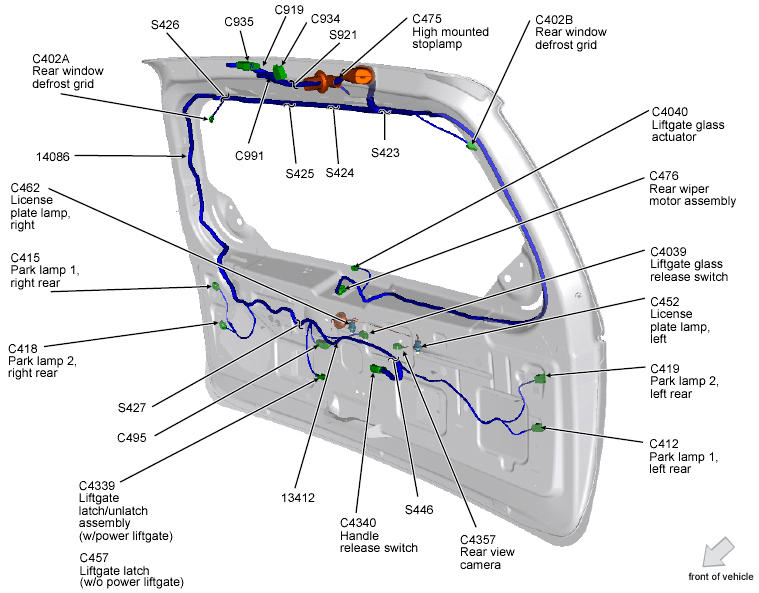

Fig 41: Liftgate (Navigator)

G00458762

Courtesy of FORD MOTOR CO.

Fig 42: Roof (Expedition)

G00458763

Courtesy of FORD MOTOR CO.

Fig 43: Roof (Navigator)

G00458767

Courtesy of FORD MOTOR CO.

Fig 44: HVAC (Manual A/C)

G00440205

Courtesy of FORD MOTOR CO.

Fig 45: HVAC (EATC)

G00458764

Courtesy of FORD MOTOR CO.

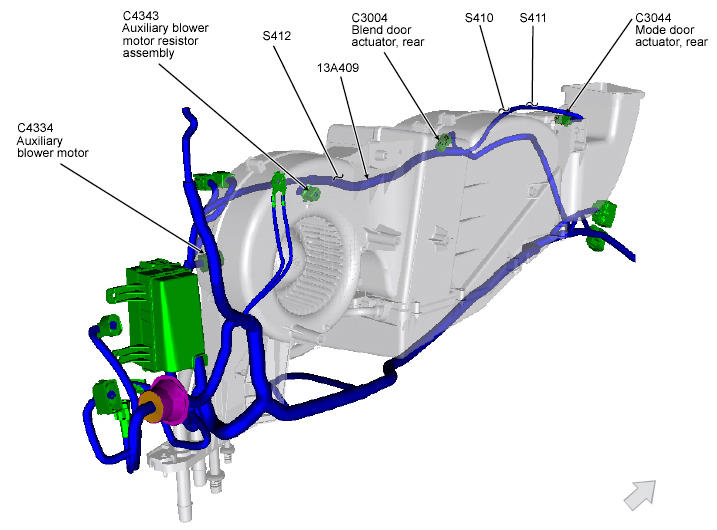

Fig 46: Auxiliary HVAC (Expedition & Navigator)

G00458765

Courtesy of FORD MOTOR CO.

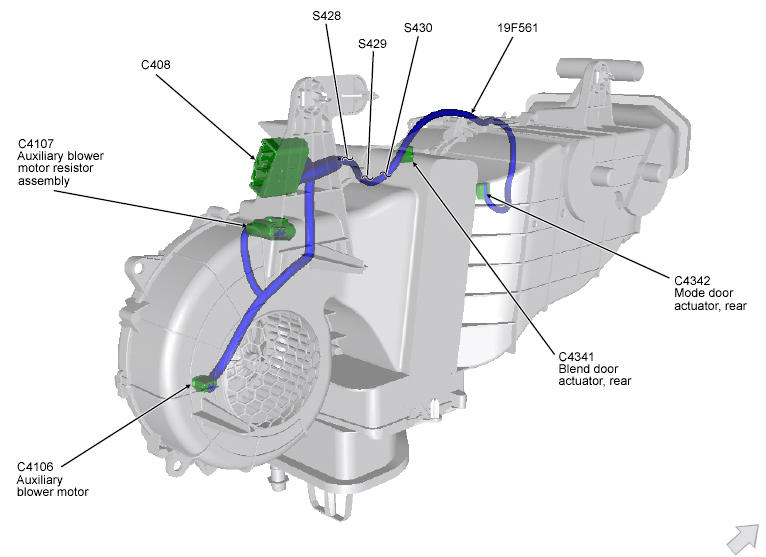

Fig 47: Auxiliary HVAC (Expedition-EL & Navigator-L)

G00458766

Courtesy of FORD MOTOR CO.

Fig 48: Engine Compartment (Expedition)

G00458748

Courtesy of FORD MOTOR CO.

Fig 49: Engine Compartment (Navigator)

G00458749

Courtesy of FORD MOTOR CO.

Fig 50: Engine Compartment (Expedition)

G00458750

Courtesy of FORD MOTOR CO.

Fig 51: Engine Compartment (Navigator)

G00458751

Courtesy of FORD MOTOR CO.
