Selector Lever Knob: Notes

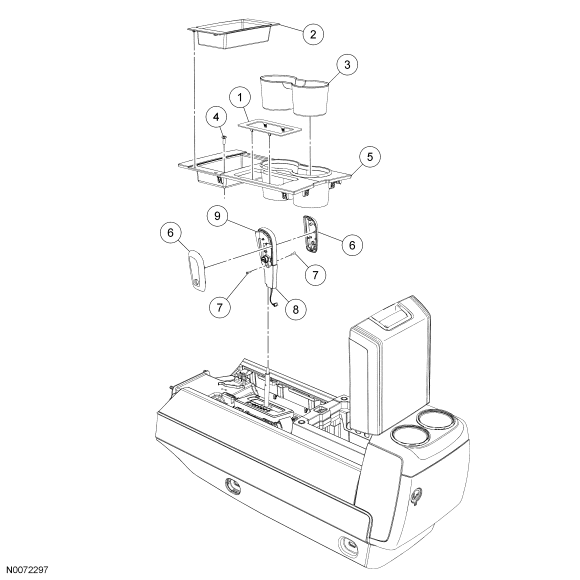

Fig 1: Exploded View Of Vehicles Equipped With a 6R75 Transmission

GF0046929

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	PRNDL trim plate
2	78045G34-B	Console tray
3	78046B94-B	Console cup holder insert
4	-	Console upper trim panel screw
5	78045A76-A	Console upper trim panel
6	7L468-A/B	Selector lever knob covers
7	W790088	Selector lever knob screws
8	-	Selector lever shroud (part of 7L010-A/B)
9	7L010-A/B	Selector lever knob

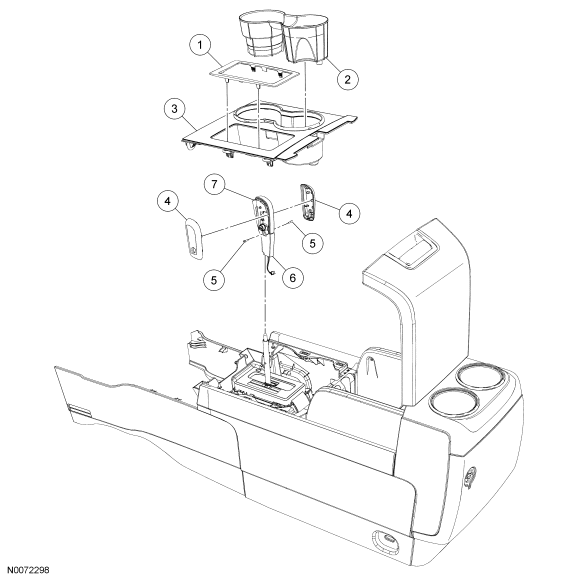

Fig 2: Exploded View Of Vehicles Equipped With a 6HP26 Transmission

GF0046930

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	PRNDL trim plate
2	78046B94-B	Console cup holder insert
3	78044J76-A	Console upper trim panel
4	7L468-A	Selector lever knob covers
5	W790088	Selector lever knob screws (part of 7L010-A)
6	-	Selector lever shroud (part of 7L010-A)
7	7L010-A	Selector lever knob
