Powertrain Control Module Connector

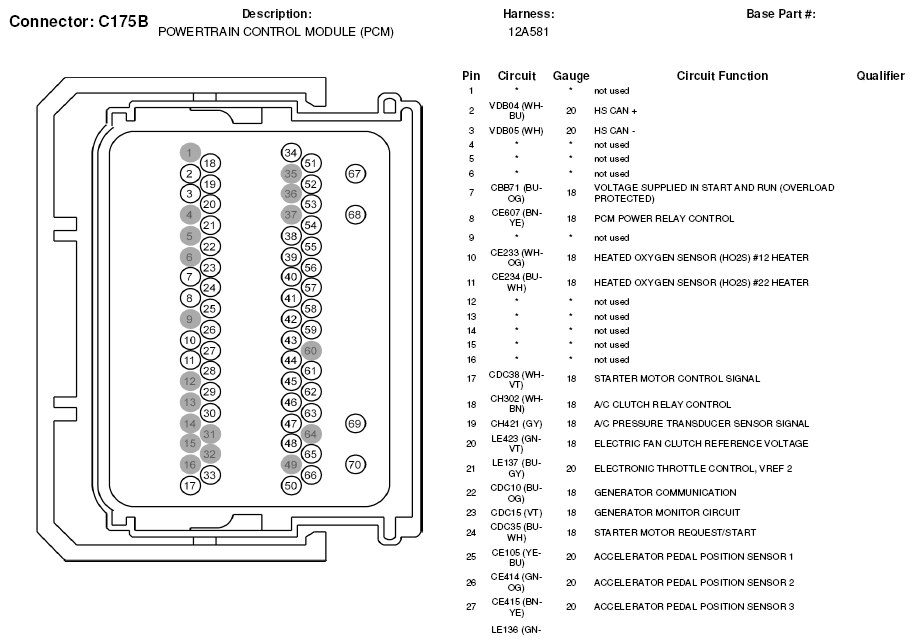

Fig 1: Powertrain Control Module (1 Of 2) Connector End View (C175B) (1 Of 2)
G05599795

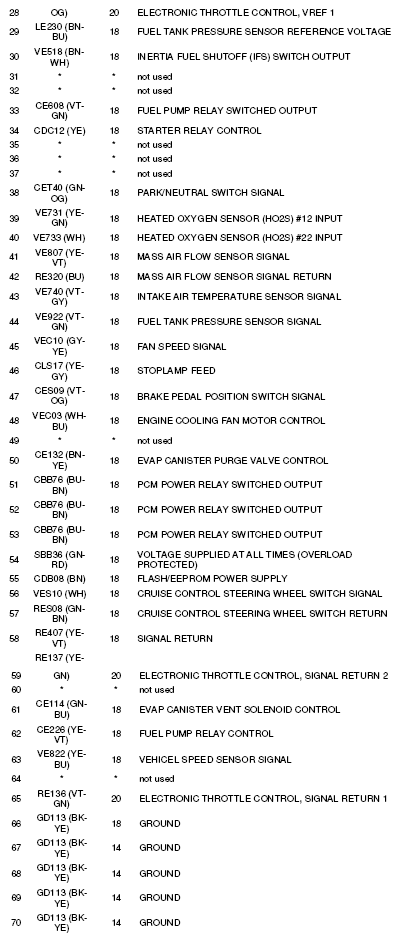

Fig 2: Powertrain Control Module (2 Of 2) Connector End View (C175B) (2 Of 2)
G05599796

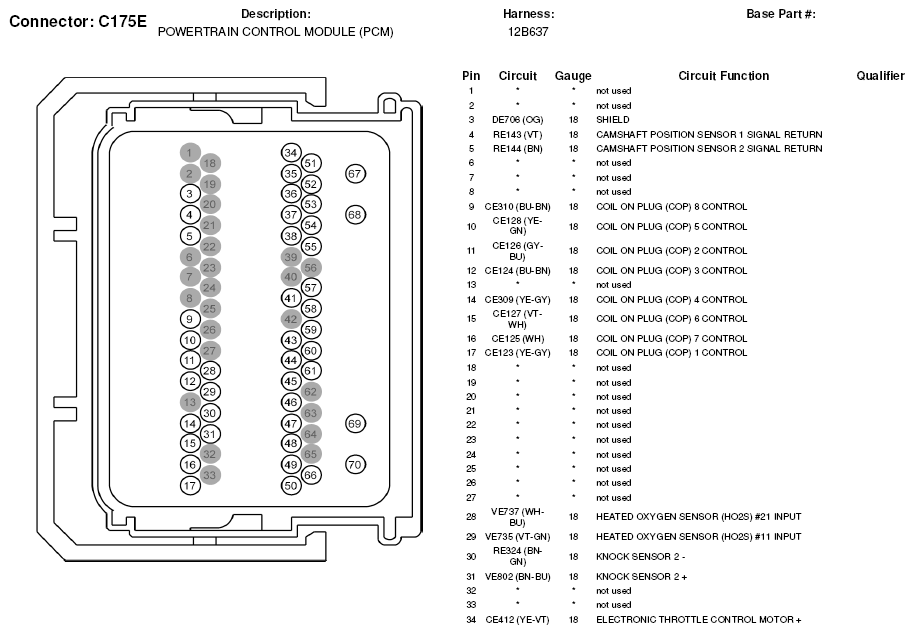

Fig 3: Powertrain Control Module (1 Of 2) Connector End View (C175E) (1 Of 2)
G05599797

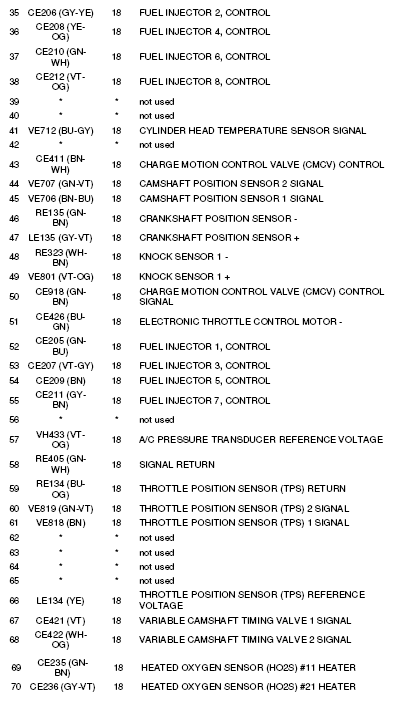

Fig 4: Powertrain Control Module (2 Of 2) Connector End View (C175E) (2 Of 2)
G05599798
