Intake Manifold Assembly: Notes
Material
| Item | Specification |
|---|---|
| Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color) |
WSS-M97B51-A1 |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

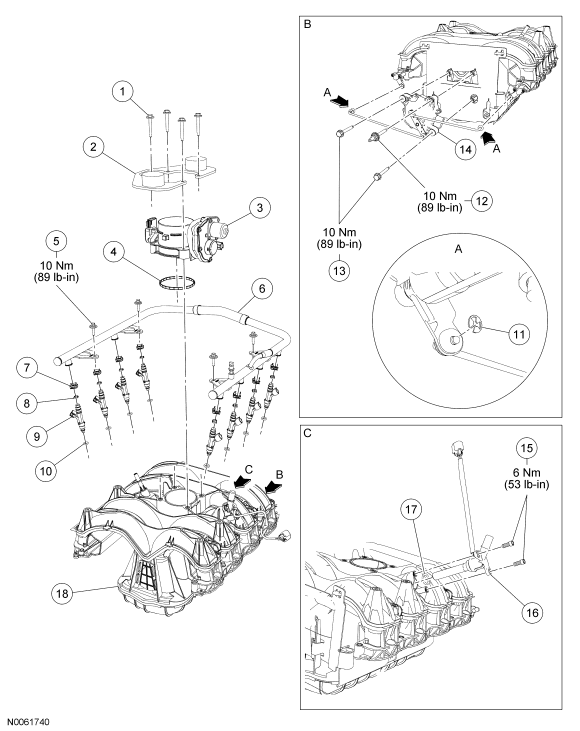

| Item | Part Number | Description |
|---|---|---|
| 1 | N705438 | Throttle body (TB) bolt (4 required) |
| 2 | 9J444 | Vibration damper |
| 3 | 9F991 | TB |
| 4 | - | TB gasket (part of 9F991) |
| 5 | N705800 | Fuel rail bolt (4 required) |
| 6 | 9F792 | Fuel rail |
| 7 | 9C995 | Fuel injector-to-fuel rail locking clip (8 required) |
| 8 | 9229 | Fuel injector-to-fuel rail O-ring seal (8 required) |
| 9 | 9F593 | Fuel injector (8 required) |
| 10 | 9229 | Fuel injector-to-intake manifold O-ring seal (8 required) |
| 11 | - | Charge motion control valve (CMCV) rod locking clip (2 required) |
| 12 | W708165 | CMCV stud bolt |
| 13 | W719084 | CMCV bolts (2 required) |
| 14 | 9G730 | CMCV |
| 15 | W500204 | PCV heater element bolts (2 required) |
| 16 | 9F624 | PCV heater element |
| 17 | - | PCV heater element O-ring seal |
| 18 | 9Y451 | Intake manifold assembly |
