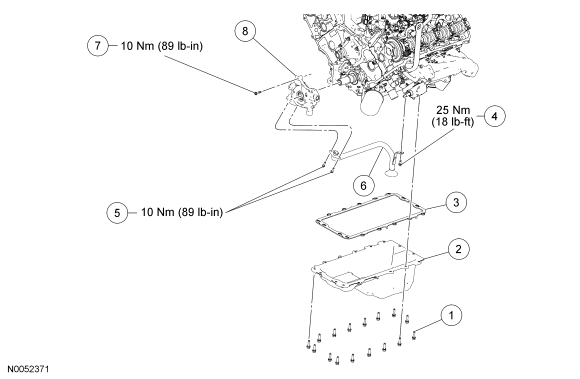

Engine Lubrication Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | W701605 | Oil pan bolt (16 required) |
| 2 | 6675 | Oil pan |
| 3 | 6710 | Oil pan gasket |
| 4 | N605904 | Oil pump screen and pickup tube-to-spacer bolt |
| 5 | N806155 | Oil pump screen and pickup tube-to-oil pump bolts (2 required) |
| 6 | 6622 | Oil pump screen and pickup tube |
| 7 | N806183 | Oil pump bolt (3 required) |
| 8 | 6621 | Oil pump |
- For additional information, refer to the procedures.
