Engine Support Insulators: Notes

Special Tools

Illustration Tool Name Tool Number
GF0000163Courtesy of FORD MOTOR CO.
 Engine Support Bar, Heavy Duty 303-F070
GF0002648Courtesy of FORD MOTOR CO.
 Support Bracket, Engine 303-639
GF0002647Courtesy of FORD MOTOR CO.
 Support Hook 303-F071
Material

Item Specification
Threadlock 262
TA-26		 WSK-M2G351-A6

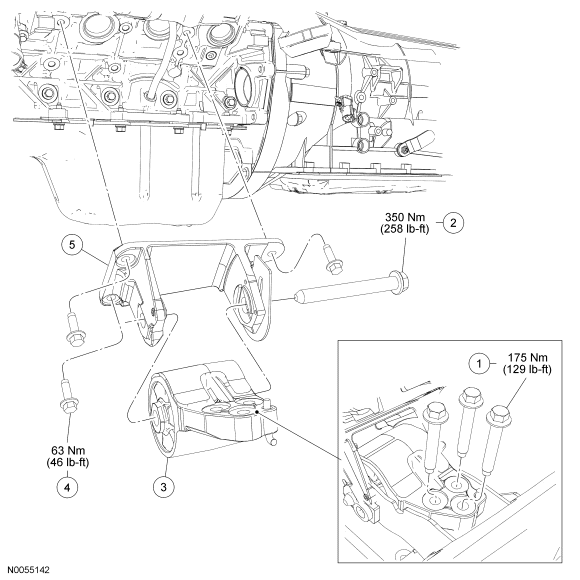

Fig 1: Exploded View Of Left Engine Support Insulator With Torque Specifications
GF0022031Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W712805 LH engine support insulator-to-frame bolt (3 required)
2 W711142 LH engine support insulator through bolt
3 6B032 LH engine support insulator
4 W711141 LH engine support insulator-to-cylinder block bracket bolt (3 required)
5 6061 LH engine support insulator-to-cylinder block bracket

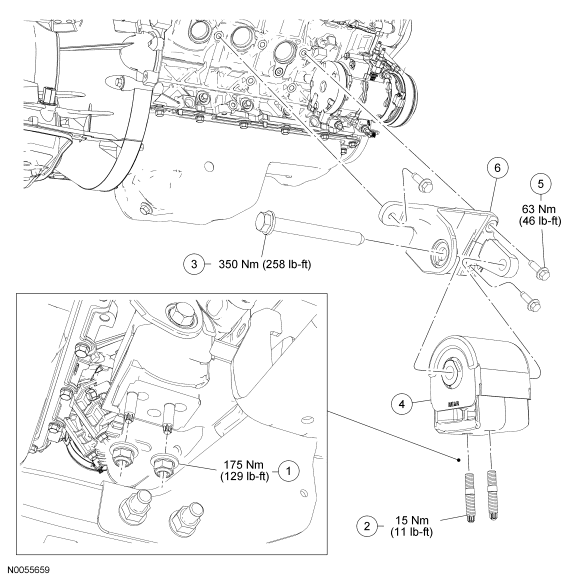

Fig 2: Exploded View Of Right Engine Support Insulator With Torque Specifications
GF0022032Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707251 RH engine support insulator-to-frame nut (2 required)
2 W711144 RH engine support insulator-to-frame stud bolt (2 required)
3 W711142 RH engine support insulator through bolt
4 6H028 RH engine support insulator
5 W711141 RH engine support insulator-to-cylinder block bracket bolt (3 required)
6 - RH engine support insulator-to-cylinder block bracket
