Fuel Rail and Fuel Injector - Exploded View

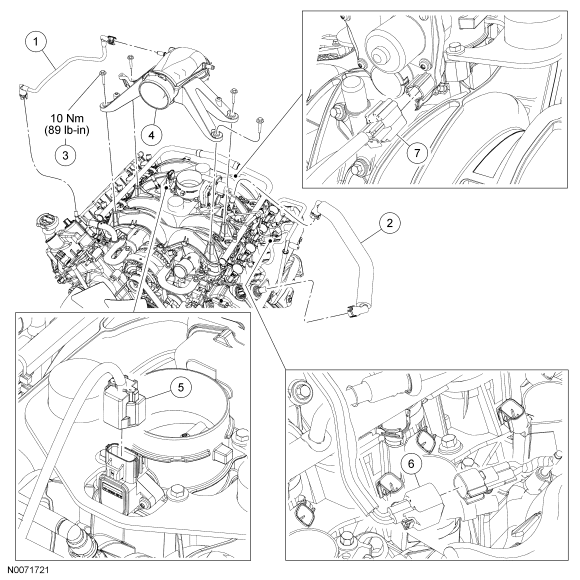

Fig 1: Exploded View Of Fuel Rail & Fuel Injector - (1 Of 2) With Torque Specifications

GF0022088

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6758	Crankcase ventilation tube
2	6K817	PCV tube
3	W505426	Air cleaner outlet pipe-to-throttle body (TB) adapter bolt (4 required)
4	9A589	Air cleaner outlet pipe-to-TB adapter
5	-	Throttle position (TP) sensor electrical connector (part of 12B637)
6	-	Heated PCV intake fitting electrical connector (part of 12B637)
7	-	Electronic acceleration control electrical connector (part of 12B637)

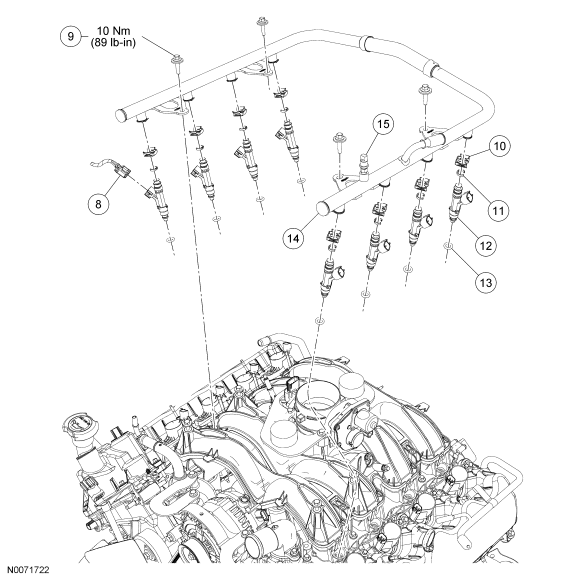

Fig 2: Exploded View Of Fuel Rail & Fuel Injector - (2 Of 2) With Torque Specifications

GF0022089

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
8	14A464	Fuel injector electrical connector (8 required) (part of 12B637)
9	W705438	Fuel rail bolt (4 required)
10	9C995	Fuel injector-to-fuel rail locking clip (8 required)
11	9229	Fuel injector-to-fuel rail O-ring (8 required)
12	9F593	Fuel injector (8 required)
13	9229	Fuel injector-to-intake manifold O-ring (8 required)
14	9F792	Fuel rail
15	-	Schrader valve port (part of 9F792)

For additional information, refer to the procedures.
