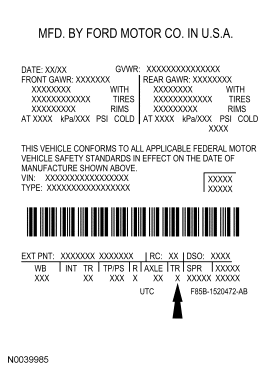

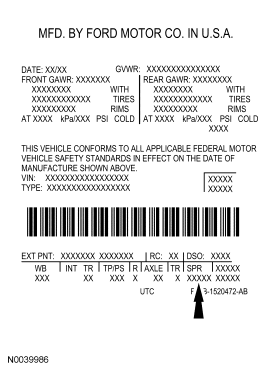

Vehicle Certification (VC) Label: Notes

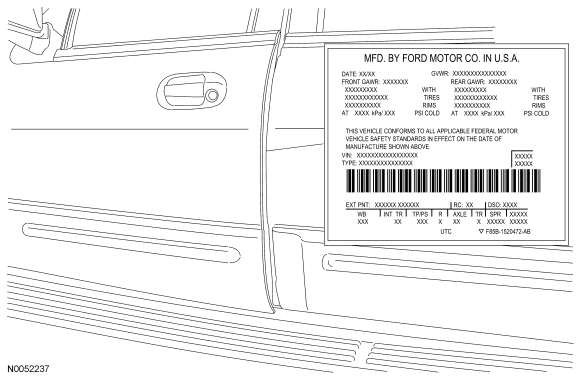

The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVWR.
If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

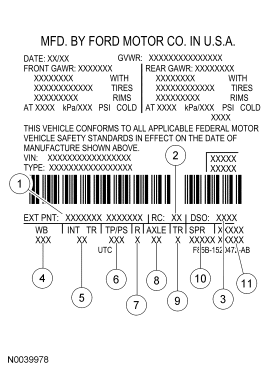

| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | Domestic special order code |
| 4 | Wheelbase code |
| 5 | Interior trim code |
| 6 | Tape/paint pinstripe code |
| 7 | Radio code |
| 8 | Axle code |
| 9 | Transmission code |
| 10 | Spring code |
| 11 | Powertrain calibration information |

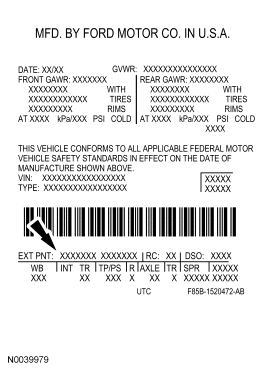

Paint codes may be listed as a 2-part code. The first set of characters listed indicate the vehicle primary body color. The second set of characters listed (if applicable) indicate a 2-tone or accent body color. All colors are base coat/clear coat.
- CI - Grabber Blue
- DX - Dark Blue Pearl
- G2 - Redfire
- G3 - Pueblo Gold
- HS - Earth Pearl
- PV - White Chocolate (tri-coat)
- T5 - Dark Copper
- U1 - Sport Blue Metallic
- UA - Ebony
- UG - White Platinum
- UH - Tuxedo Black Metallic
- UI - Bright Silver Metallic
- UJ - Sterling Gray Metallic
- UK - Royal Red
- UL - Atlantis Green Metallic
- WS - White Suede
- ZY - Vapor Silver Pearl

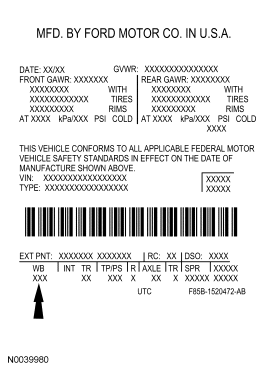

- 119 - 3,022.6 mm (119 in) wheelbase
- 131 - 3,327.4 mm (131 in) wheelbase

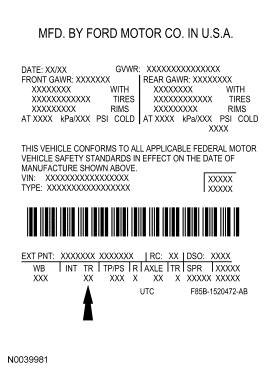

Interior trim codes are listed as a 2-part code. The first character identifies the trim type. The second character identifies the interior trim color.
Trim Type
- 1 - Verona leather, 40/40 captain's chairs - Expedition
- 2 - Verona leather, 40/40 captain's chairs - Expedition
- 3 - Verona leather, 40/40 captain's chairs with accent - Expedition
- F - Cloth captain's chairs - Expedition
- M - Cloth, 40/60 split bench seat - Expedition
- T - Premium/Soho leather, 40/40 captain's chairs - Navigator
Interior Trim Color
- C - Camel Tan
- L - Medium Light Stone
- W - Charcoal Black

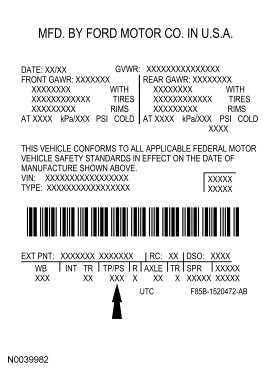

Tape and paint stripe codes do not apply.

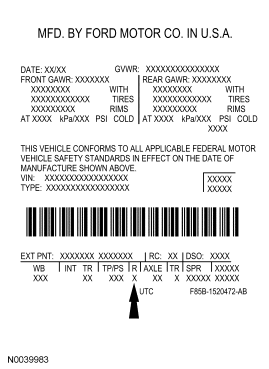

- 1 - Premium AM/FM stereo with in-dash 6-disc CD changer and clock
- F - AM/FM stereo with CD player, navigation system and clock
- S - Premium electronic AM/FM stereo CD player
- T - Premium AM/FM stereo with in-dash CD changer and clock
- U - Audiophile AM/FM stereo with in-dash, 6-disc CD changer and THX speaker system
- X - Audiophile AM/FM stereo with in-dash, CD changer and navigation system

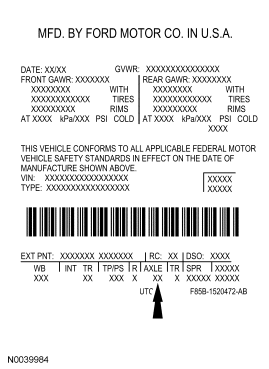

- 15 - 3.31 ratio, non-limited slip
- 16 - 3.73 ratio, non-limited slip
- H5 - 3.31 ratio, limited slip
- H6 - 3.73 ratio, limited slip
- C - 6-speed automatic (6R75)
- G - 6-speed automatic (ZF 6HP26)
Spring codes are listed as a 2-part code. The first set of characters listed identifies the front spring codes. The second set of characters listed identifies the rear spring codes.
Air Suspension
- L - Rear load-leveling air suspension
Front Springs
- AA - 5L14-3C098-AB
- BB - 5L14-3C098-BB
- CC - 3L14-18B036-AA
- DD - 5L14-3C098-AC
- FF - 3L14-18B036-BA
- HH - 3L14-18B036-DA
Rear Springs
- 11 - 4L14-18W002-AA
- 33 - 5L14-18W004-BB
- 44 - 5L14-5A965-AB
- 55 - 4L14-18W002-AA
- 66 - 5L74-5A965-AB
