Steering Column: Notes

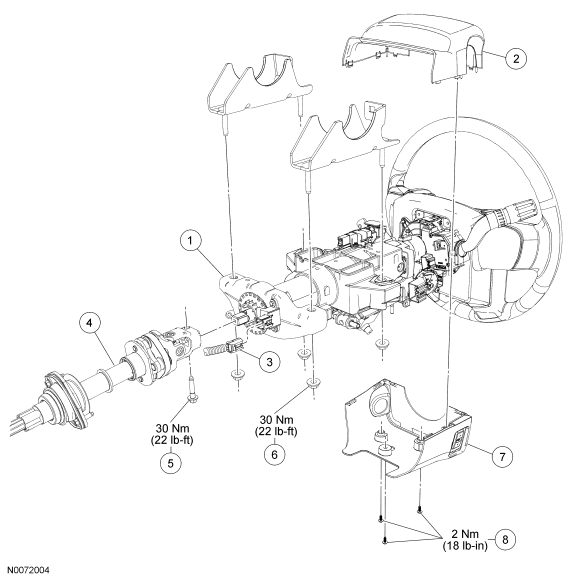

Fig 1: Exploded View Of Steering Column With Torque Specifications (1 Of 2)
GF0047000Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3C529 Steering column
2 3530 Upper steering column shroud
3 - Steering wheel rotational sensor electrical connector (part of 14489)
4 14A099 Upper steering column shaft
5 N808684 Upper steering column shaft-to-steering column bolt
6 N806423 Steering column support-to-instrument panel nut (4 required)
7 3533 Lower steering column shroud
8 W710485 Lower steering column shroud screws (3 required)

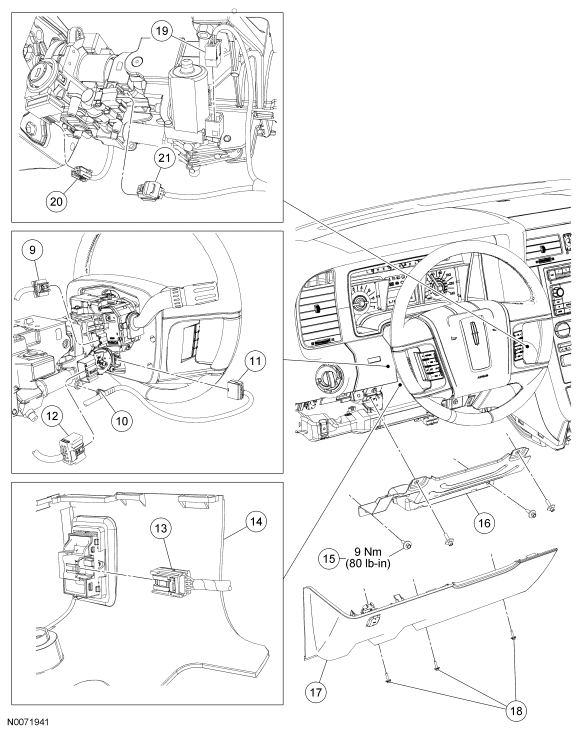

Fig 2: Exploded View Of Steering Column With Torque Specification (2 Of 2)
GF0047001Courtesy of FORD MOTOR CO.
Item Part Number Description
9 - Multi-function switch electrical connector (part of 14401)
10 - Electrical harness pin-type retainer (part of 14401)
11 - Clockspring electrical connector (part of 14401)
12 - Ignition switch electrical connector (part of 14401)
13 - Power tilt switch electrical connector (part of 14401)
14 3530B Lower steering column shroud
15 W710879 Steering column opening cover reinforcement bolt (4 required)
16 017A28 Steering column opening cover reinforcement
17 04459 Steering column opening cover
18 W707628 Steering column opening cover screws (3 required)
19 - Power tilt motor electrical connector (part of 14401)
20 - Passive anti-theft system (PATS) electrical connector (part of 14401)
21 - Key release interlock actuator electrical connector (part of 14401)
