Camshaft Position Sensor: Service and Repair

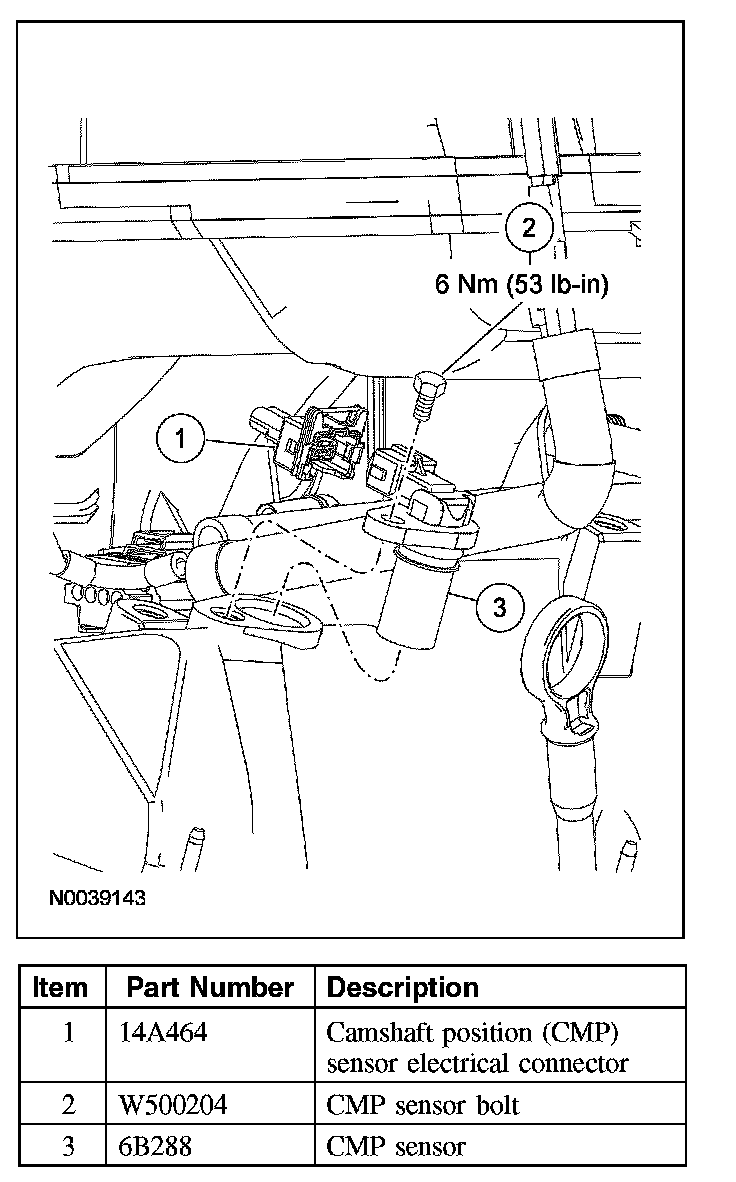

CAMSHAFT POSITION (CMP) SENSOR







Removal and Installation
1. Disconnect the camshaft position (CMP) sensor electrical connector.
2. Remove the bolt and the CMP sensor.
- To install, tighten to 6 Nm (53 lb-in).

3. To install, reverse the removal procedure.
