Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR







Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

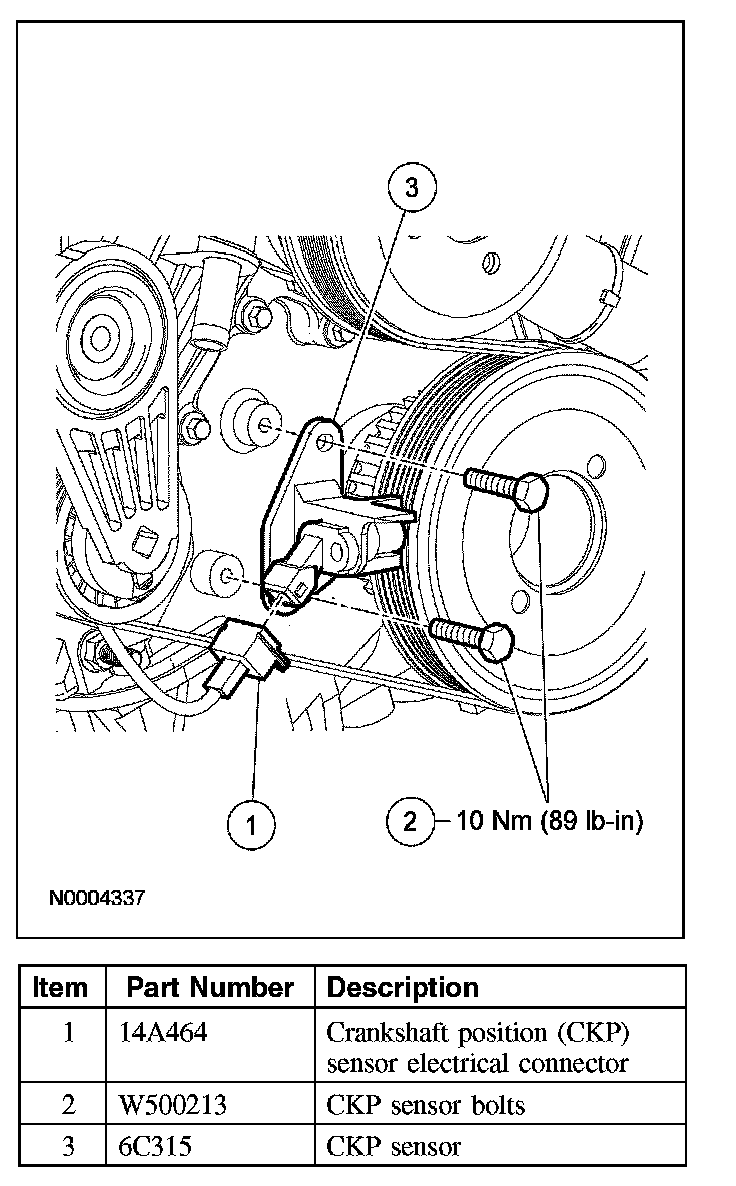

2. Disconnect the crankshaft position (CKP) sensor electrical connector.
3. Remove the bolt and the CKP sensor.
- To install, tighten to 10 Nm (89 lb-in).

4. NOTE: Be sure the sensor wiring is routed away from the battery cable.

To install, reverse the removal procedure.
