Oil Pan, Engine

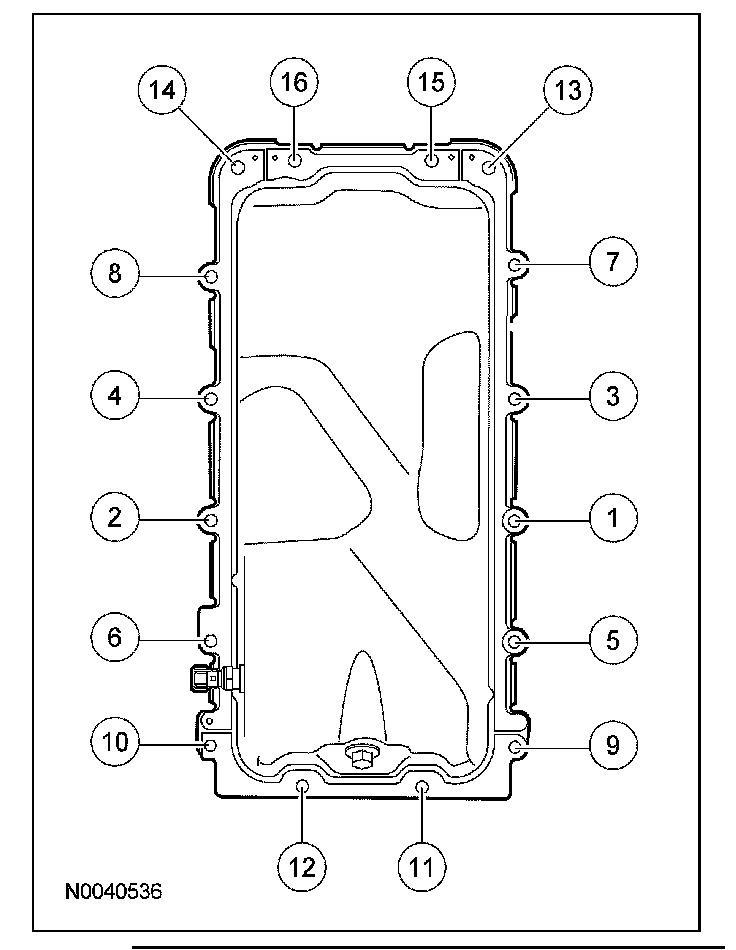

Oil Pan Bolts





First pass 2 Nm (18 lb-in).
Second pass 20 Nm (15 lb-ft).
Final pass Tighten an additional 60°
