Seat Temperature Control Module: Service and Repair

HEATED SEAT MODULE

Exploded View

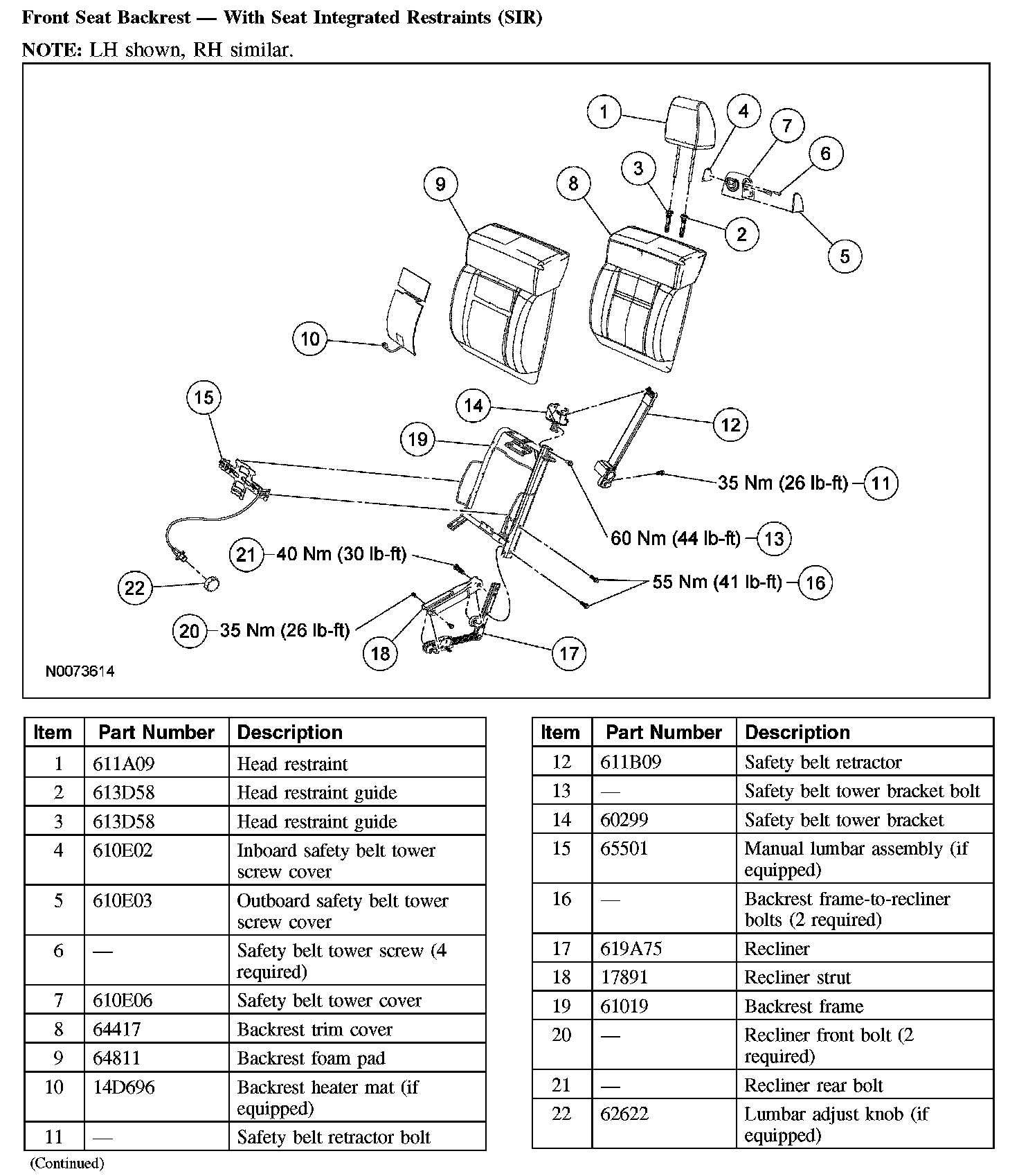

Front Seat Backrest - With Seat Integrated Restraints (SIR):

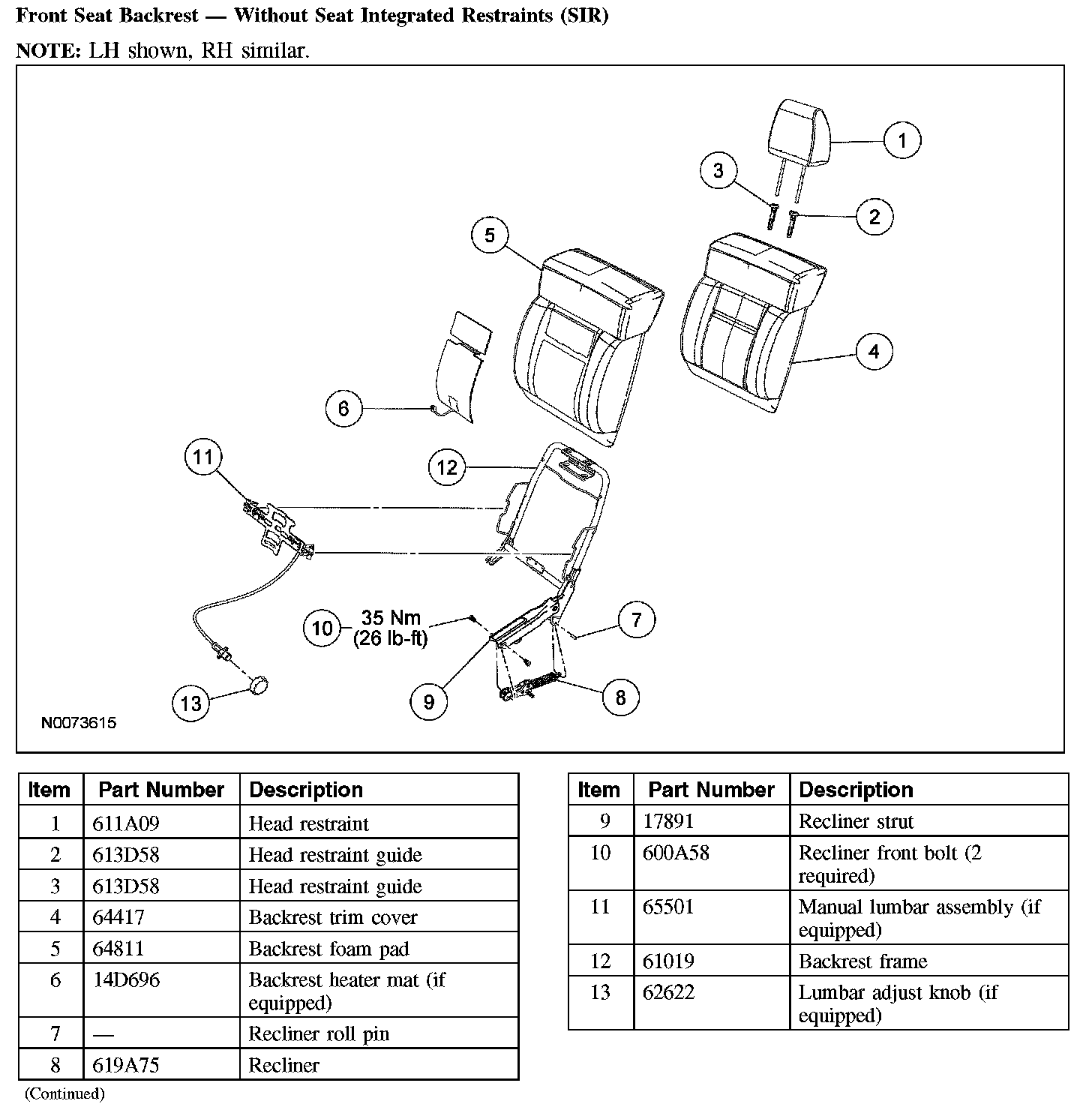

Front Seat Backrest - Without Seat Integrated Restraints (SIR):

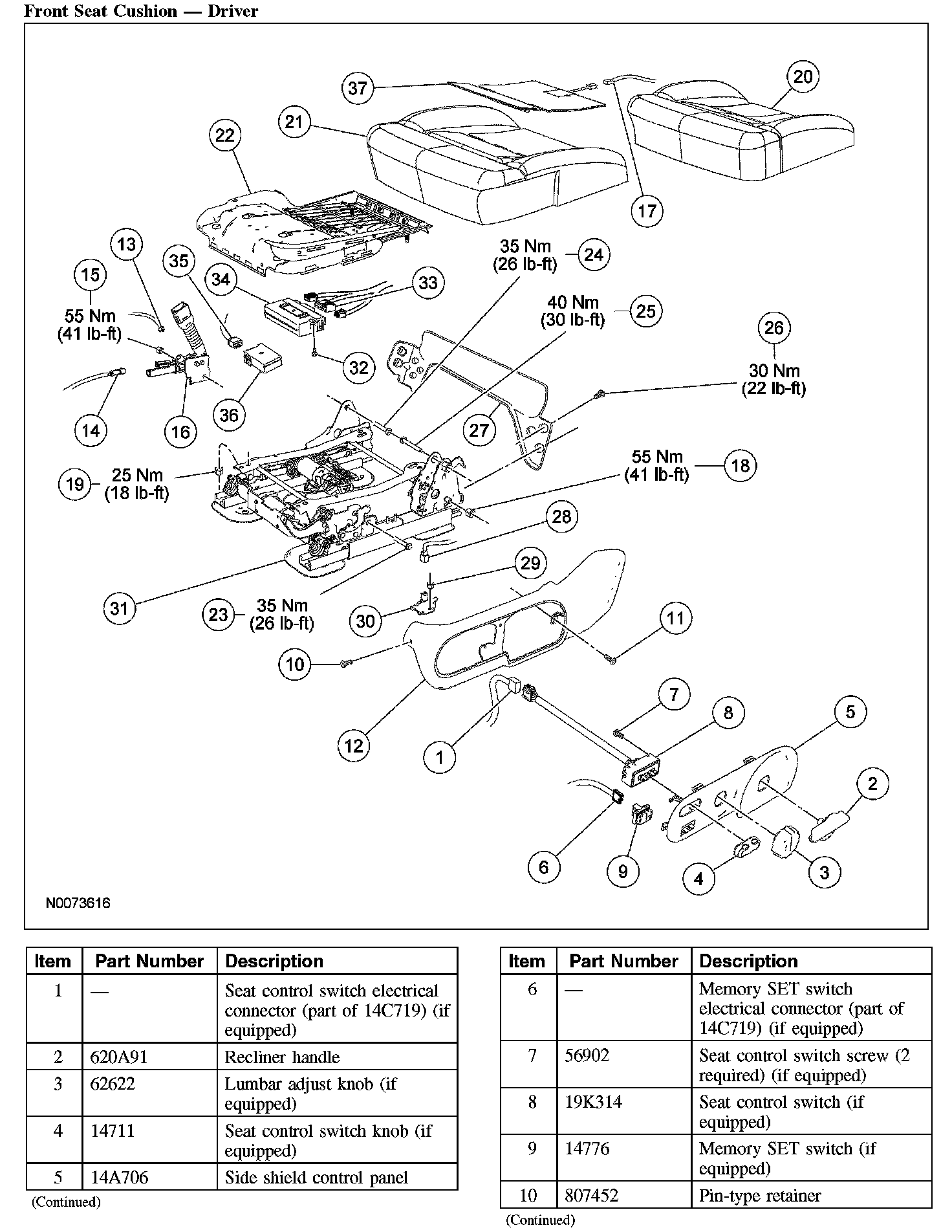

Front Seat Cushion - Driver (Part 1):

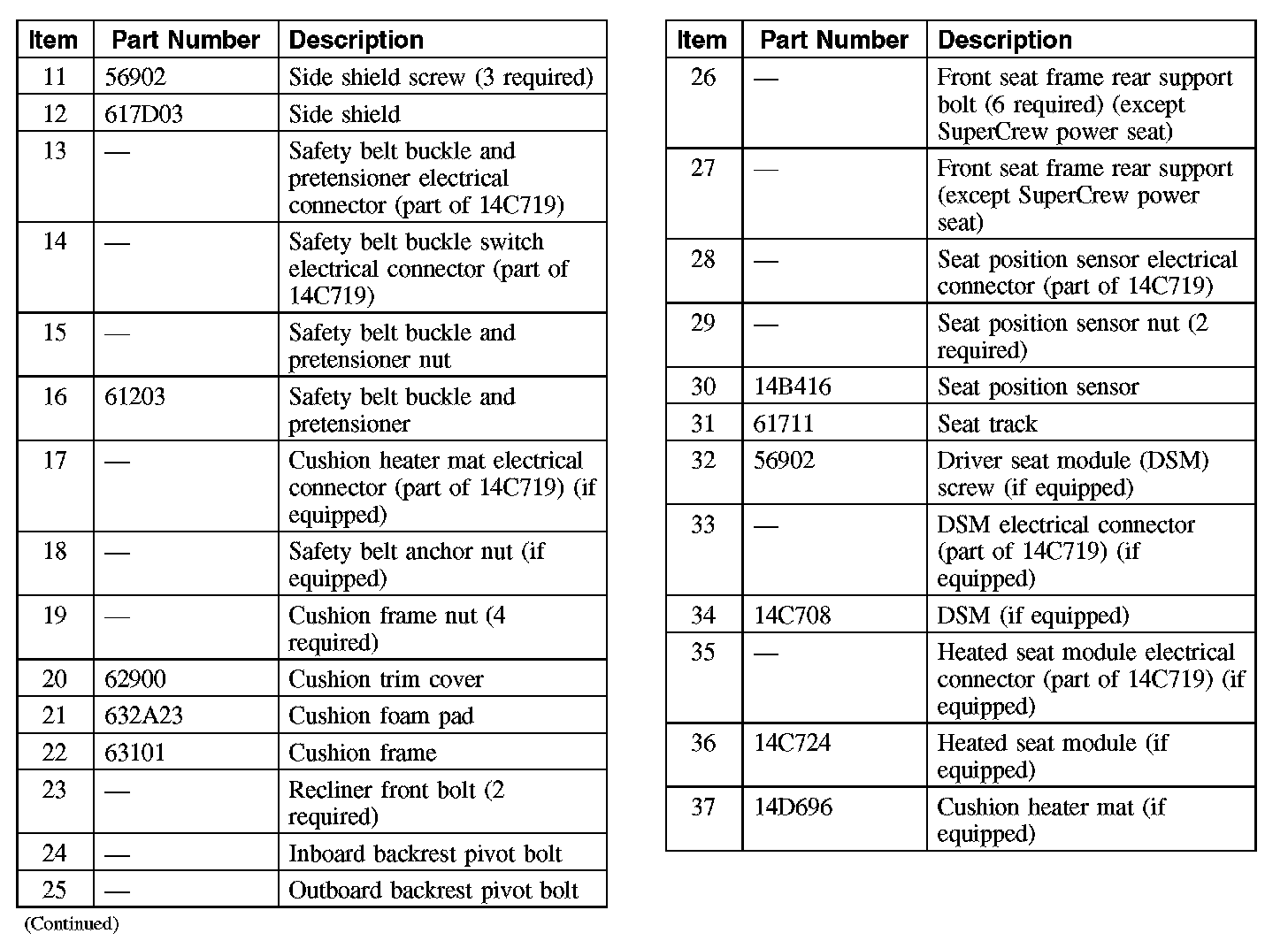

Front Seat Cushion - Driver (Part 2):

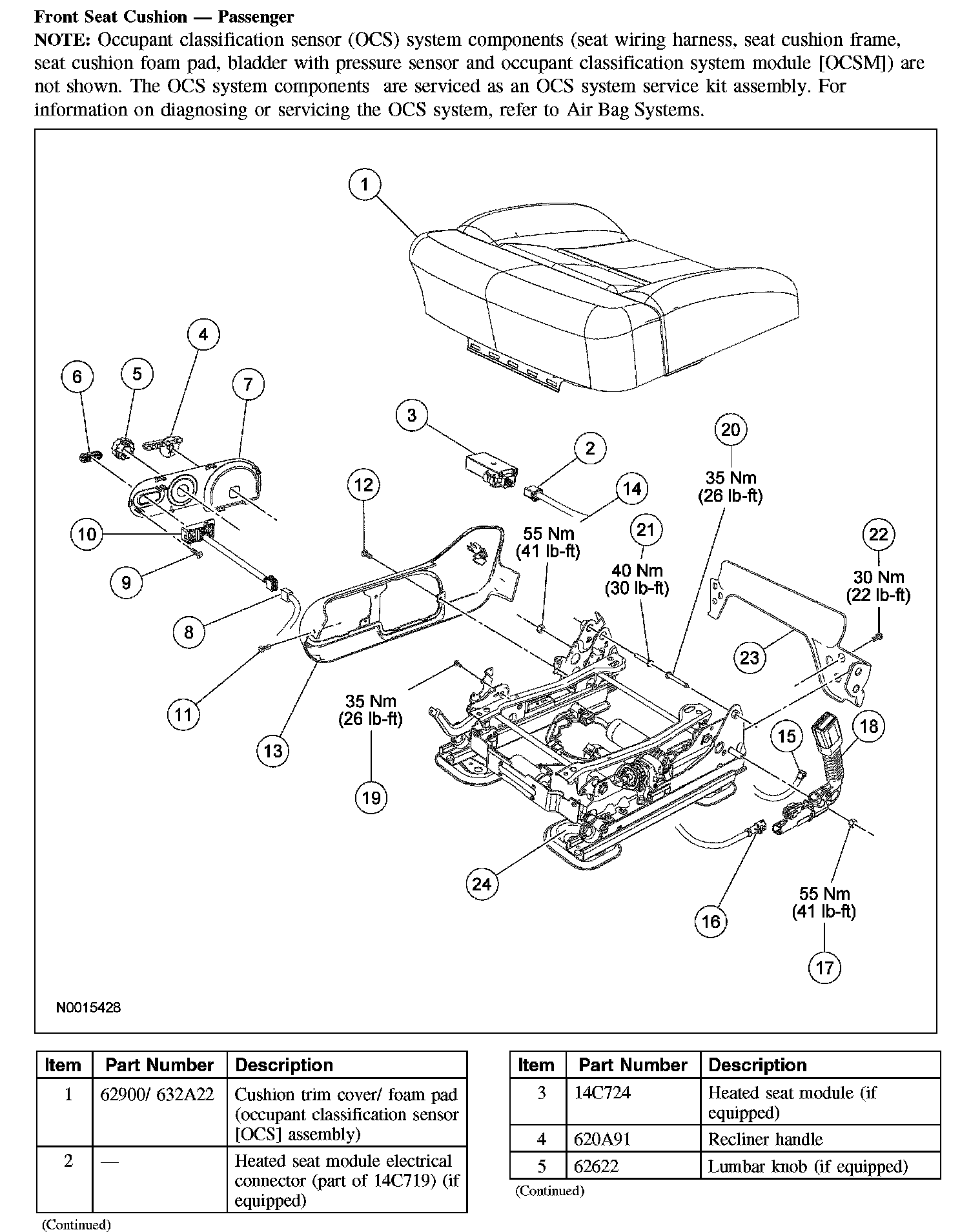

Front Seat Cushion - Passenger (Part 1):

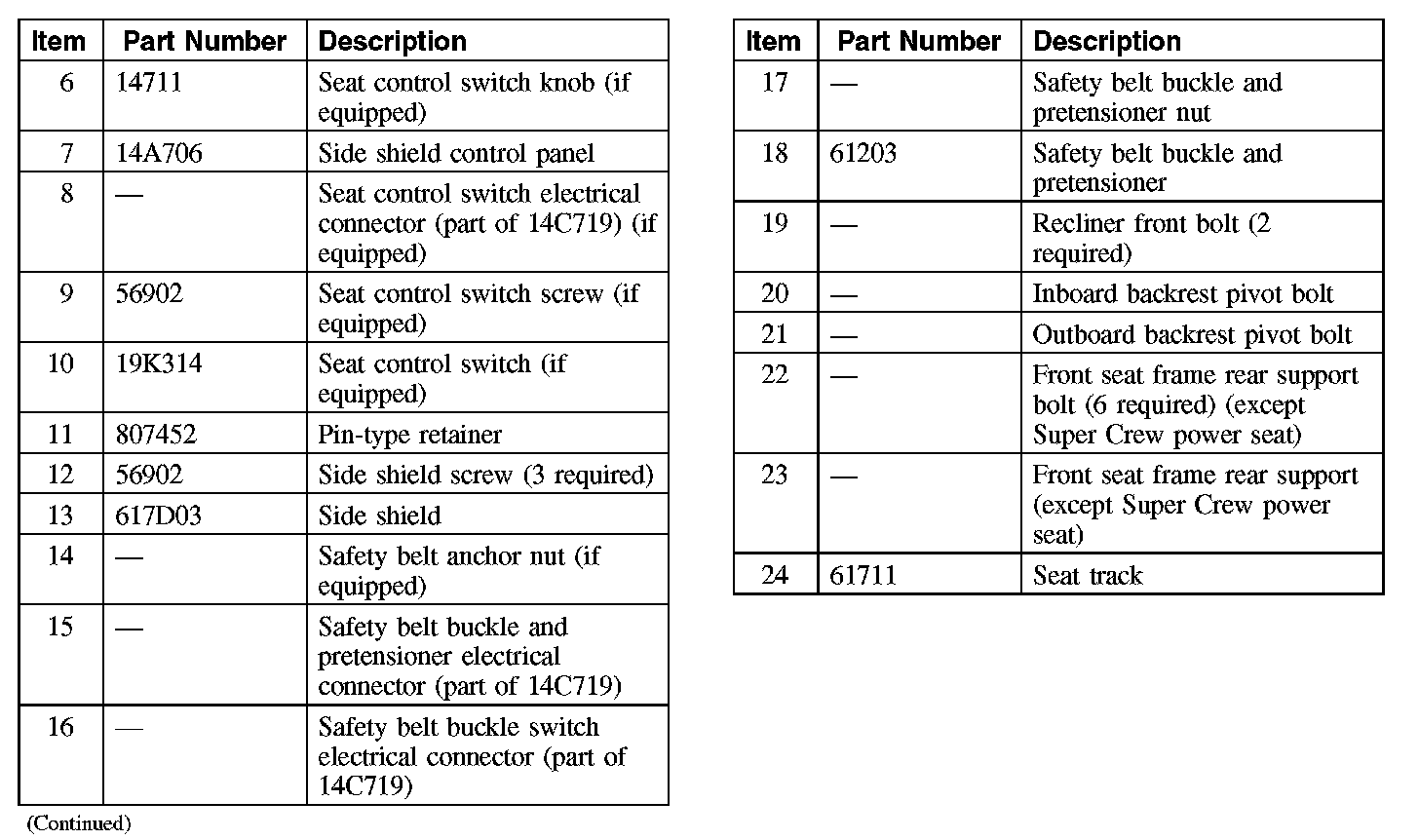

Front Seat Cushion - Passenger (Part 2):

Removal and Installation

WARNING: Never probe the electrical connectors on safety belt buckle/retractor pretensioners or adaptive load limiting retractors. Failure to follow this instruction may result in the accidental deployment of the safety belt pretensioners or adaptive load limiting retractors, which increases the risk of serious personal injury or death.

NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

1. Remove the seat.
2. Disconnect the heated seat module electrical connector.
3. Detach and remove the heated seat module from the seat cushion frame
4. To install, reverse the removal procedure.
5. Install the seat.
