Connector Locations

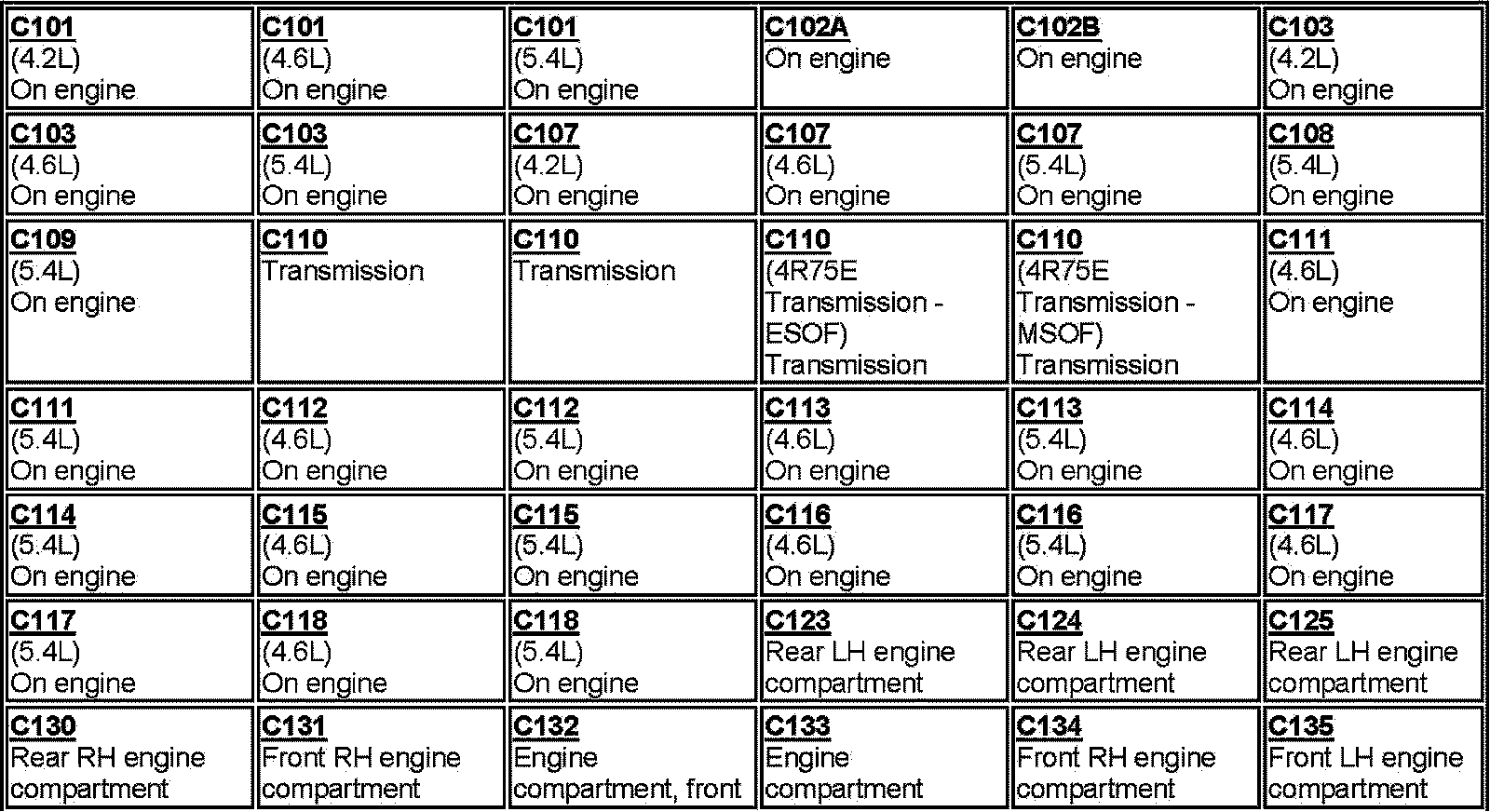

C101-C135:

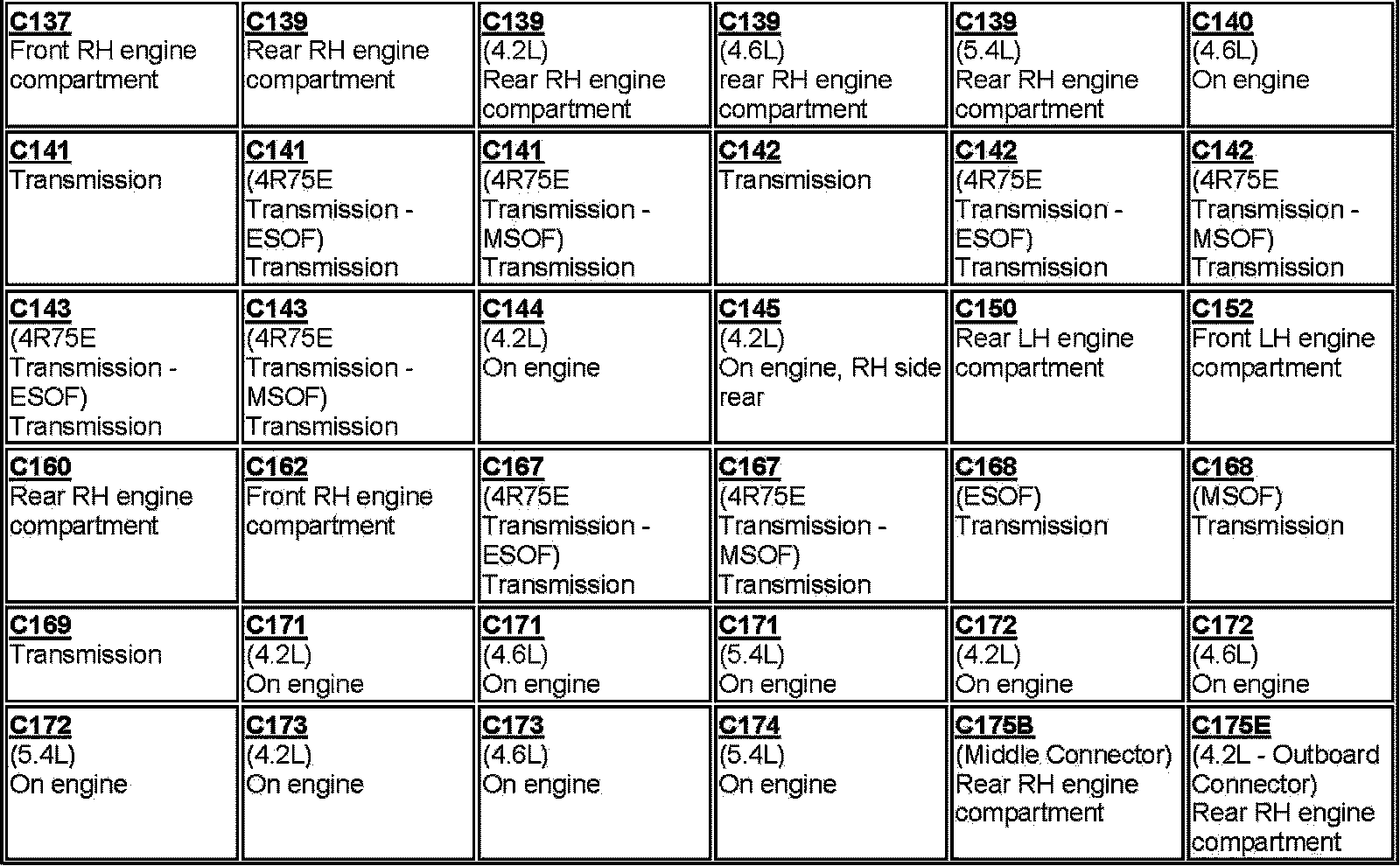

C137-C175E:

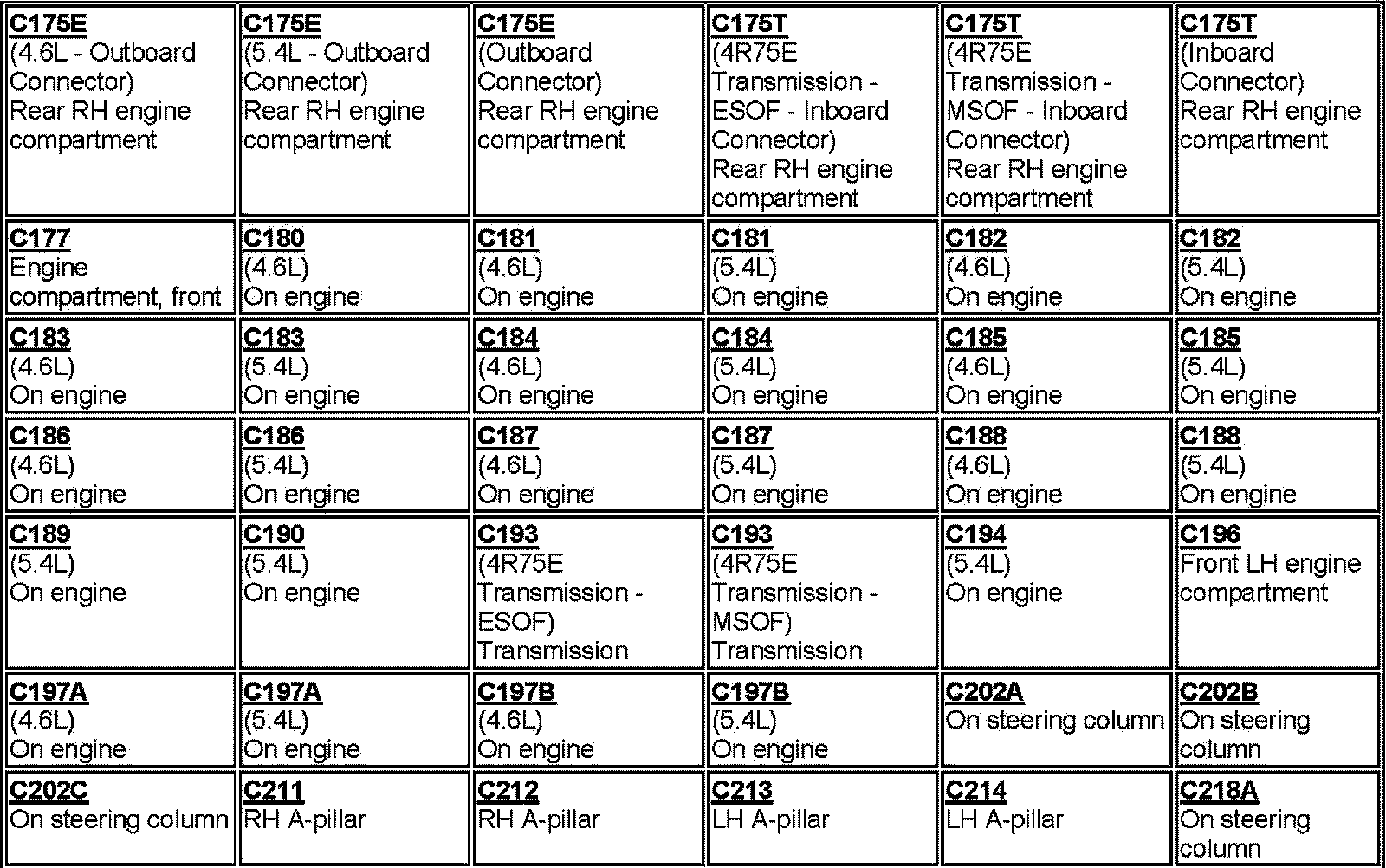

C175E-C218A:

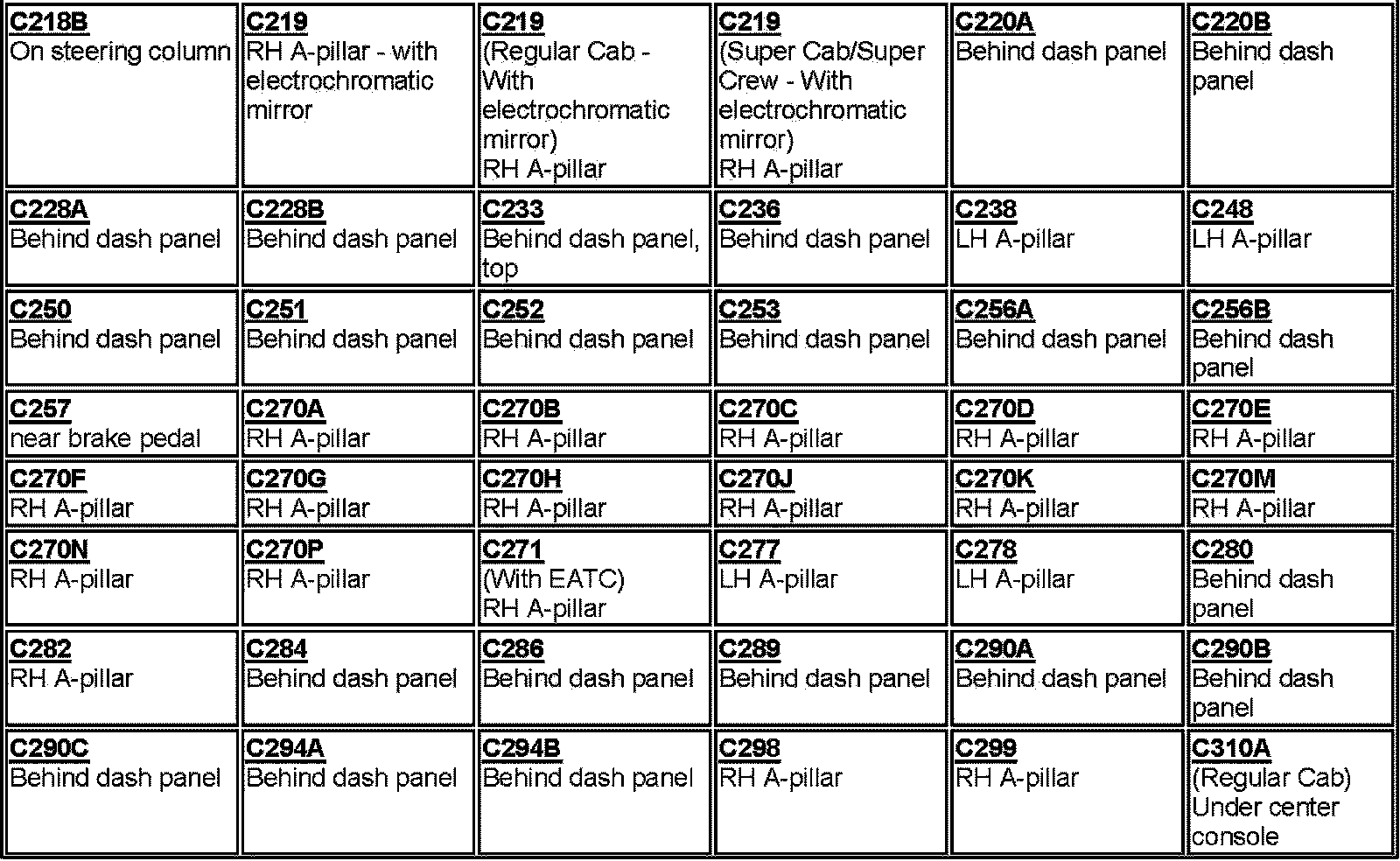

C218B-C310A:

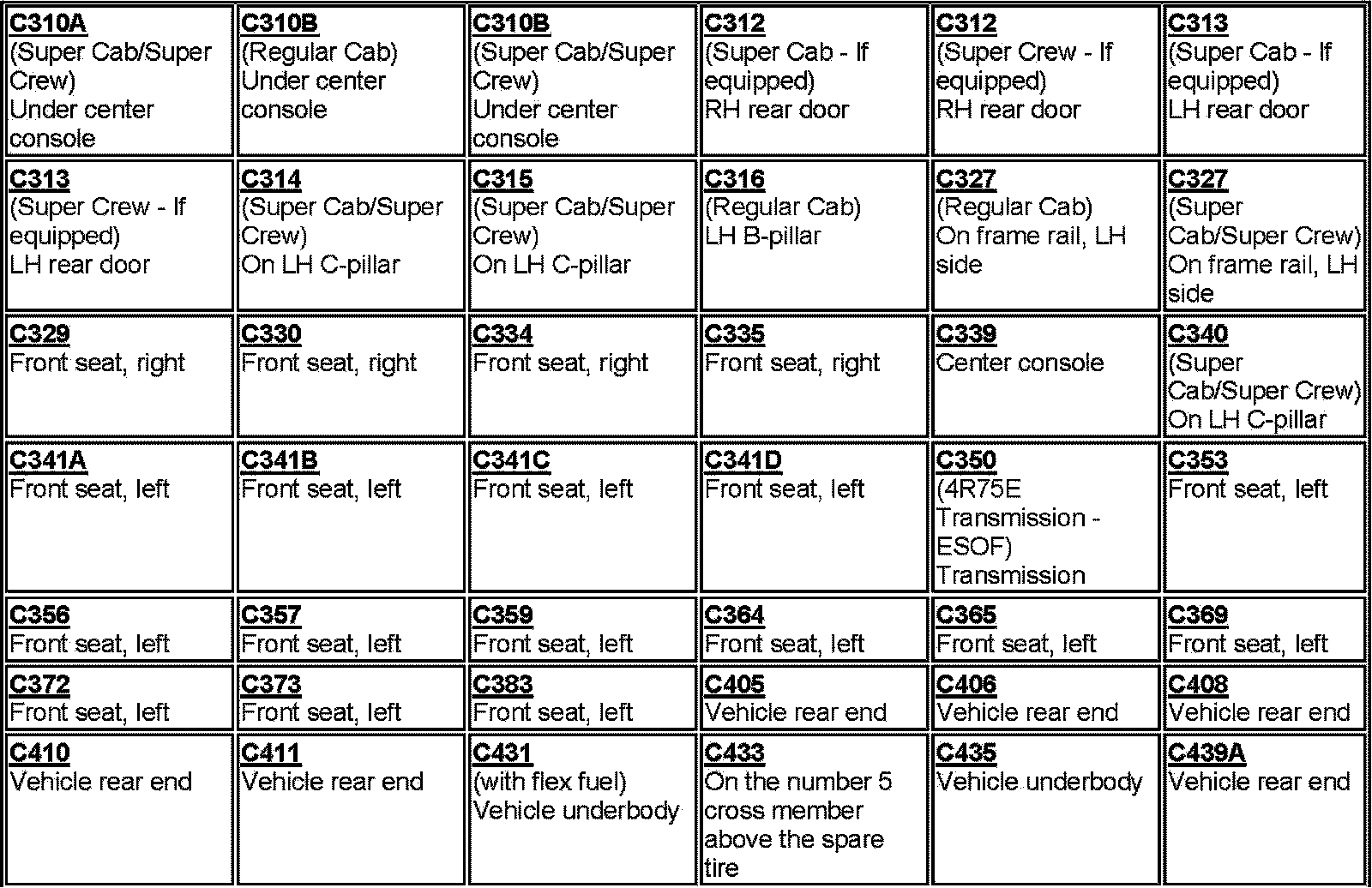

C310A-C439A:

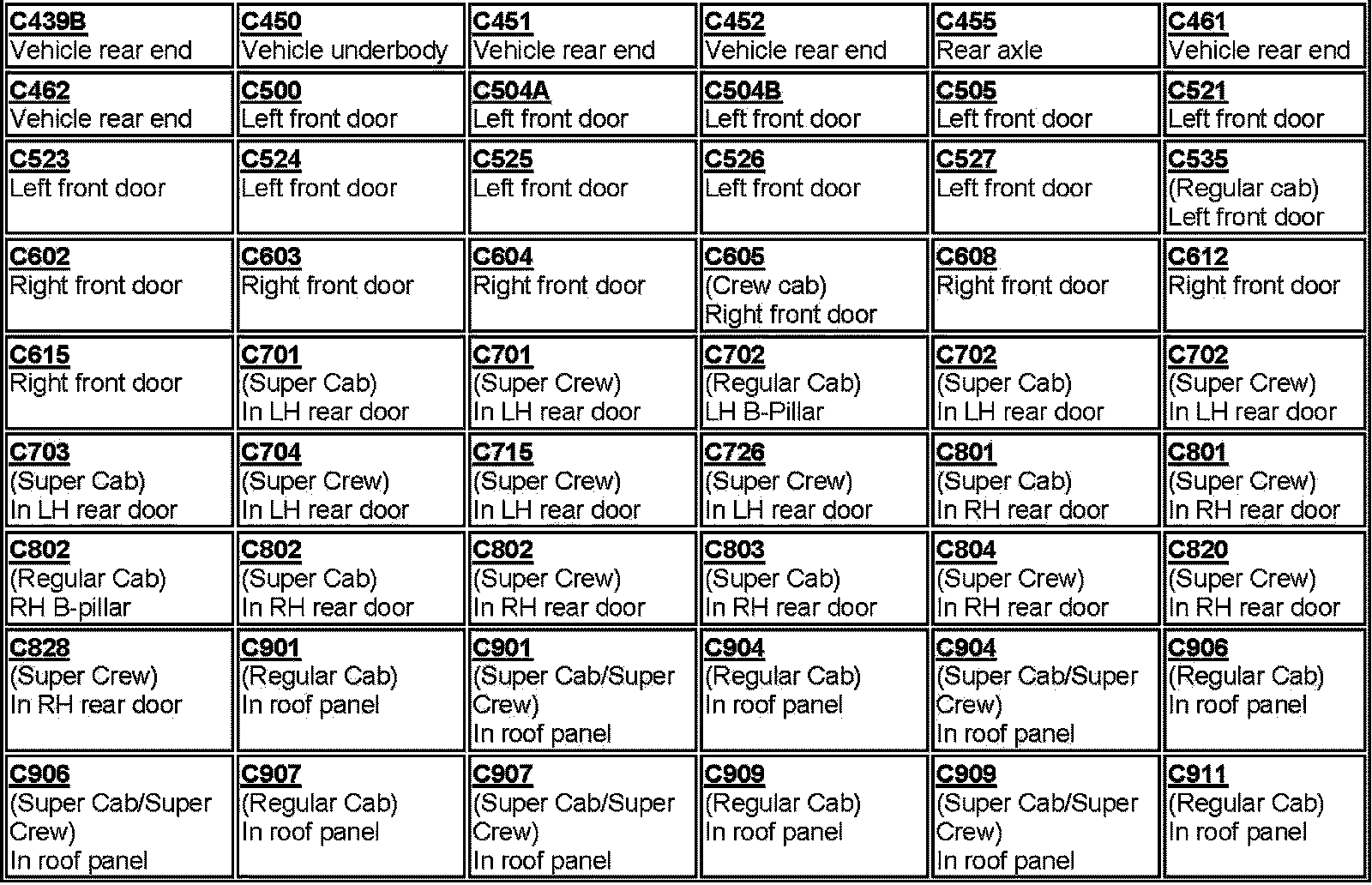

C439B-C911:

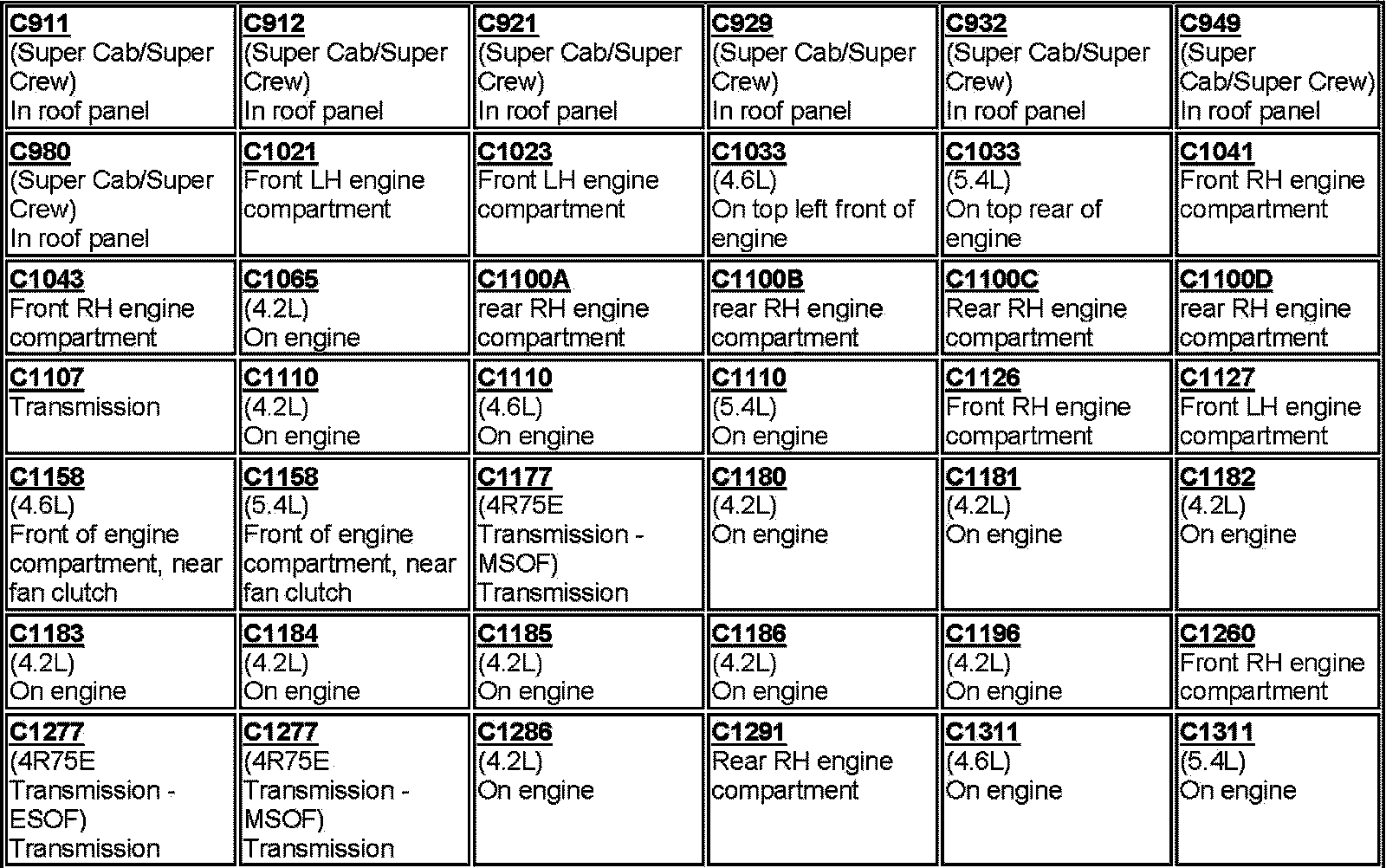

C911-C1311:

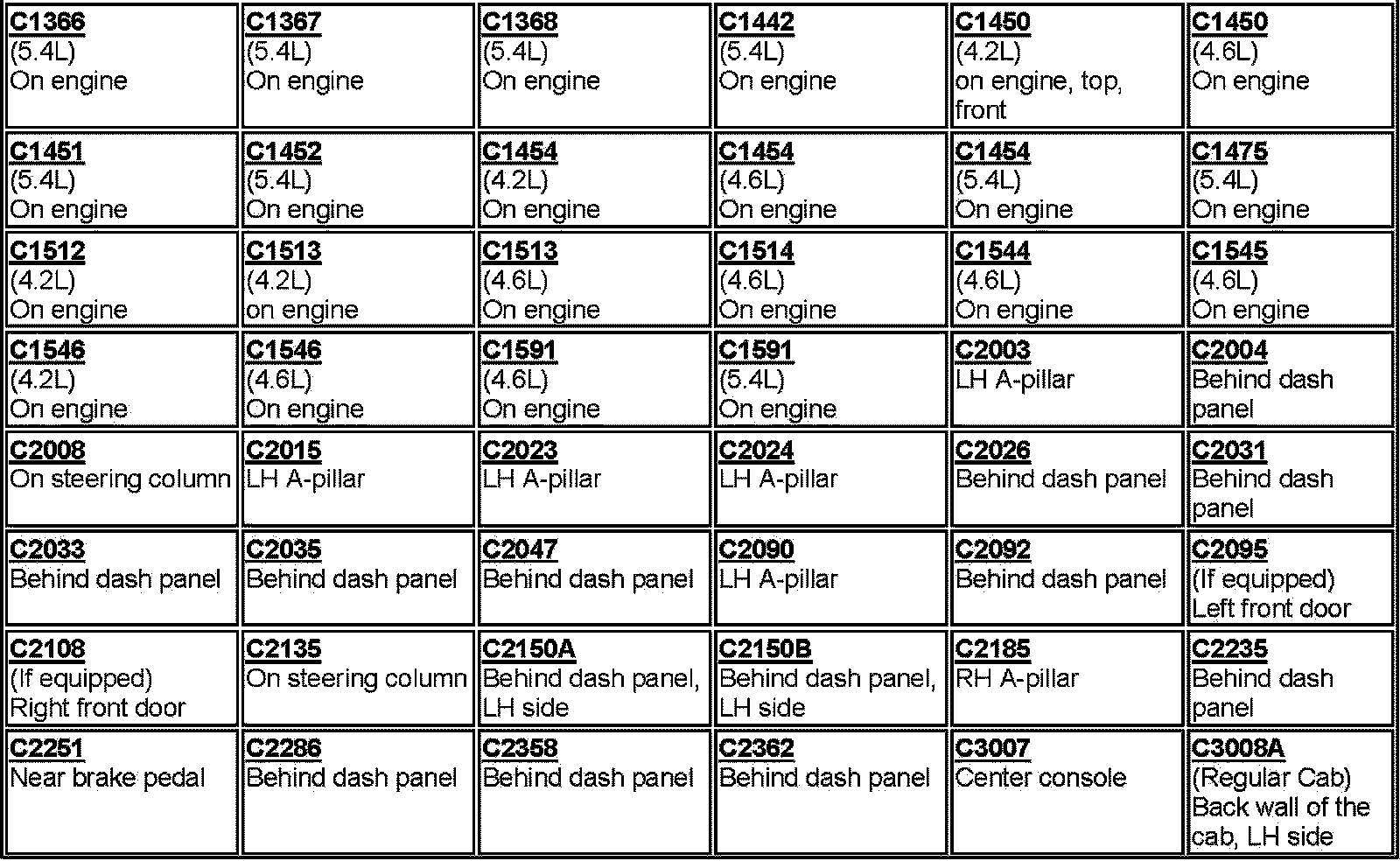

C1366-C3008A:

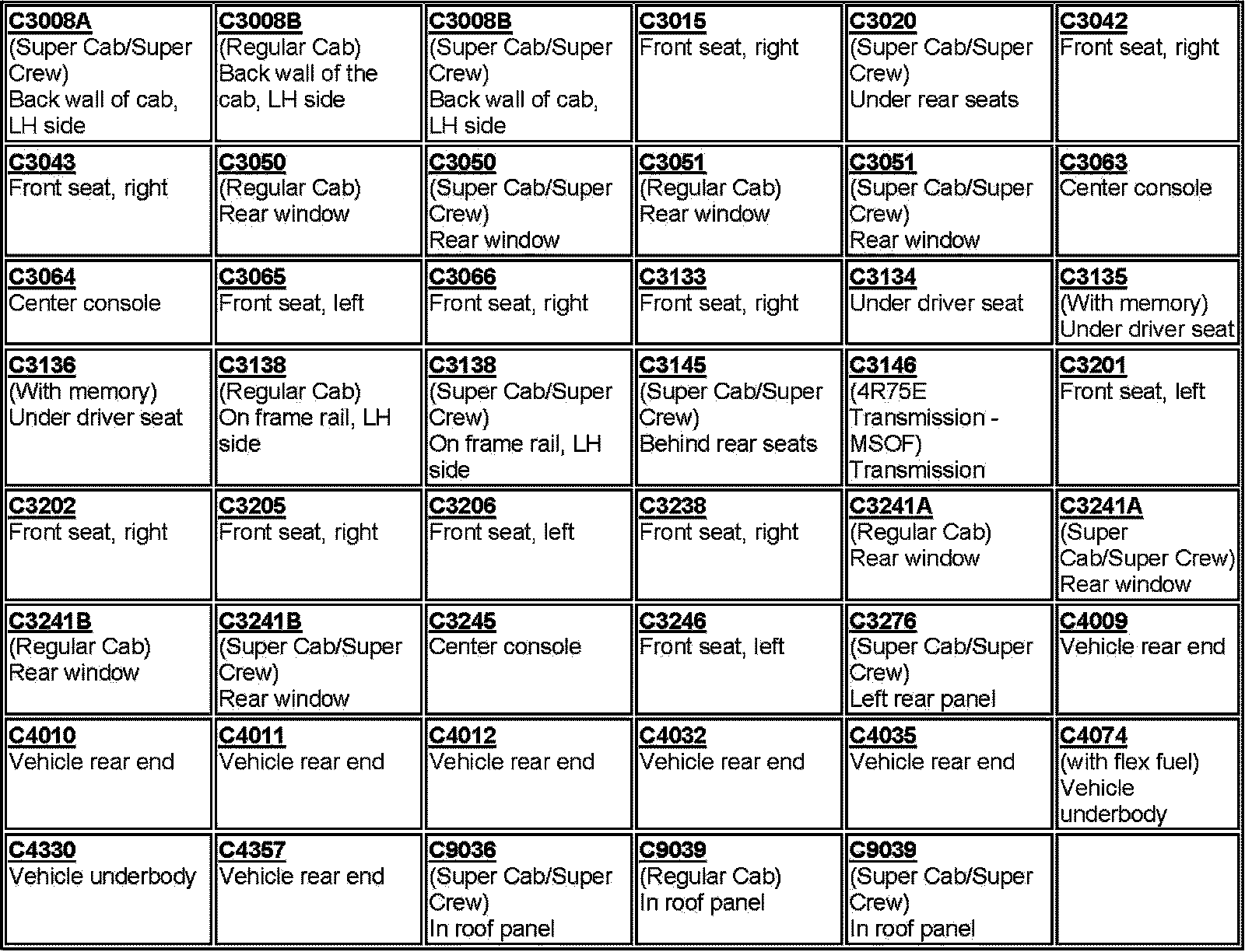

C3008A-C9039:
