Test B: The ABS Module Does Not Respond To The Scan Tool

PINPOINT TEST B: THE ABS MODULE DOES NOT RESPOND TO THE SCAN TOOL

Normal Operation
The ABS module communicates with the scan tool through the high speed controller area network (HS-CAN). Circuits 1827 (WH/LG) (HS-CAN +) and 1828 (PK/LG) (HS-CAN -) provide the network connection to the ABS module. The ABS module shares the HS-CAN with the PCM and the instrument cluster (IC). Voltage for the ABS module is provided by circuits 295 (LB/PK), 532 (OG/YE) and 534 (YE/LG). Ground is provided by circuit 530 (LG/YE).

This pinpoint is intended to diagnose the following:
- Fuses
- Wiring, terminals or connectors
- ABS module

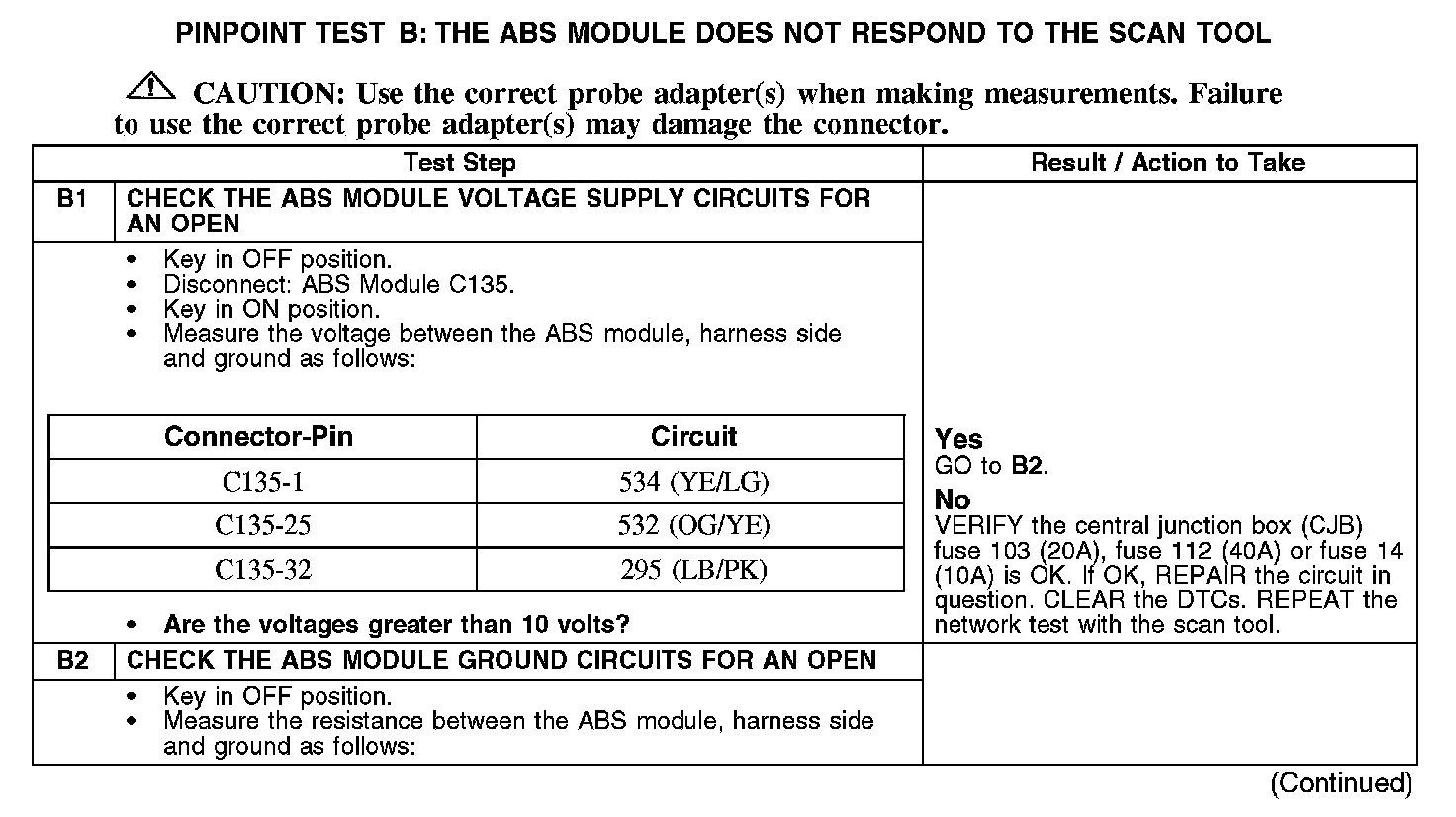

B1-B2:

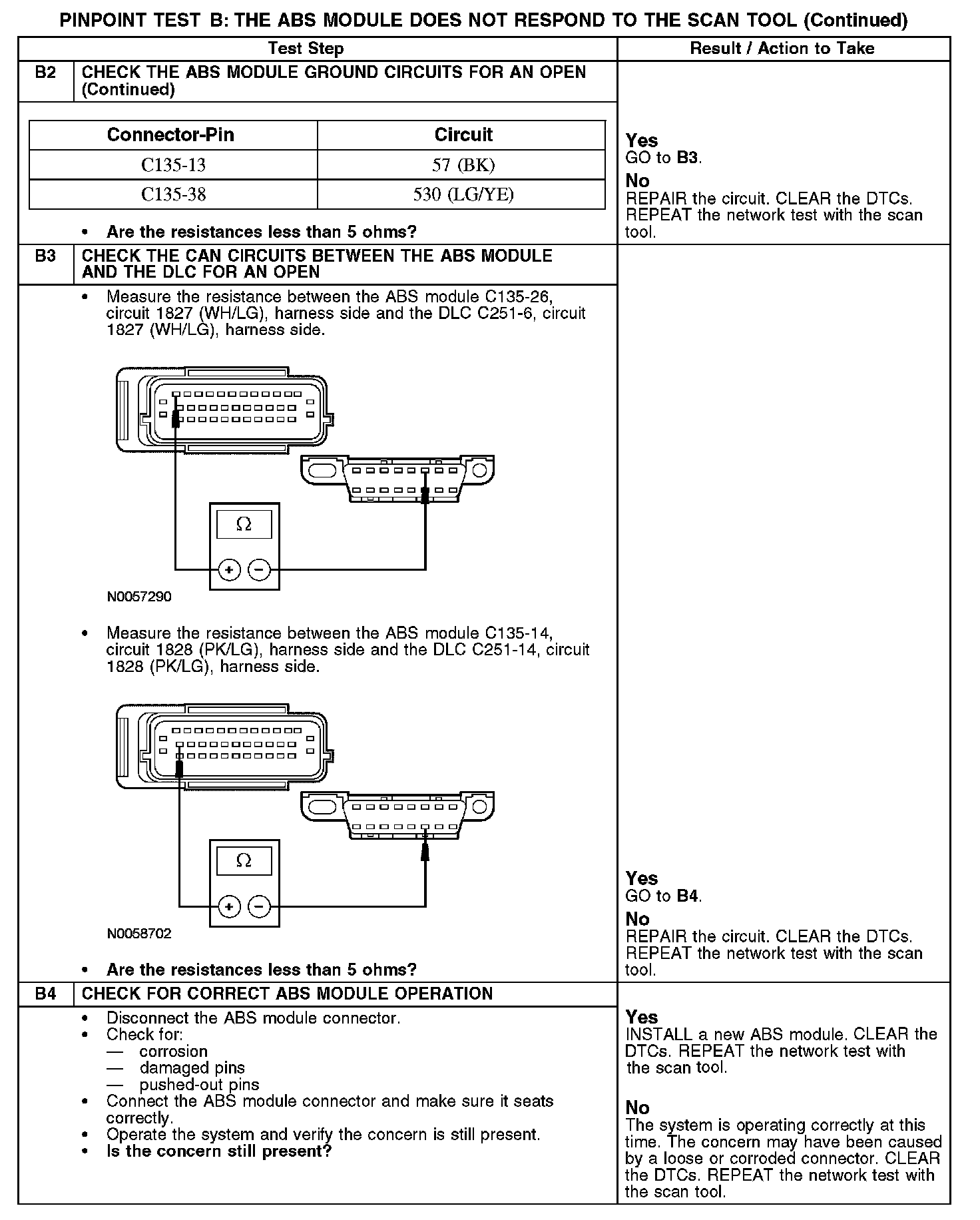

B2-B4:
