Catalyst Monitor Sensor

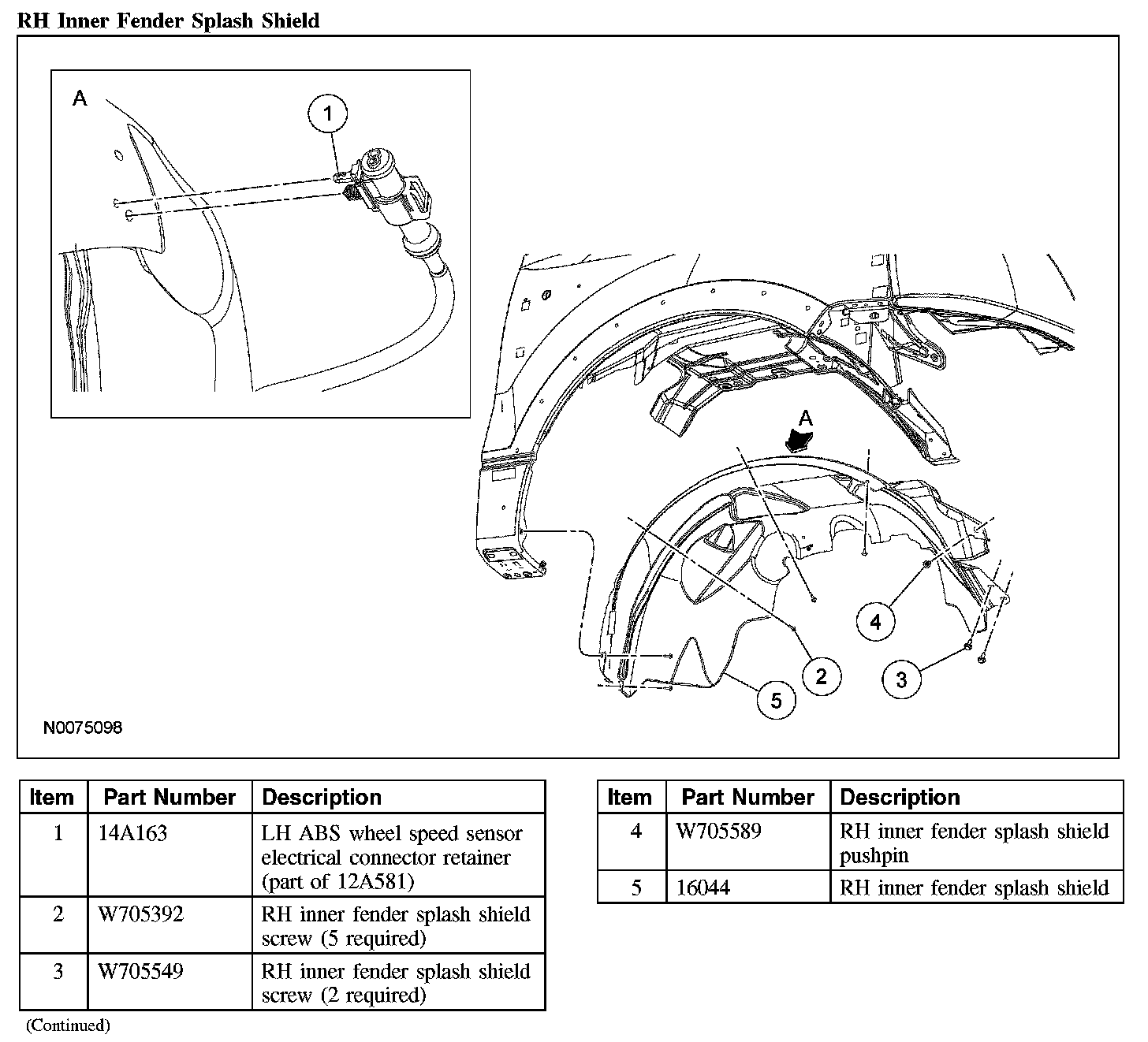

CATALYST MONITOR SENSORRH Inner Fender Splash Shield:

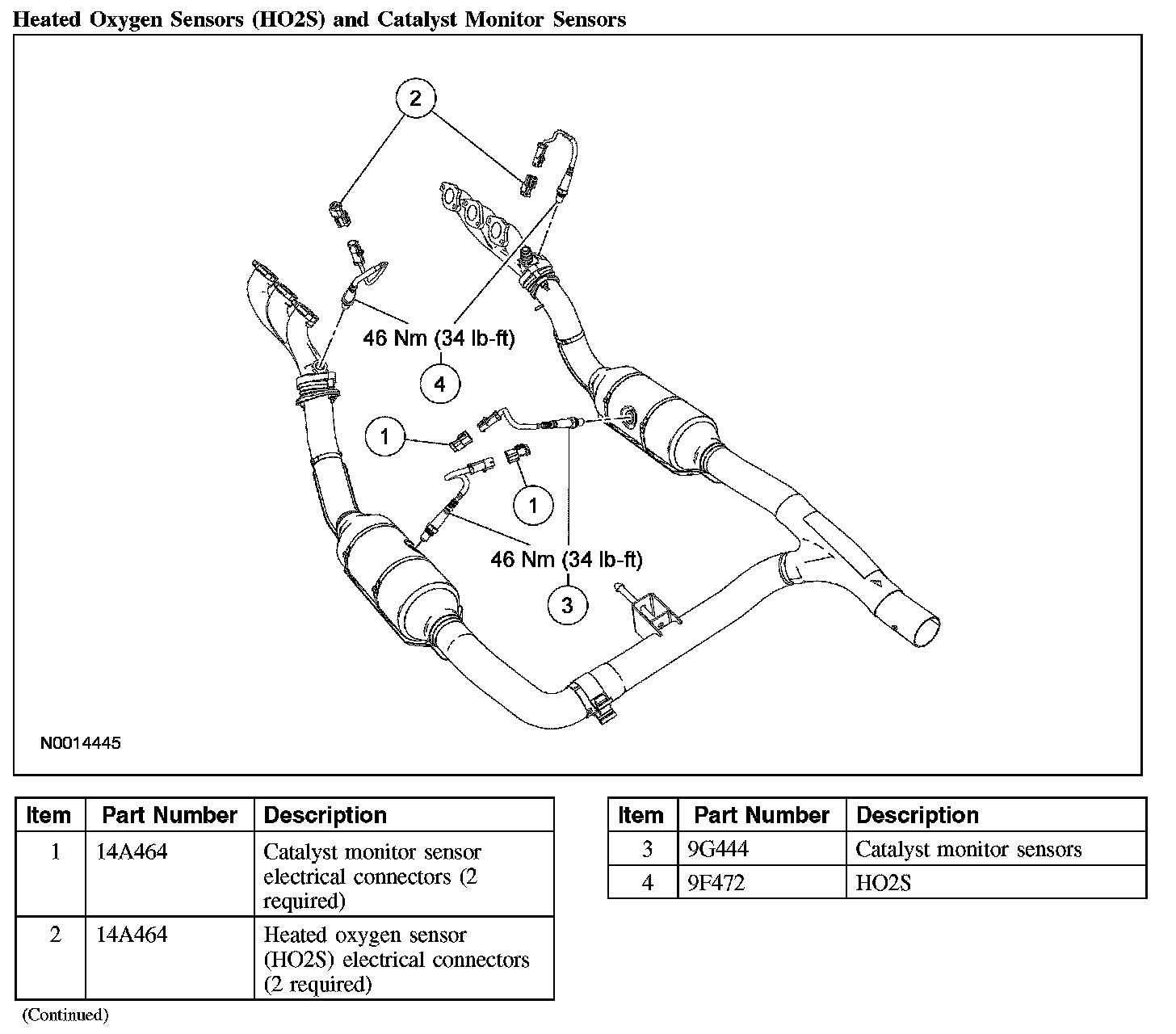

Heated Oxygen Sensors (HO2S) And Catalyst Monitor Sensors:
Exploded View

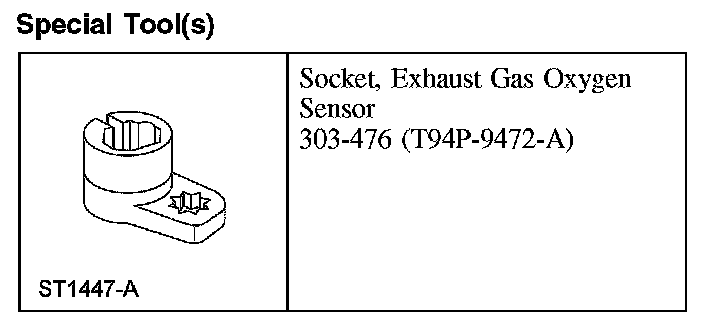

Special Tool(s):
Special Tool(s)
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the catalyst monitor sensor electrical connector.
3. NOTE: If necessary, lubricate the catalyst monitor sensor with lock lubricant to assist in removal.

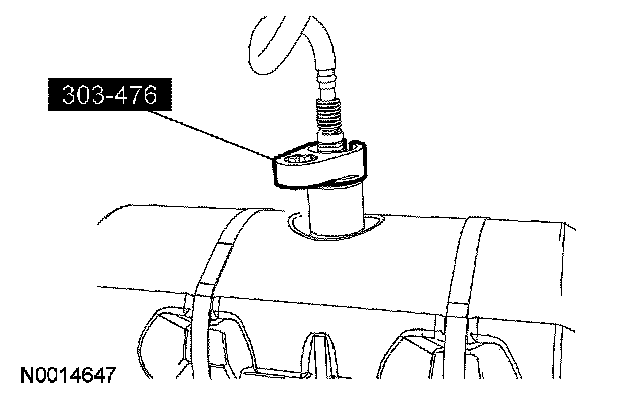

Using the special tool, remove the catalyst monitor sensor.
- To install, tighten to 46 Nm (34 lb-ft).
4. NOTE: Apply anti-seize to the threads of the catalyst monitor sensor.
To install, reverse the removal procedure.
