Torque Specifications

Torque Specifications

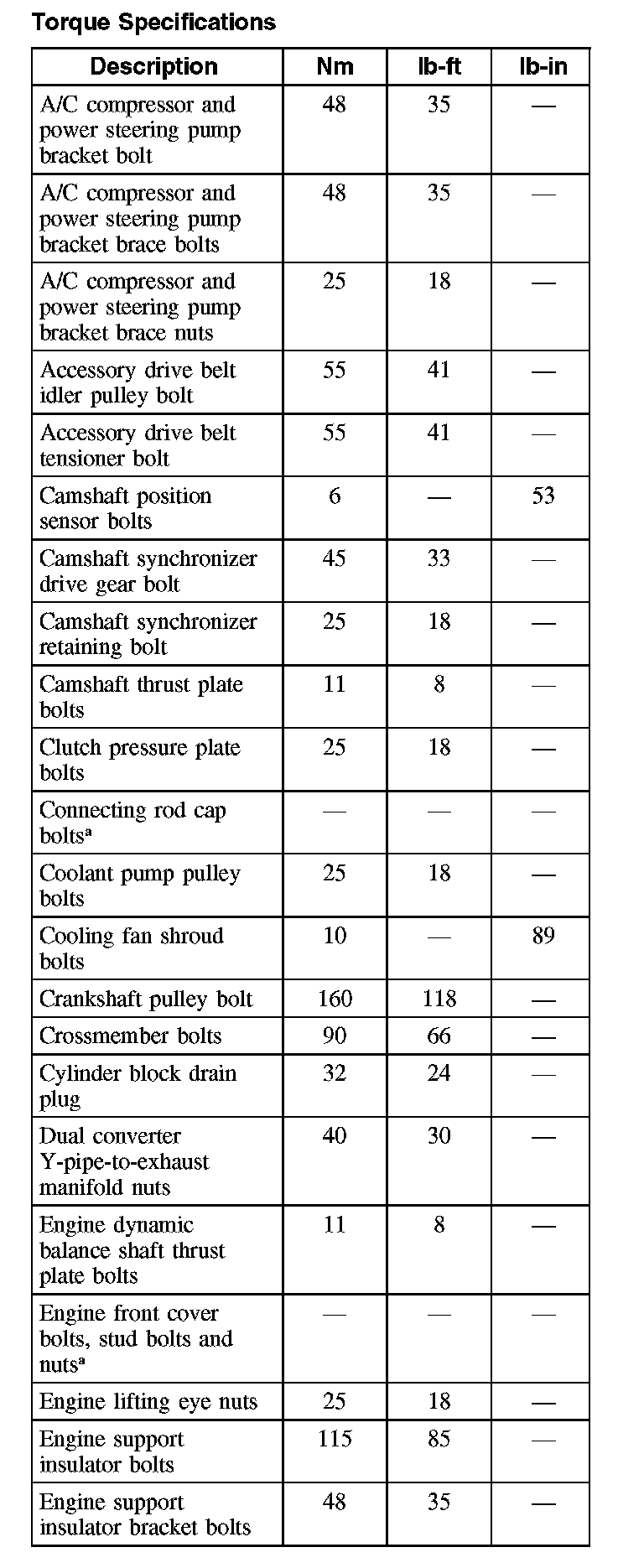

Torque Specifications (Part 1):

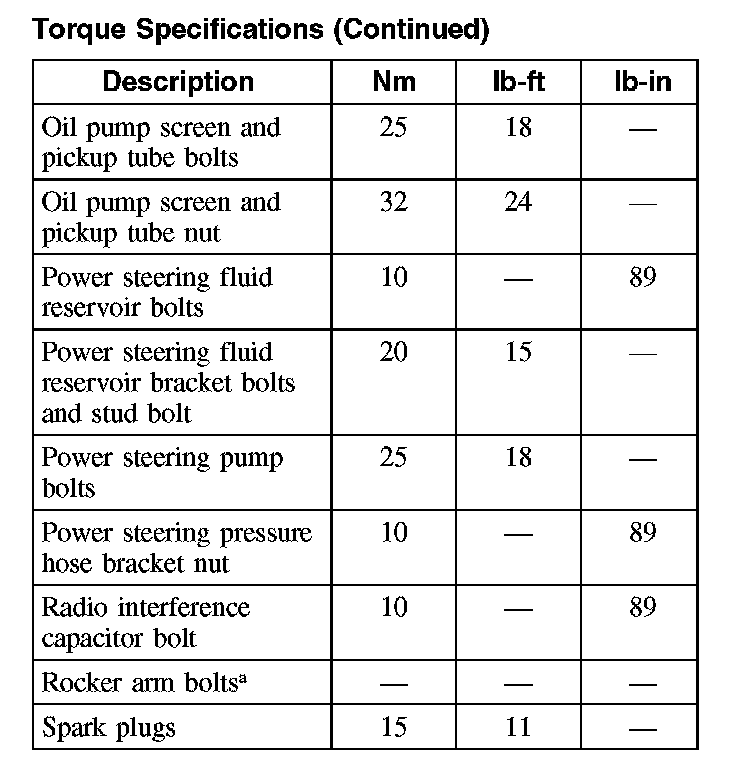

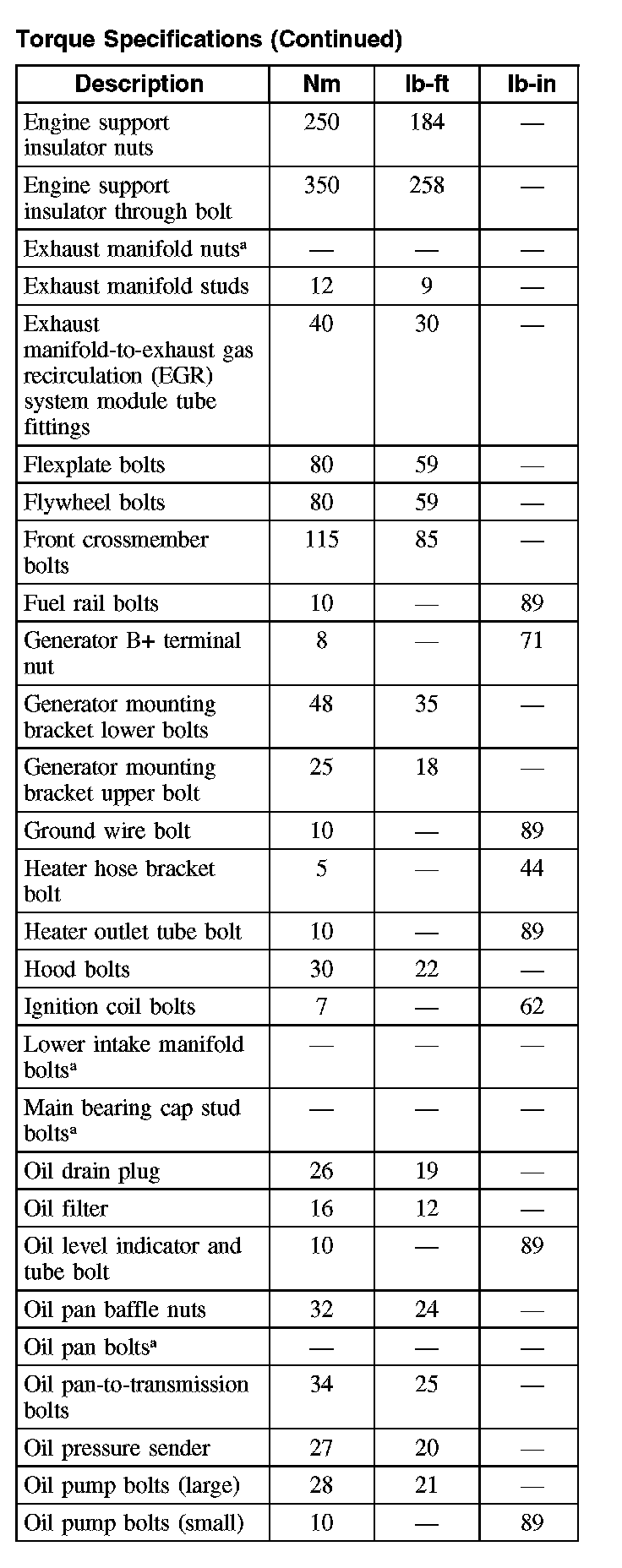

Torque Specifications (Part 2):

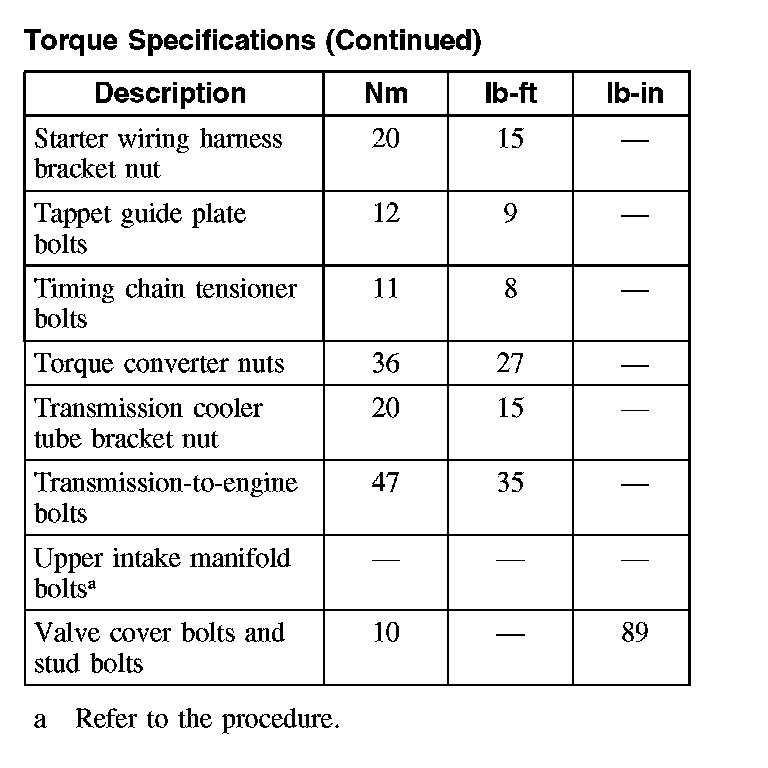

Torque Specifications (Part 3):

Torque Specifications (Part 4):

Cylinder Head Bolts
Torque and Sequnece -- Removal and Replacement
Discard the cylinder head bolts.

Coolant Pump Bolts 28 Nm (21 lb-ft).
