Engine Temperature Sensor: Service and Repair

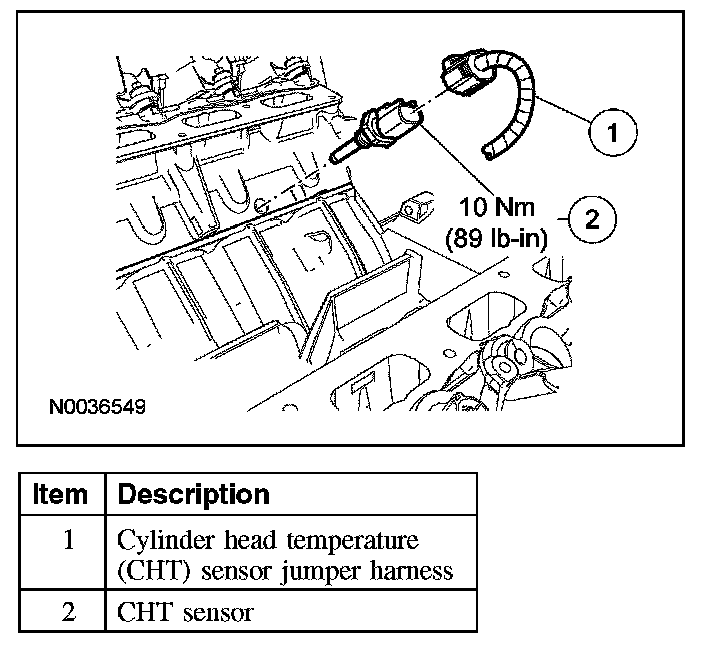

CYLINDER HEAD TEMPERATURE (CHT) SENSOR







Removal and Installation
1. Remove the generator.
2. Disconnect the cylinder head temperature (CHT) sensor electrical connector.
3. Remove the CHT sensor.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
- Apply anti-seize to the threads of the CHT sensor.
