Torque Specifications

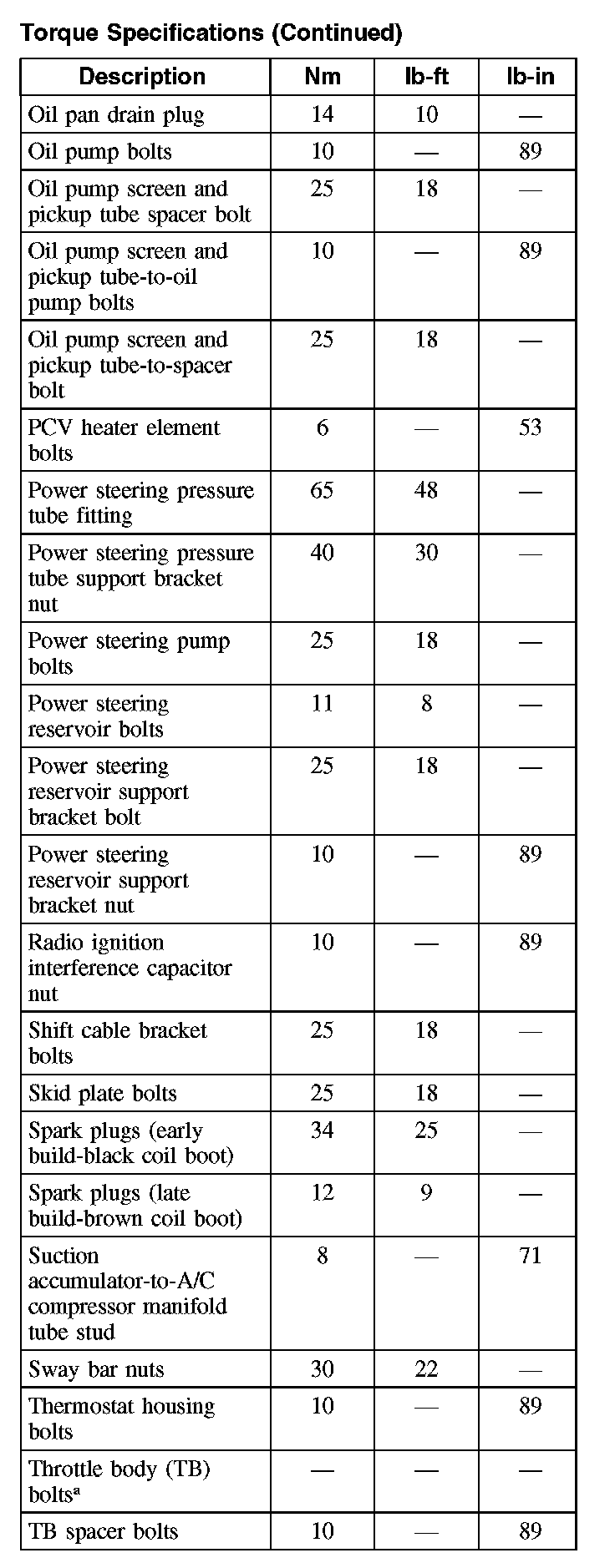

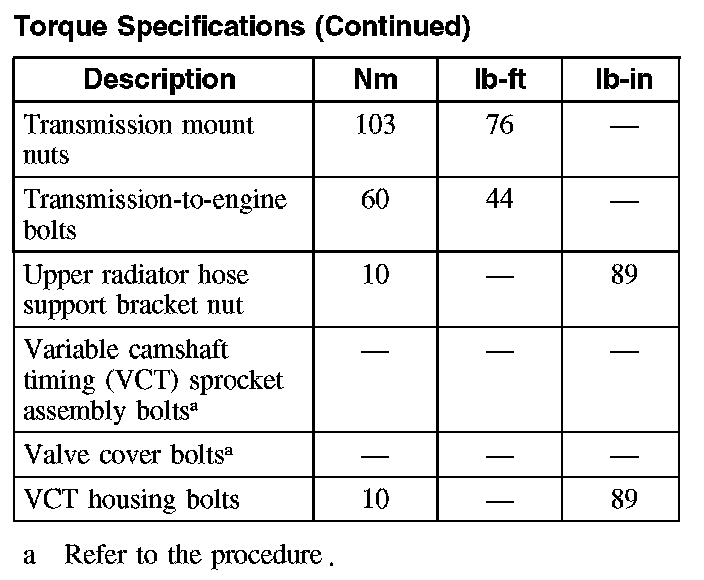

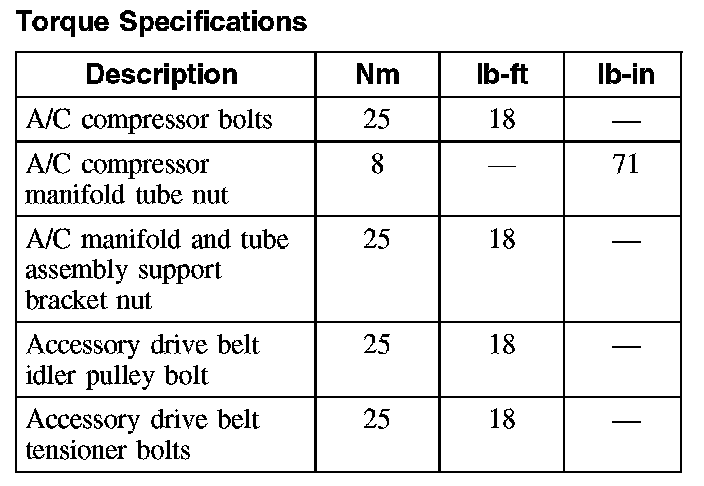

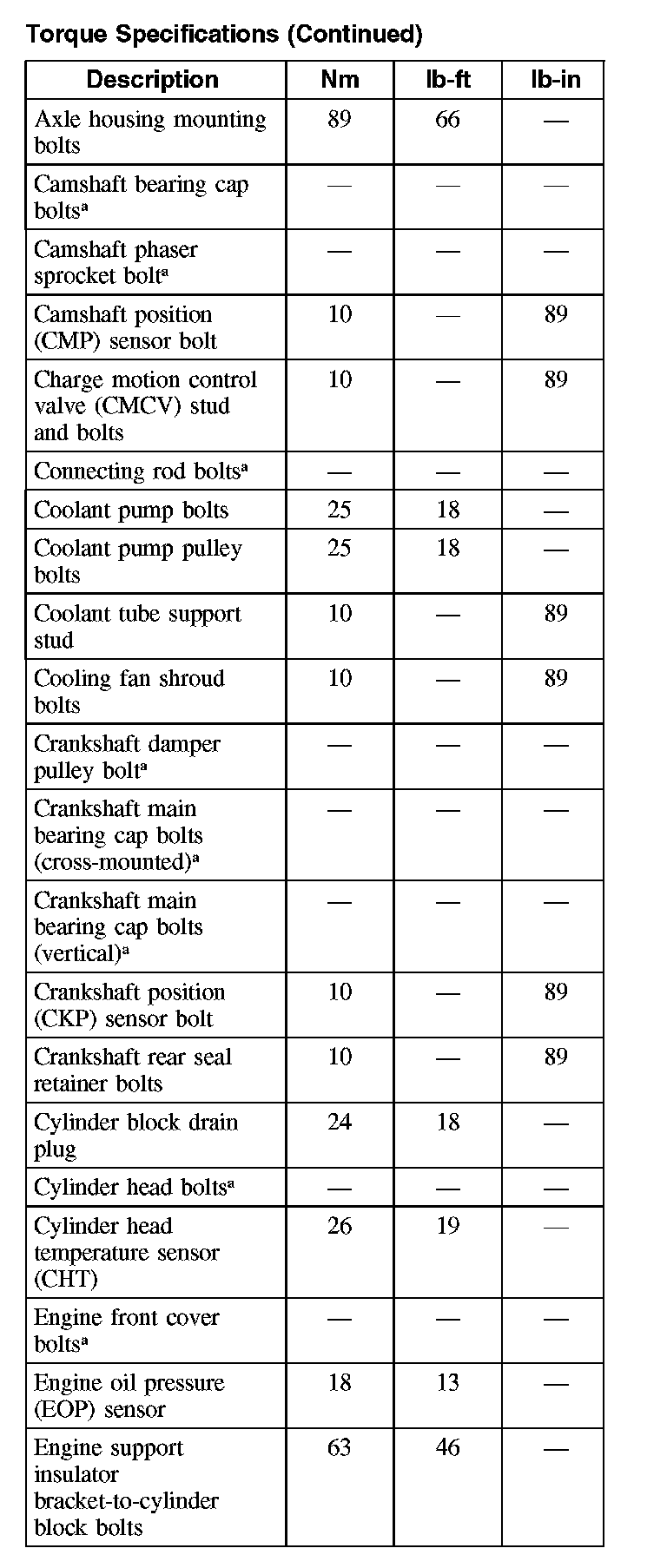

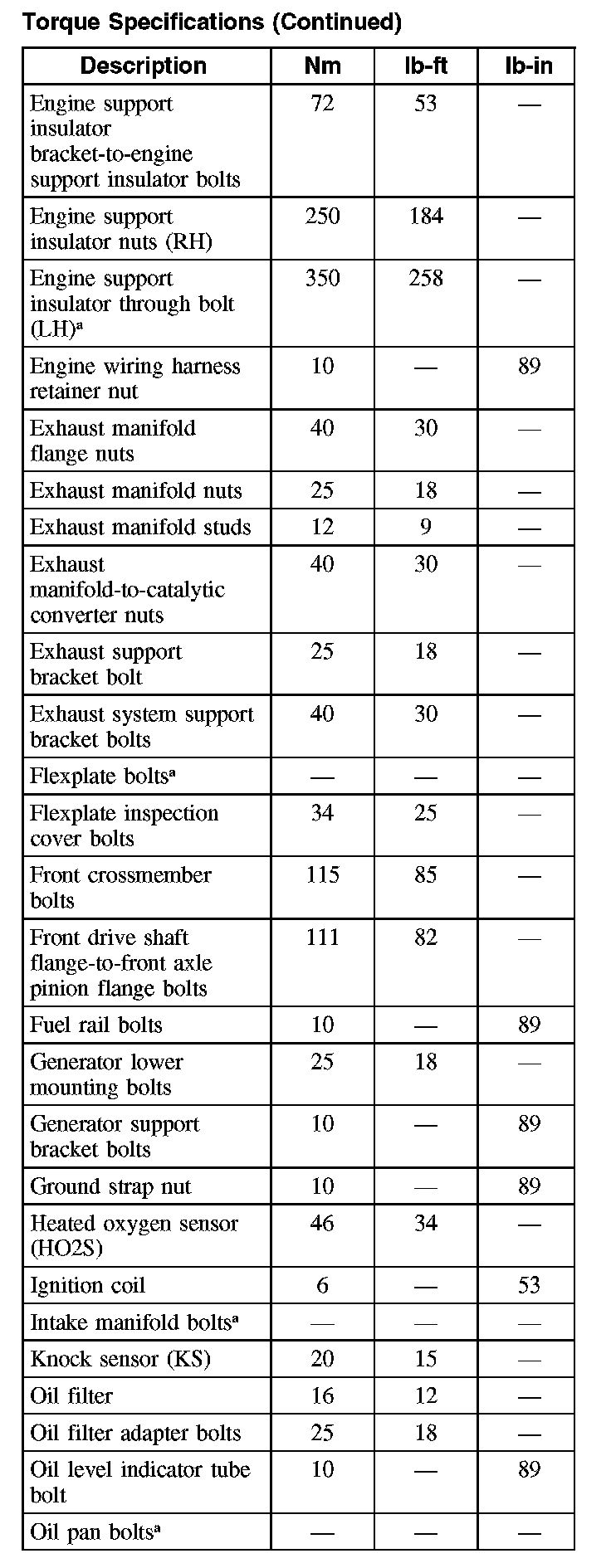

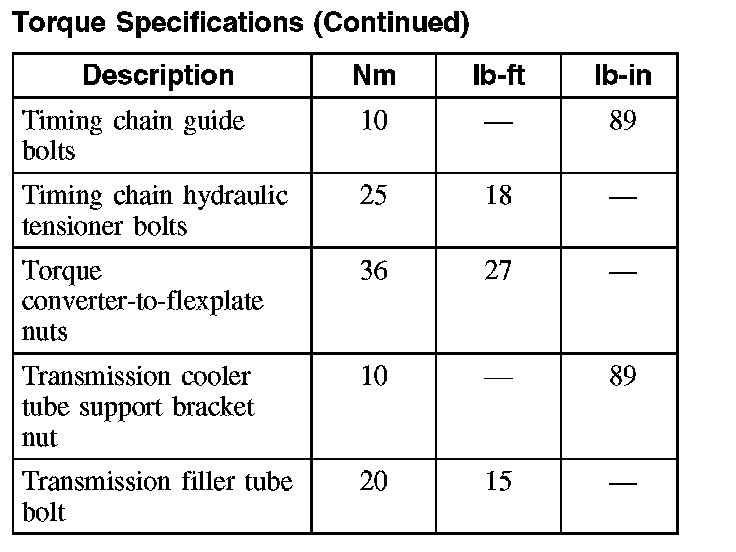

Torque SpecificationsTorque Specifications (Part 1):
Torque Specifications (Part 2):
Torque Specifications (Part 3):
Torque Specifications (Part 4):
Torque Specifications (Part 5):
Torque Specifications (Part 6):
Cylinder Head Bolts
CAUTION: The cylinder head bolts must be discarded and new bolts installed. They are tighten-to-yield designed and cannot be reused. Failure to follow these instructions may result in engine damage.
