Accessory Protocol Interface Module (APIM)

ACCESSORY PROTOCOL INTERFACE MODULE (APIM)

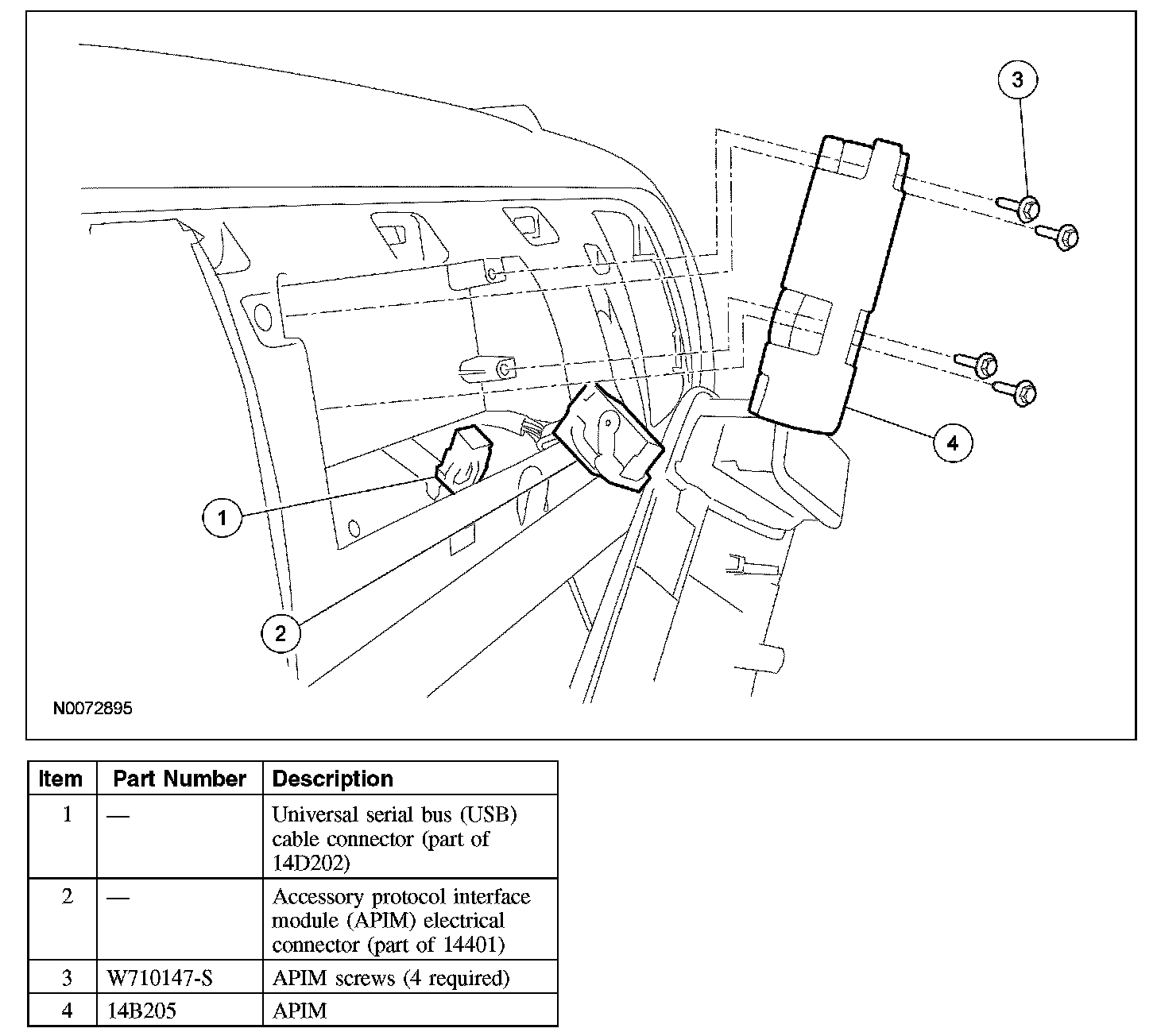

Removal and Installation

1. NOTE: Lower the glove compartment completely to access the connectors.

Disconnect the universal serial bus (USB) cable connector and the accessory protocol interface module (APIM) electrical connector.

2. Remove the instrument panel right finish panel.
3. Remove the 4 screws and the APIM.
4. To install, reverse the removal procedure.
- If a new APIM was installed, program the APIM.
