Audio Control Module (ACM)
AUDIO CONTROL MODULE (ACM)
Removal and Installation
1. Remove the instrument panel center finish panel.

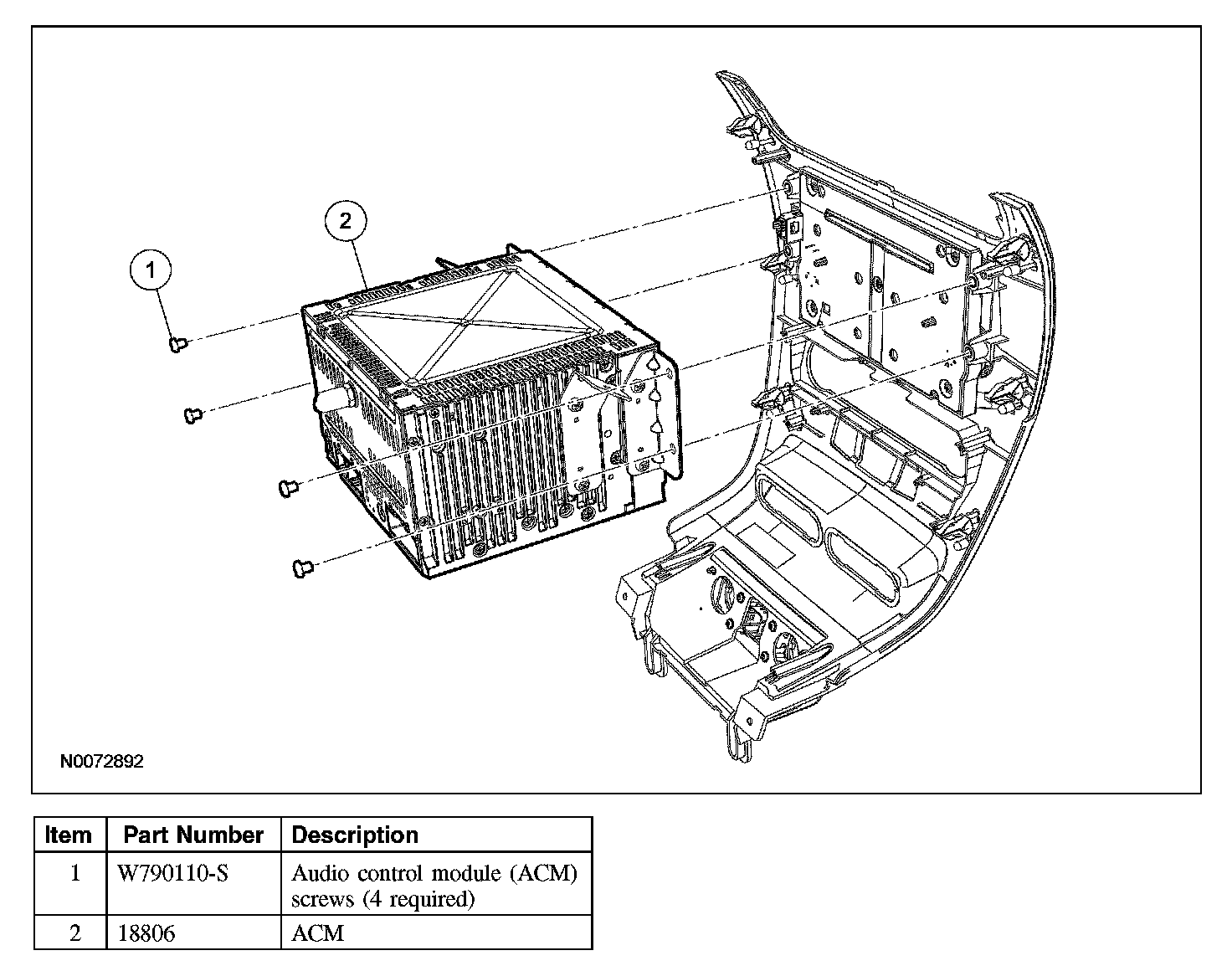

2. Remove the 4 audio control module (ACM) screws and remove the ACM.
3. To install, reverse the removal procedure.
Removal and Installation
1. Remove the instrument panel center finish panel.
2. Remove the 4 audio control module (ACM) screws and remove the ACM.
3. To install, reverse the removal procedure.
