Fan Shroud

Radiator and Cooling Fan - Exploded View

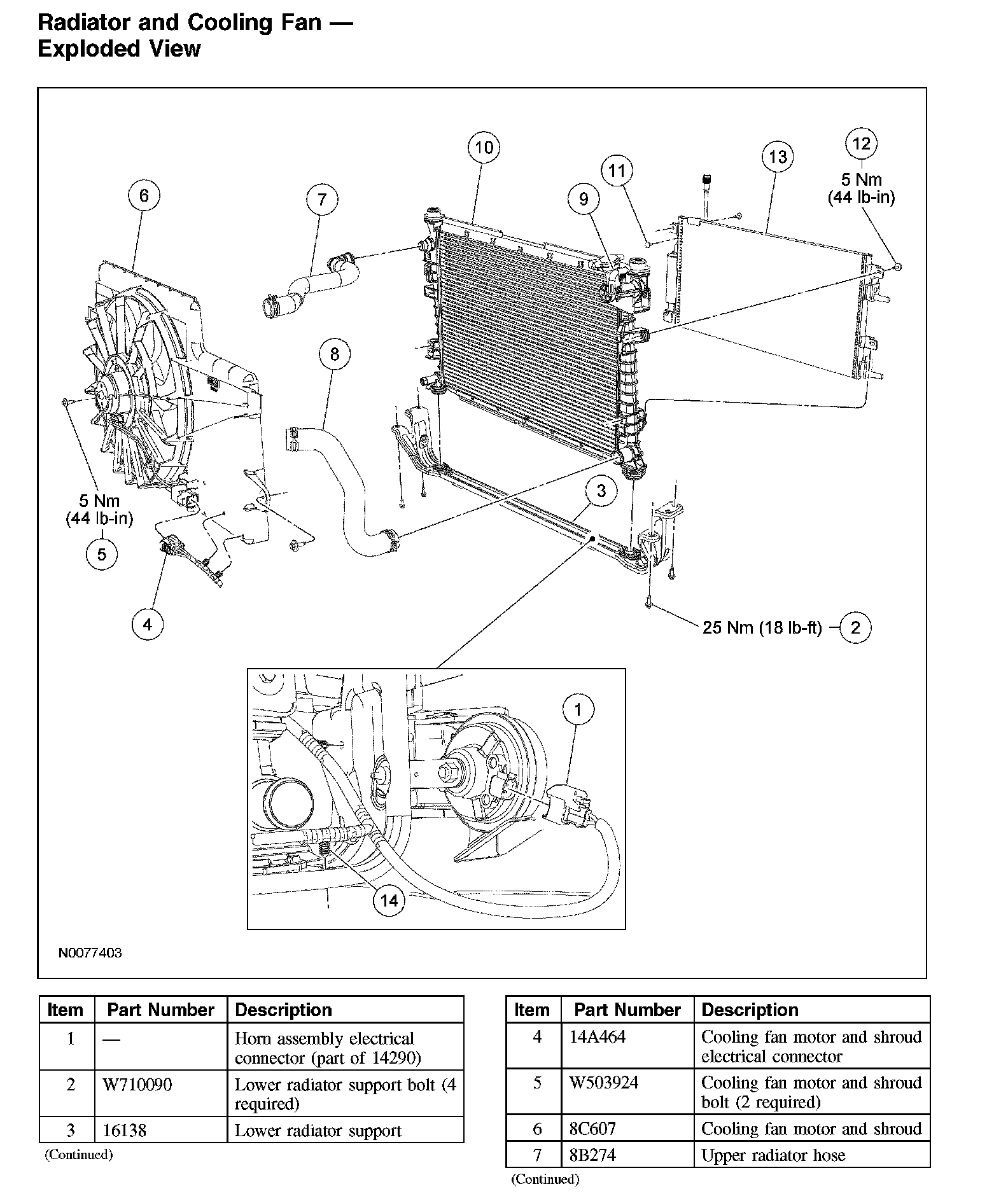

Radiator and Cooling Fan - Exploded View (Part 1):

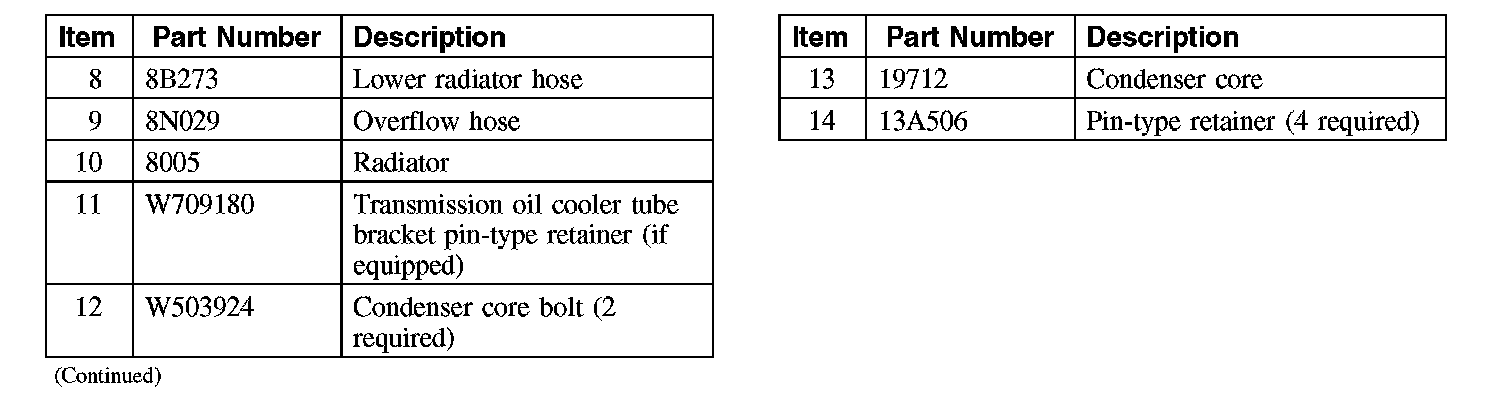

Radiator and Cooling Fan - Exploded View (Part 2):
