Interior Lighting Module: Service and Repair

AMBIENT LIGHTING MODULE







Removal and Installation
1. Remove the center console finish panel.

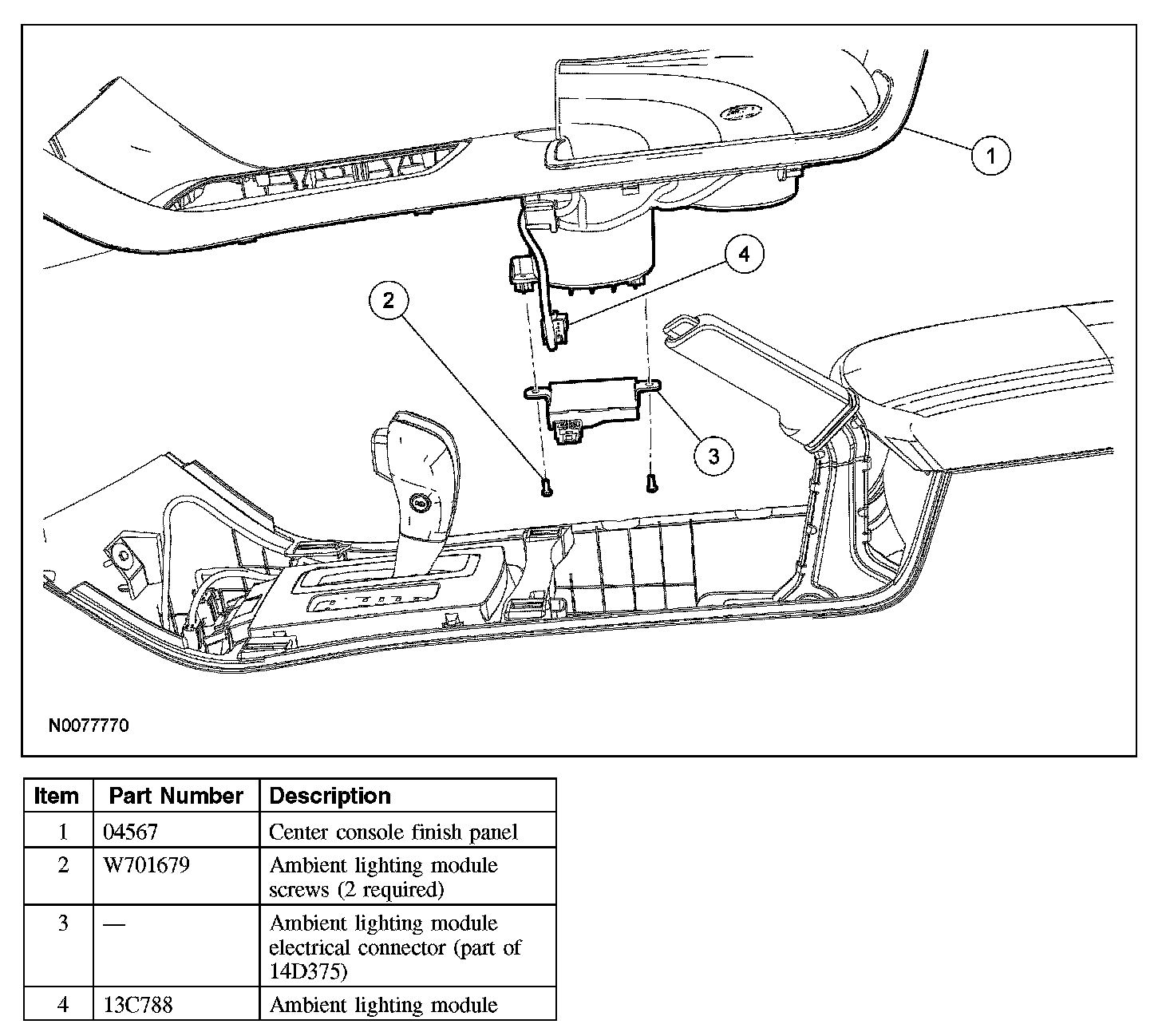

2. NOTE: The ambient lighting module is mounted under the bottom of the floor console finish panel cup holder.

Remove the 2 screws and the ambient lighting module.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
