Pinpoint Test B: The ABS Module Does Not Respond To The Scan Tool
Pinpoint Test B: The ABS Module Does Not Respond To The Scan Tool

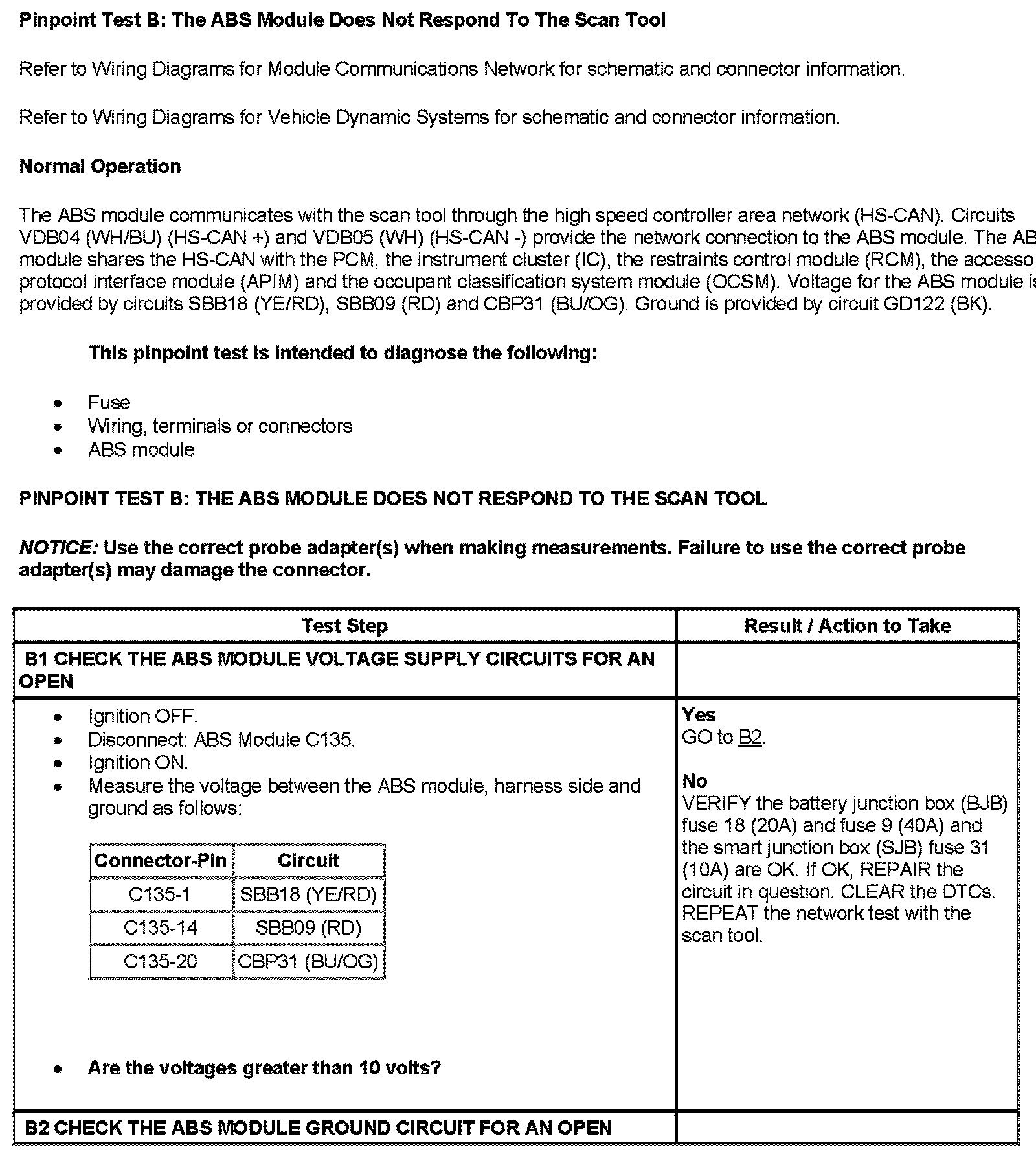

Pinpoint Test B1-B2:

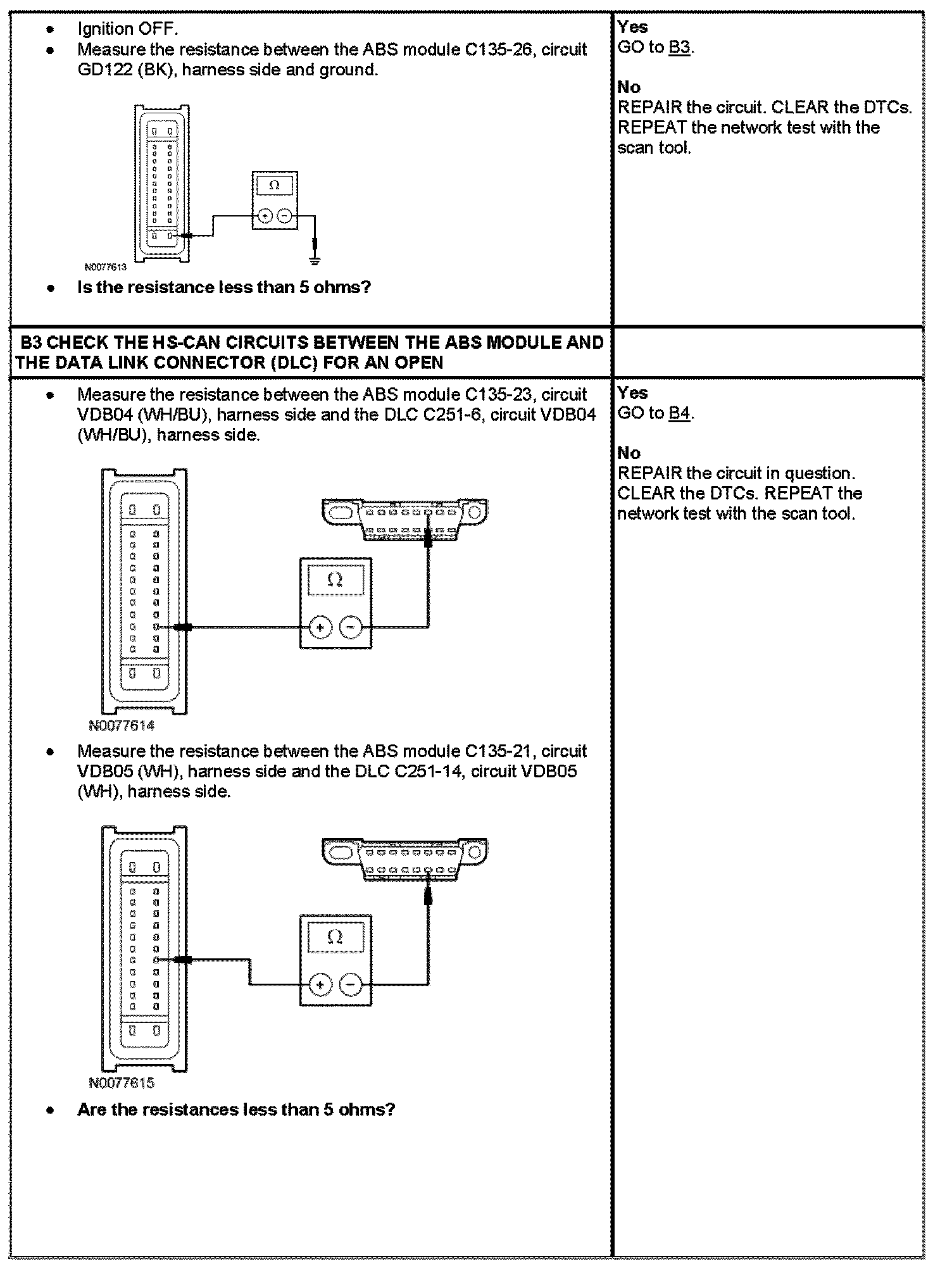

Pinpoint Test B2 Cont'd-B3:

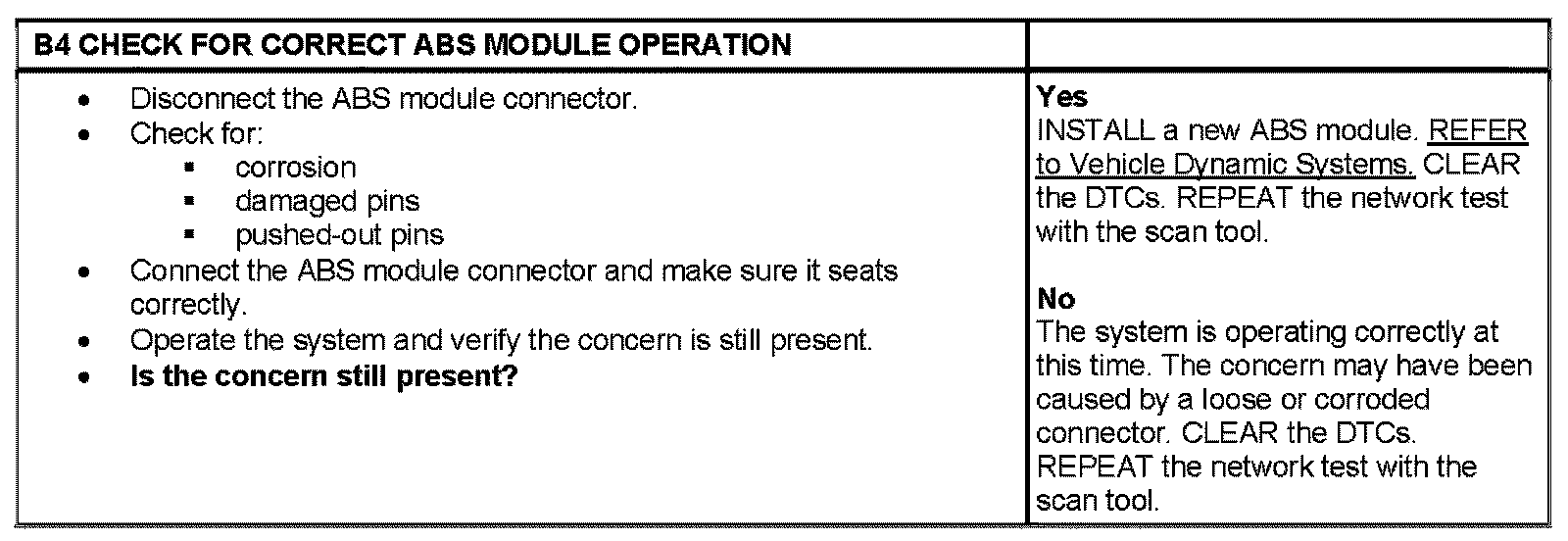

Pinpoint Test B4:
