Pinpoint Test D: The Occupant Classification System Module (OCSM) Does Not Respond To The Scan Tool



Pinpoint Test D: The Occupant Classification System Module (OCSM) Does Not Respond To The Scan Tool

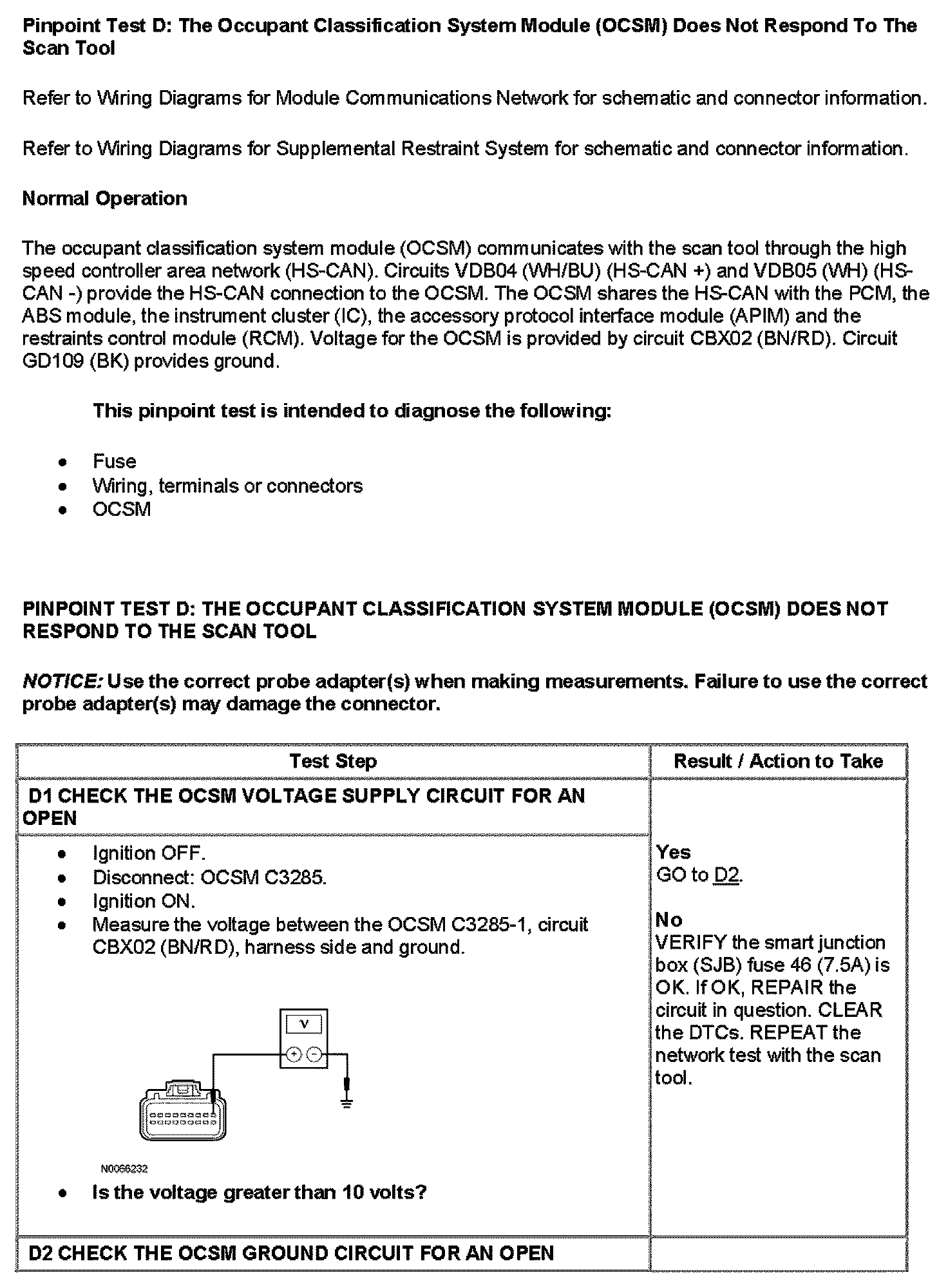

Pinpoint Test D1-D2:

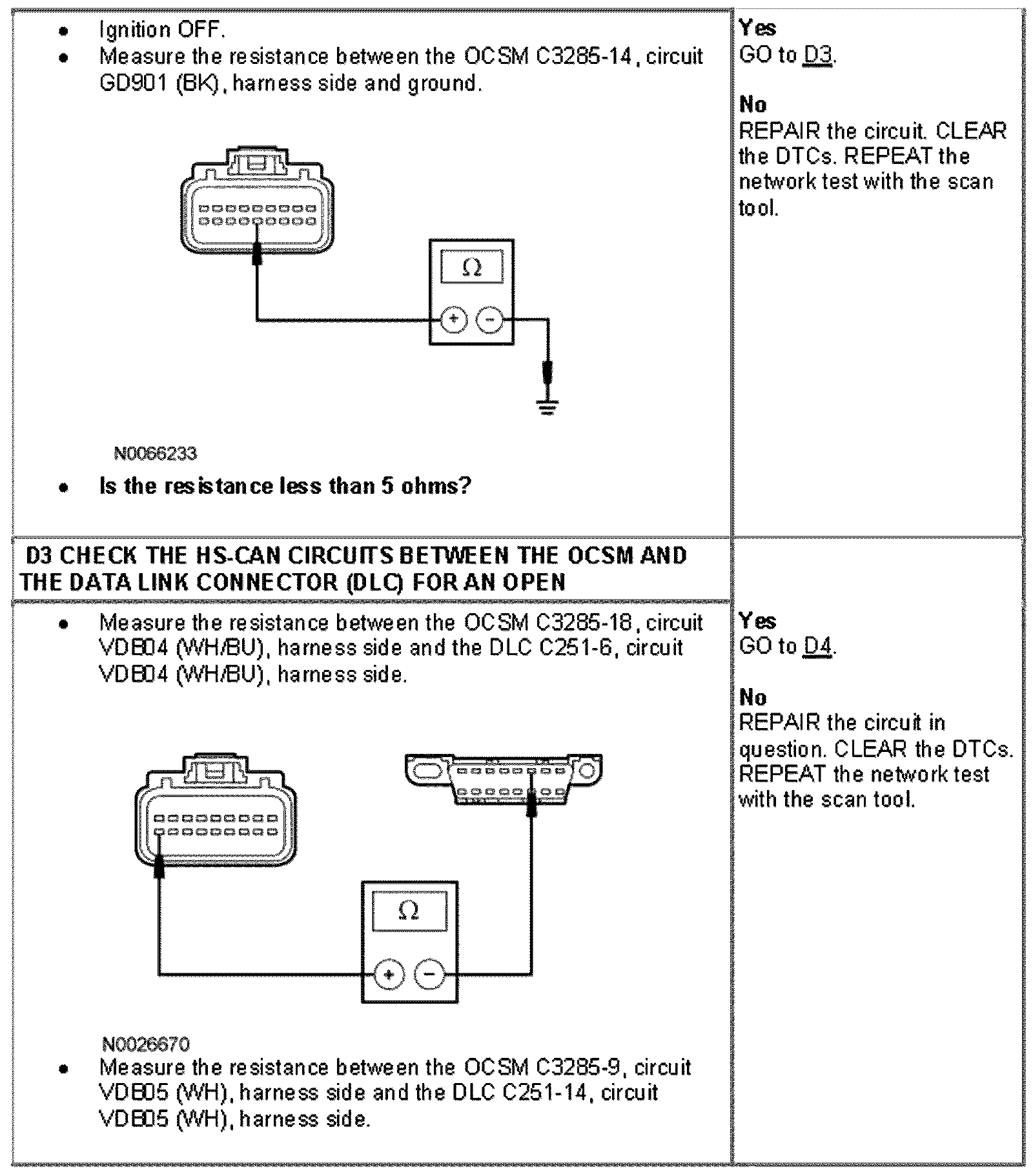

Pinpoint Test D2 Cont'd-D3:

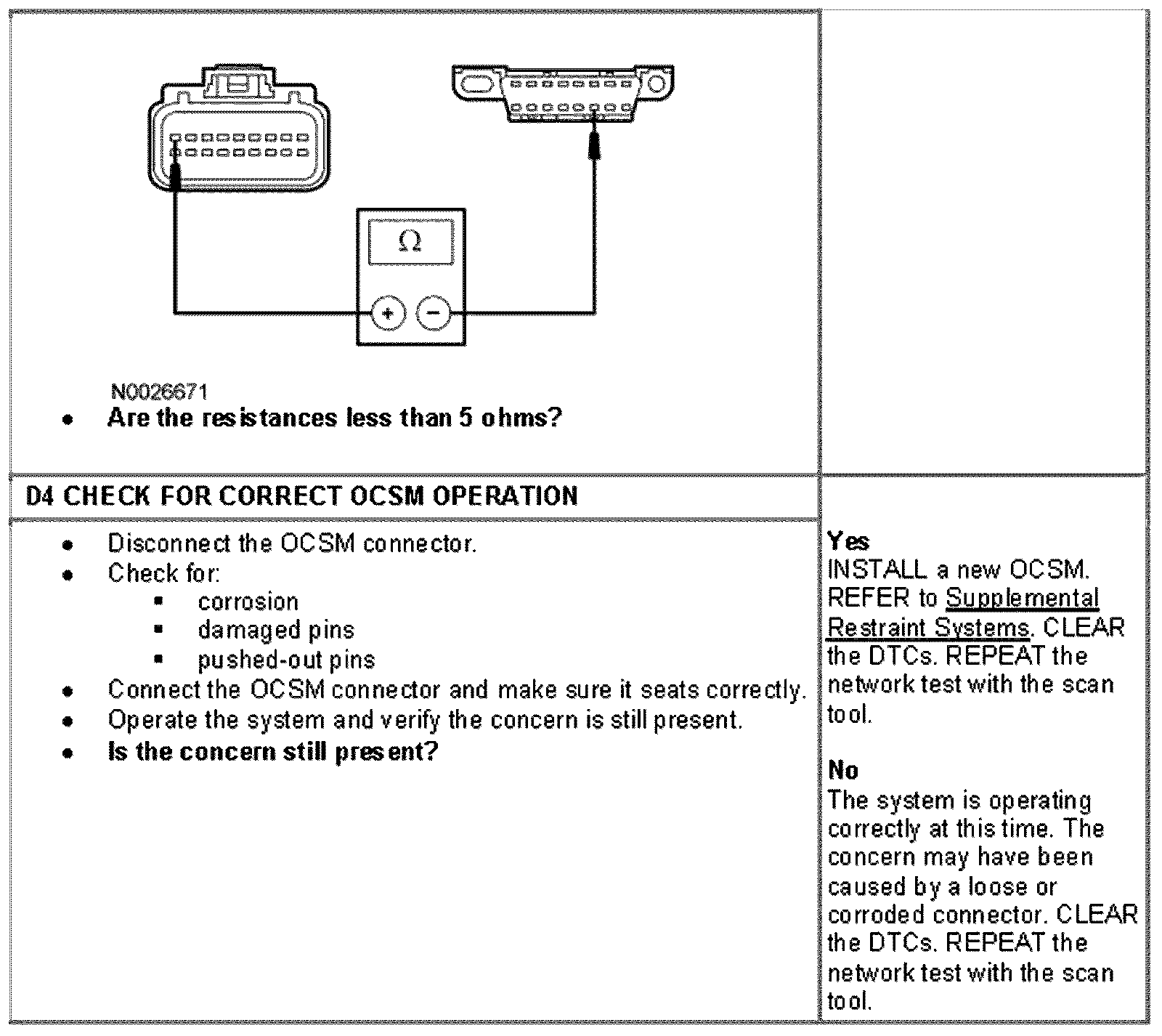

Pinpoint Test D3 Cont'd-D4:
