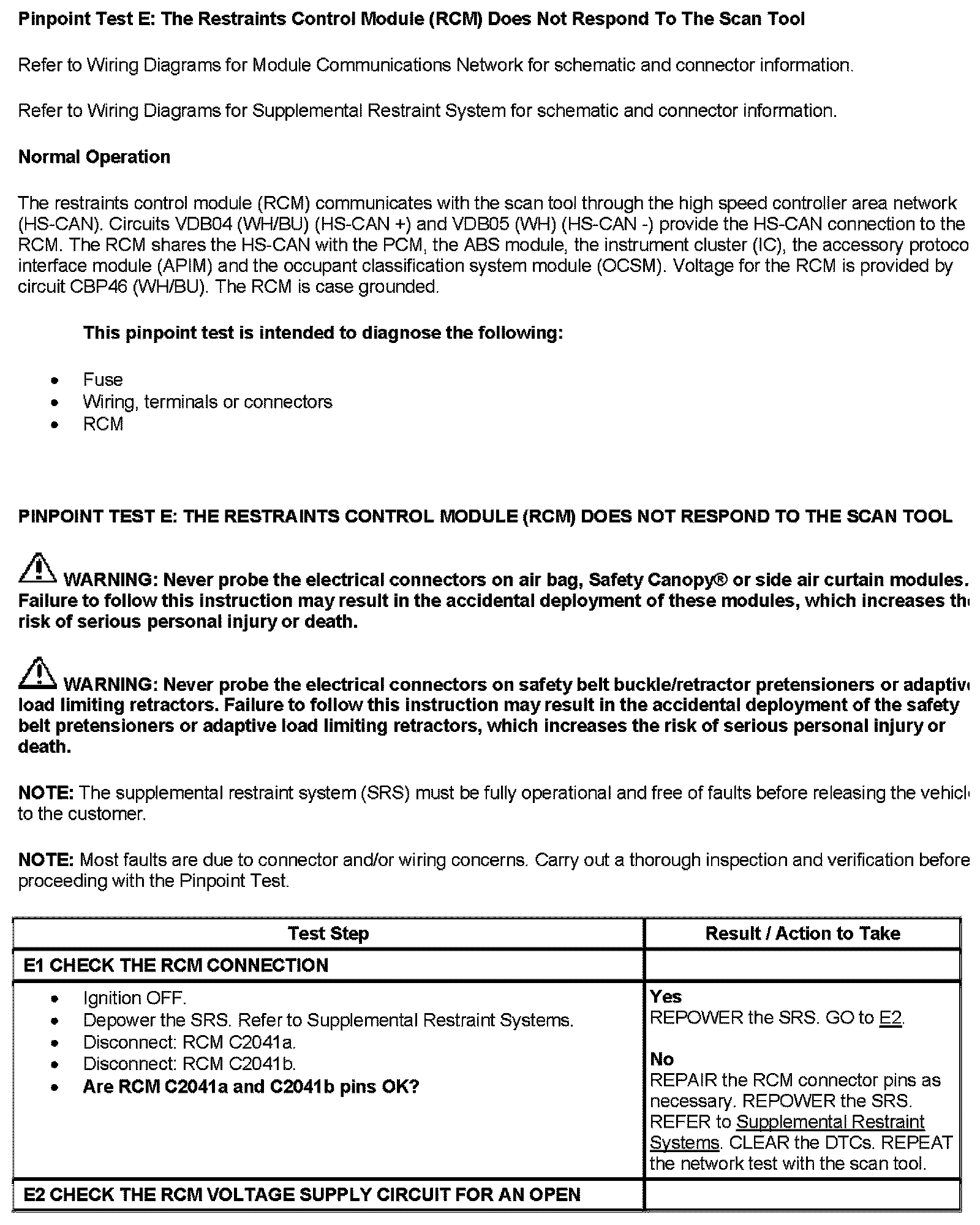

Pinpoint Test E: The Restraints Control Module (RCM) Does Not Respond To The Scan Tool



Pinpoint Test E: The Restraints Control Module (RCM) Does Not Respond To The Scan Tool

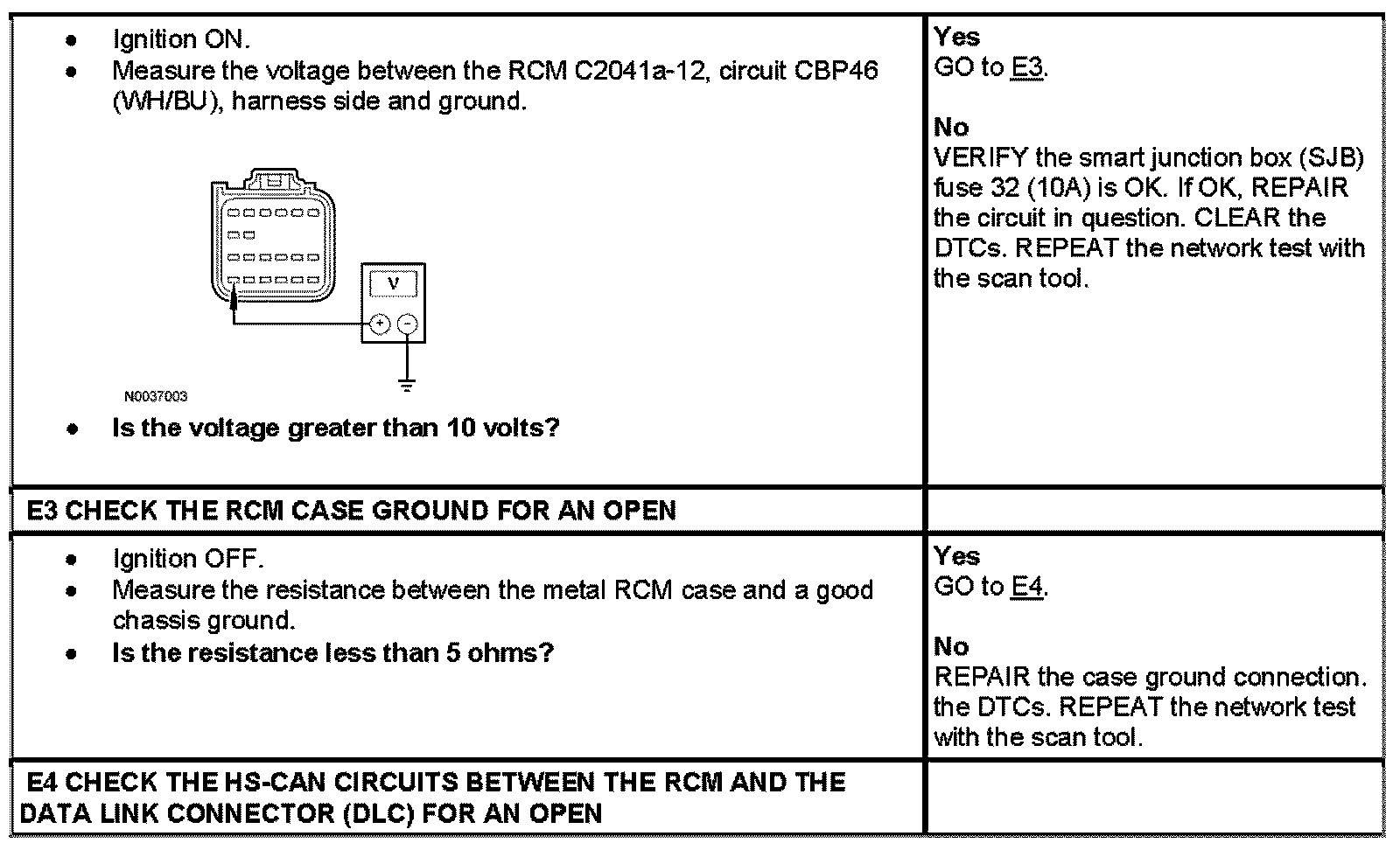

Pinpoint Test E1-E2:





Pinpoint Test E2 Cont'd-E4:

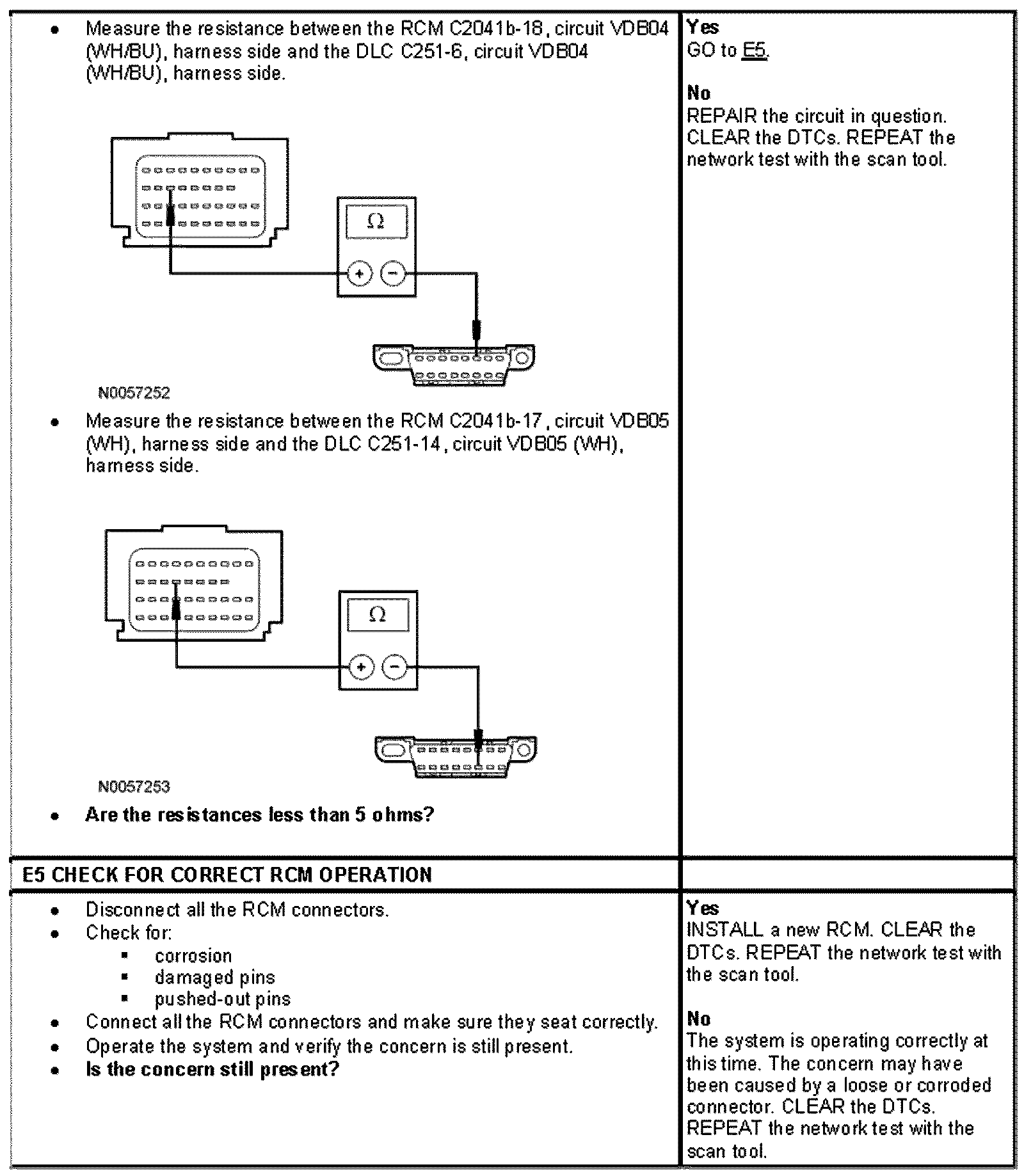

Pinpoint Test E4 Cont'd-E5:
