Pinpoint Test F: The Accessory Protocol Interface Module (APIM) Does Not Respond To The Scan Tool



Pinpoint Test F: The Accessory Protocol Interface Module (APIM) Does Not Respond To The Scan Tool

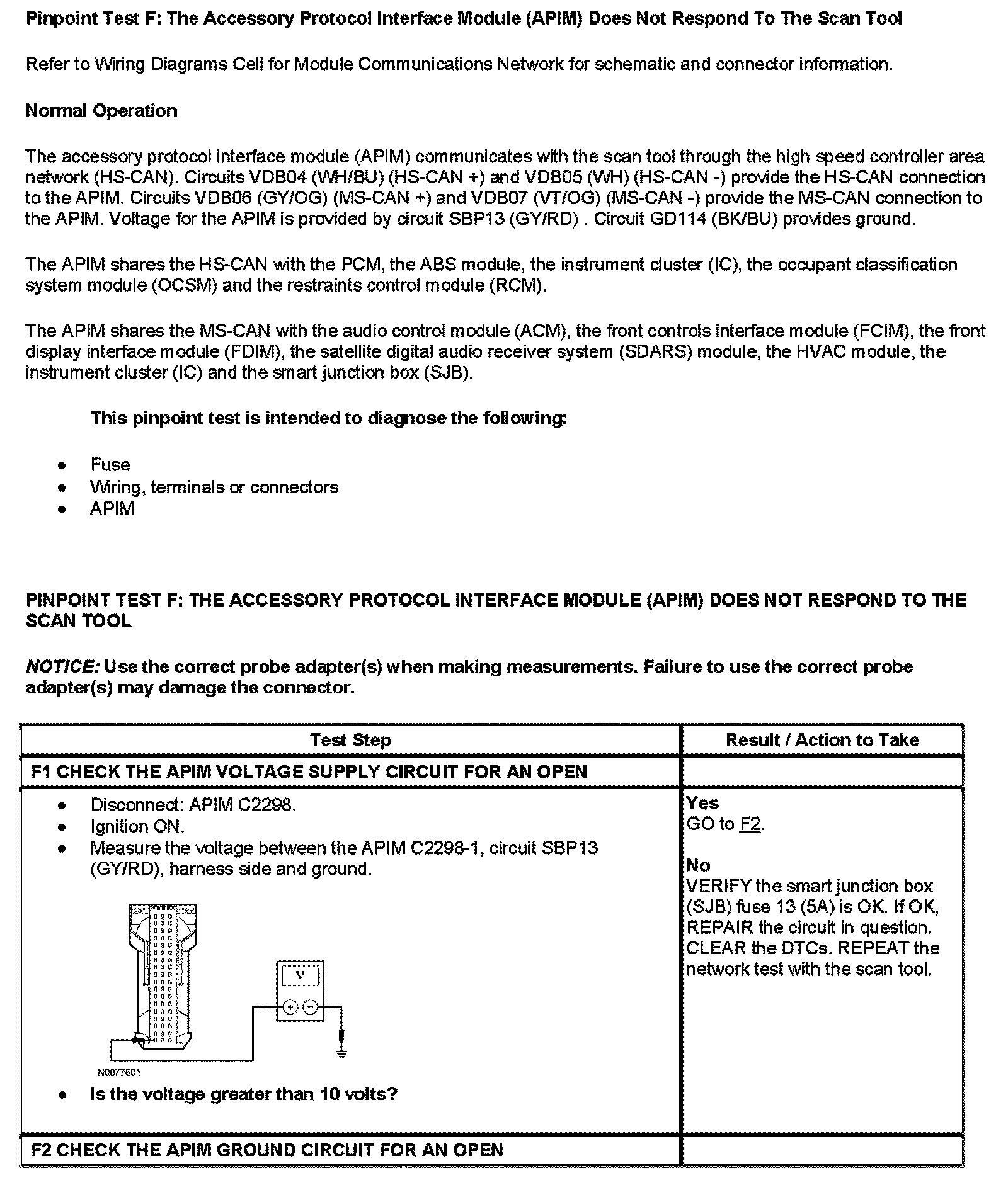

Pinpoint Test F1-F2:

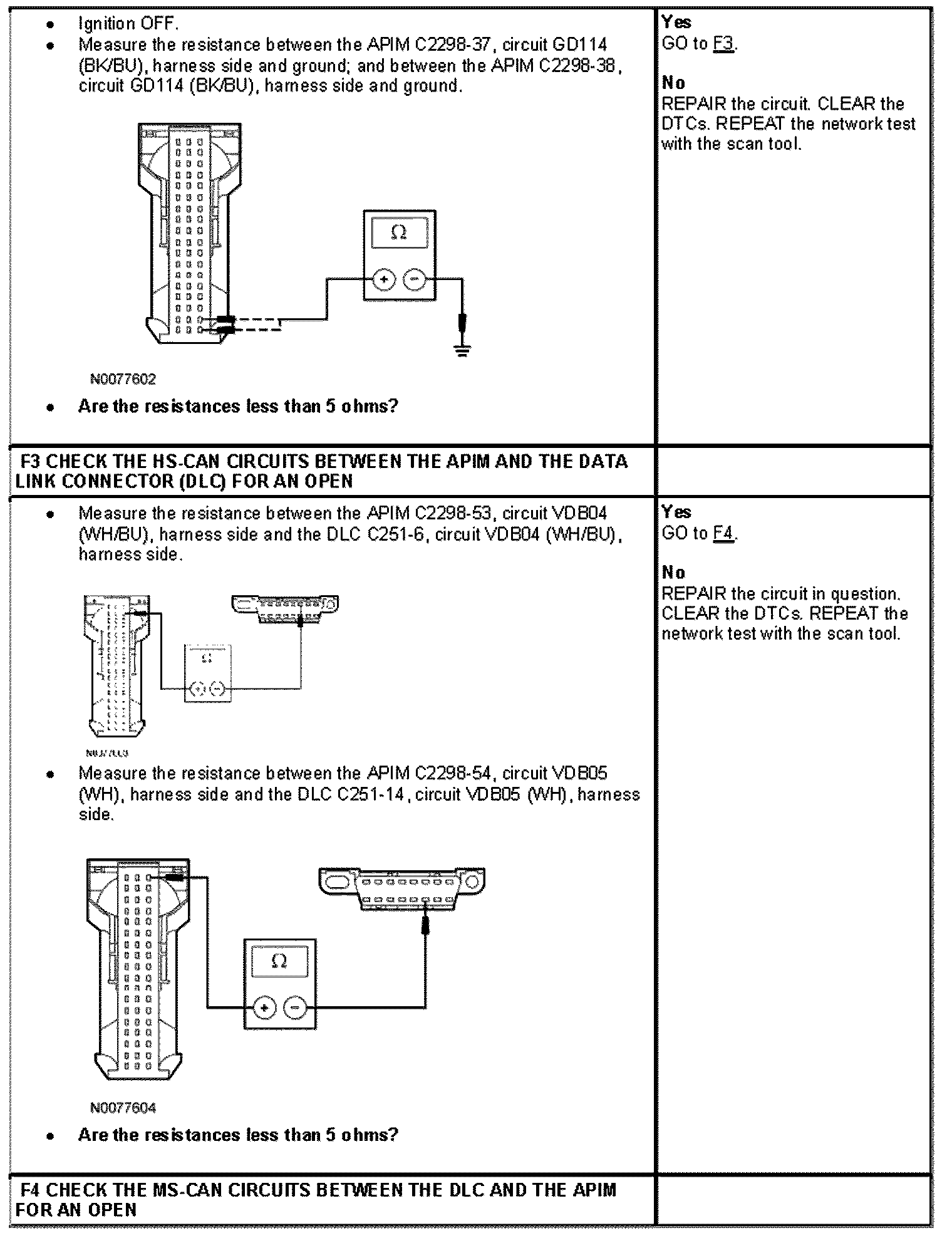

Pinpoint Test F2 Cont'd-F4:

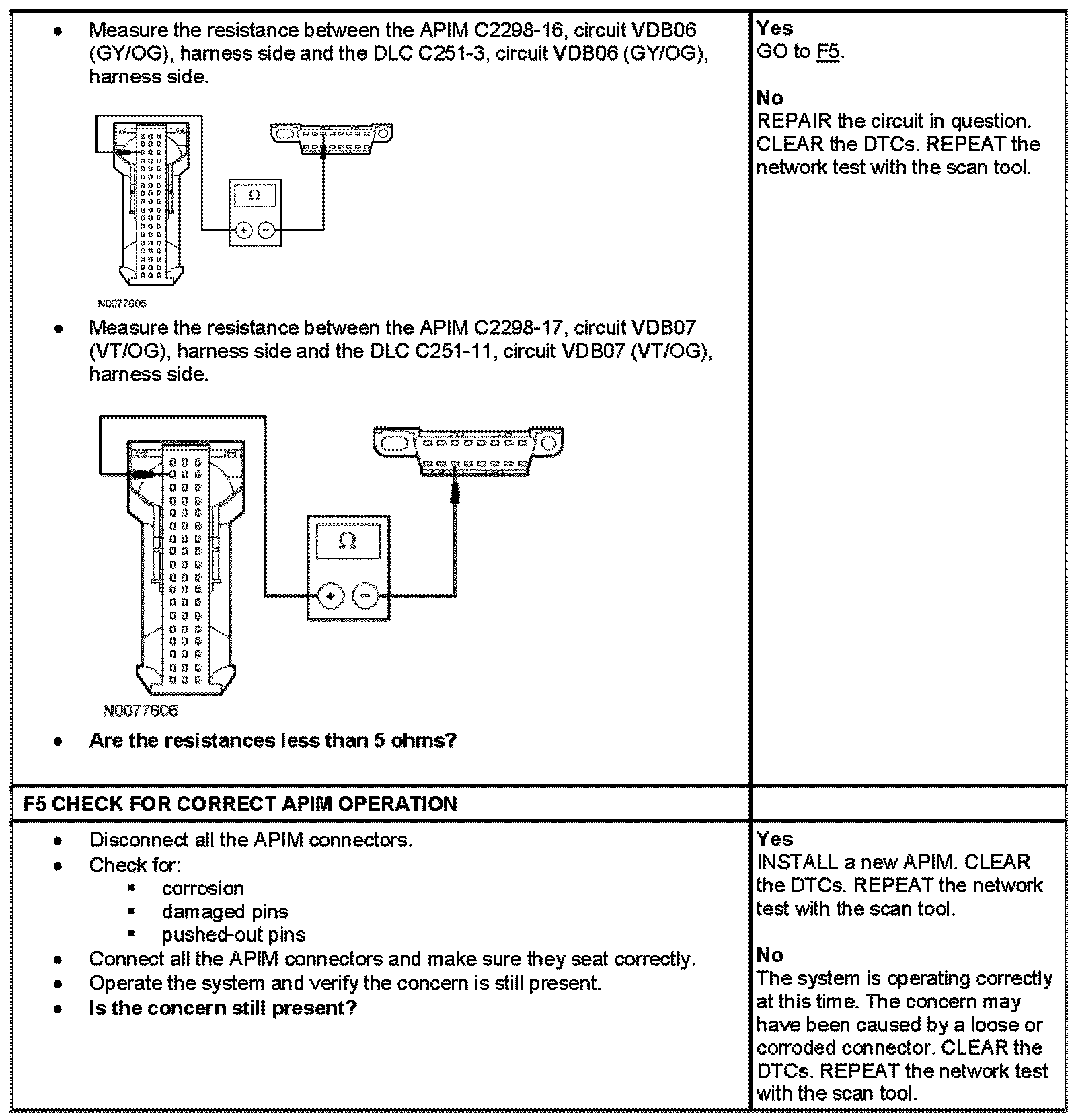

Pinpoint Test F4 Cont'd-F5:
