Pinpoint Test K: The Audio Control Module (ACM) Does Not Respond To The Scan Tool



Pinpoint Test K: The Audio Control Module (ACM) Does Not Respond To The Scan Tool

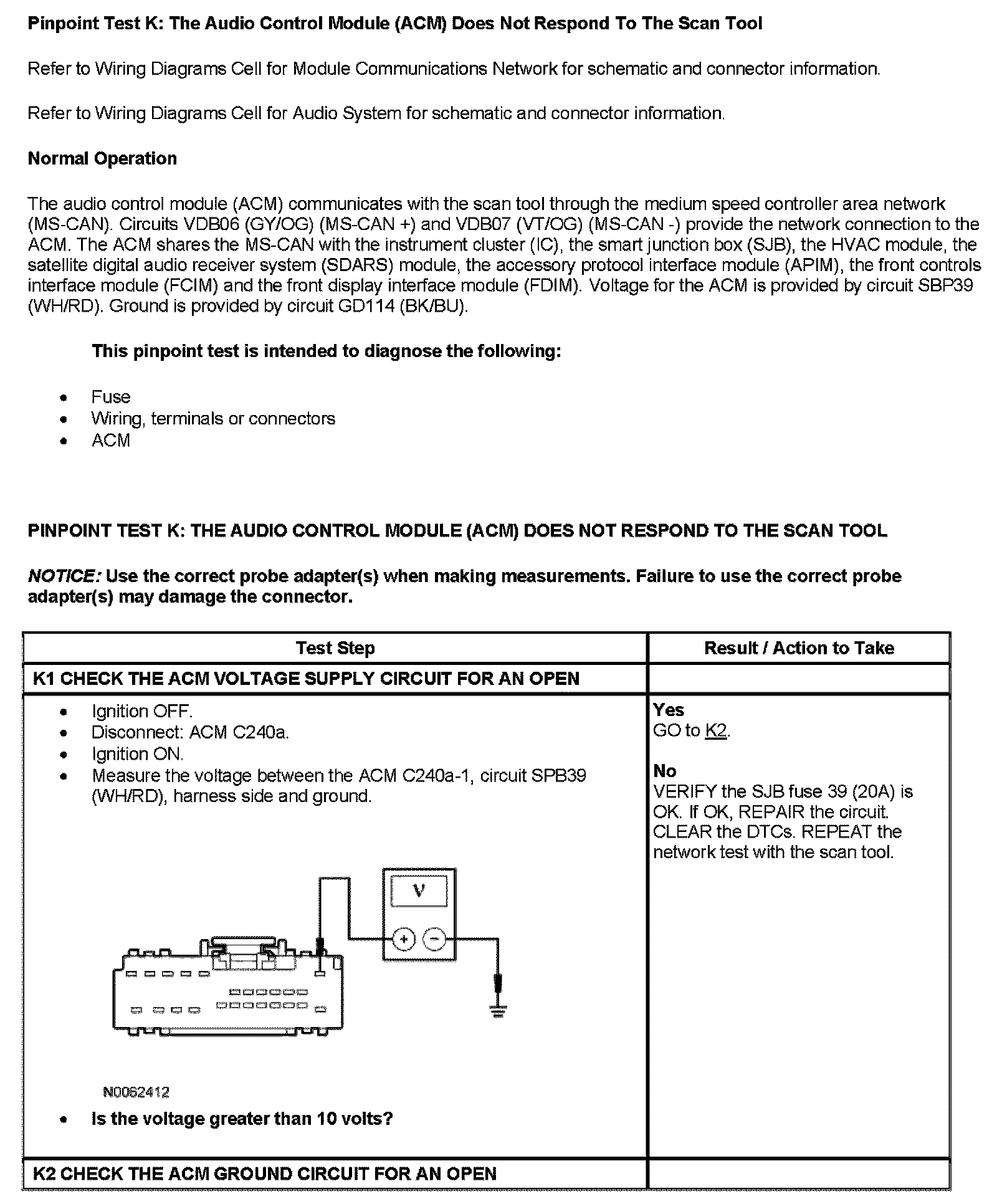

Pinpoint Test K1-K2:

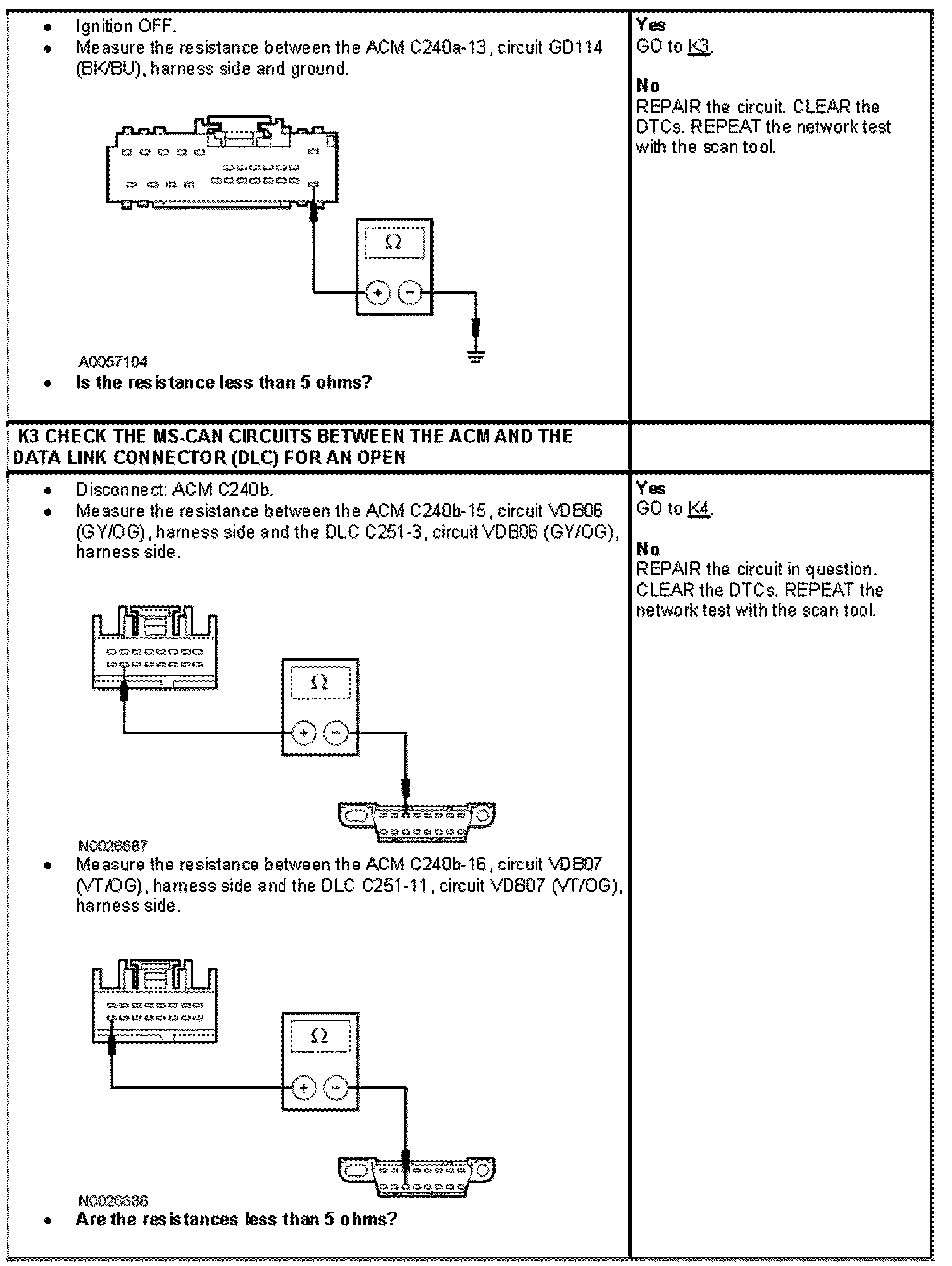

Pinpoint Test K2 Cont'd-K3:

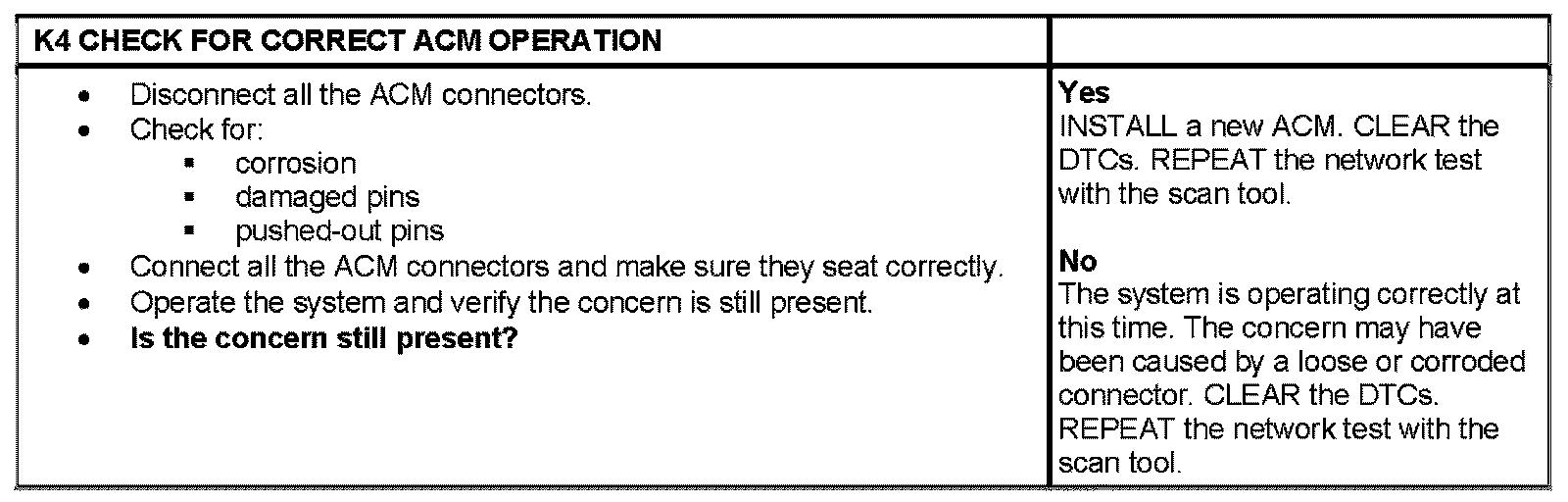

Pinpoint Test K4:
