Tests DK: Accelerator Pedal Position (APP) Sensor

PINPOINT TEST DK: ACCELERATOR PEDAL POSITION (APP) SENSOR

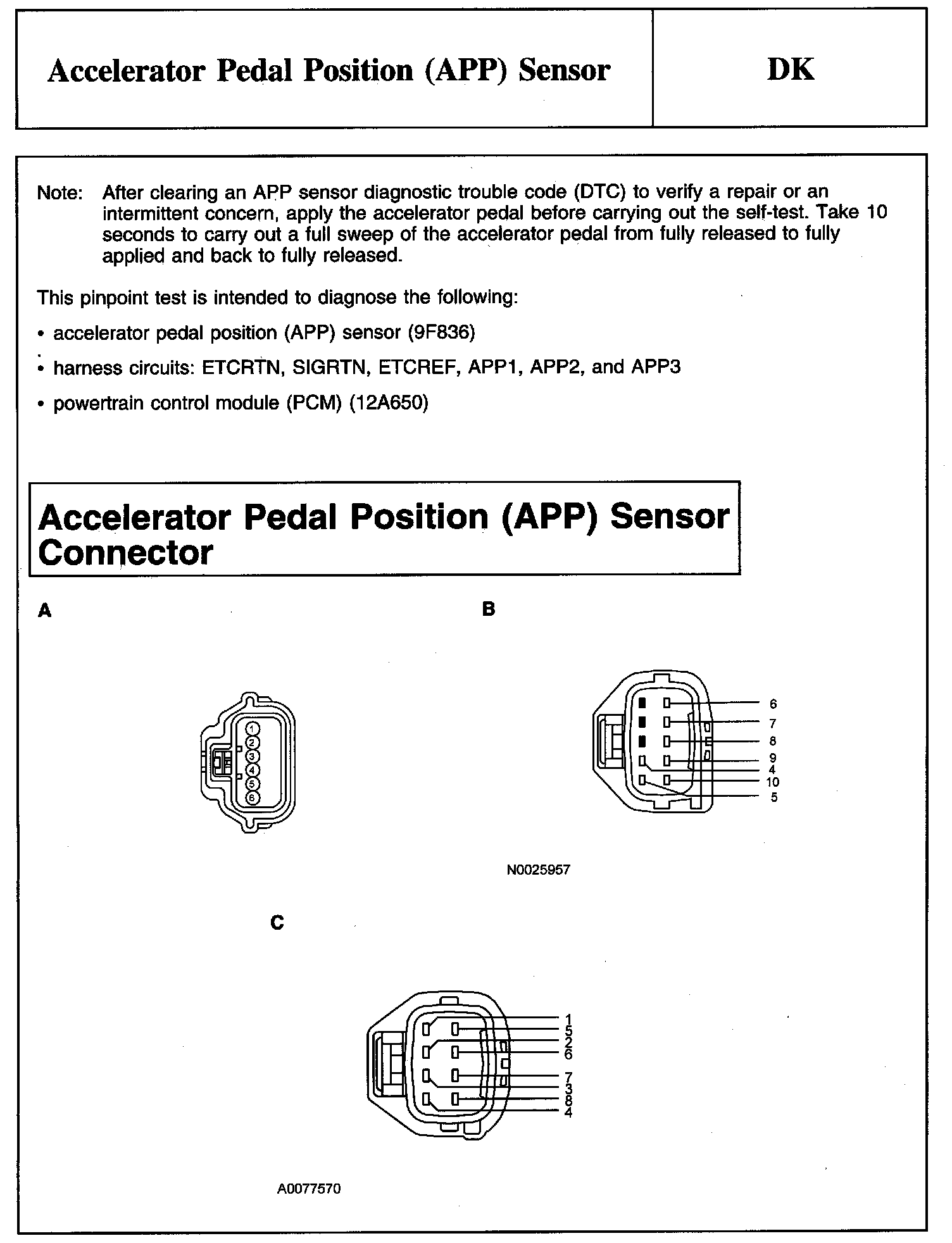

Note And Accelerator Pedal Position (APP) Sensor Connector:

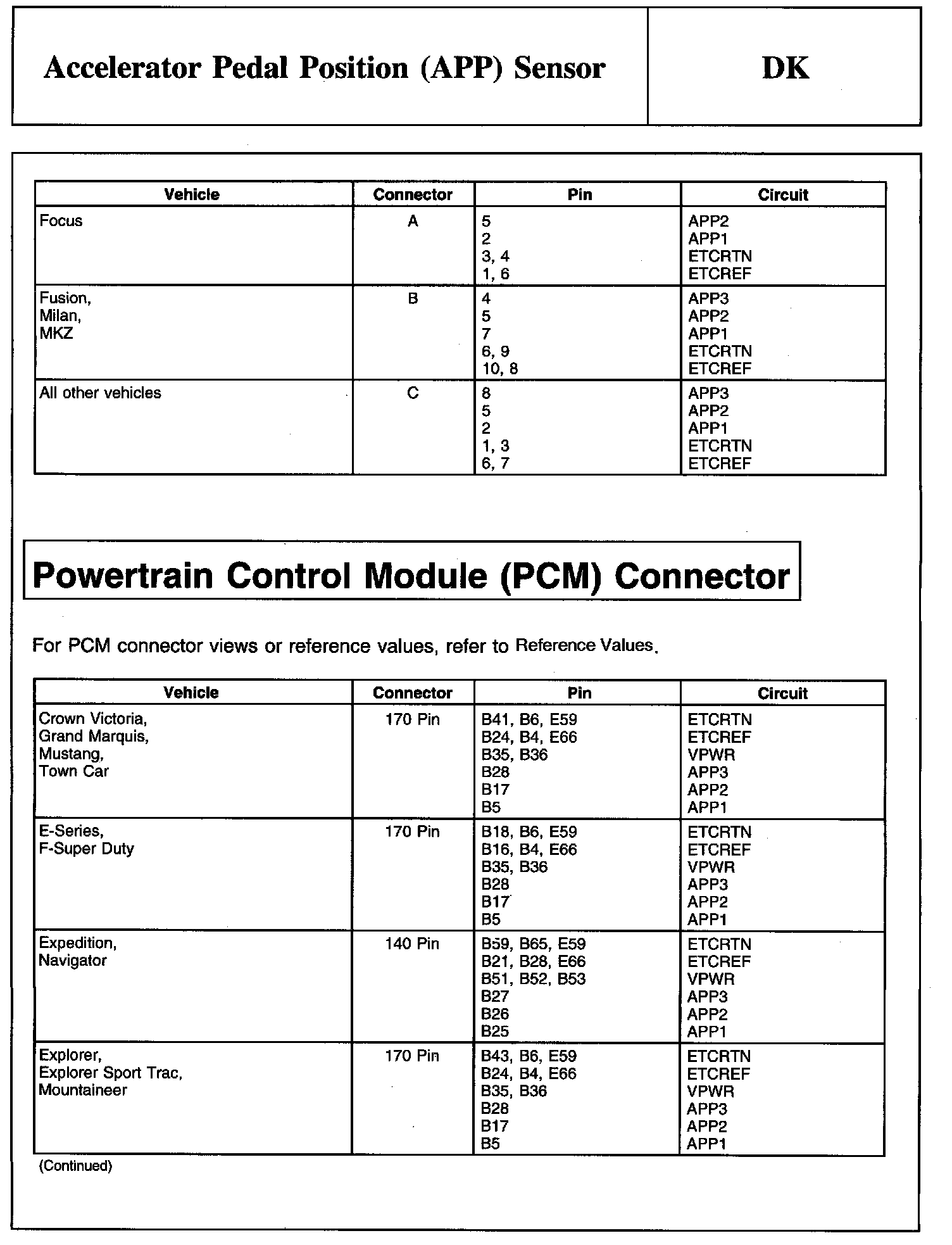

Accelerator Pedal Position (APP) Sensor Connector And Powertrain Control Module (PCM) Connector:

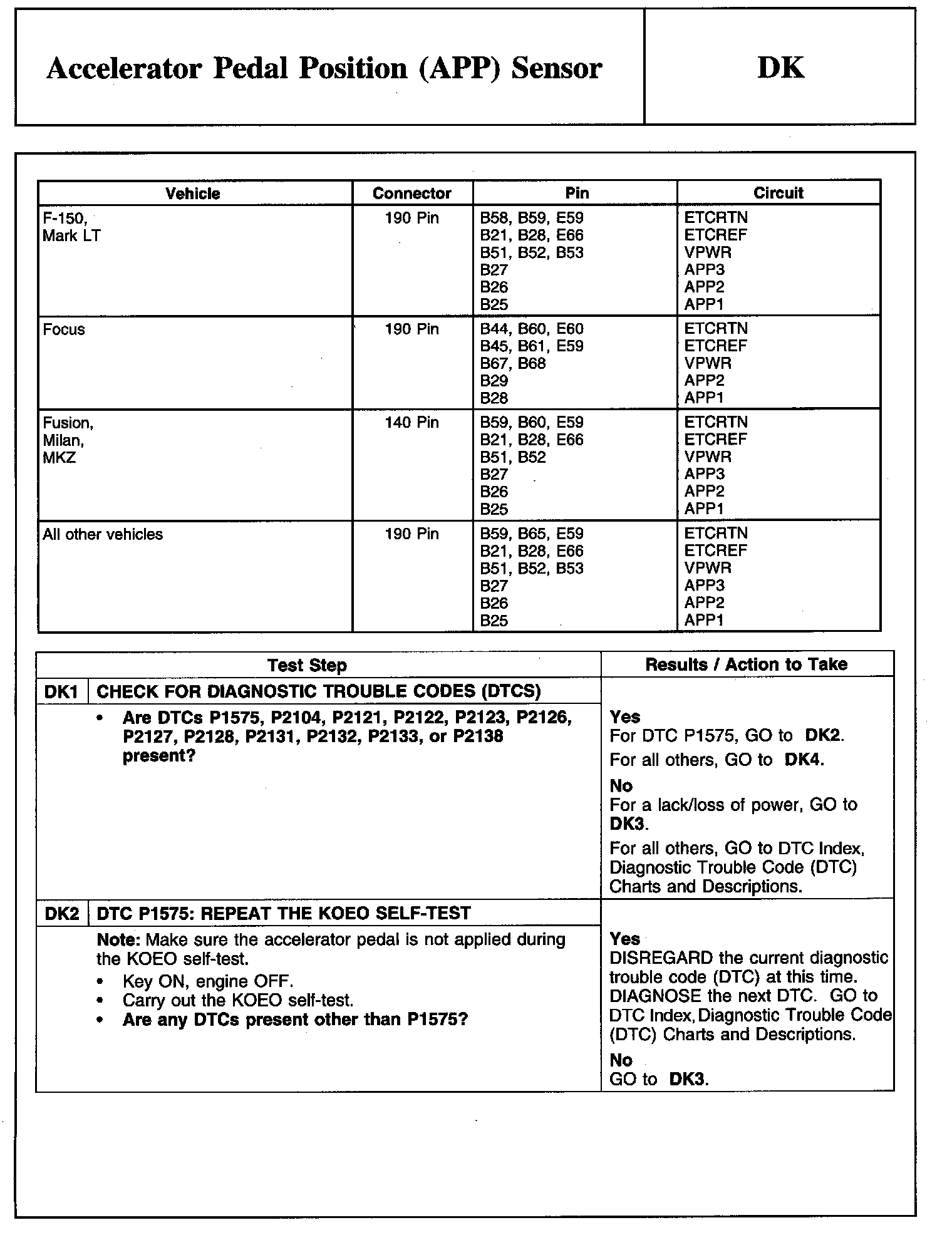

DK1-DK2:

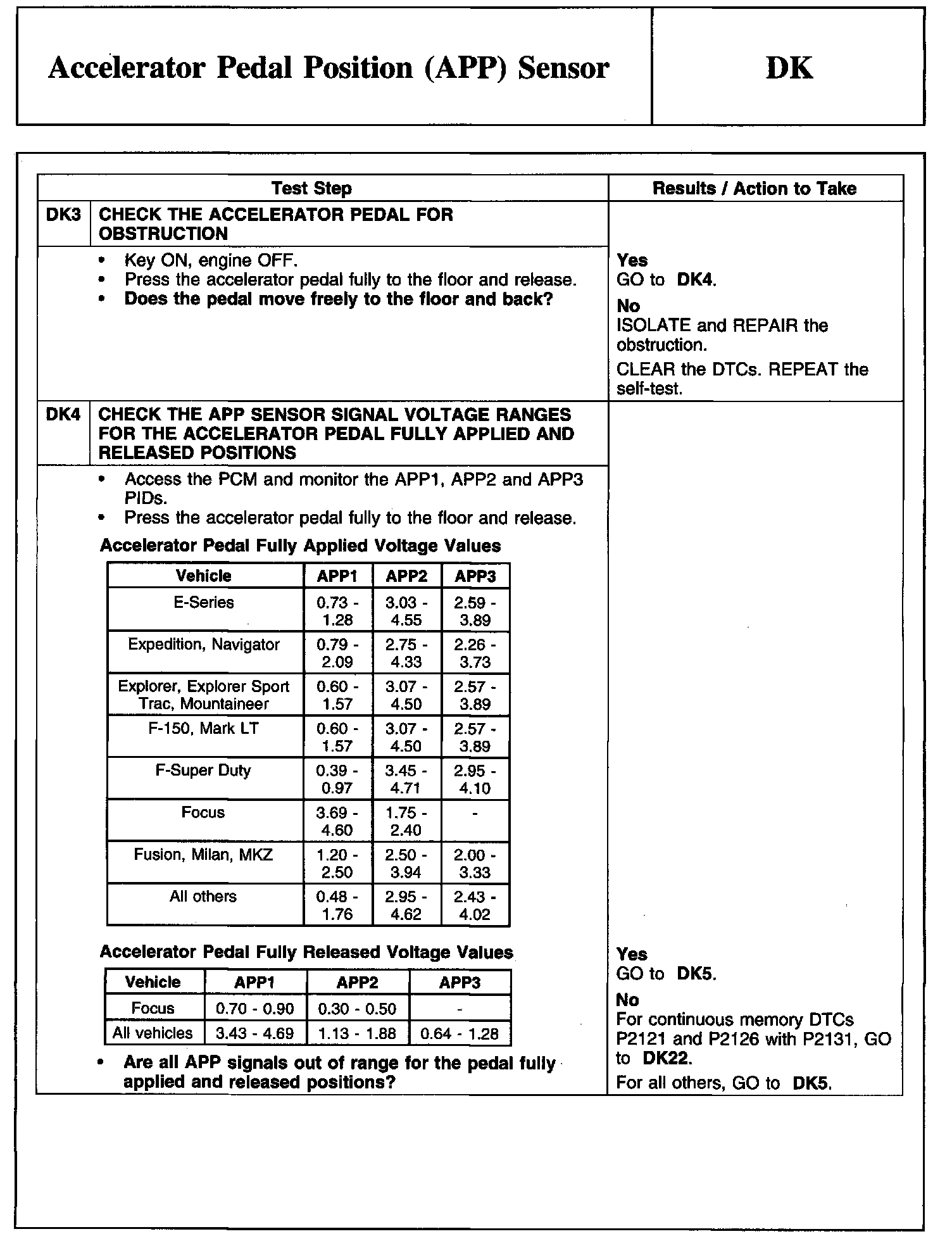

DK3-DK4:

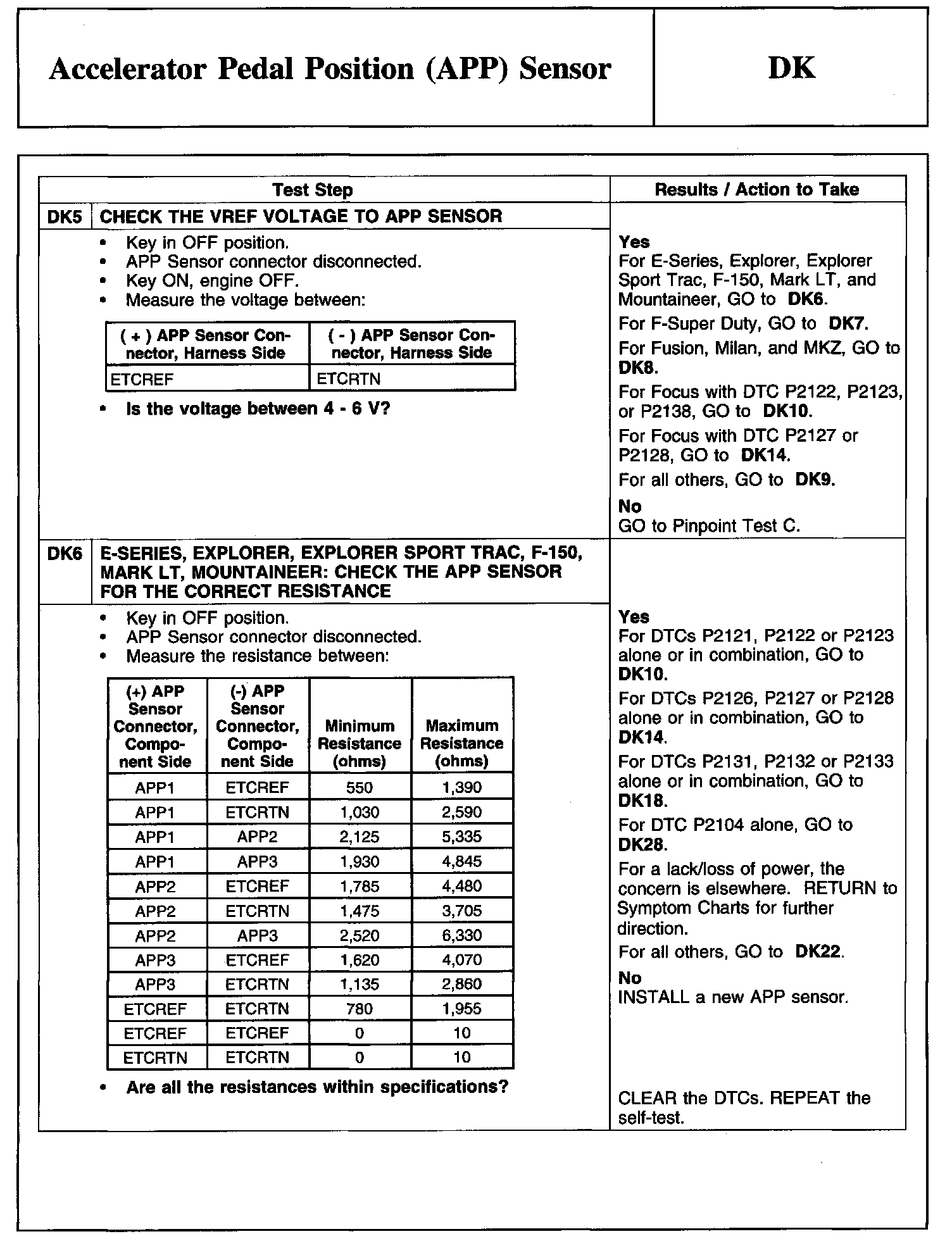

DK5-DK6:

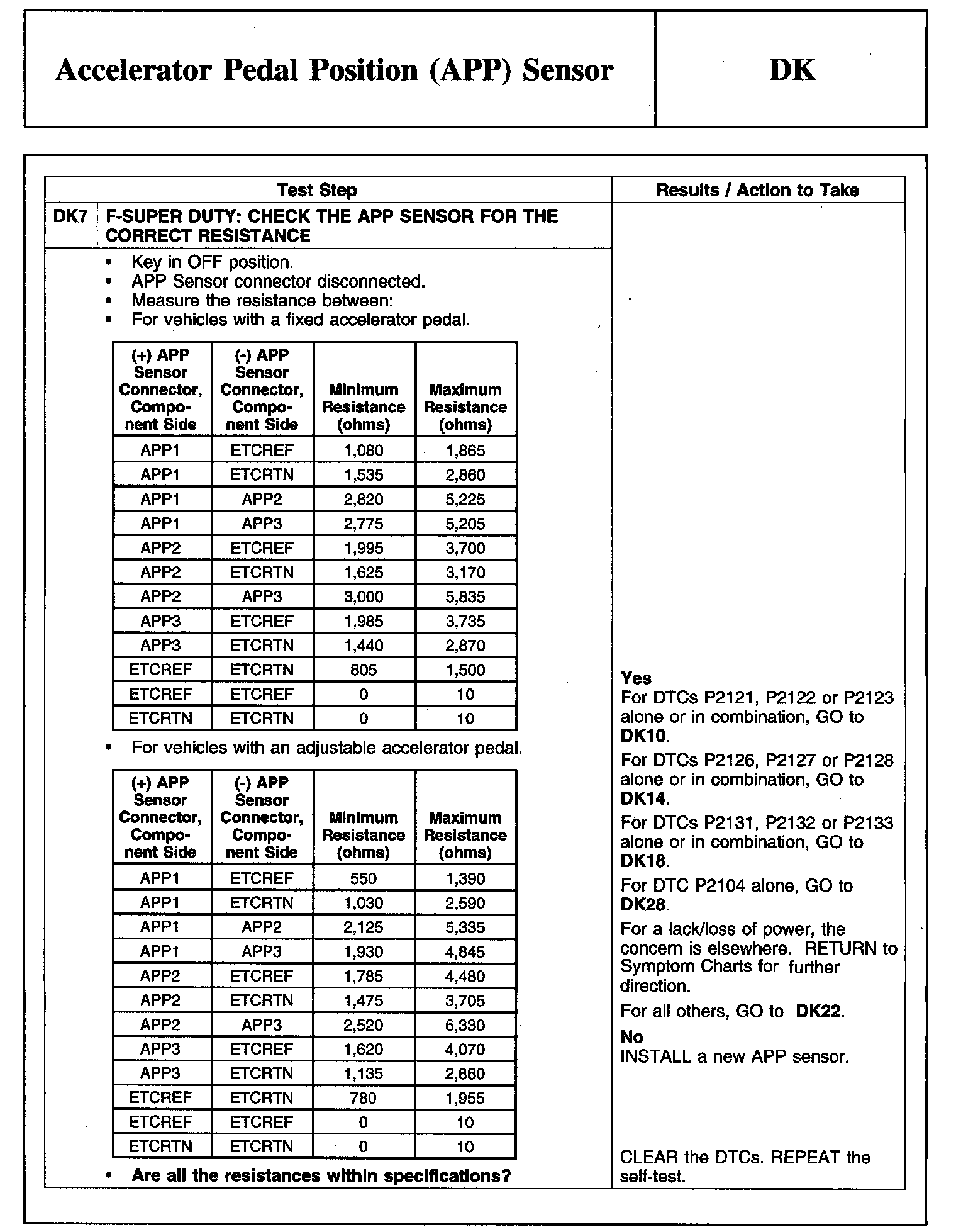

DK7:

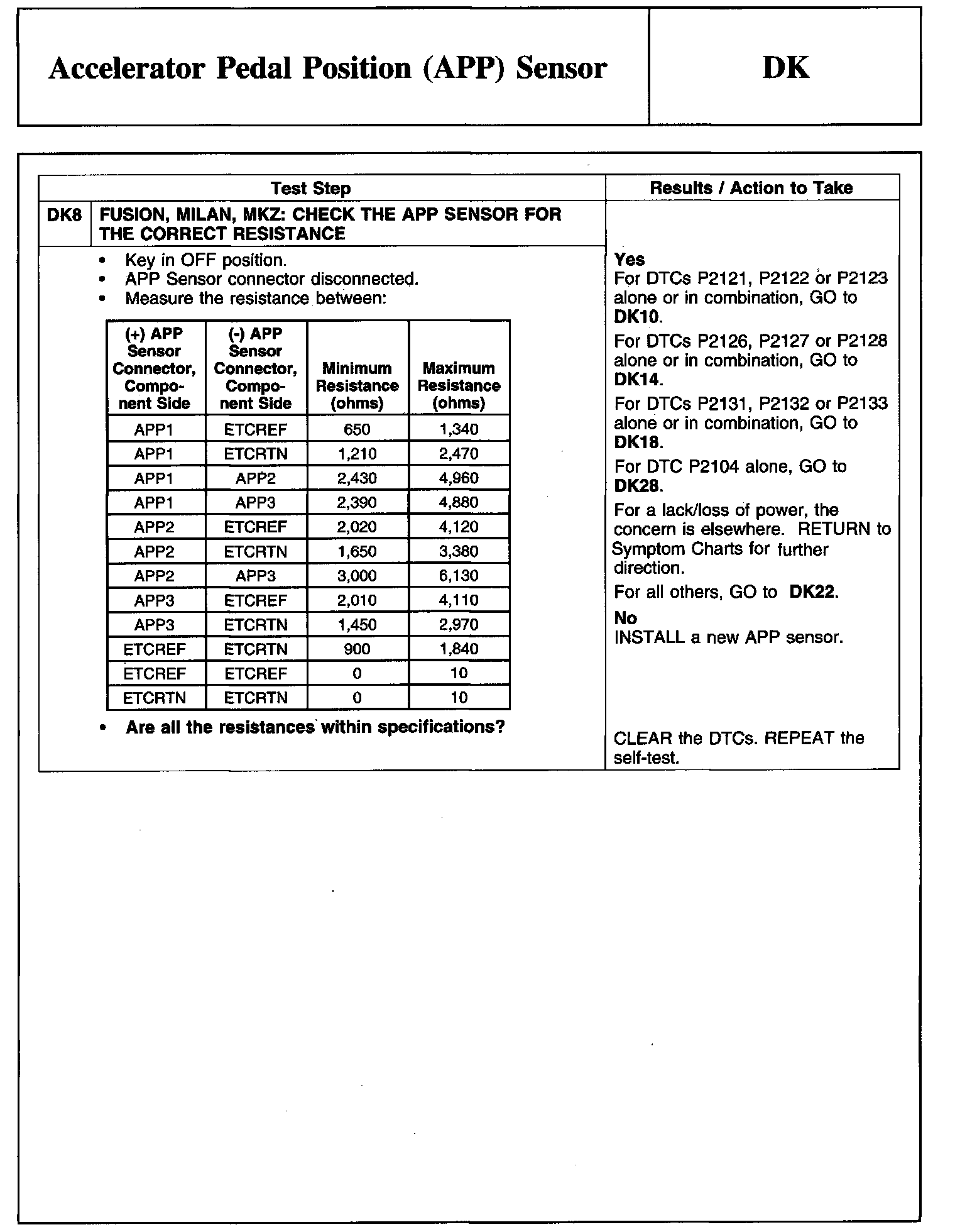

DK8:

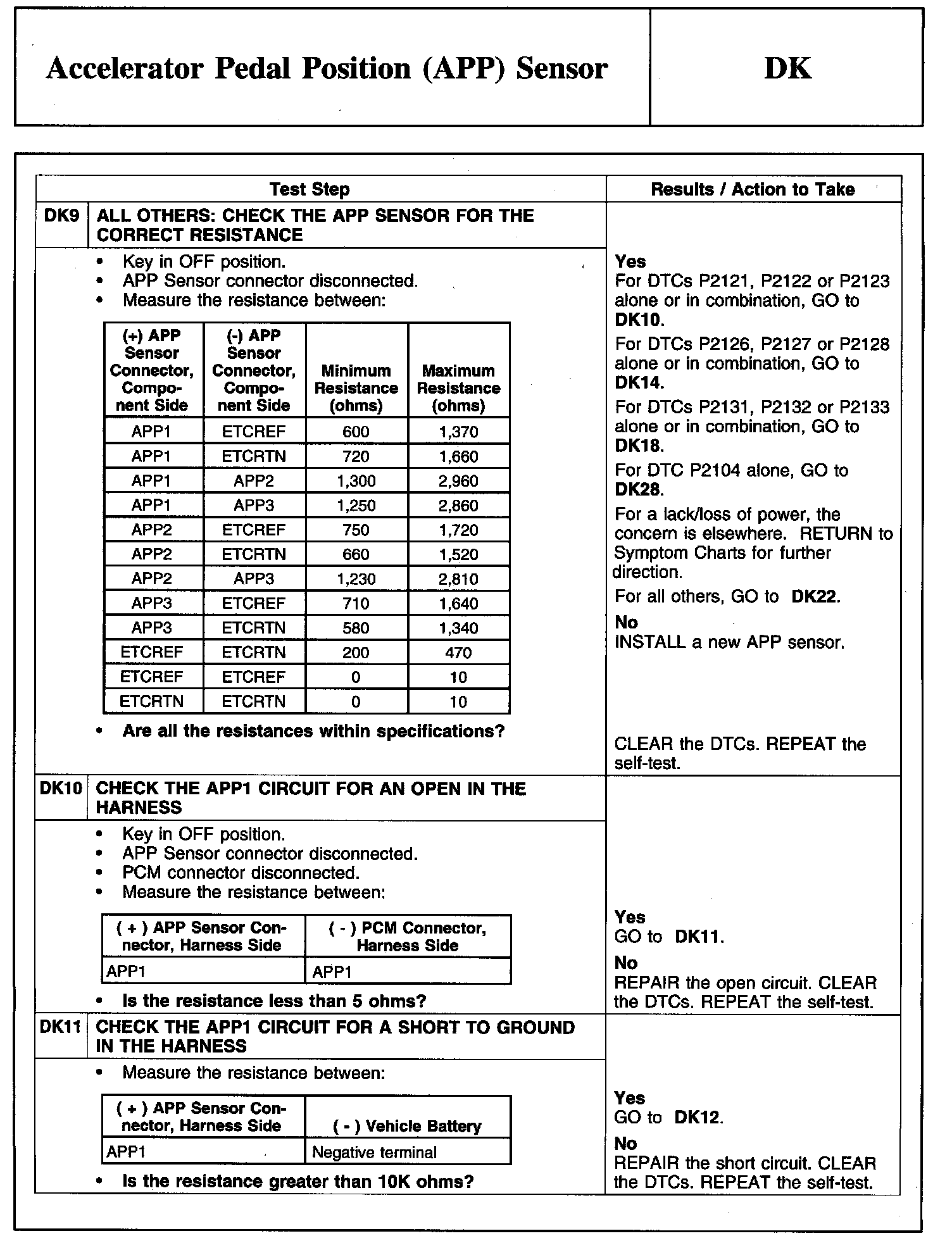

DK9-DK11:

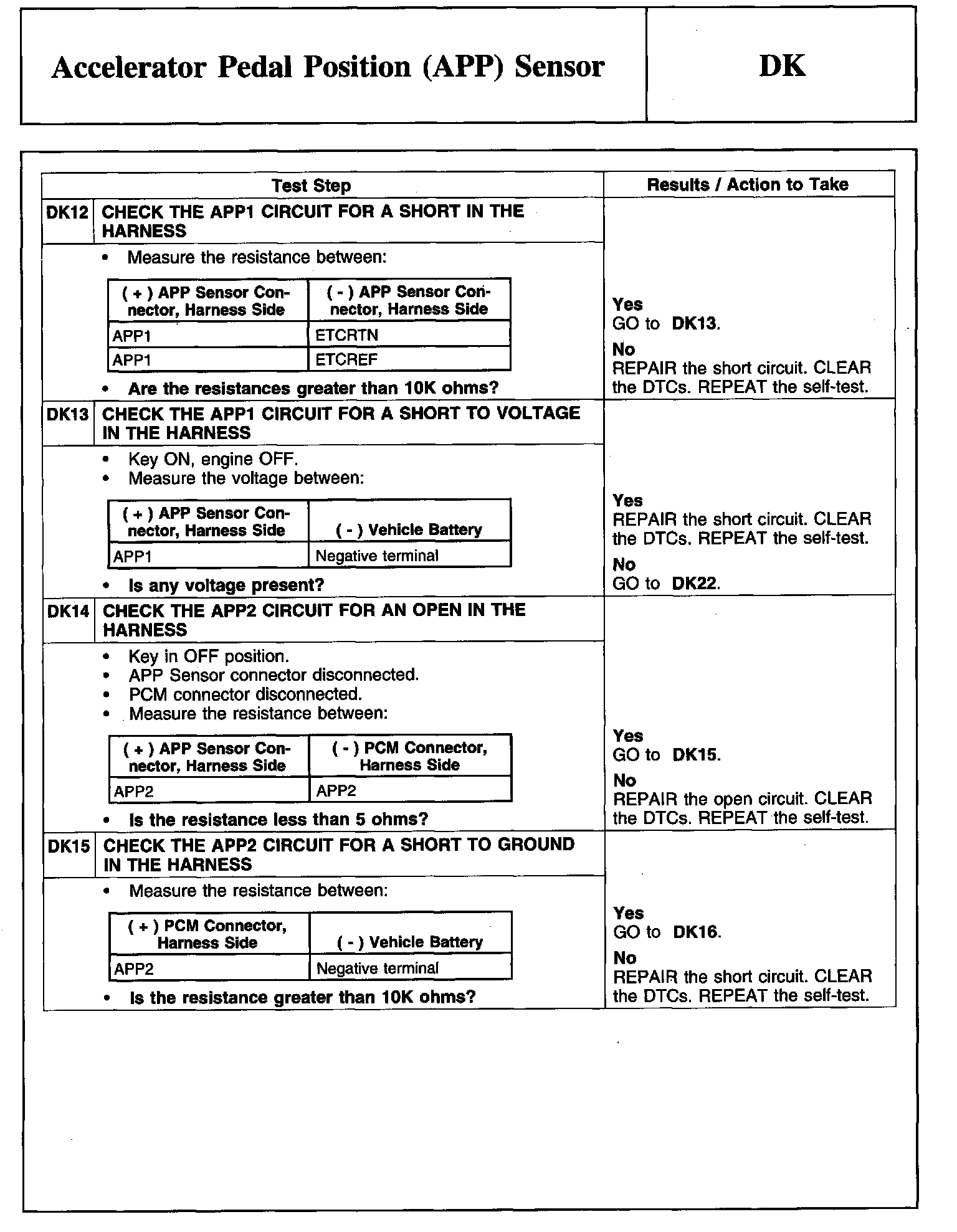

DK12-DK15:

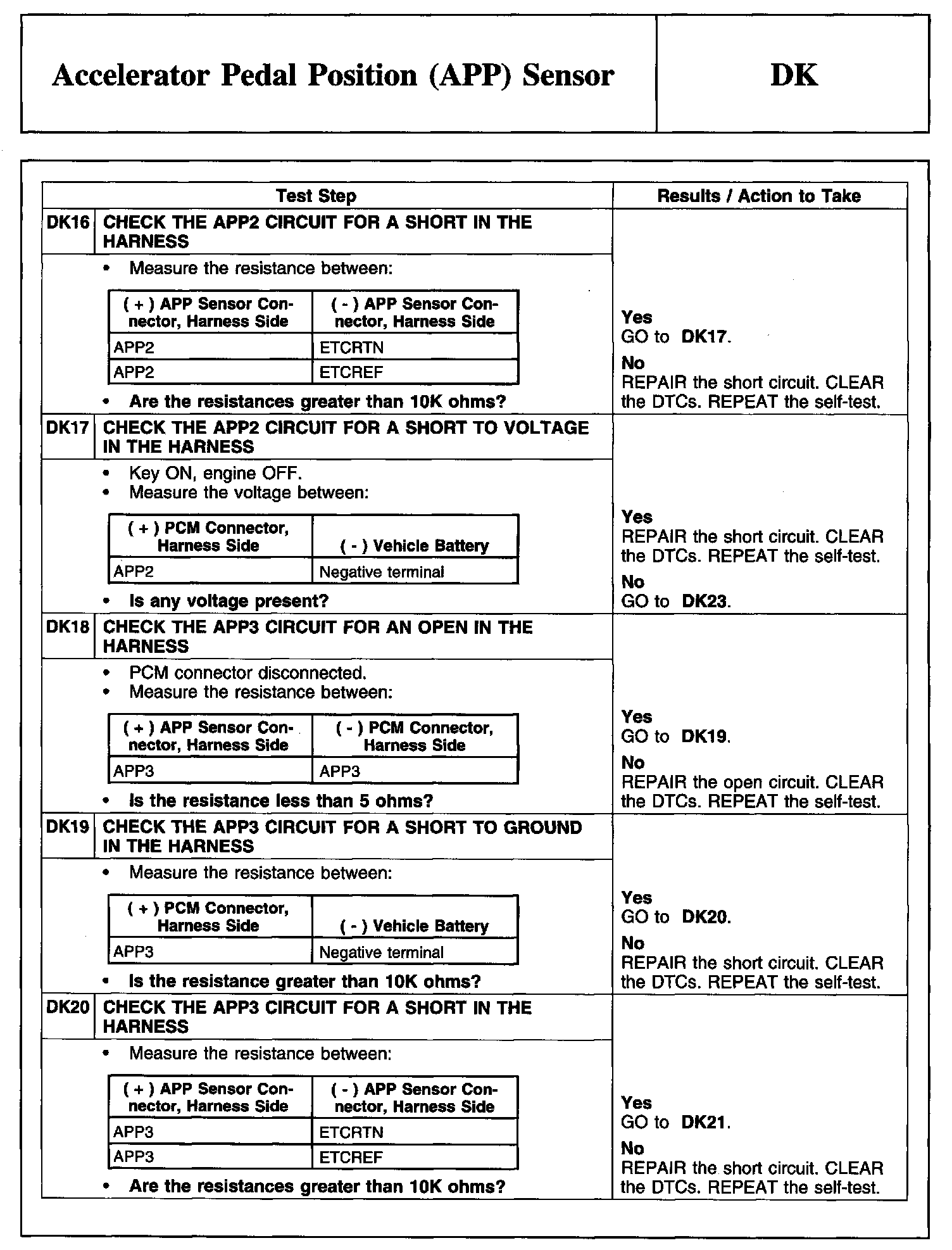

DK16-DK20:

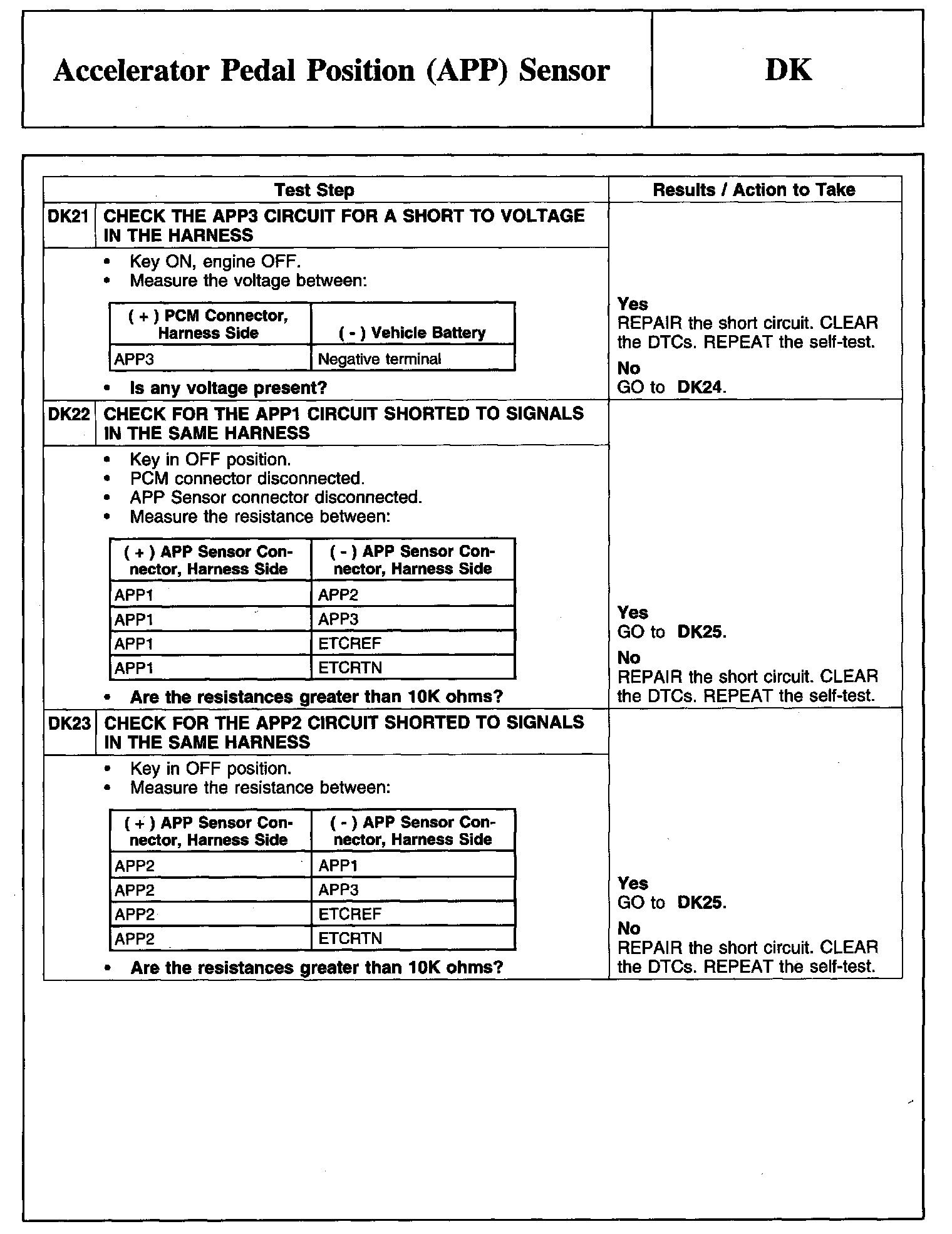

DK21-DK23:

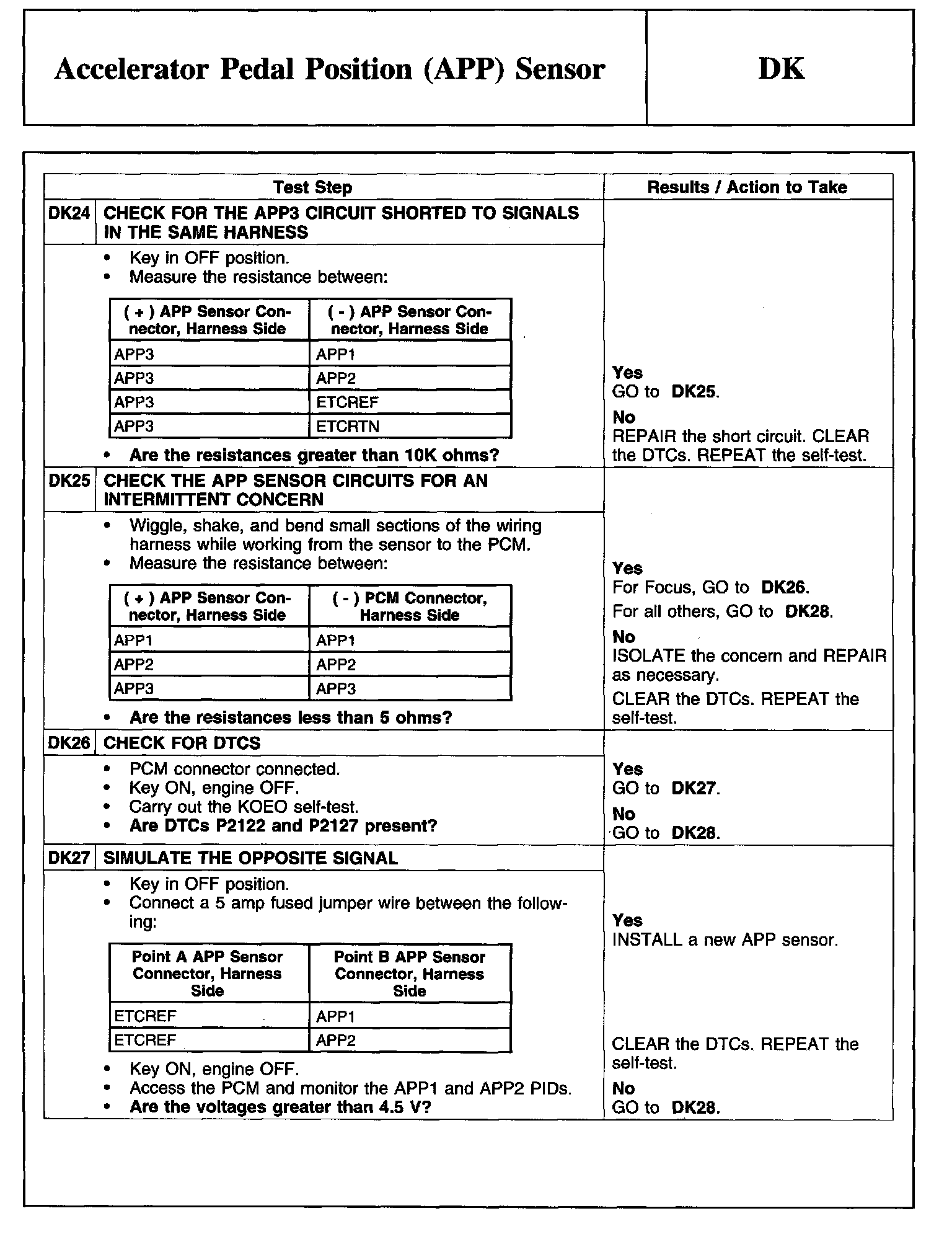

DK24-DK27:

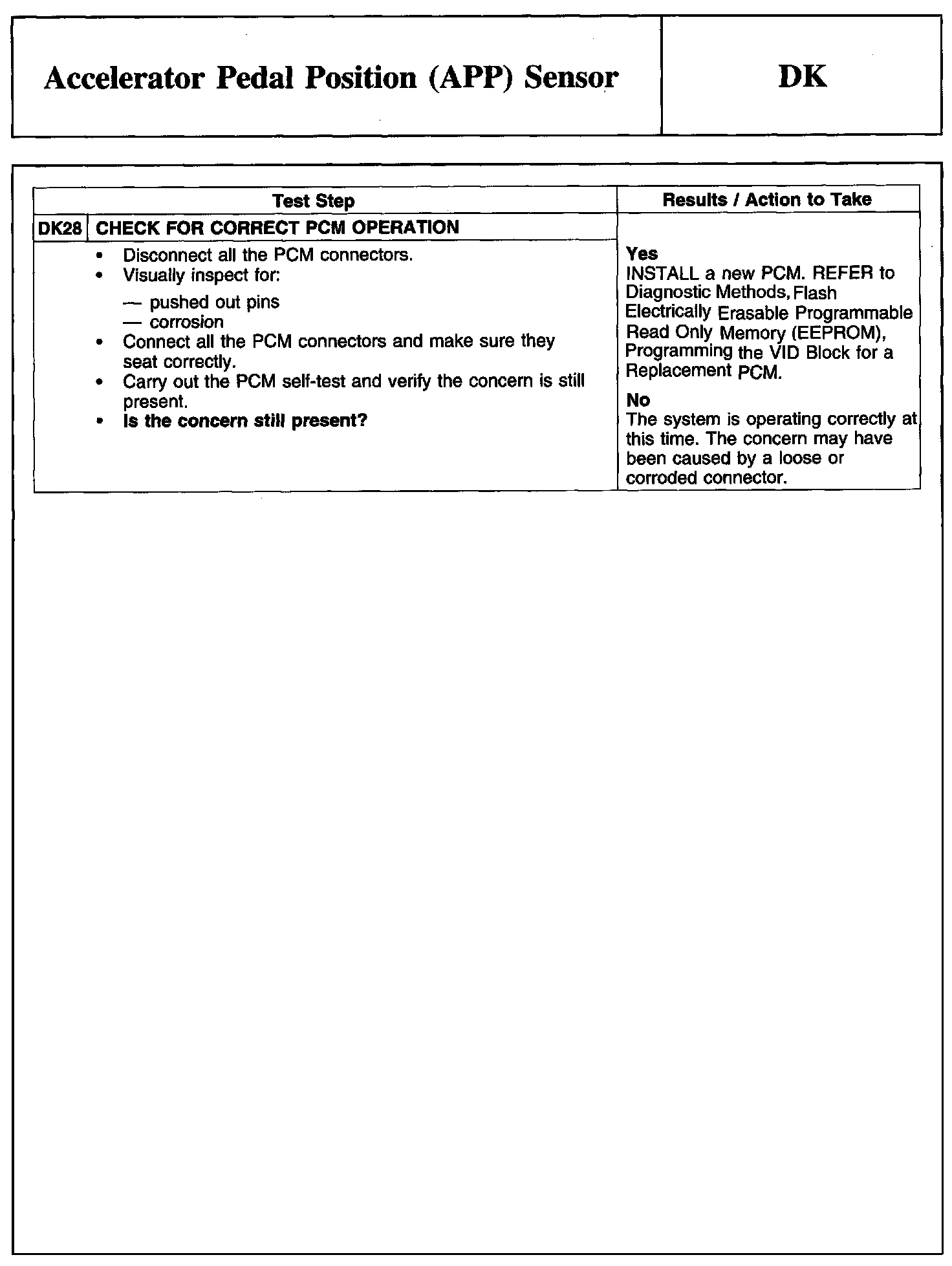

DK28:
