Tests DR: Camshaft Position (CMP) Sensor

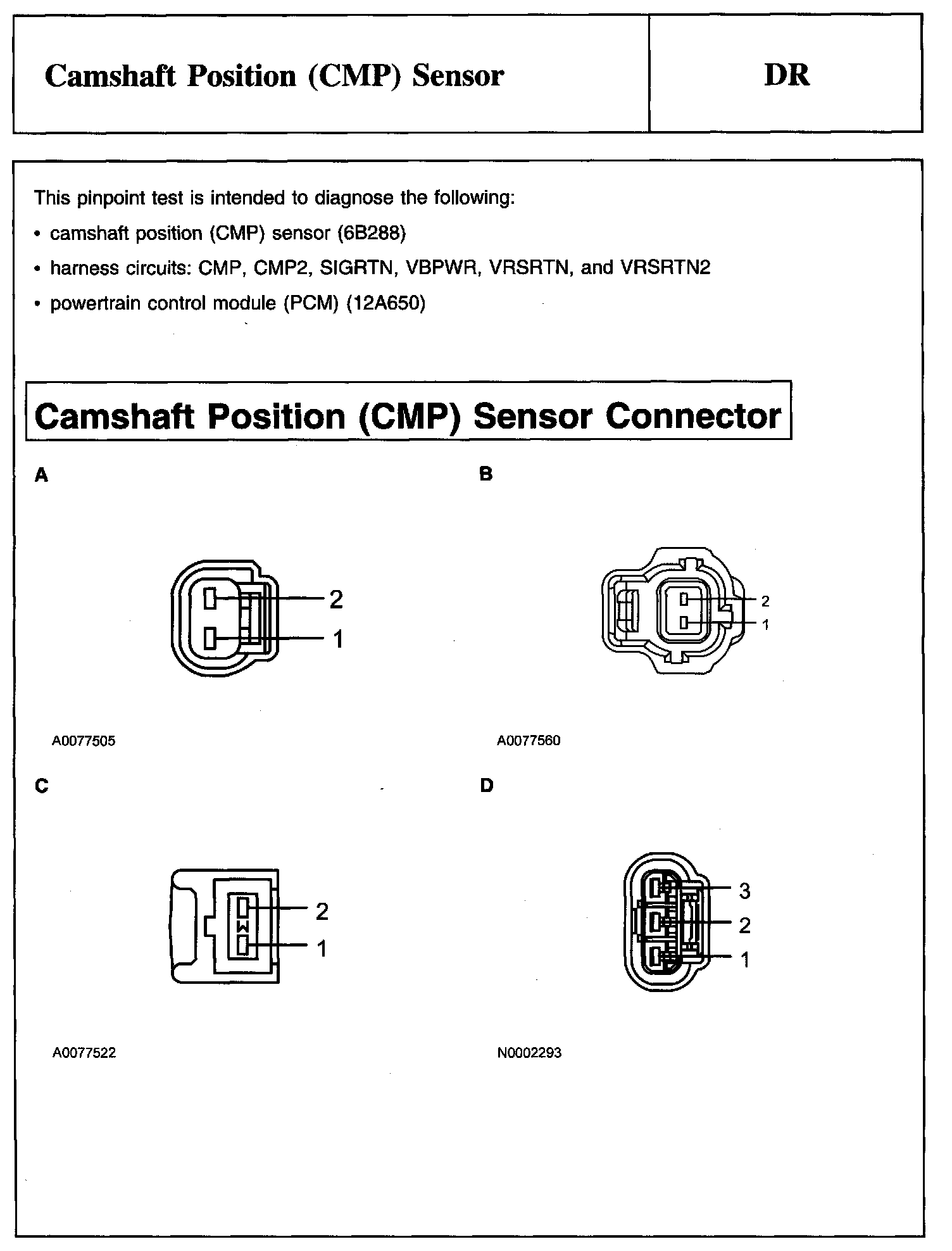

Description And Camshaft Position (CMP) Sensor Connector:

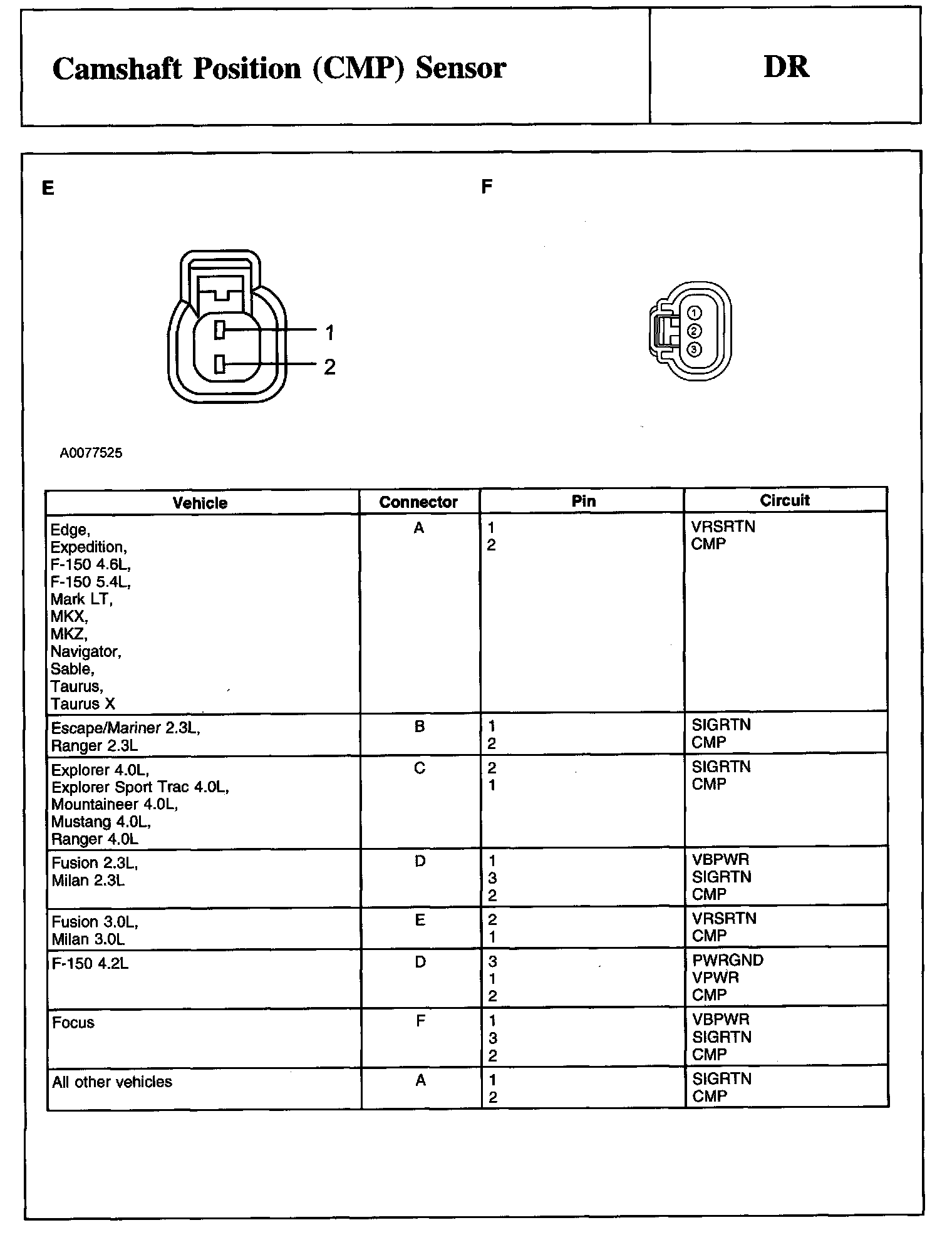

Camshaft Position (CMP) Sensor Connector Continued:

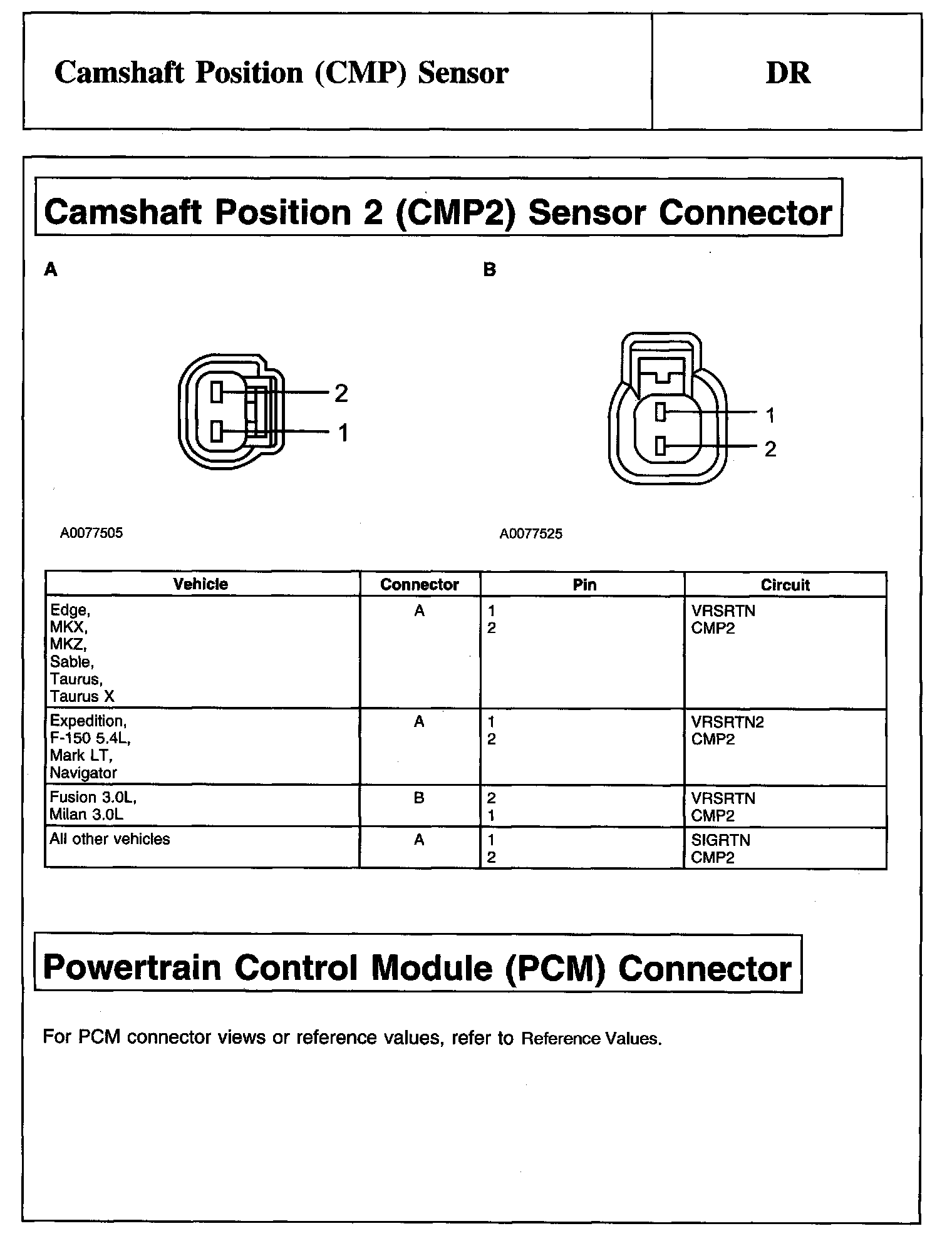

Camshaft Position 2 (CMP2) Sensor Connector And Powertrain Control Module (PCM) Connector:

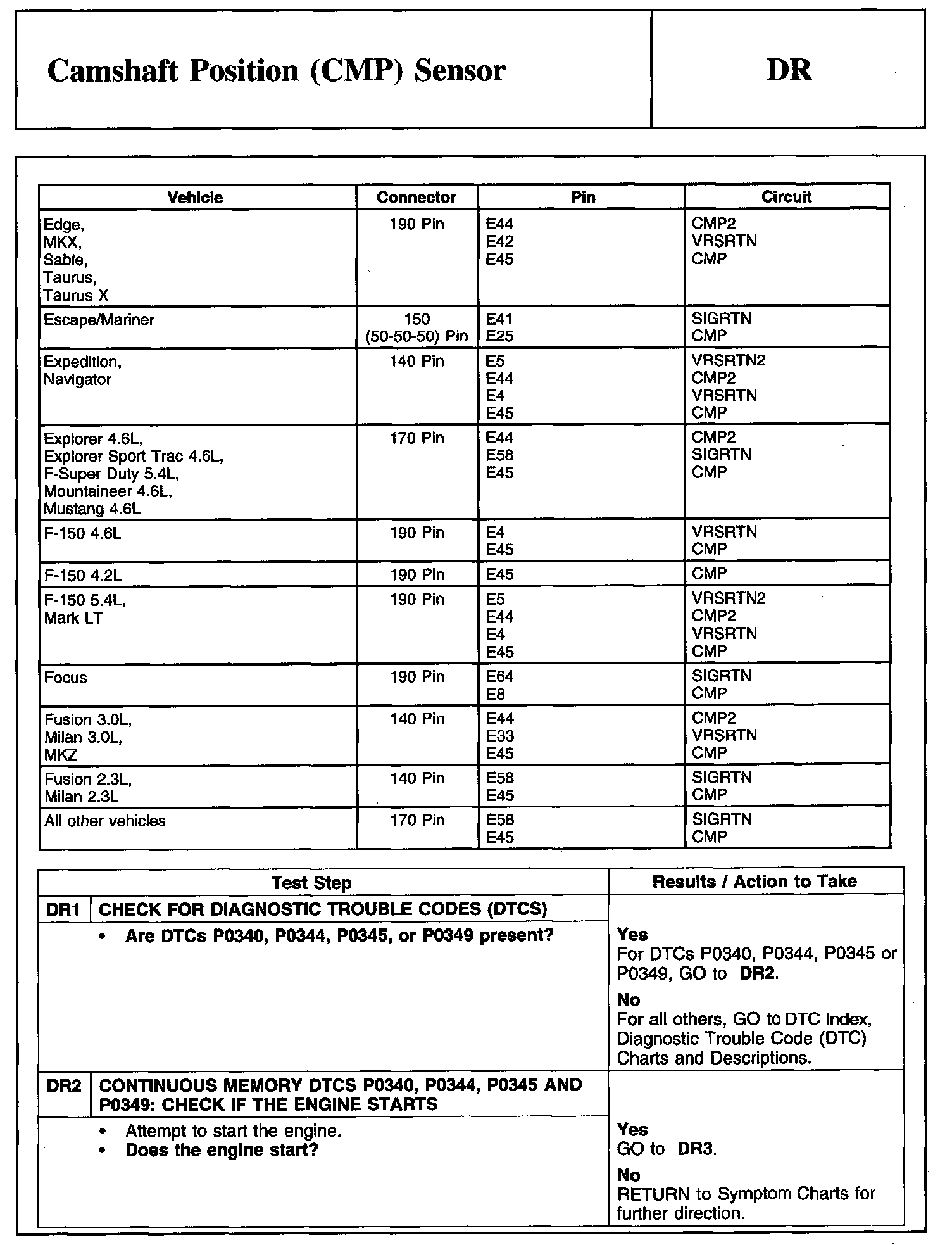

DR1-DR2:

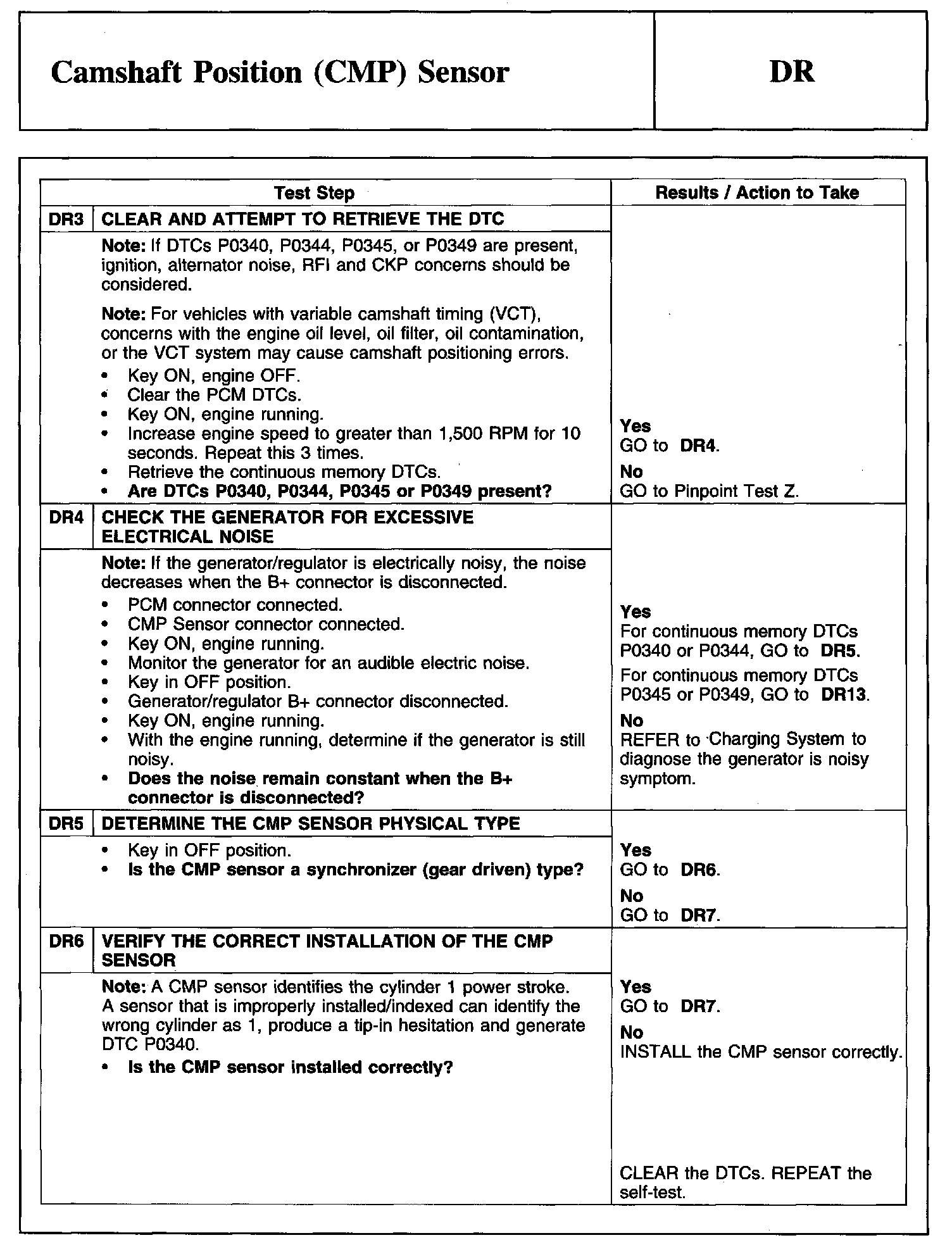

DR3-DR6:

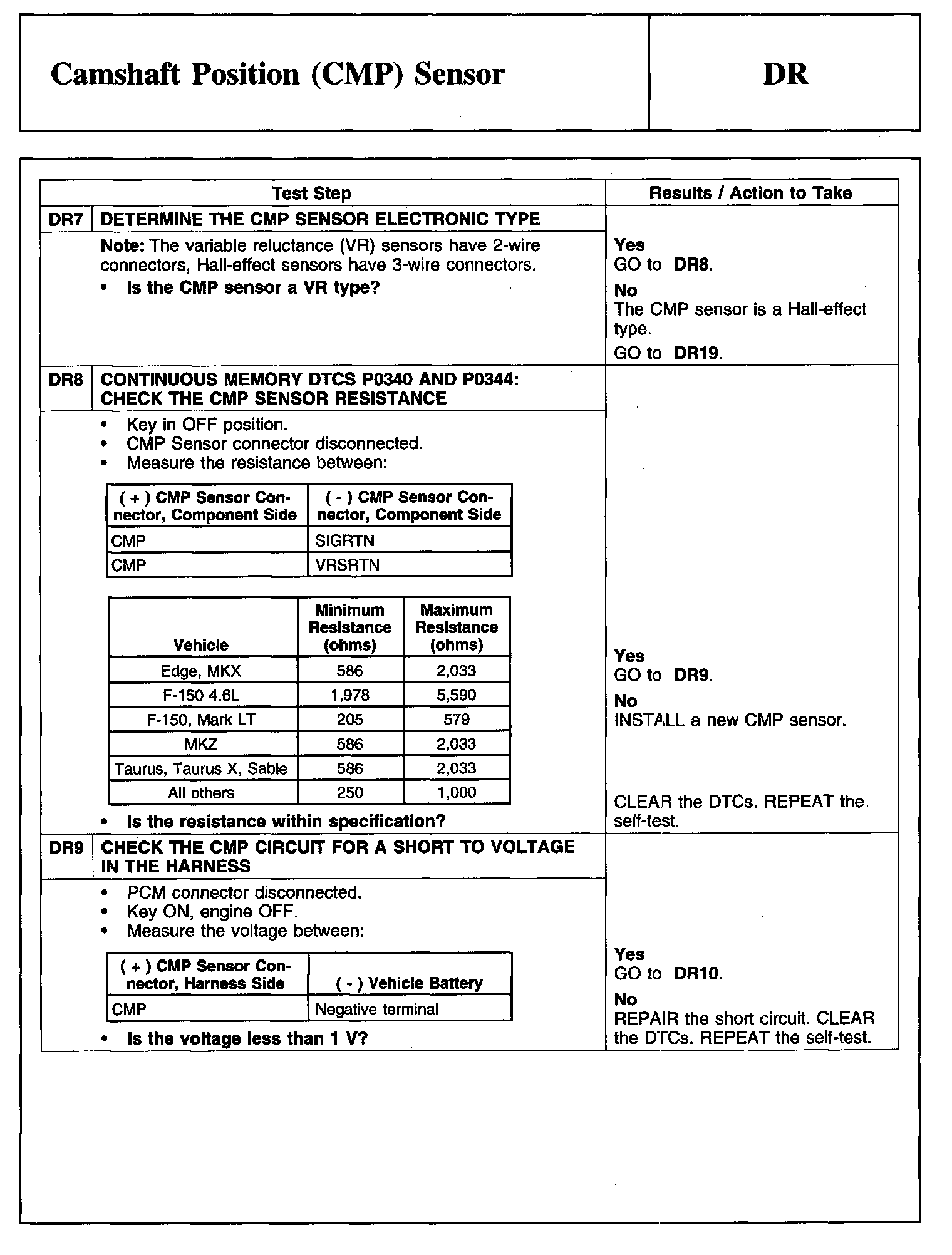

DR7-DR9:

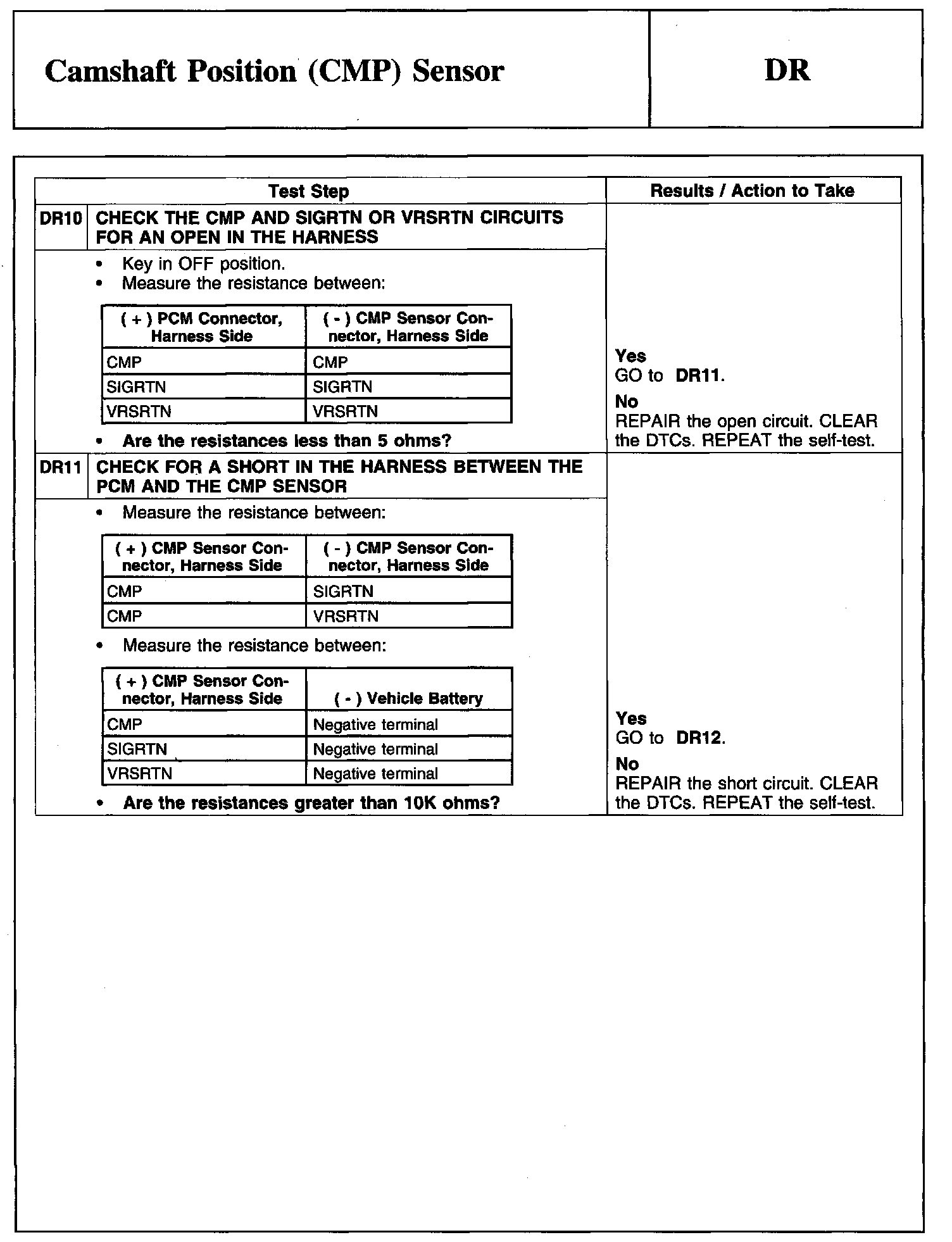

DR10-DR11:

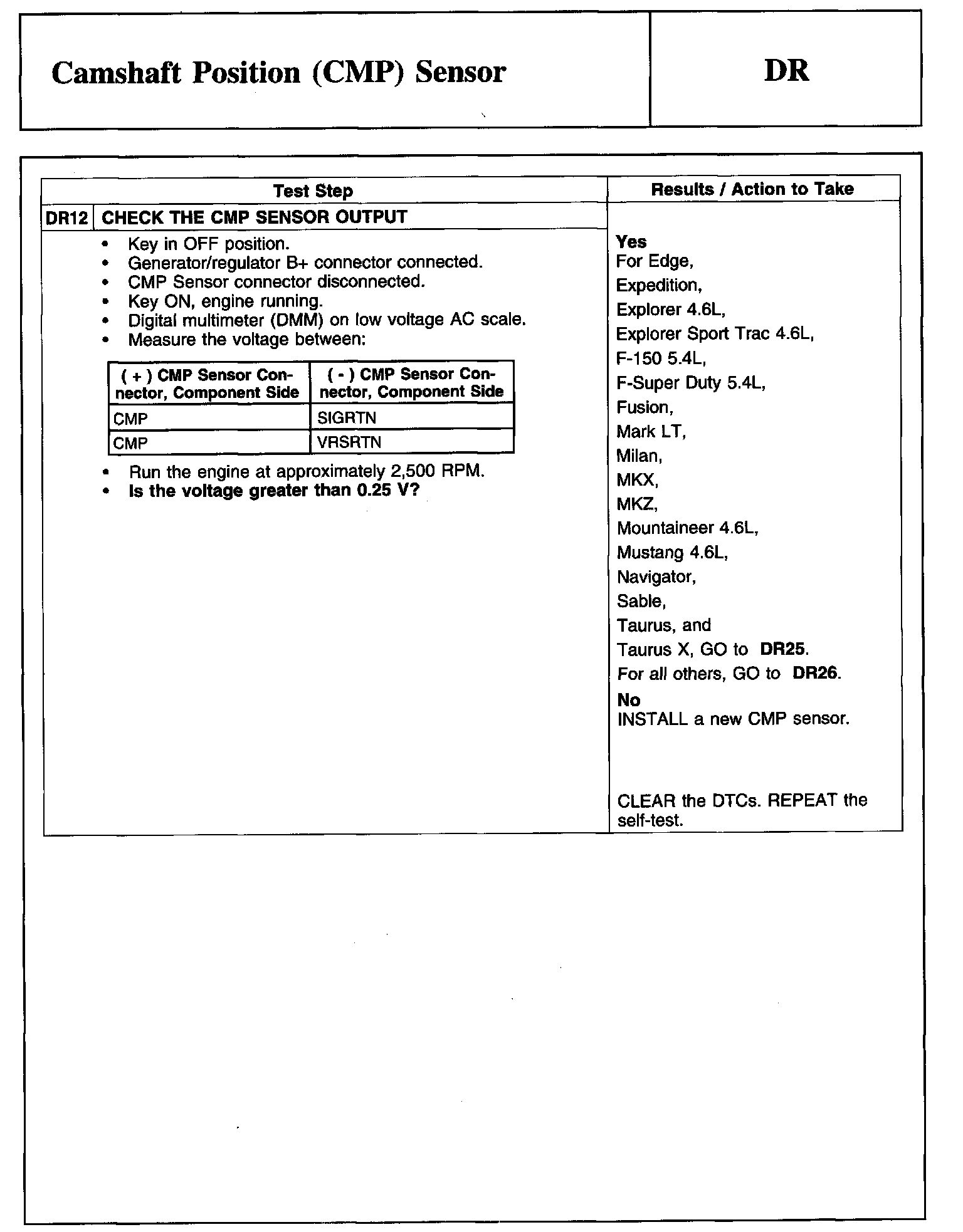

DR12:

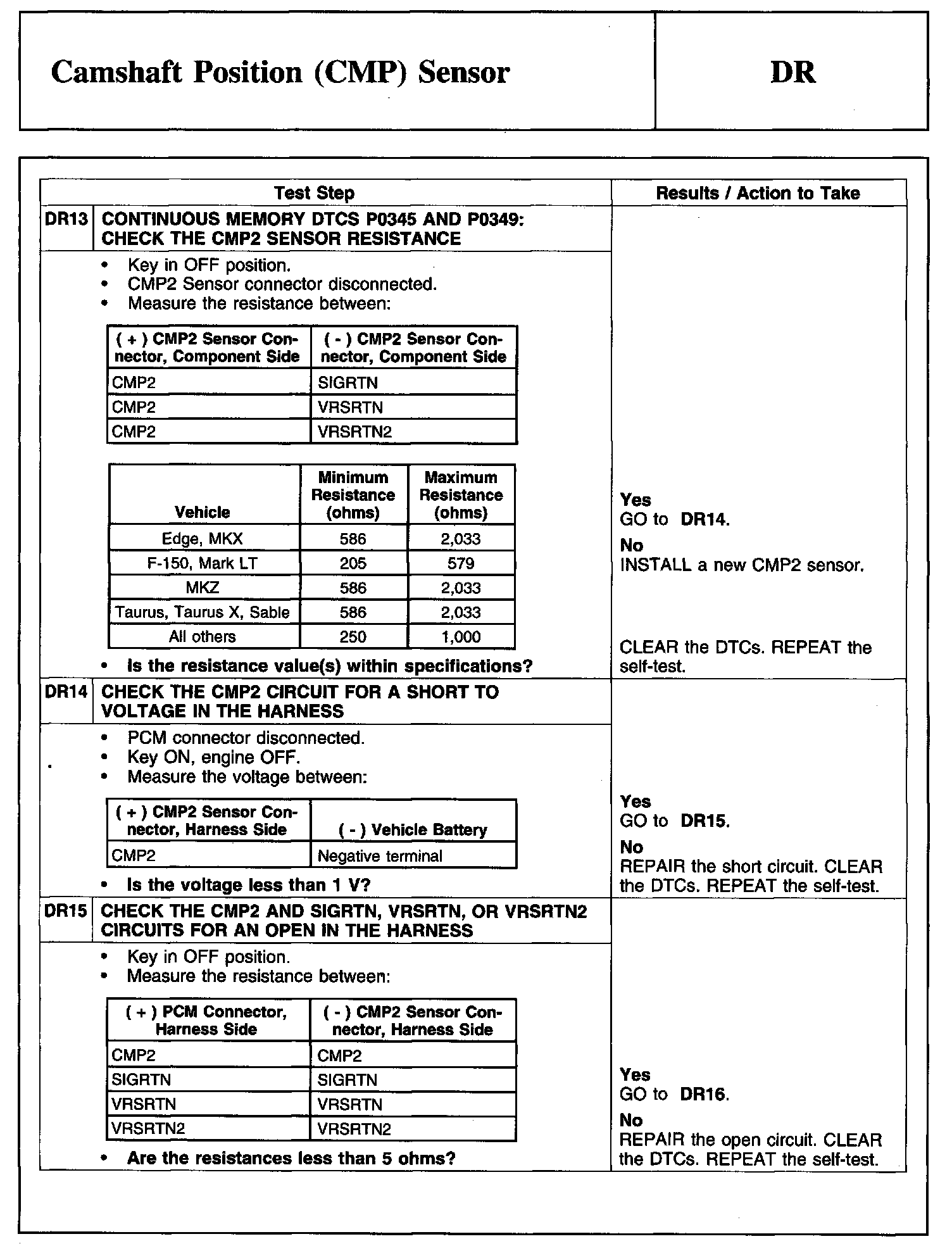

DR13-DR15:

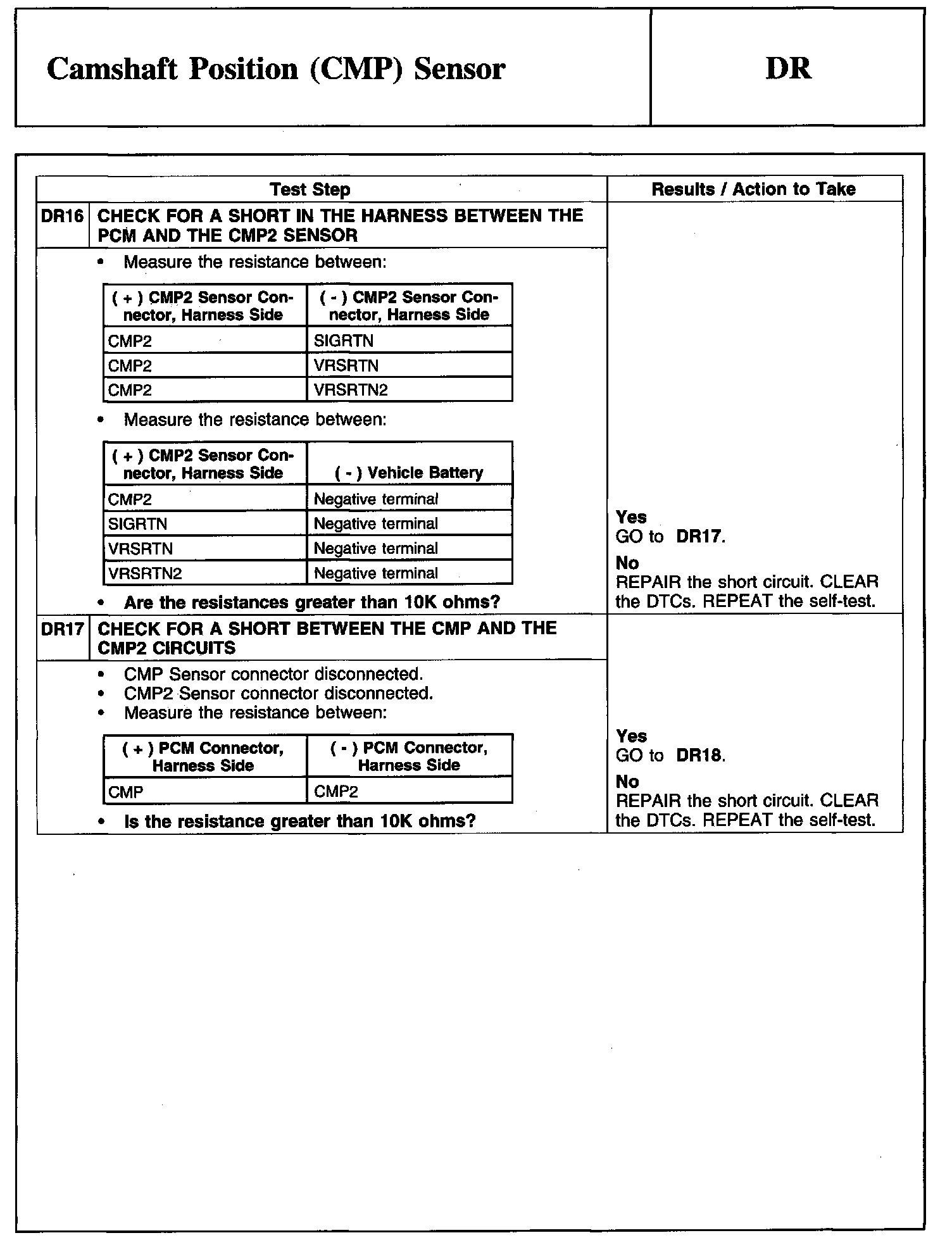

DR16-DR17:

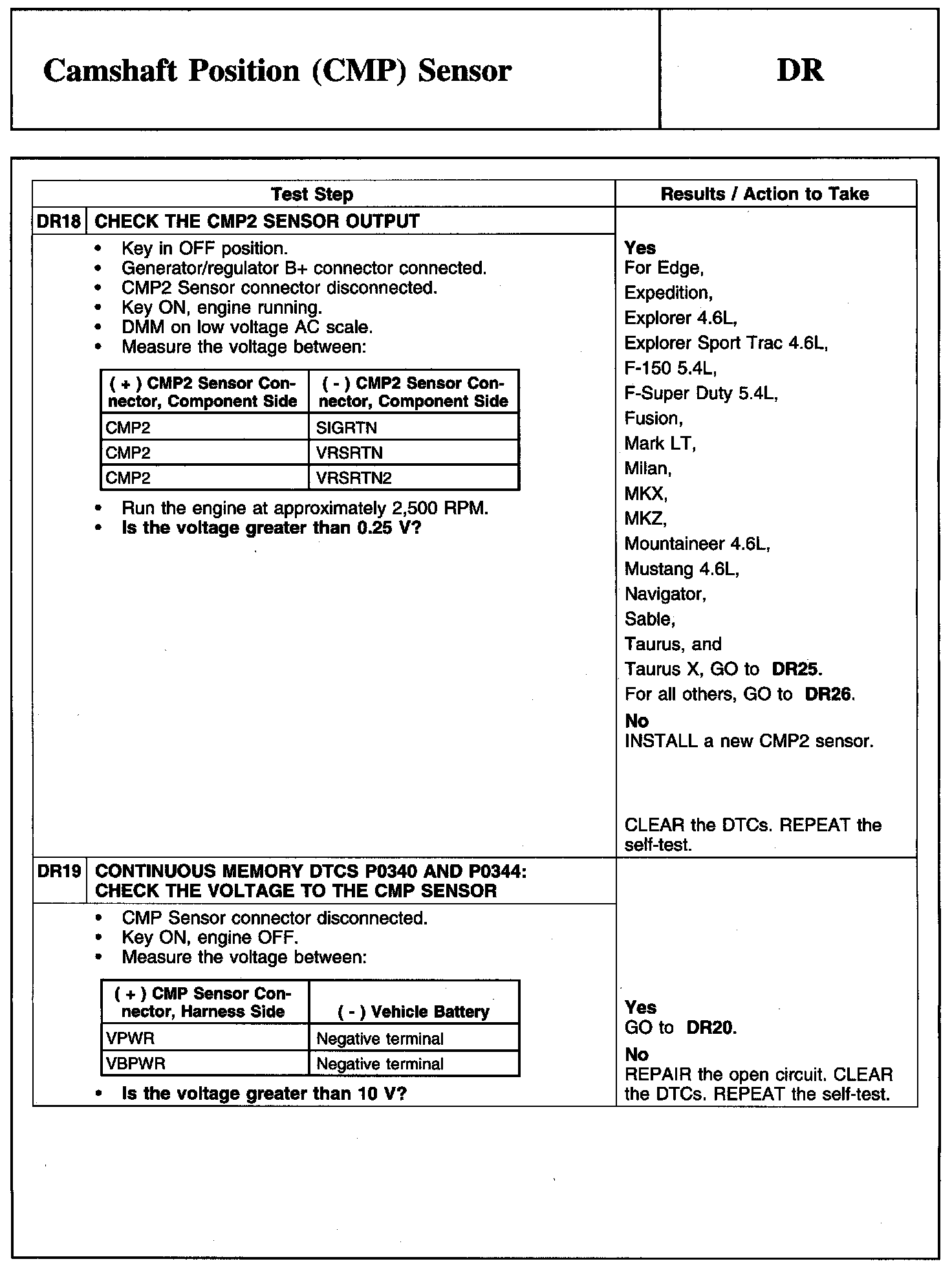

DR18-DR19:

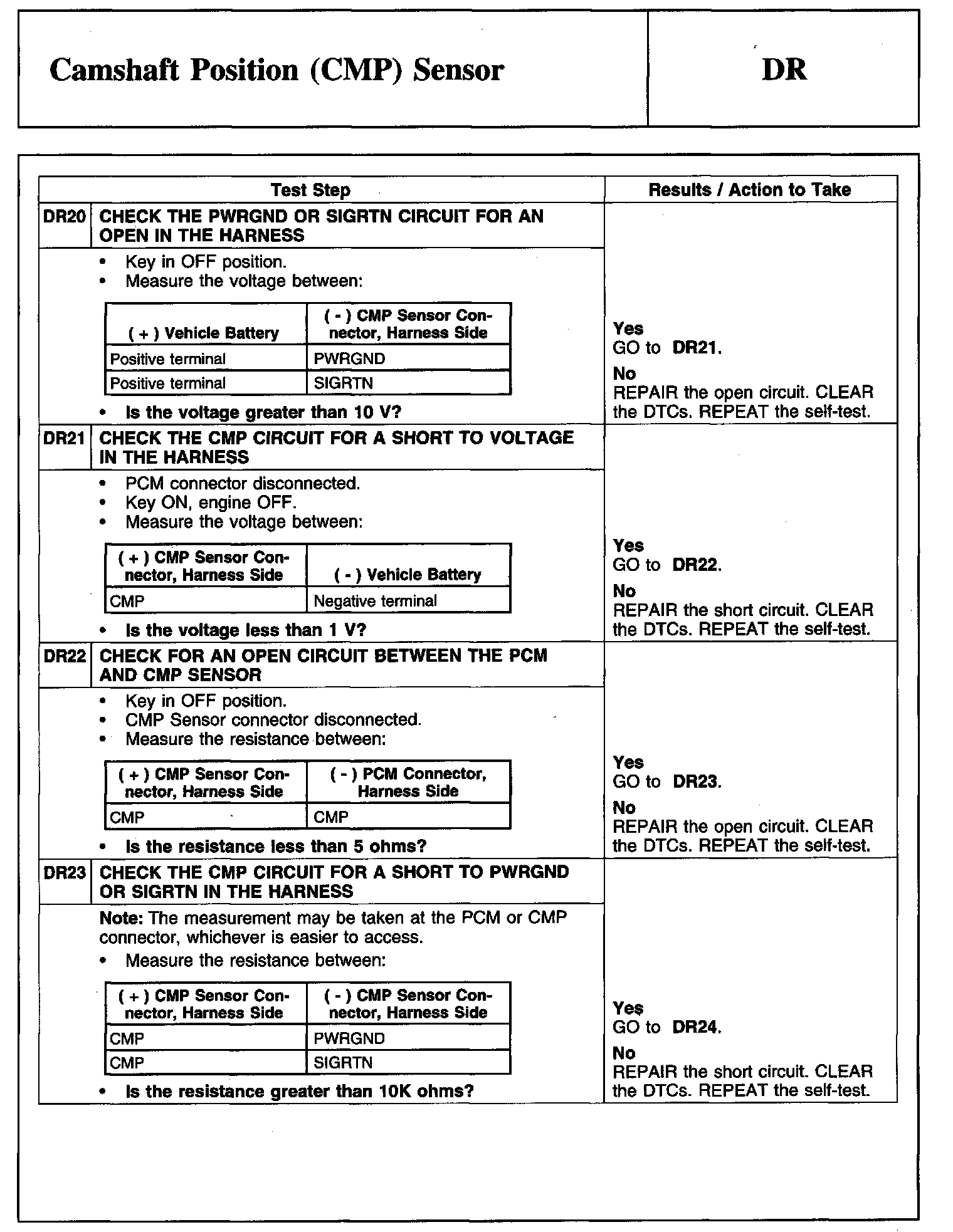

DR20-DR23:

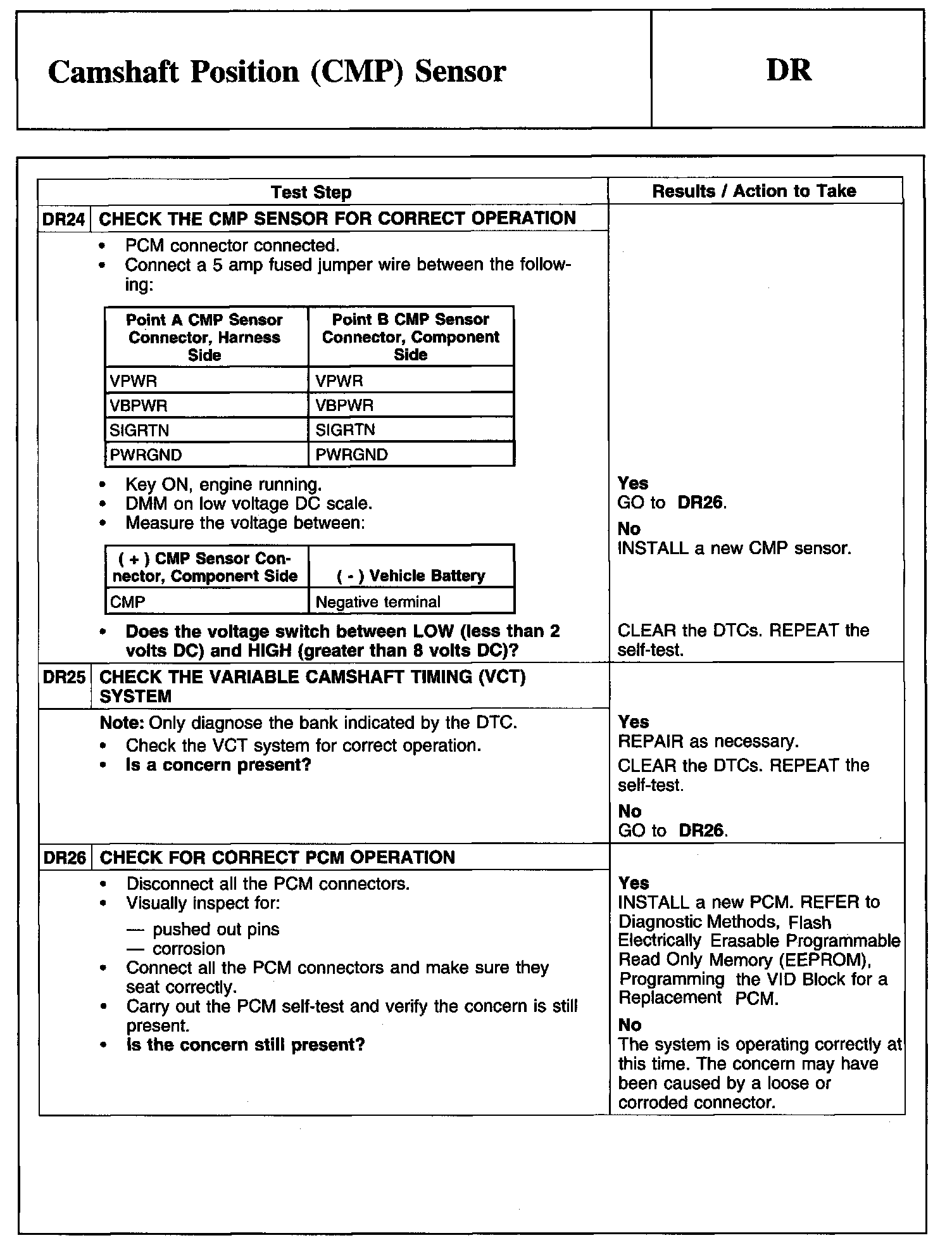

DR24-DR26:
