Tests FD: Brake Pedal Inputs

PINPOINT TEST FD: BRAKE PEDAL INPUTS

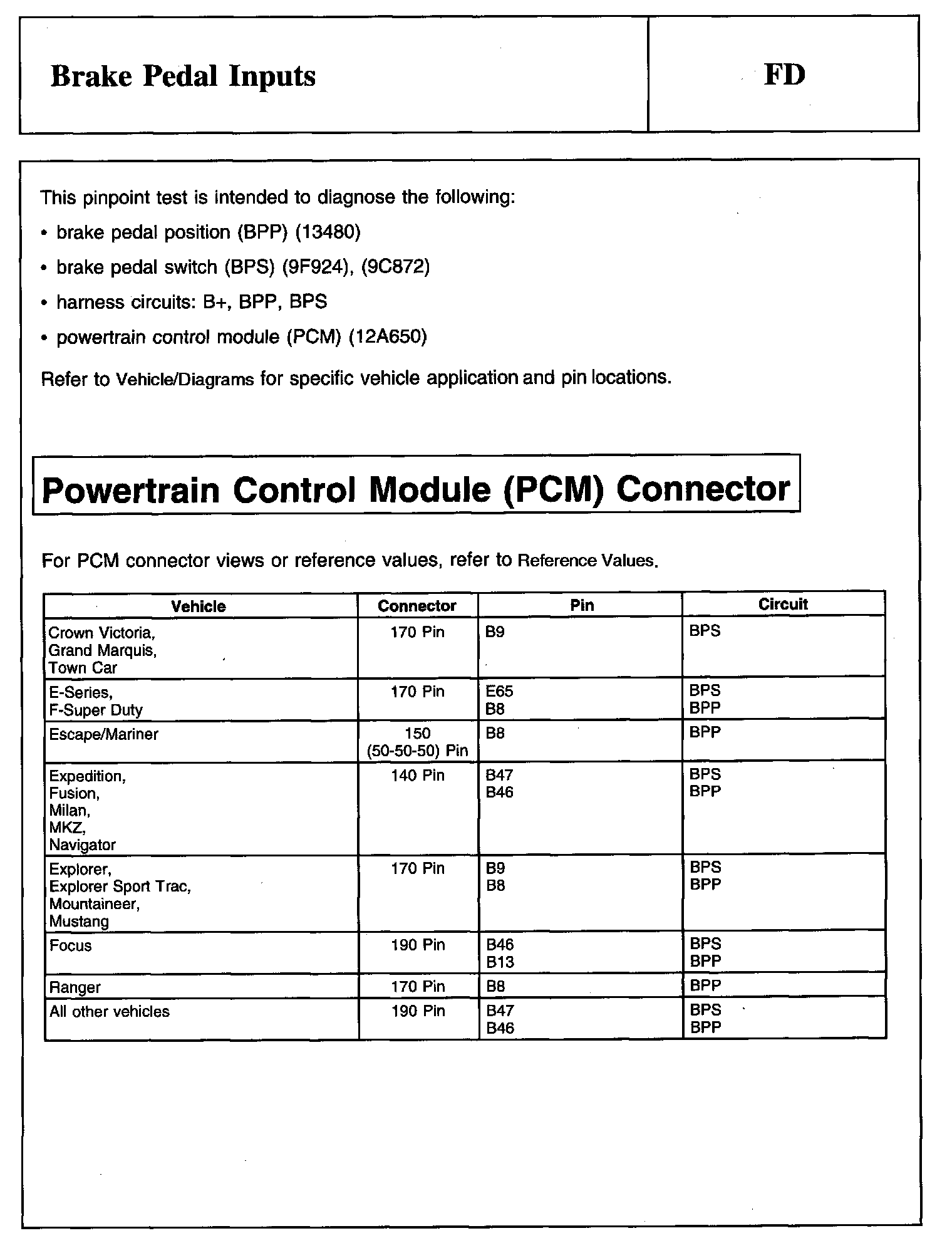

Description And Powertrain Control Module (PCM) Connector:

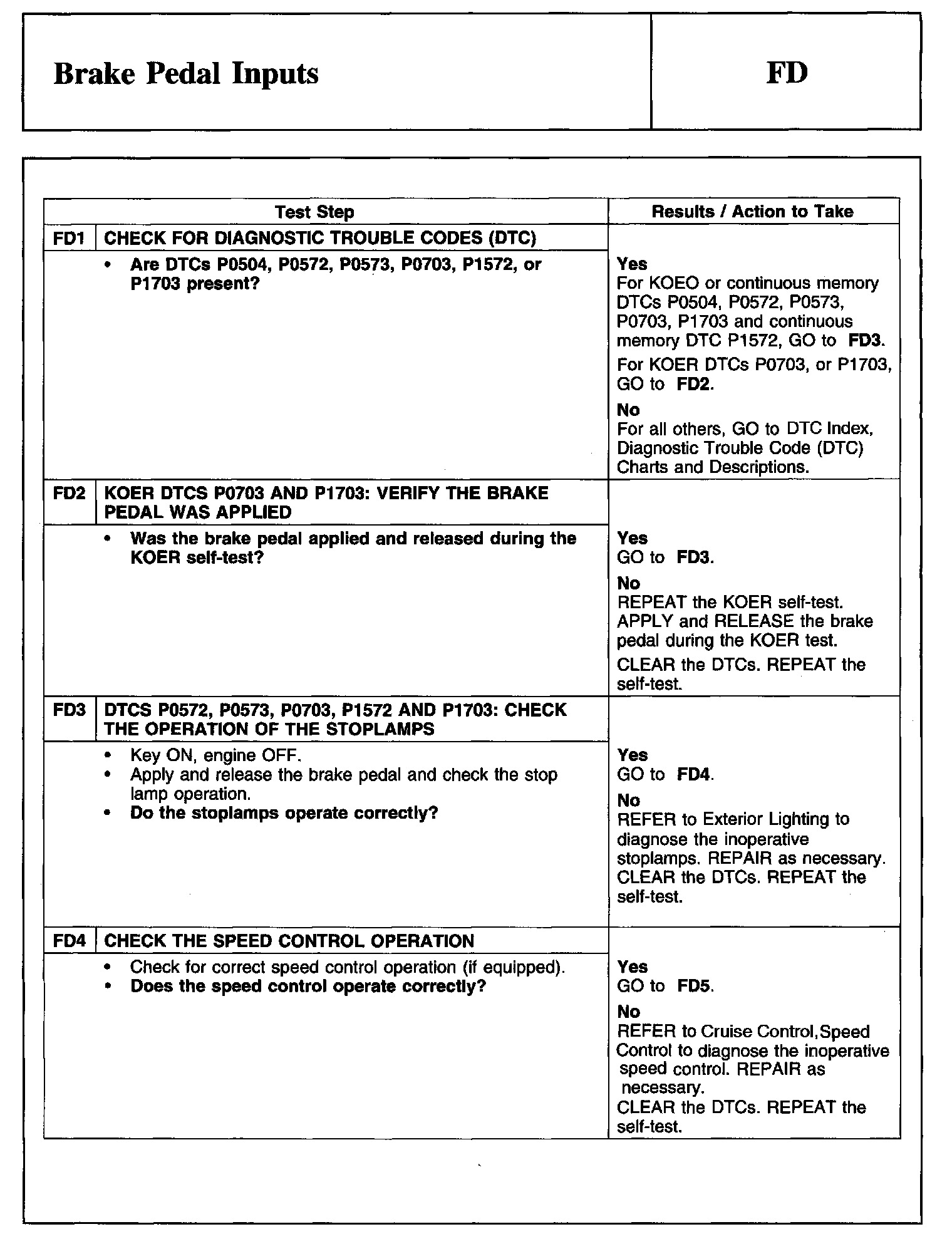

FD1-FD4:

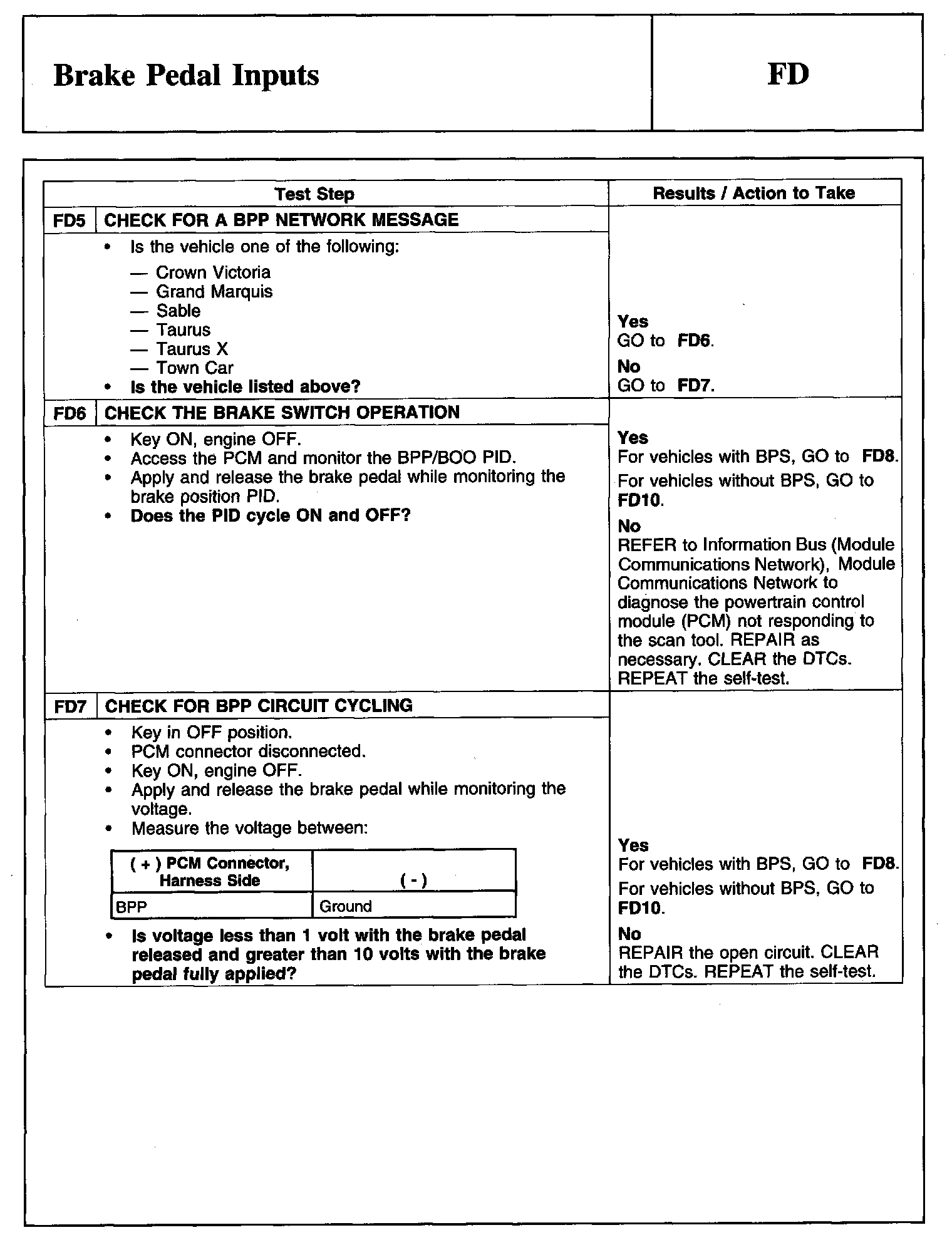

FD5-FD7:

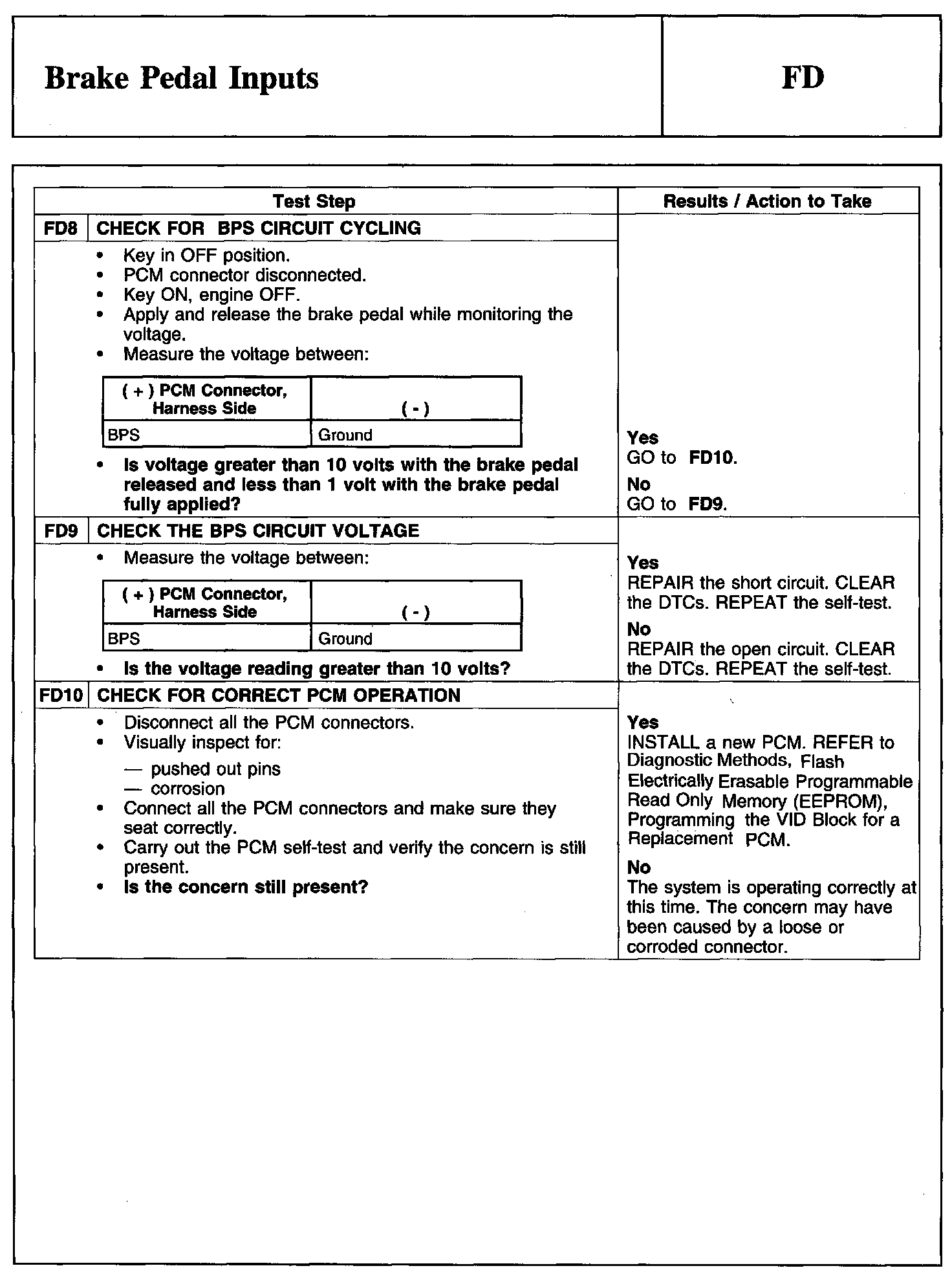

FD8-FD10:
